Cambro

Cambro Ultra Camcart® UPCHBD1600192 Heated Replacement Retrofit Bottom Door for UPCH1600 Series, 110V, Granite Green

SKU: UPCHBD1600192 GTIN: 099511246694
$1,458.00
/each
Free shipping eligible
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Storage, Transport & Shelving Commercial Shelving Racks & Storage Systems Carts & Mobile Transport Dollies & Hand Trucks Insulated Food & Beverage Transport Secure Storage

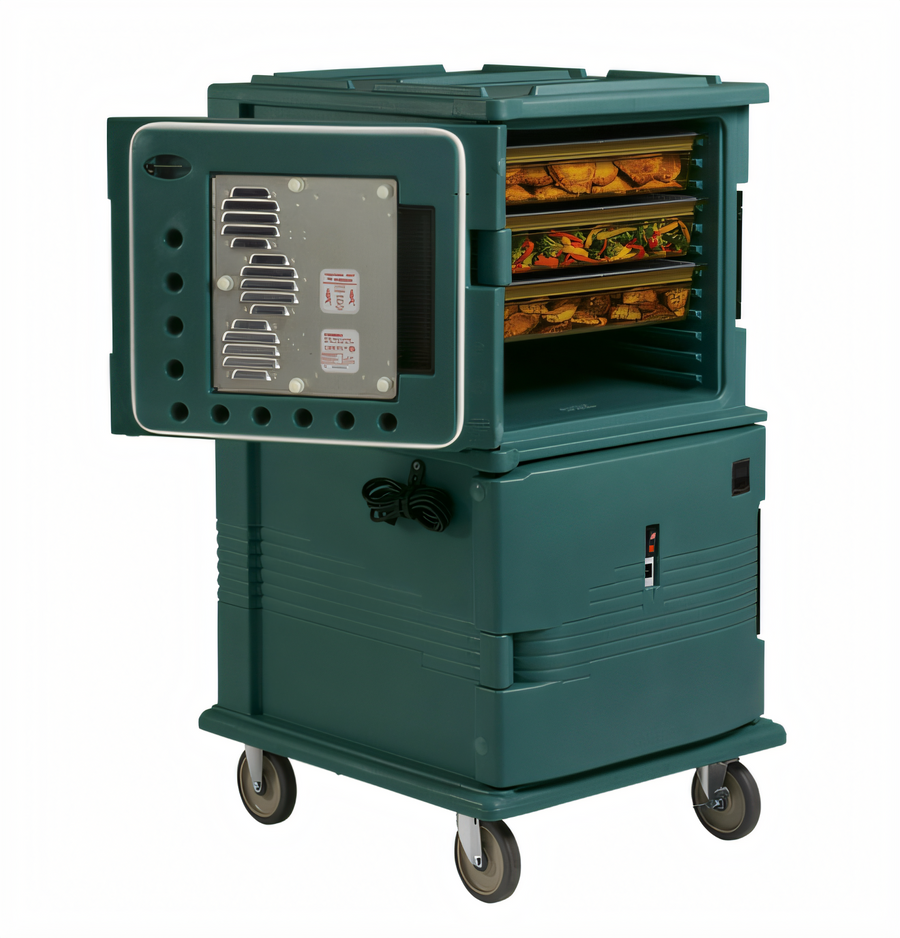

Cambro Ultra Camcart Heated Replacement Retrofit Bottom Door for UPCH1600 Series, 110V, Granite Green

Replacement Part for Ultra Camcart Heated Food Pan Carrier

Keep your UPCH1600 cart ready for reliable hot holding with a heated 110V retrofit bottom door designed for easy temperature control and transport use.

  • Replacement retrofit bottom door for Cambro Ultra Camcart UPCH1600 series units.
  • 110V heated door with built-in thermometer and power/heater indicator lights.
  • Helps maintain safe hot-holding temperatures during transport and service.
  • Durable polyethylene construction in Granite Green with foam-injected insulation.
  • 240° side-opening door supports easier loading and unloading.
  • 9-foot removable power cord stores neatly on the cart.
  • Top and bottom retrofit doors are not interchangeable.

Overall Dimensions:

26.31"W x 4.25"D x 21.13"H

Product Weight:

28.44 lb

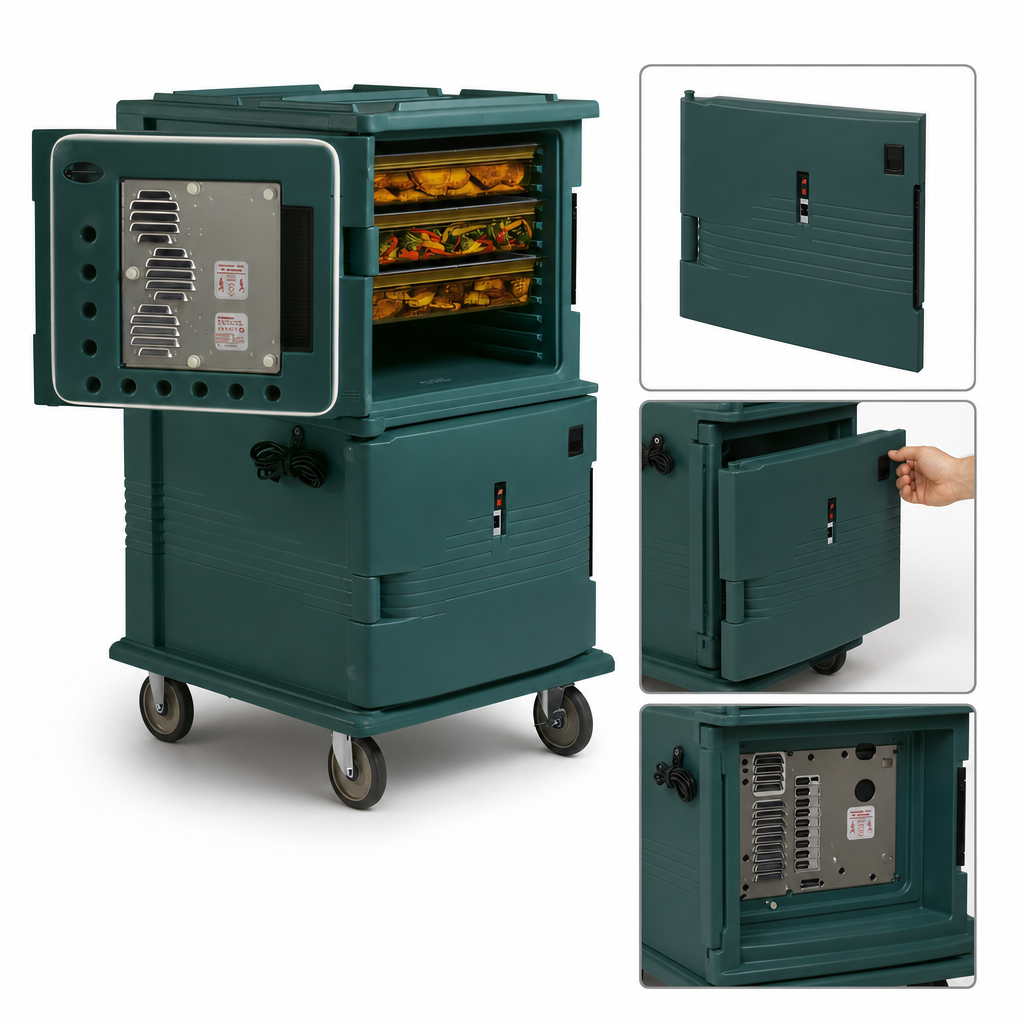

Replacement Retrofit Bottom Door

Designed as a heated retrofit bottom door for the UPCH1600 series Ultra Camcart.

Replacement Retrofit Bottom Door

110V Heated Door

Electric heated door model for 100-125 VAC operation.

Built-In Digital Thermometer

Temperature display is built into the door for quick at-a-glance monitoring.

Power and Heater Indicator Lights

Outside-mounted indicators show when power is on and when the heater is operating.

240° Side-Opening Door

Door opens wide to the side for easier loading, unloading, and access.

Removable 9-Foot Power Cord

Includes a removable cord that can be stored on the cart's cord strap.

Durable Insulated Construction

Polyethylene exterior with foam-injected polyurethane insulation helps retain temperature.

Granite Green Finish

Color-matched Granite Green exterior for the 192 series.

Bottom Door Only

Replacement top and bottom retrofit doors are not interchangeable.

Type Replacement Retrofit Bottom Door
Style Heated
Color Granite Green
Material Polyethylene
Voltage 110 Volts AC
Amps 4.6 Amps
Watts 529 Watts
Hertz 50/60 Hz
Plug Type 5-15P to C15RA
Cord Length 9 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Width 27 Inches
Depth 5 Inches
Height 22 Inches
Weight 28.44 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is the heated replacement/retrofit bottom door for UPCH1600 series Ultra Camcart units.
Yes. This model is the 110V version and operates on 100-125 VAC.
Yes. It includes a built-in digital thermometer and power/heater indicator lights.
No. The top and bottom replacement/retrofit doors are not interchangeable.
The door includes a removable 9-foot power cord.
The 110V model uses a 5-15P to C15RA plug.
