Cambro Ultra Camcart H-Series Heated Replacement Retrofit Bottom Door for UPCH1600 Series, 110V, Granite Gray

For UPCH1600 Series, 110V, Granite Gray

Keep your Ultra Camcart in service with a factory heated bottom door built for reliable hot-holding performance and fast retrofit replacement.

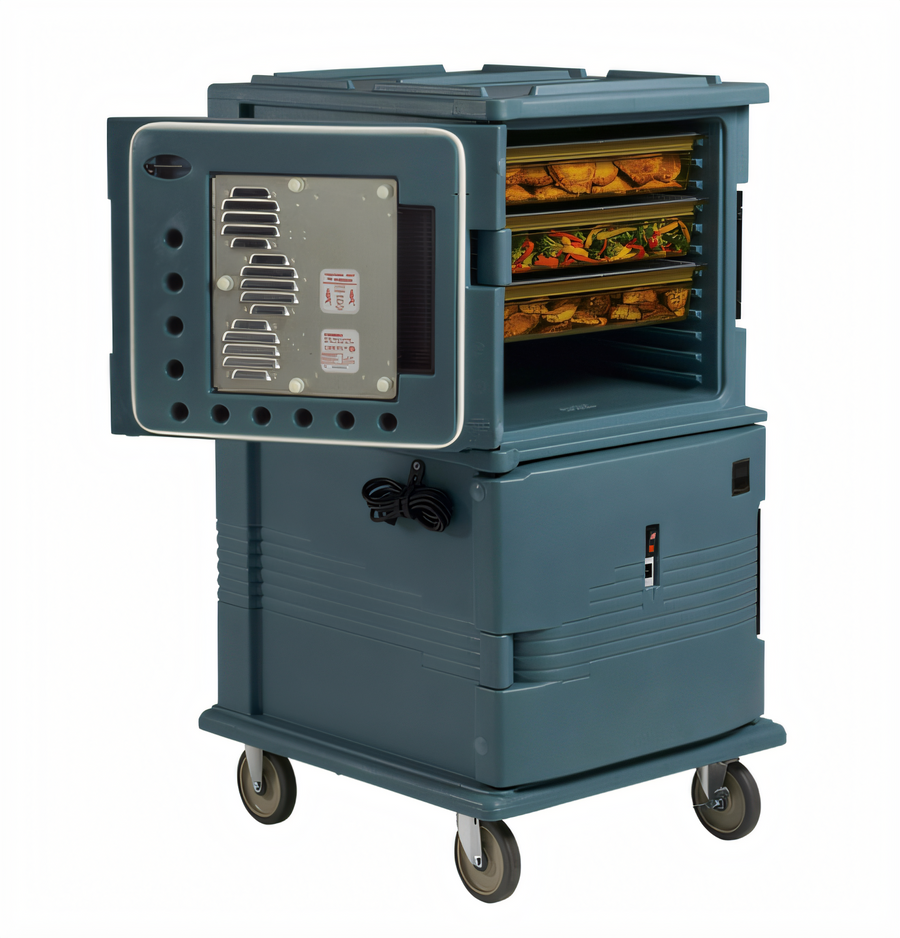

  • Heated replacement/retrofit bottom door for UPCH1600 series Ultra Camcart food pan carriers.
  • 110V electric version with built-in heating components for hot food holding.
  • Maintains a 150 to 165 Degrees F temperature range for safe transport and service.
  • Includes a 9-foot removable power cord with a 5-15P to C15RA plug.
  • Granite Gray finish matches the Ultra Camcart color line.
  • NSF listed and made in USA.
  • Top and bottom replacement doors are not interchangeable.

Overall Dimensions:

26.31"W x 4.25"D x 21.13"H

Product Weight:

28.44 lb

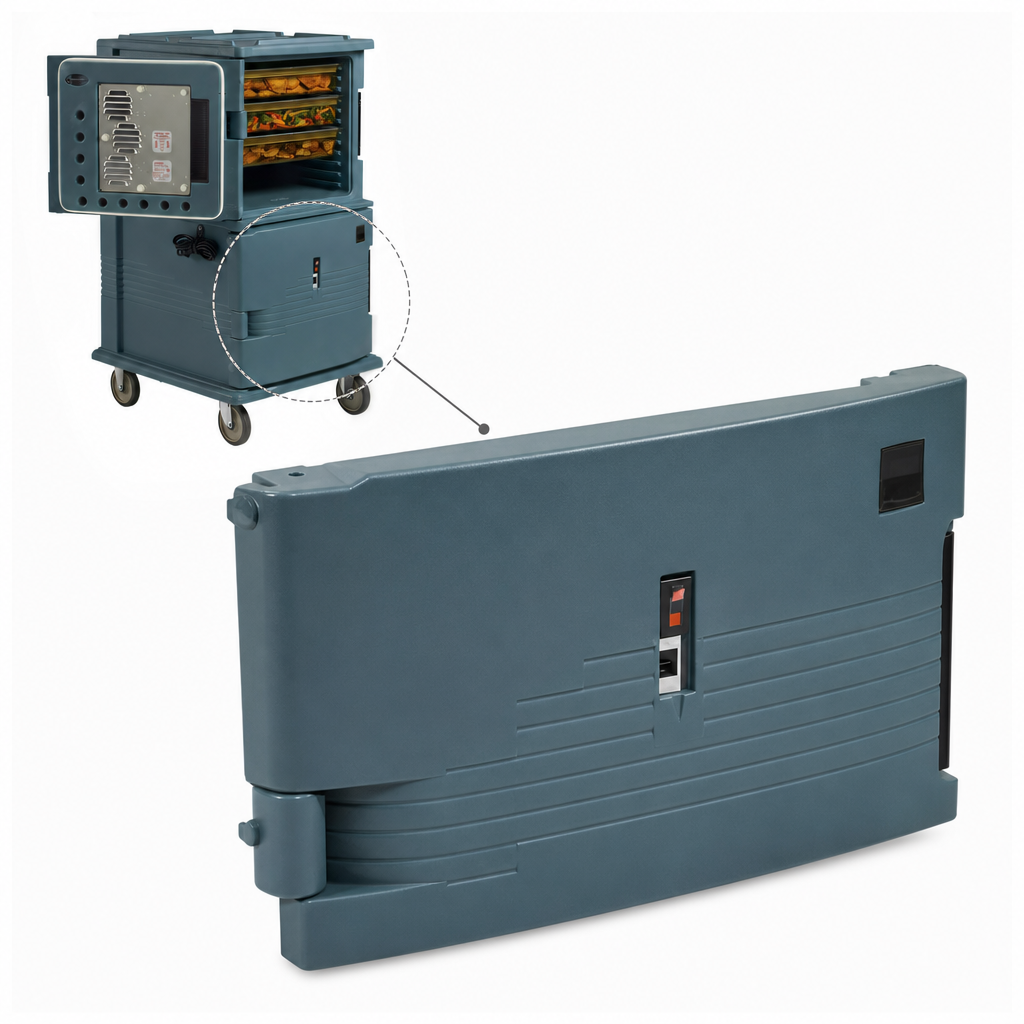

Replacement Retrofit Part

Designed as a heated bottom door replacement for UPCH1600 series Ultra Camcart and UPC1600 retrofit applications.

Heated Door Assembly

The door includes a non-corrosive heating unit to support hot food holding during transport and service.

Digital Temperature Display

A built-in digital thermometer lets operators check the compartment temperature at a glance.

Power Status Indicators

Power On and Heater On indicator lights make operation easy to monitor.

Electrical Configuration

110V model with 4.6 amps, 529 watts, 50/60 Hz operation, a 5-15P to C15RA plug, and a 9-foot removable cord.

Hot-Holding Performance

Supports a 150 to 165 Degrees F holding range and is designed to recover temperature quickly after the door is opened.

Finish And Compliance

Granite Gray color; NSF listed and made in USA.

Compatibility Note

UPCH1600 top and bottom replacement/retrofit doors are not interchangeable.

Type Replacement Retrofit Bottom Door
Style Heated
Temperature Range 150 to 165 Degrees F
Voltage 110 Volts
Amps 4.6 Amps
Watts 529 Watts
Hertz 50/60 Hz
Plug Type 5-15P to C15RA
Cord Length 9 Feet
Material Polyethylene
Color Granite Gray
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 5 Inches
Shipping Height 22 Inches
Shipping Weight 28.44 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is a heated replacement/retrofit bottom door for UPCH1600 series Ultra Camcart heated food pan carriers and UPC1600 retrofit applications.
This is the 110V version.
No. The UPCH1600 top and bottom replacement/retrofit doors are not interchangeable.
Granite Gray (191).
It uses a 5-15P to C15RA plug and includes a 9-foot removable power cord.
Yes. The product is NSF listed and made in USA.
