Play manufacturer video for Cambro Ultra Camcart® UPCHBD1600131 Heated Replacement Retrofit Bottom Door for UPCH1600 Series Carts, 110V, Dark BrownCambro Ultra Camcart® UPCHBD1600131 Heated Replacement Retrofit Bottom Door for UPCH1600 Series Carts, 110V, Dark Brown
SKU: UPCHBD1600131
$1,458.00
/each
Free shipping eligible
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
Cambro Ultra Camcart UPCH1600 Series Heated Replacement Retrofit Bottom Door, 110V, Dark Brown
Replacement part for UPCH1600 series carts; 110V heated bottom door in Dark Brown.
Replace or retrofit a compatible Ultra Camcart with a heated 110V bottom door built for reliable hot-food holding.
- Heated replacement/retrofit bottom door for UPCH1600 series Ultra Camcart heated food pan carriers.
- 110V electrical model for standard low-voltage operation.
- Dark Brown color matches Cambro color code 131.
- Can retrofit the non-electric UPC1600 with minimal assembly.
- Top and bottom replacement/retrofit doors are not interchangeable.
- Overall size is 26 5/16 Inches W x 4 1/4 Inches D x 21 1/8 Inches H.
Overall Dimensions:
26.31"W x 4.25"D x 21.13"HProduct Weight:

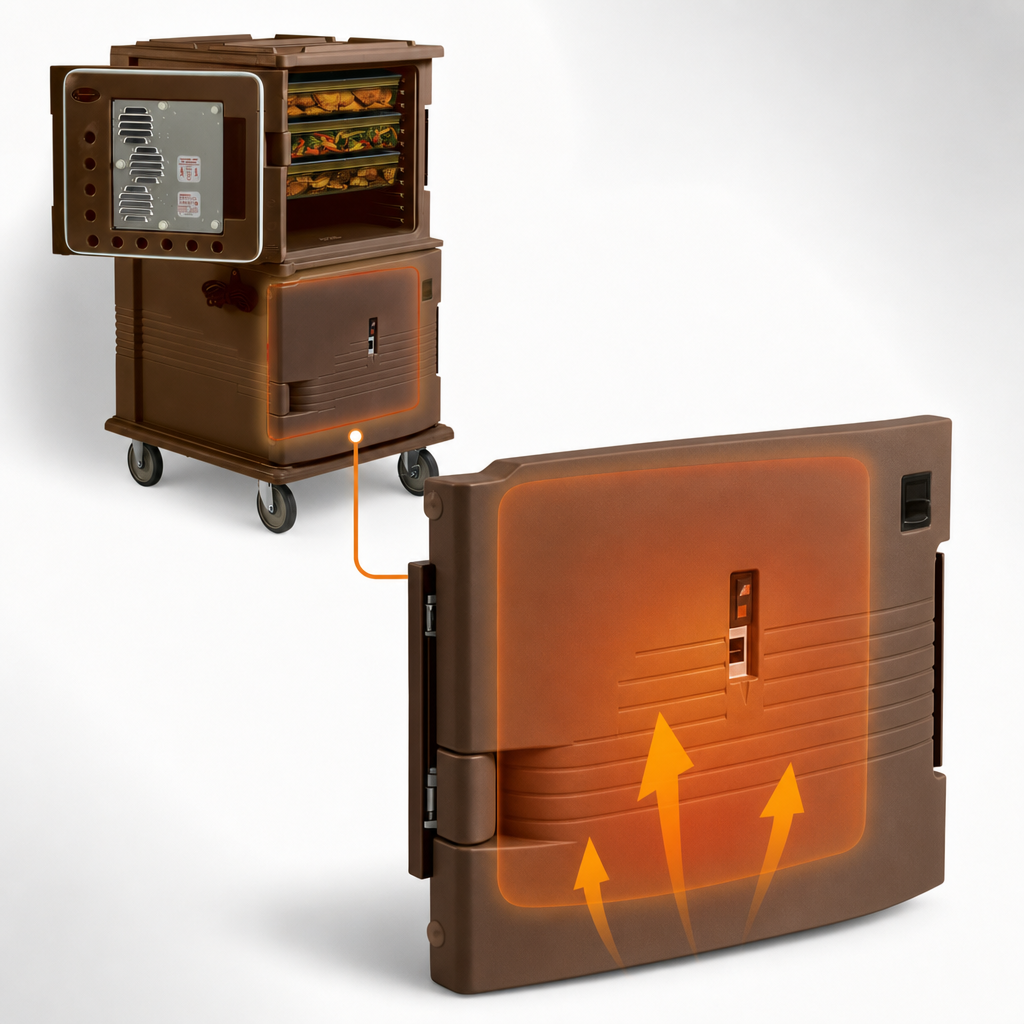

28.44 lbHeated Bottom Door
Replacement/retrofit door assembly for compatible UPCH1600 series carts.
110V Configuration
Designed for 100-125 VAC electrical service.
Retrofit Ready
The non-electric UPC1600 cart can be retrofitted with this heated door with minimal assembly.
Dark Brown Color
Color code 131 provides a coordinated appearance with other Ultra Camcart components.
Non-Interchangeable Door Position
The UPCH top and bottom replacement/retrofit doors are not interchangeable.
Type
Replacement Retrofit Bottom Door
Style
Heated
Voltage
110 Volts
Amps
4.6 Amps
Watts
529 Watts
Hertz
50/60 Hz
Plug Type
5-15P to C15RA
Cord Length
9 Feet
Color
Dark Brown
Country of Origin
USA
Selling Unit
Each
Units Per Case
1
Width
27 Inches
Depth
5 Inches
Height
22 Inches
Weight
28.44 lb.
Certifications & Compliance
Documents
Frequently Asked Questions
It is the heated replacement/retrofit bottom door for UPCH1600 series Ultra Camcart units, and the non-electric UPC1600 can be retrofitted with it.
This is the 110V model; UPCHBD16002 is the 220V version.
No. The document states that the top and bottom replacement/retrofit doors are not interchangeable.
Dark Brown.
26 5/16 Inches W x 4 1/4 Inches D x 21 1/8 Inches H.
