BUNN 52400.0100 Coffee Brewers
Description

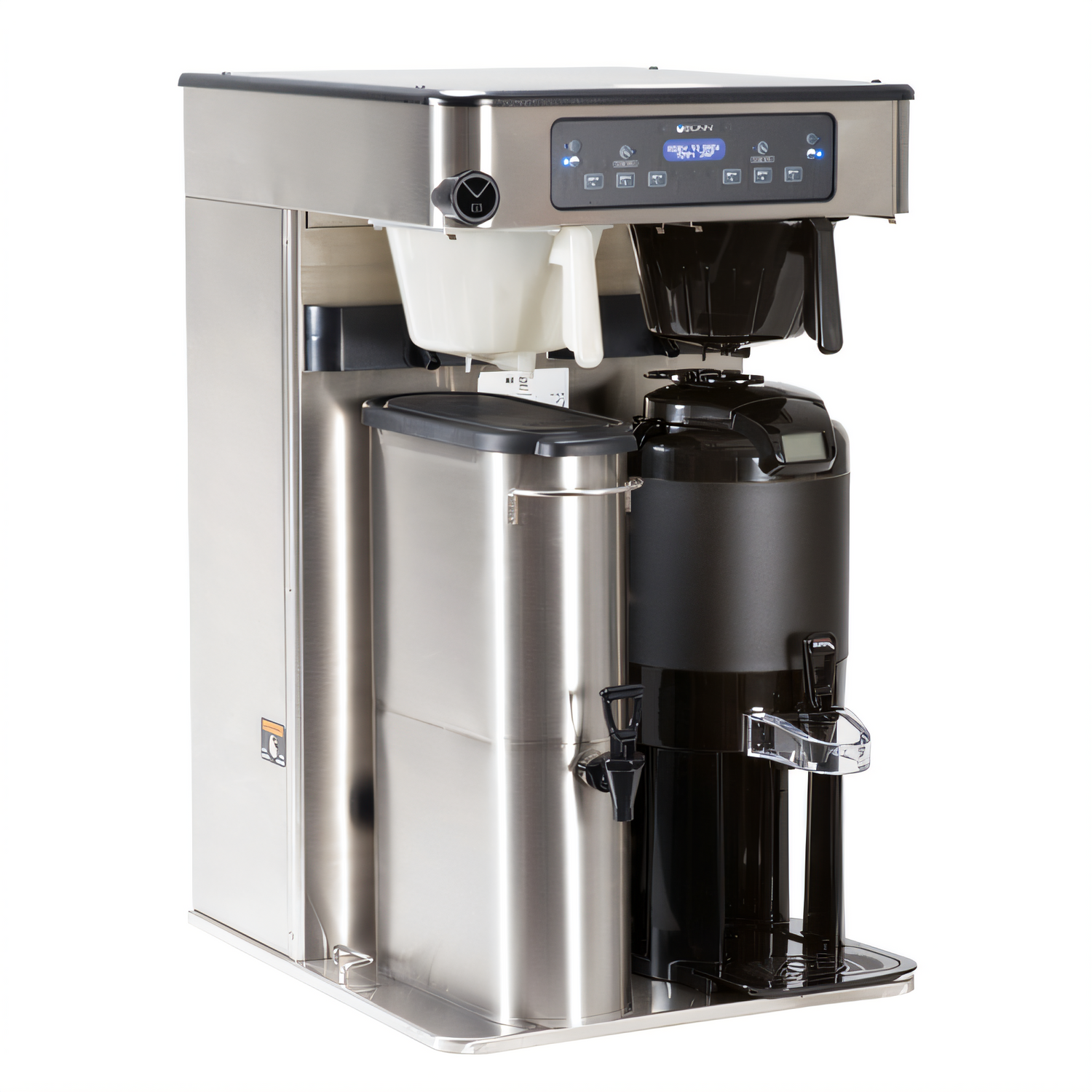

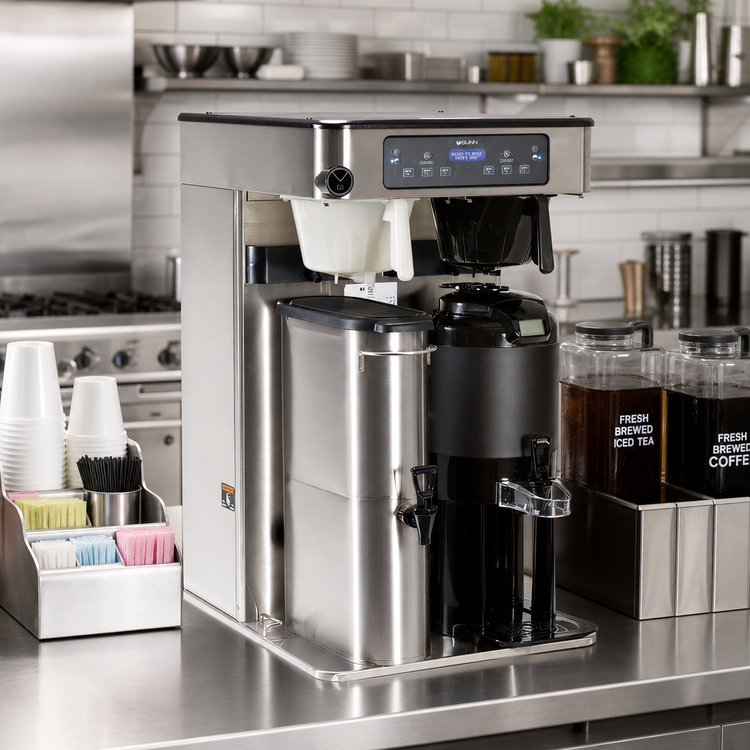

BUNN ITCB Twin HV High-Volume Coffee & Tea Brewer
Model 52400.0100 • 120/240 V PlumbedBrew up to 672 cups per hour of fresh coffee, iced coffee, or iced tea from a single, space-saving footprint. With independent twin brewers, BUNN’s Infusion Series technology, and a generous 5.6-gallon hot-water tank, the ITCB Twin HV is engineered for non-stop performance in high-traffic cafés, restaurants, c-stores, and banquet operations.
Key Features

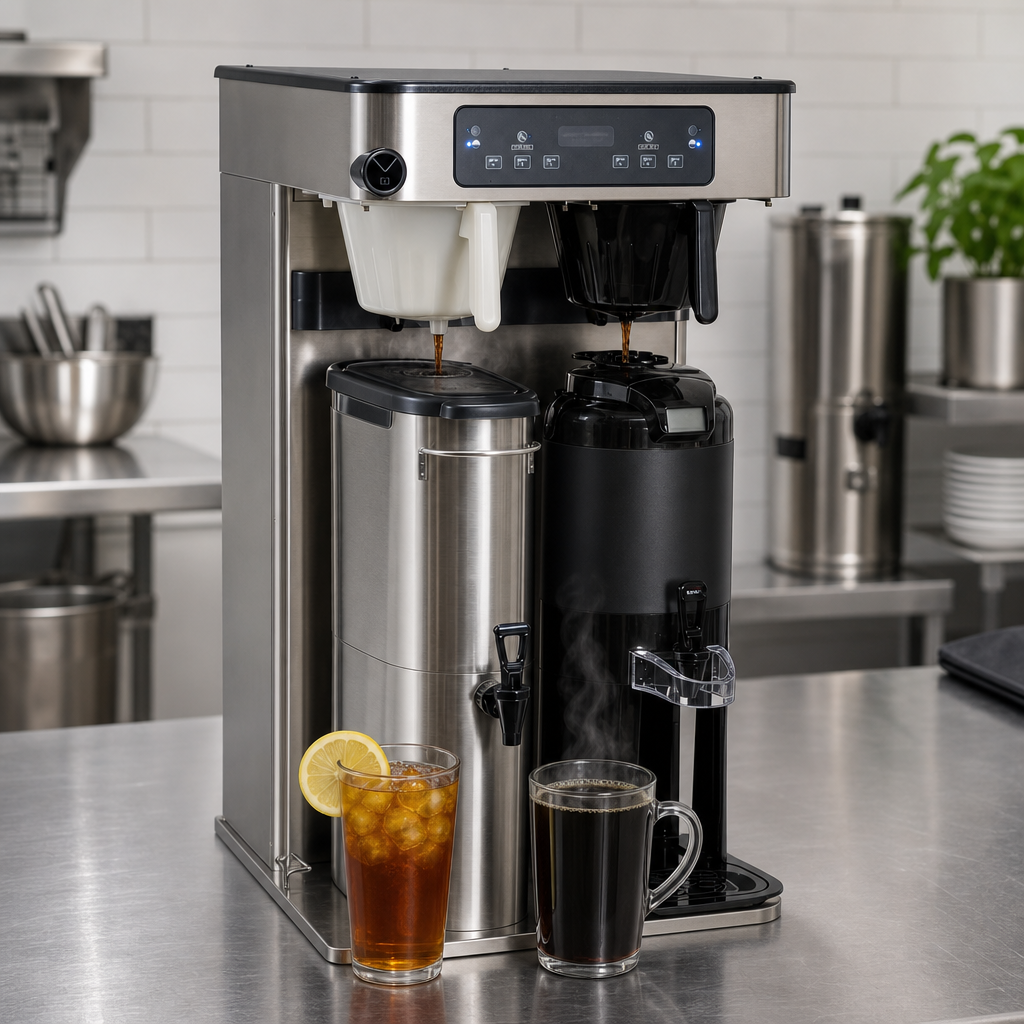

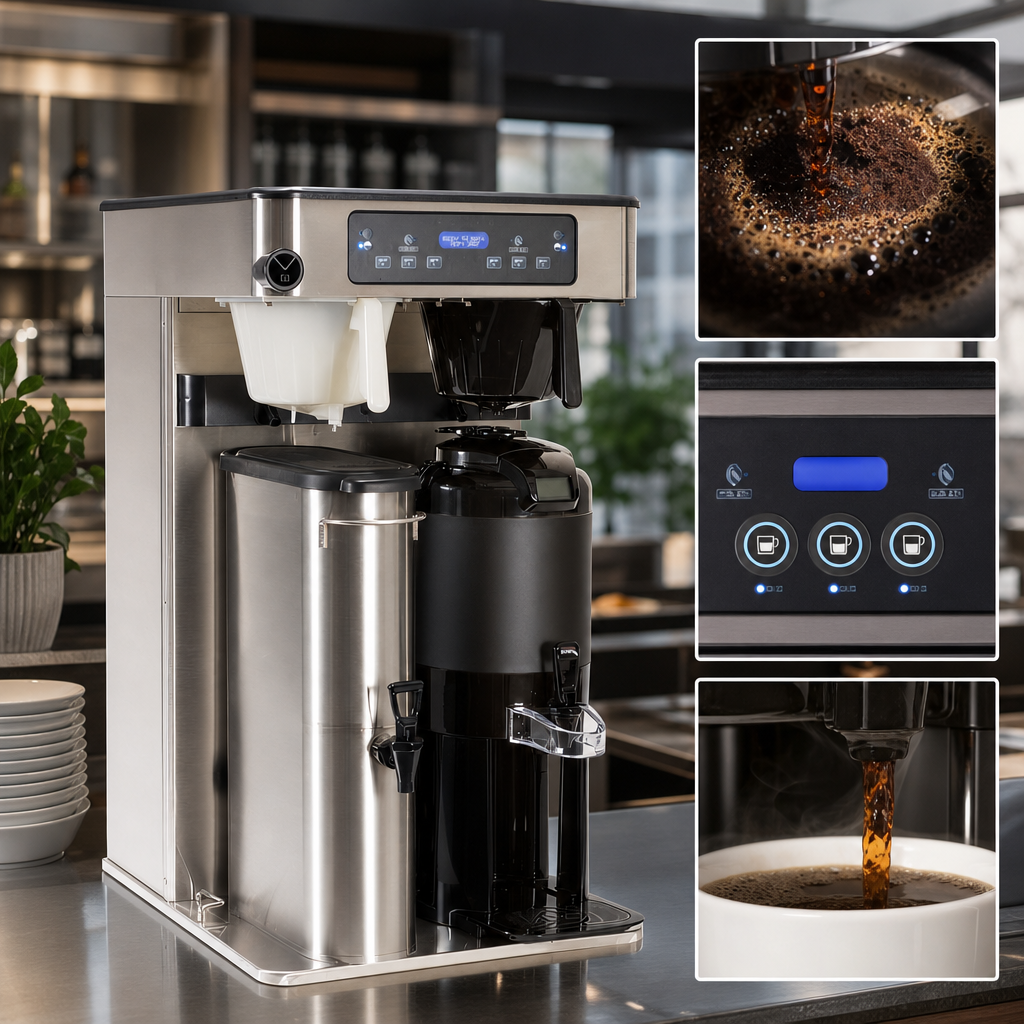

- Dual-side Infusion Series brewing—program each side for coffee, iced coffee or tea.
- Three brew buttons & two batch sizes (1.0 gal or 1.5 gal) per side for multiple recipes in one unit.
- Integrated dilution nozzle and Quick Brew tea funnel eliminate the need for a separate tea brewer.
- Peak Extraction™ 17-hole sprayhead delivers even saturation and superior flavor.
- Pre-infusion, pulse brew, cold-brew lockout, and PID digital temperature control for consistent results.
- Large 5.6 gal (21.2 L) tank provides true back-to-back brewing capacity.
- Energy-saver mode automatically lowers tank temperature during idle periods.
- Electronic funnel lock prevents removal until drip-through is complete—no more mess.
- Multilingual touchscreen (English, Spanish, French) simplifies programming & daily use.
- USB port for fast recipe uploads and software updates.
- Hot-water faucet connection supplied for oatmeal, cocoa, soups, and more.
- Sleek stainless-steel construction with rounded edges for a modern, easy-clean look.
- UL & NSF listed; cord attached for quick installation.
Performance & Capacity
| 8 oz Cups / Hour | Up to 672 |
|---|---|
| Batch Sizes | 1.0 gal or 1.5 gal (per side) |
| Tank Capacity | 5.6 gal / 21.2 L |
Installation Specifications
| Power | 120/240 V | 1-phase | 25 A | 6000 W | 60 Hz |
|---|---|
| Cord / Plug | Cord attached (installer to supply appropriate plug) |
| Water | Plumbed 3/8" BSPP | 20–90 psi (138–621 kPa) | 1.25 gpm minimum |
| Dimensions (W × D × H) | 20.5" × 23.8" × 35.0" (521 mm × 605 mm × 889 mm) |
| Shipping Weight | 95.2 lb / 43.2 kg |
| Certifications | UL, NSF |
Compatible Servers & Accessories (Sold Separately)
- BUNN ThermoFresh® Servers – 1.0 gal & 1.5 gal (DSG2 or MECH models)
- TD4T, TDO, and TDO-N tea dispensers
- SYS2 Paper Filters – item #20100.0000
Add the perfect servers and filters from the “Related Products” carousel below.
Warranty: 2 years parts & 1 year labor on the brewer, plus 3 years parts & labor on control boards (commercial use).
Servers pictured are for reference only and are not included with the brewer.
