BUNN 52200.0100 Coffee Brewers
BUNN 52200.0100 Coffee Brewers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BUNN 52200.0100 Coffee Brewers
Description

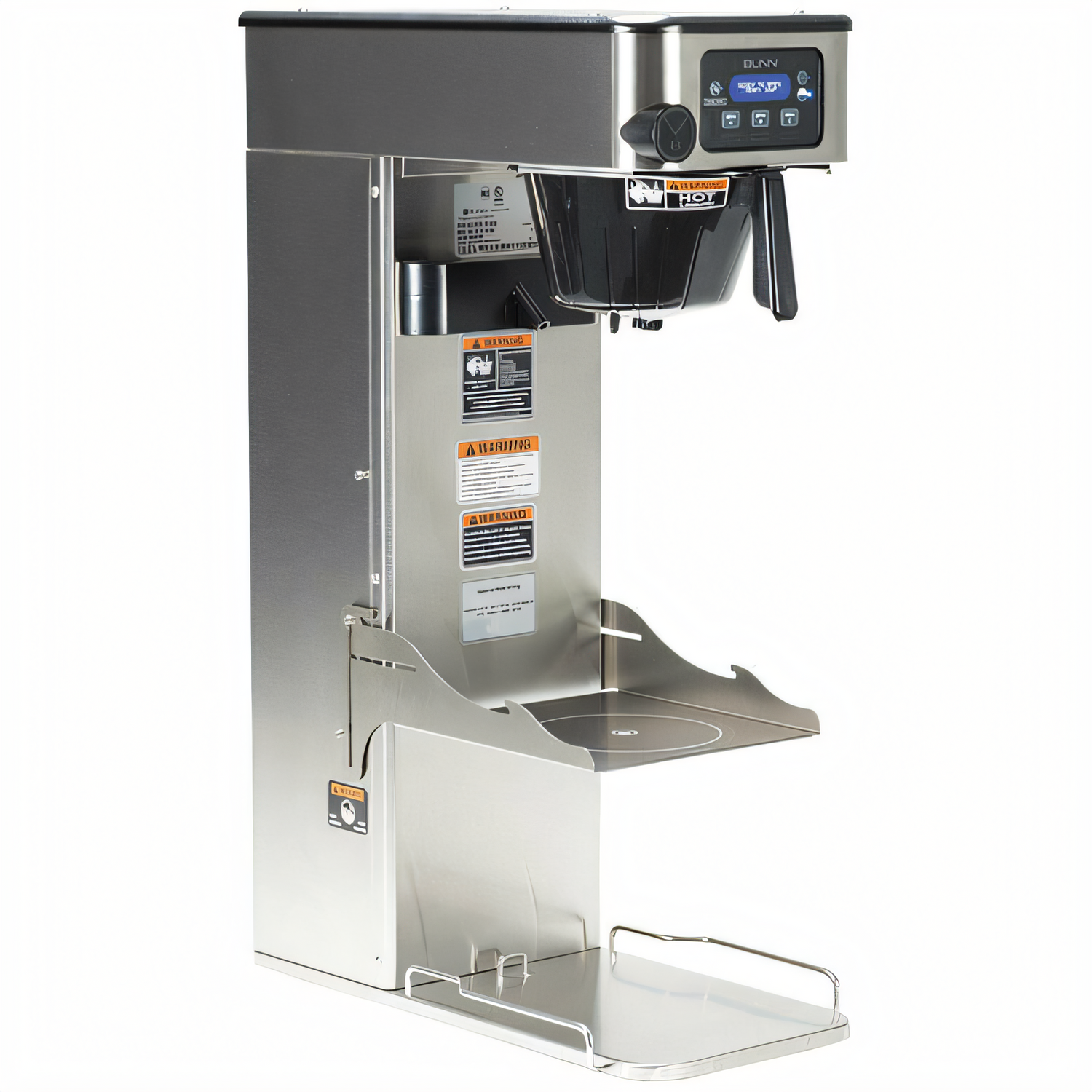

BUNN ITCB-DV Infusion Series™ Tea & Coffee Brewer – 29" w/ Flip Tray
Model 52200.0100 • Dual-Voltage • NSF & UL ListedBrew premium iced tea or hot coffee from one compact footprint. The BUNN ITCB-DV combines Infusion Series™ versatility, BrewWISE® precision and a space-saving 3-position flip tray to keep every beverage service fast, flavorful and consistent.
Key advantages
- Infusion Series technology with 3 brew buttons and 2 programmable batch sizes.
- Dual-voltage adaptable – operates on 120 V / 15 A or 120/208-240 V / 20 A with no kit required.
- BrewWISE® intelligence: pre-infusion, pulse brew, cold-brew lockout & digital temperature control for repeatable quality.
- Exclusive 7-hole Peak Extraction™ sprayhead ensures even saturation and maximum flavor.
- Multilingual digital display (English / Spanish / French) with Standard or Metric readouts and programmable promo messages.
- Integrated flip tray quickly converts between thermal carafe, 1.9–3.8 L airpot or tea dispenser positions.
- Energy-saver mode lowers tank temperature during idle periods to cut utility costs.
- Electronic funnel lock prevents removal until drip-through is complete for a cleaner brew station.
- USB port for rapid software updates and recipe uploads.
- Durable stainless-steel construction with rounded edges and just an 11.6" × 21.8" counter footprint.
Serving flexibility
Brews directly into most BUNN iced-tea dispensers (except TDS-5), 1.9 L thermal carafes, and 2.5 L–3.8 L airpots, as well as BUNN ThermoFresh® servers—ideal for cafés, QSRs, convenience stores and office pantries.
Technical specifications
| Product number | 52200.0100 |
|---|---|
| Brewing capacity | Up to 334 cups (8 oz) per hour |
| Voltage / Power | 120 V / 14 A / 1 700 W 120/208-240 V / 20 A |
| Plug type | NEMA 5-15P (factory-installed cord) |
| Water connection | Plumbed – 1/4" male flare • 20–90 psi (138–621 kPa) |
| Dimensions (W × D × H) | 11.6" × 21.8" × 35.0" (29.5 cm × 55.4 cm × 88.9 cm) |
| Ship weight | 29.8 lb (13.5 kg) |
| Finish / Funnel | Stainless steel housing • Black plastic funnel |
| Certifications | NSF, UL |
What’s included
- ITCB-DV brewer with integrated 3-position flip tray
- Quick-connect waterline kit
- Operator & programming manuals (USB-ready)
Commercial warranty
Covered by BUNN’s commercial warranty—2 years parts / 1 year labor, plus 3 years parts & labor on electronic control boards. Contact BUNN or an authorized service representative for details.
BUNN® reserves the right to change specifications and product design without notice.
