BUNN 52200.0000 Coffee Brewers
Description

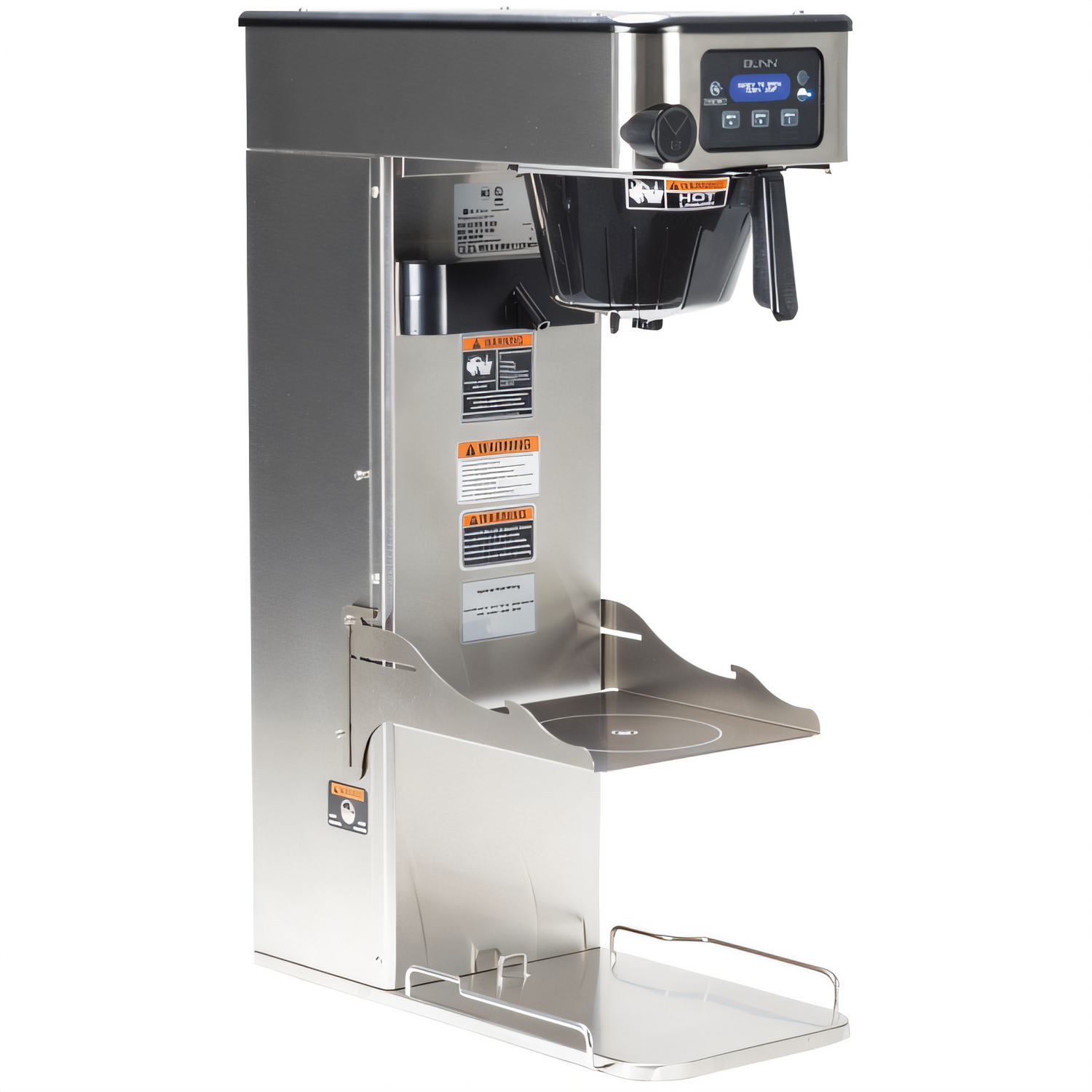

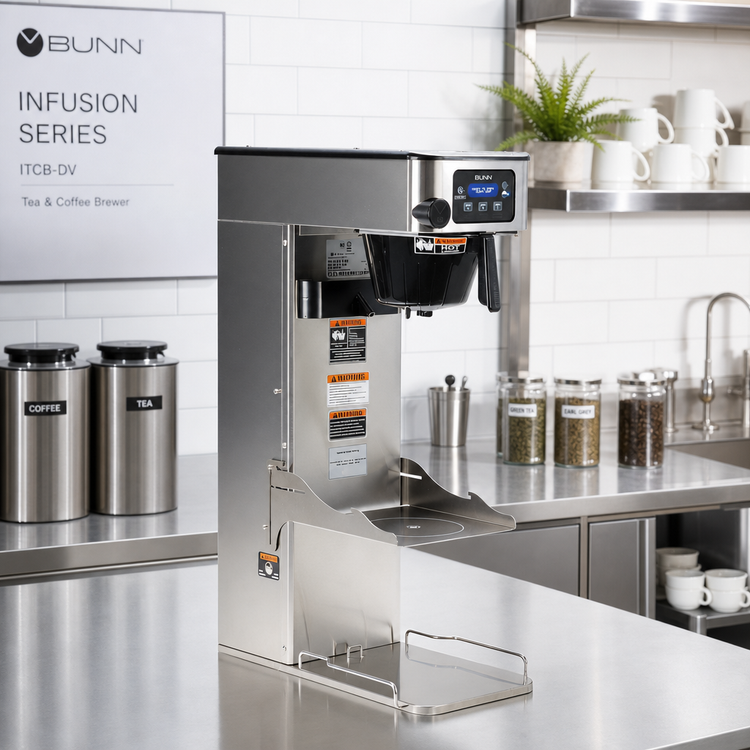

BUNN ITCB-DV Infusion Series Tea & Coffee Brewer – 29" Trunk w/ Flip Tray
Model 52200.0000 | Dual-Voltage | BrewWISE® IntelligenceOne footprint, endless beverage possibilities. The ITCB-DV combines BUNN’s proven Infusion Series™ technology with a space-saving 29" trunk, letting you brew rich hot coffee, flavorful iced tea, and everything in-between—right where you need it. A multilingual digital display, three brew buttons, and two programmable batch sizes put total control at your fingertips.
Why you’ll love it
- Infusion Series™ platform delivers multiple recipes from one brewer using 3 brew buttons and 2 batch sizes.
- BrewWISE® intelligence with pre-infusion & pulse brew maximizes flavor extraction for both tea and coffee.
- Dual-voltage adaptable — run on 120 V/15 A or 120/208-240 V/20 A without changing brewers.
- Peak Extraction™ 7-hole sprayhead ensures uniform saturation for a consistently delicious cup.
- Energy-saver mode automatically lowers tank temperature during idle periods to cut utility costs.
- Multilingual back-lit display (English, Spanish, French) shows standard or metric units, status updates, and even custom advertising messages.
- Electronic funnel lock prevents premature removal until drip-through is complete—no mess, no waste.
- Integrated 3-position flip tray instantly adjusts for thermal carafes, airpots, or BUNN tea dispensers (TDS-5 excluded).
- USB port for fast recipe uploads and software updates.
- Plumbed-in design with cold-brew lockout & digital temperature control for rock-solid consistency.
- NSF and UL Listed commercial construction in durable stainless steel.
Technical Specs
| Product number | 52200.0000 |
|---|---|
| Brewer type | Infusion Series™ Tea / Coffee Brewer, plumbed |
| Electrical |
• 120 V – 14 A – 1 700 W (NEMA 5-15P attached) • 120/208 V – 13 A – 2 650 W • 120/240 V – 15 A – 3 500 W Single phase, 60 Hz |
| 8 oz cups per hour | 80 (120 V) | 123 (120/208 V) | 163 (120/240 V) |
| Water connection | 1/4" male flare, 20–90 psi (1.25 gpm minimum flow) |
| Dimensions (W × D × H) | 11.6" × 21.8" × 35.0" (29.5 cm × 55.4 cm × 88.9 cm) |
| Trunk height | 29" (brews directly into tall dispensers) |
| Construction | Stainless-steel body, black plastic funnel |
| Net weight | 47.6 lb / 21.6 kg |
| Agency approvals | NSF, UL |
| Warranty | 2-year parts, 1-year labor Electronic control boards: 3-year parts & labor |
Compatible dispensers & servers (sold separately)
- BUNN 1.9–3.8 L airpots (thermal or glass-lined)
- BUNN Thermal Carafes 1.9 L
- BUNN TF ThermoFresh® Servers 1 G & 1.5 G
- BUNN TD Series tea dispensers (TD4T, TD3T, TD3.5T, etc.)
Need to upload custom recipes or branding? Simply plug in a USB drive and you’re ready to brew.
Full documentation, drawings, and parts diagrams are available at
commercial.bunn.com.
