BUNN 51100.0103 Infusion Series® Coffee Brewers
BUNN 51100.0103 Infusion Series® Coffee Brewers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BUNN 51100.0103 Infusion Series® Coffee Brewers
Description
BUNN Infusion Series® ICB SH-DV Coffee Brewer
Model 51100.0103 | Soft Heat® compatible single brewerServe signature coffee with repeatable precision. The BUNN ICB SH-DV Infusion Series brewer combines Peak Extraction™ technology, language-selectable digital controls and true dual-voltage flexibility—all in an 11.8 inch footprint that fits virtually any food-service counter.
Key benefits
- Infusion Series platform: 3 brew buttons × 3 batch sizes = 9 custom recipes from one machine.
- 17-hole Peak Extraction™ sprayhead ensures even saturation for richer, more consistent flavor.

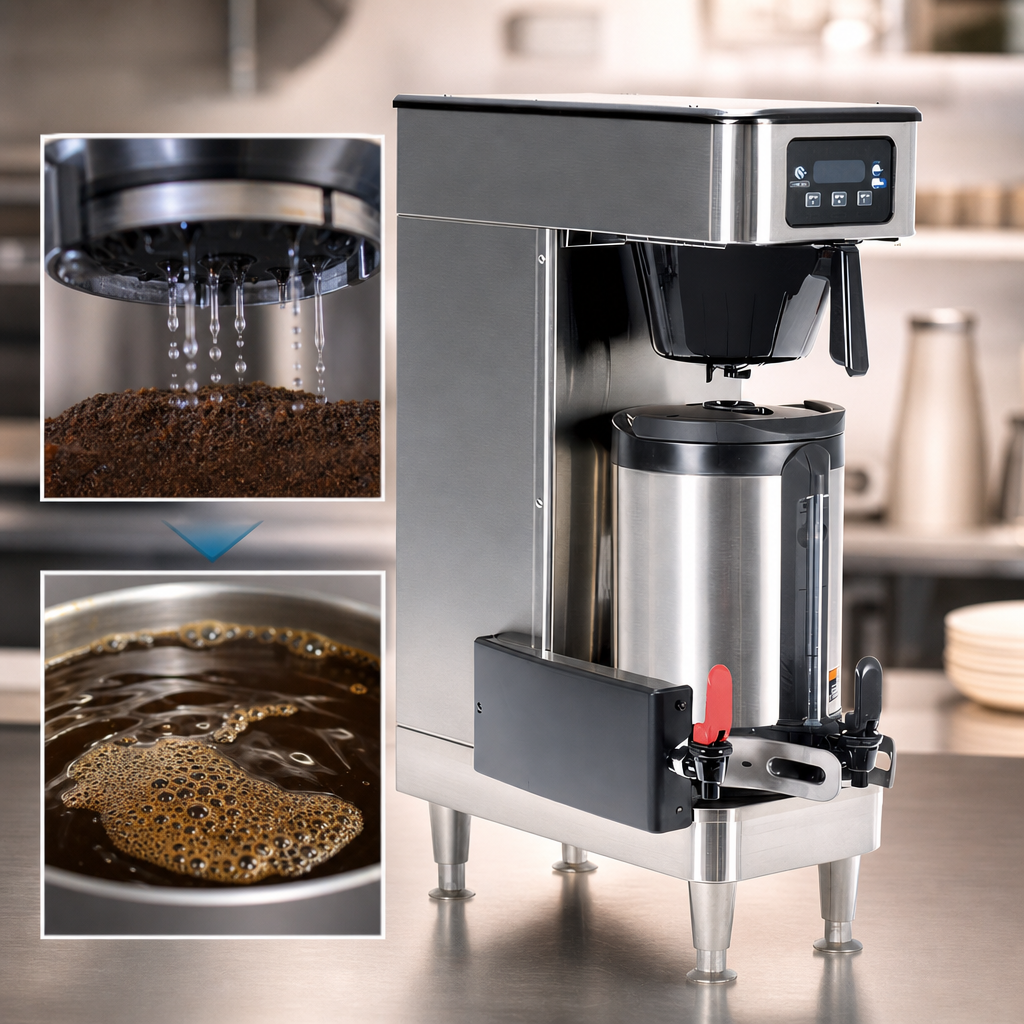

- Pre-infusion, pulse brew and cold-brew lockout let you fine-tune extraction for any roast profile.
- Full-color digital screen (English, Spanish or French; Imperial or Metric) doubles as a promo display.
- Energy-saver mode automatically lowers tank temperature during idle periods.
- Electronic funnel lock keeps staff safe until drip-through is complete.
- USB port & built-in wireless interface make recipe uploads and firmware updates plug-and-play.
- Brew counter tracks every batch for effortless quality-control reporting.
- Pairs with new Soft Heat® servers (sold separately) featuring programmable hold temps & freshness alerts.
- Dual-voltage adaptable: ships 120 V with 6-ft cord and NEMA 5-20P plug; field-convertible to 120/208 V or 120/240 V direct-wire.
Technical specifications
| Product number | 51100.0103 |
|---|---|
| Brewer type | Single (uses Soft Heat® satellite servers) |
| Hourly output | 82 cups/hr @ 120 V • 136 cups/hr @ 120/208 V • 181 cups/hr @ 120/240 V (8 oz / 236 ml cups) |
| Voltage / power |
120 V 1-ph 1800 W 15 A (plugged) 120/208 V 1-ph 2900 W 14 A (direct-wire) 120/240 V 1-ph 4050 W 17 A (direct-wire) |
| Water connection | Plumbed, 3/8" male flare, 20–90 psi (138–621 kPa), 1.0 GPM |
| Housing & finish | Stainless steel/grey body, black plastic funnel, 4" satin nickel legs |
| Dimensions (W × D × H) | 11.8" × 23.4" × 32.8" (30.0 × 59.4 × 83.3 cm) |
| Display languages | English • Spanish • French |
| Certifications | UL Listed, NSF |
Recommended accessories (sold separately)
- Soft Heat® Server, 1.5 gal / 5.7 L (#27850.0200)
- Single & dual Soft Heat® stands (#27825.0200 / #27875.0200)
- Gourmet paper filters (#20138.1000)
- EQHP-10 or EQHP-10L water filtration systems (#39000.0004 / #39000.0001)
- Single or twin SH drip tray kits (#53452.0001 / #53452.0000)
Commercial warranty
Backed by BUNN: 2 years parts & 1 year labor (3 years on electronic control boards) from date of installation when installed and maintained per factory guidelines.
