BUNN 45100.0101 Coffee Brewers
Description

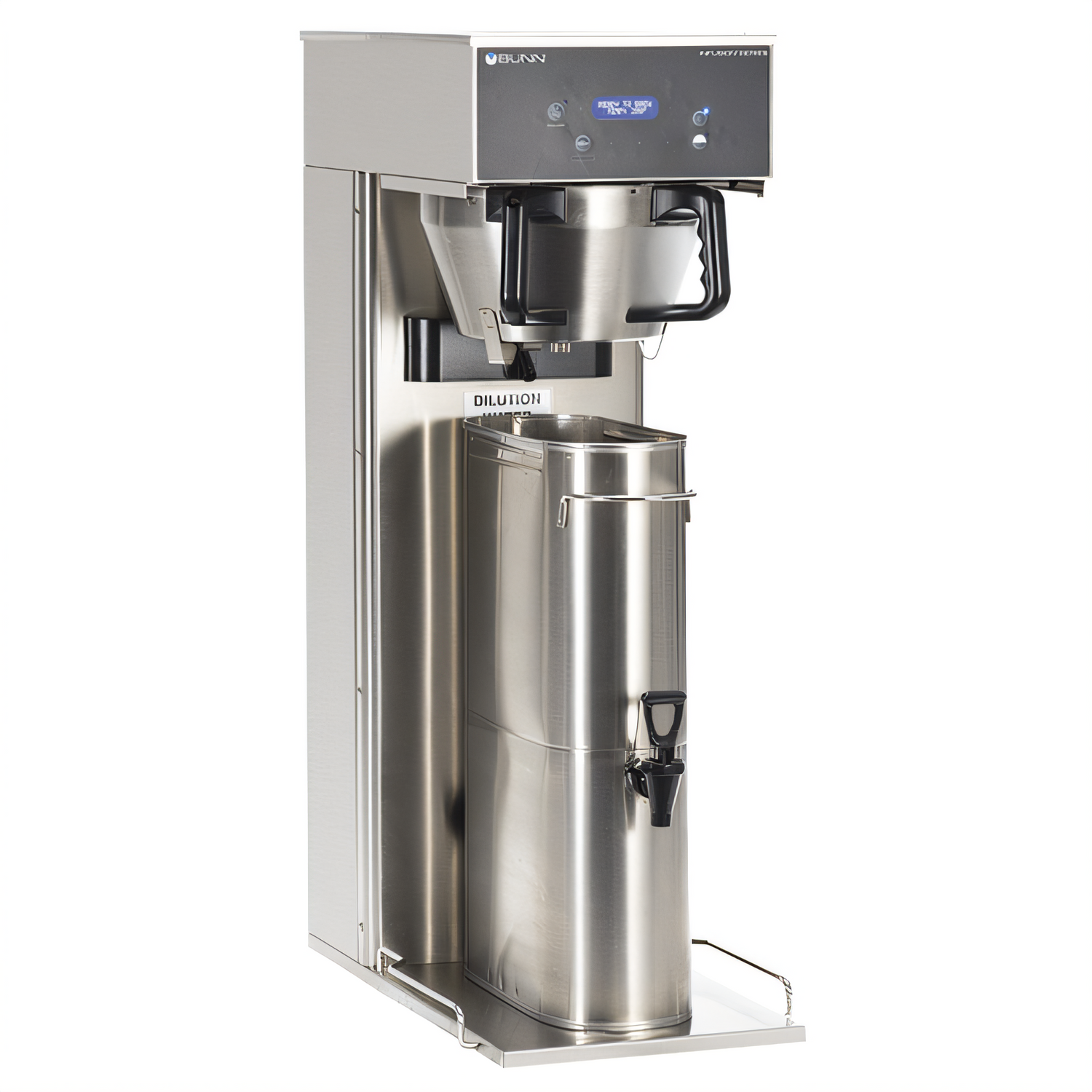

BUNN IC3-DBC Digital Iced Coffee Brewer – 20 gal/hr
Model 45100.0101Take iced-coffee service to the next level with BUNN’s IC3-DBC. This high-volume brewer turns out up to 20 gallons of consistently delicious iced coffee every hour and gives you total control over every parameter with Digital Brewer Control programming.
Why Choose the IC3-DBC?

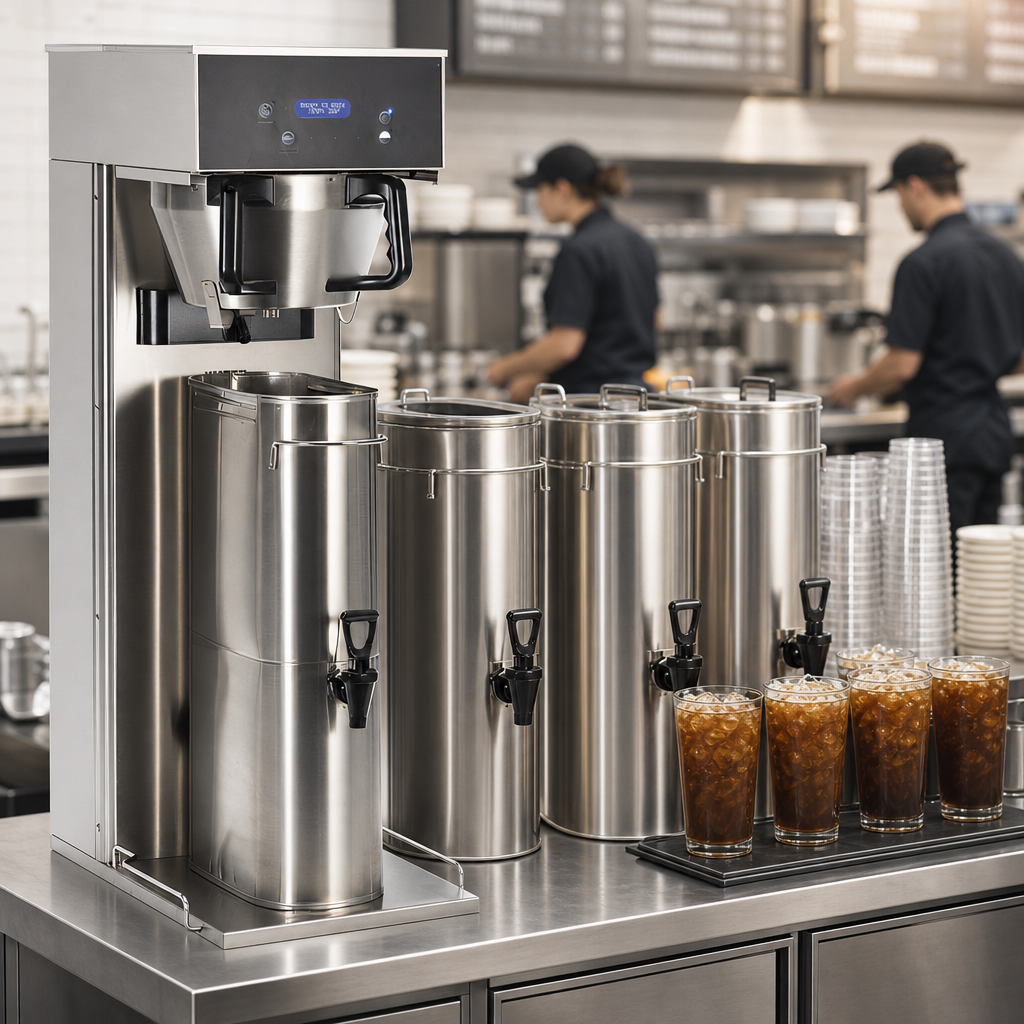

- Produces up to 20 gallons / 75.7 L per hour to keep the rush flowing.
- Selectable 2 or 3 gallon batches (7.57 L / 11.36 L) to match demand and reduce waste.

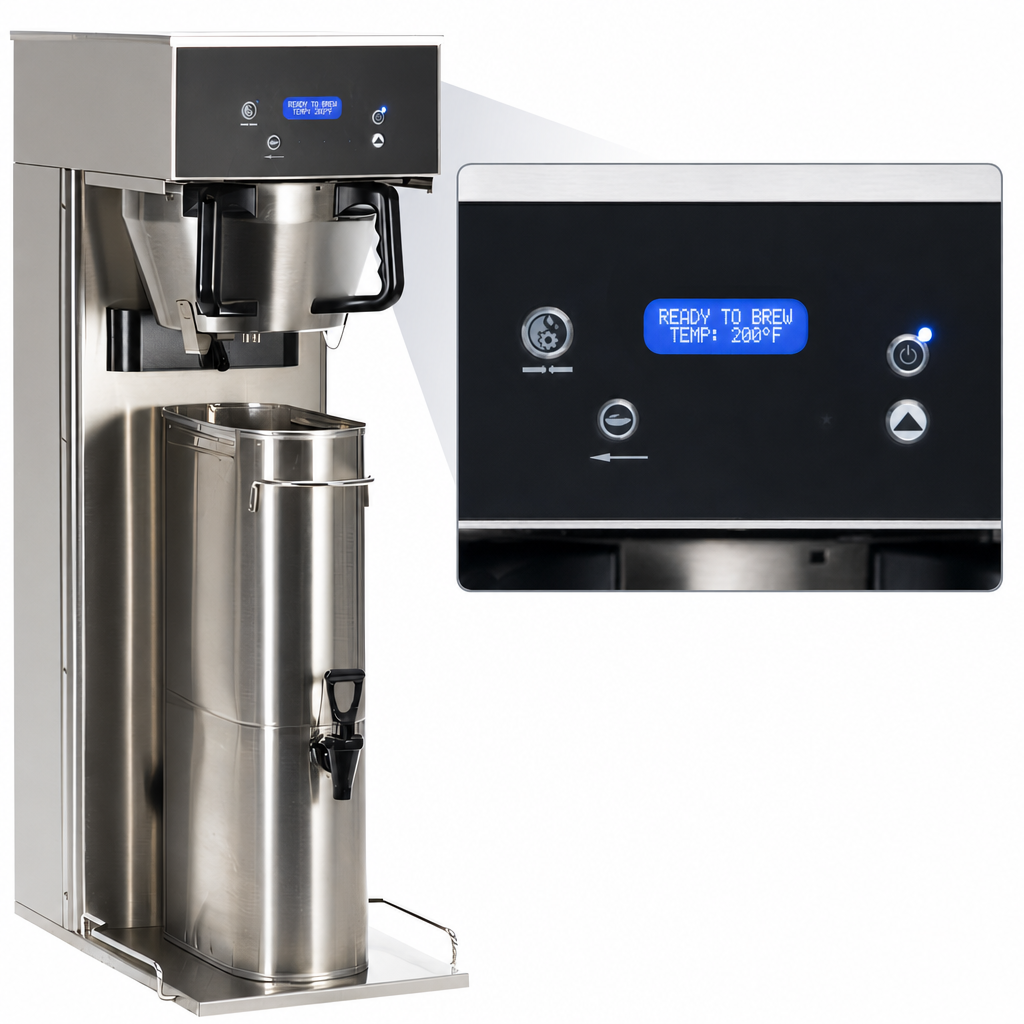

- Digital Brewer Control (DBC) lets you create and save signature recipes at the touch of a button.
- Brews directly into the insulated ICD-3 dispenser (sold separately) for grab-and-go service.
- Durable stainless-steel construction & funnel withstand daily commercial use and clean up fast.
- SplashGard® funnel design deflects hot liquids away from hands for added operator safety.
- Convenient side faucet provides on-demand hot water for rinsing or beverage prep.
- UL Listed & NSF certified for peace of mind.
Technical Specifications
| Model / SKU | IC3-DBC | 45100.0101 |
|---|---|
| Brewing Capacity | 20 gal / 75.7 L per hour |
| Batch Sizes | 2 gal / 7.57 L • 3 gal / 11.36 L |
| Power Requirement | 120/208 V • 19.5 A • 4.05 kW • 60 Hz • 1-phase |
| Cord | Factory-attached, 3-wire plus ground |
| Water Connection | Plumbed, 3/8" male flare |
| Water Pressure | 20 – 90 psi (138 – 621 kPa) |
| Water Flow | 1.0 GPM (3.8 L/min) |
| Dimensions (W × D × H) | 13.3" × 24.3" × 37.5" (33.8 × 61.7 × 95.3 cm) |
| Shipping Weight | 96 lb (43.5 kg) |
| Construction | All stainless-steel exterior & funnel |
| Certifications | UL • NSF |
Installation Notes
- Requires dedicated 120/208 V, single-phase electrical circuit.
- Plumbed water line must meet pressure and flow specs above.
- Allow clearance above brewer for loading filters and routine maintenance.
- Professional installation by a qualified technician is strongly recommended.
BUNN Commercial Warranty
Covered by 2 years parts / 1 year labor on the brewer and 3 years parts & labor on electronic control boards. See full warranty for details.
Images may show the optional ICD-3 dispenser; dispenser sold separately. Specifications are subject to change without notice.
