BUNN H5X Element 5-Gallon Plumbed Automatic-Fill Hot Water Dispenser, 208V

SKU: 43600.0002
GTIN: 072504105369
$1,950.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

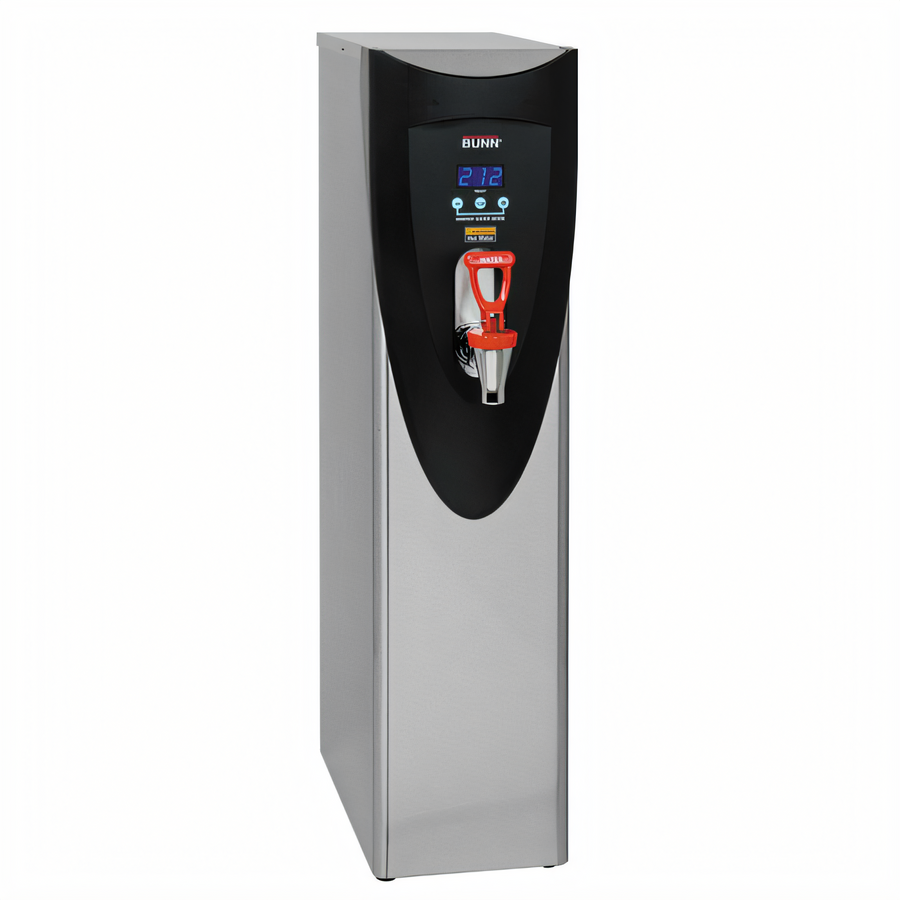

BUNN H5X Element 5-Gallon Plumbed Automatic-Fill Hot Water Dispenser, 208V

Digital thermostat, LED display, and programmable Energy Saver Mode

Keep 5 gallons of hot water ready with precise digital control, efficient heat retention, and a durable stainless steel build.

  • 5-gallon capacity supports busy tea service and beverage stations.
  • Plumbed automatic fill keeps the tank supplied without manual refilling.
  • Digital thermostat and LED display make temperature control easy to monitor.
  • Programmable Energy Saver Mode helps reduce power use during slower periods.
  • Thinsulate tank insulation helps retain heat for better efficiency.
  • Stainless steel construction is designed for demanding commercial use.

Overall Dimensions:

7.4"W x 17.6"D x 28.5"H

Product Weight:

32.5 lb

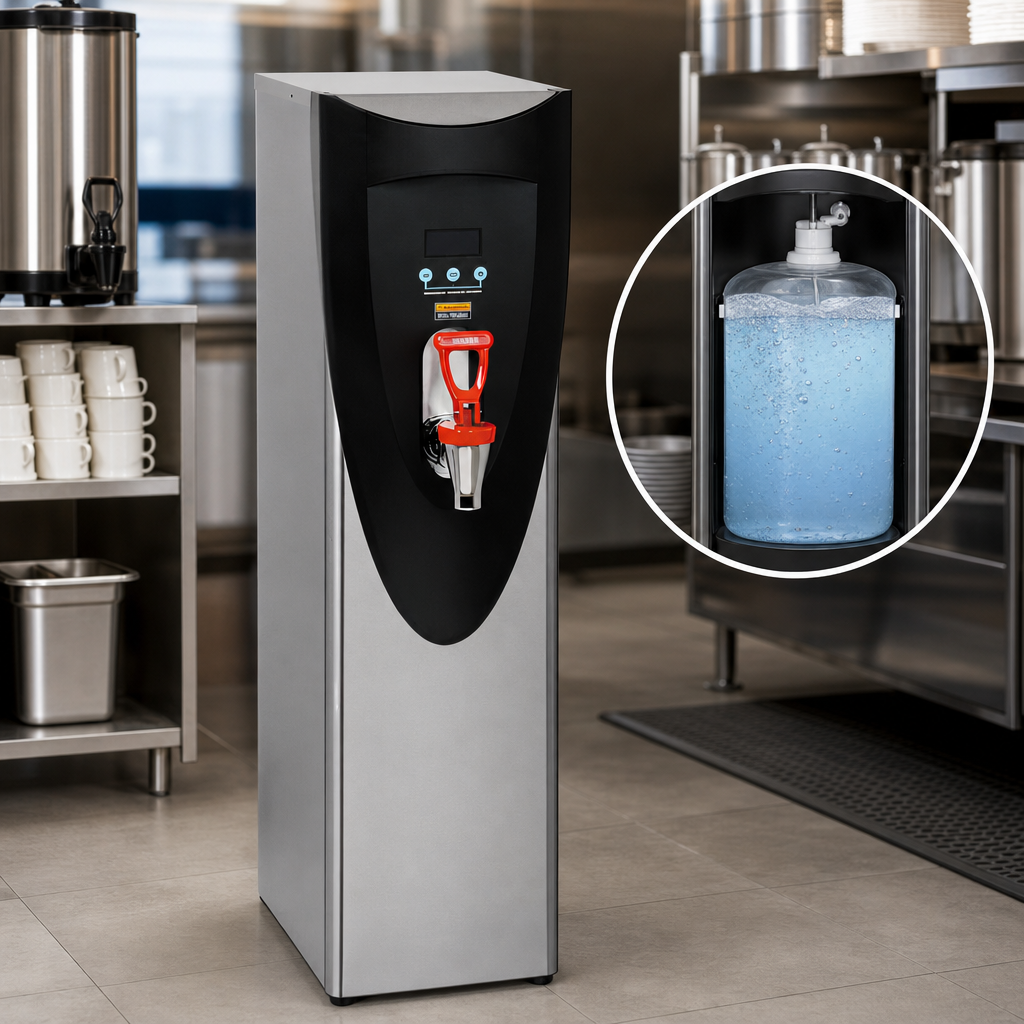

5-Gallon Capacity

Provides ample hot water on demand for high-volume beverage applications.

5-Gallon Capacity

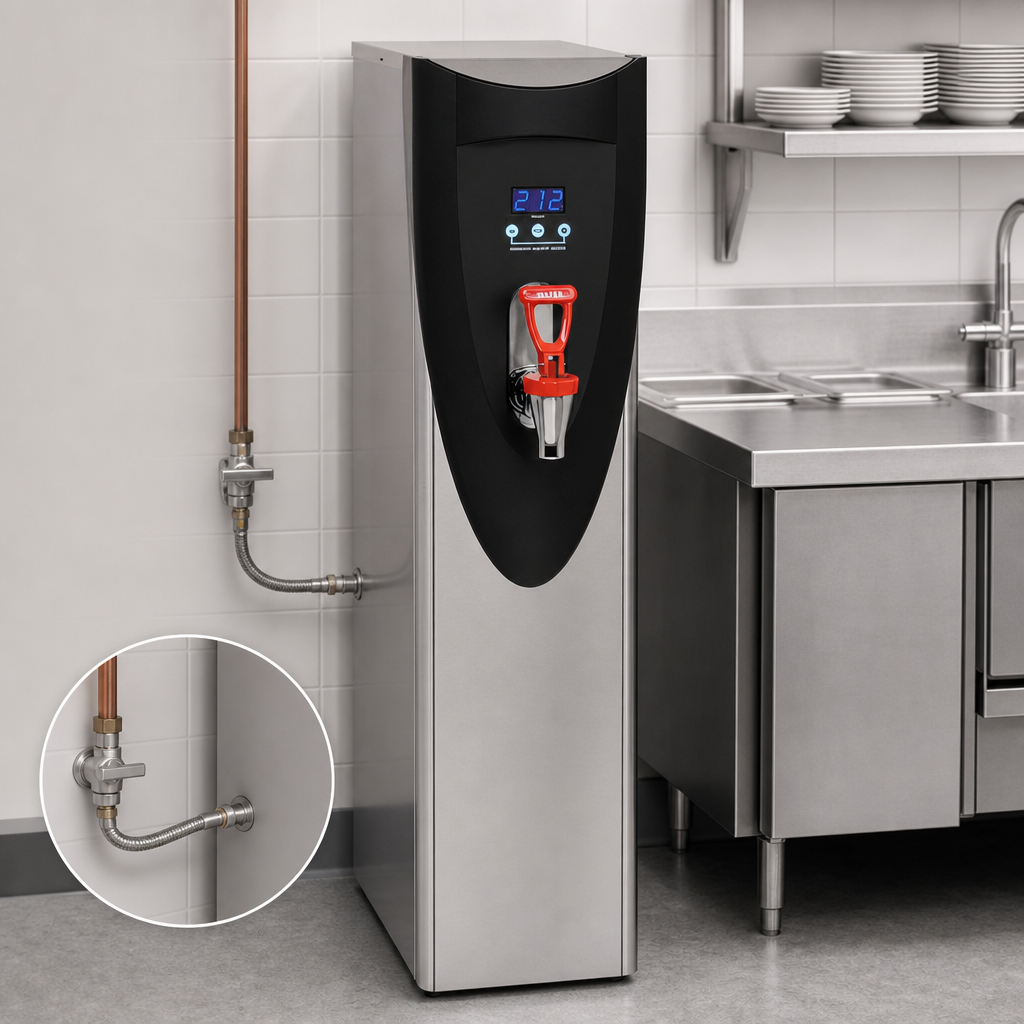

Plumbed Automatic Fill

Connects to a water line so the dispenser can maintain a ready supply without manual refilling.

Plumbed Automatic Fill

Digital Thermostat

Offers precise temperature control for consistent hot water service.

LED Display

Gives a clear, easy-to-read view of dispenser status and temperature information.

Programmable Energy Saver Mode

Allows the unit to reduce energy use during off-peak periods.

Thinsulate Tank Insulation

Helps hold heat in the tank to support temperature retention and efficiency.

Stainless Steel Construction

Durable commercial construction that is built for long-term use and easy cleaning.

212°F Setting

Includes a 212°F temperature setting for hot water service.

Capacity 5 Gallons
Style Hot Water Dispenser
Type Plumbed Automatic Fill
Controls Digital
Material Stainless Steel
Voltage 208 Volts
Amps 19.5 Amps
Watts 4.05 kW
Hertz 60 Hz
Phase 1-Phase
Shipping Width 8 Inches
Shipping Depth 18 Inches
Shipping Height 29 Inches
Shipping Weight 32.5 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

2 years parts and 1 year labor; electronic circuit/control boards 3 years

Frequently Asked Questions

It has a 5-gallon capacity.
Yes. It is a plumbed automatic fill dispenser.
It operates on 208 volts, 60 Hz, single-phase power and draws 19.5 amps at 4.05 kW.
Yes. It includes a programmable Energy Saver Mode.
The documentation lists a 212°F setting.
The BUNN commercial warranty sheet lists 2 years parts and 1 year labor for all other equipment, with electronic circuit and/or control boards covered for 3 years.
