BUNN 38100.0003 iMIX® Hot Water/Beverage Dispensers
BUNN 38100.0003 iMIX® Hot Water/Beverage Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

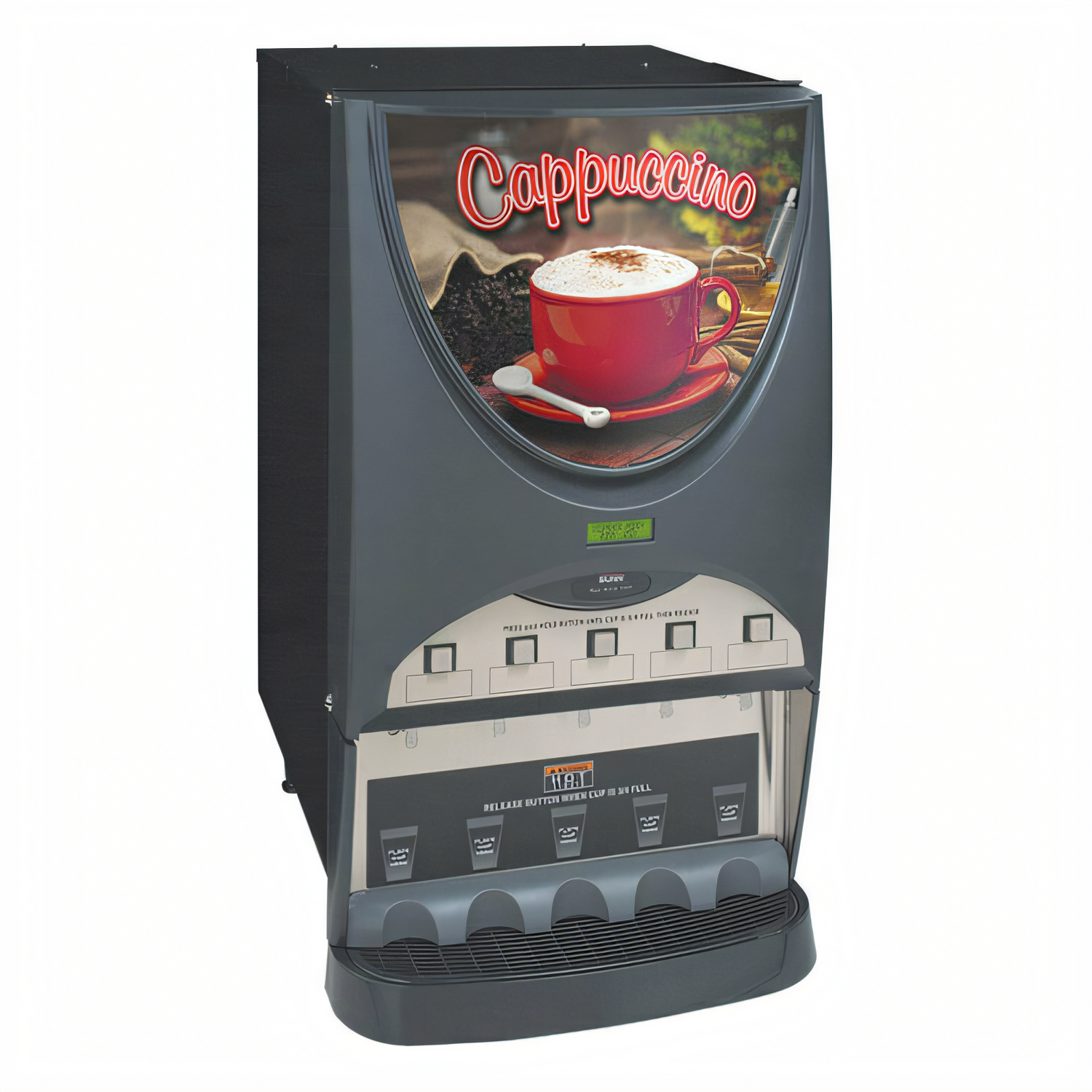

BUNN iMIX®-5S+ Silver Series® Powdered Beverage Dispenser
Model 38100.0003 | 5-Flavor Cappuccino/Cocoa System | 120 VServe barista-quality cappuccino, cocoa, chai and more with BUNN’s flagship iMIX®-5S+. Five generous hoppers, a high-speed whipper and eye-catching LED graphics keep sales soaring, while the service-friendly design keeps downtime to a minimum.
Key Features

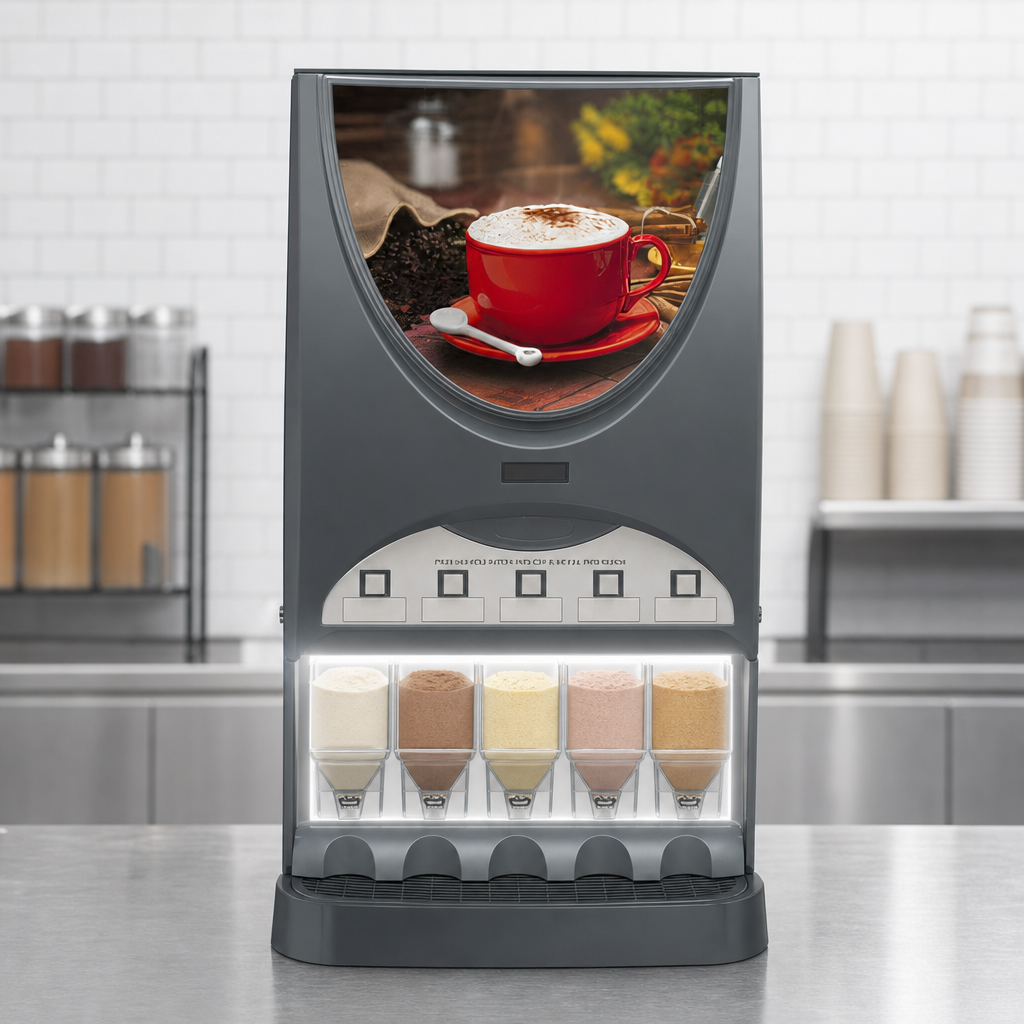

- Five 8 lb (3.6 kg) powder hoppers – offer up to five different beverages at once.

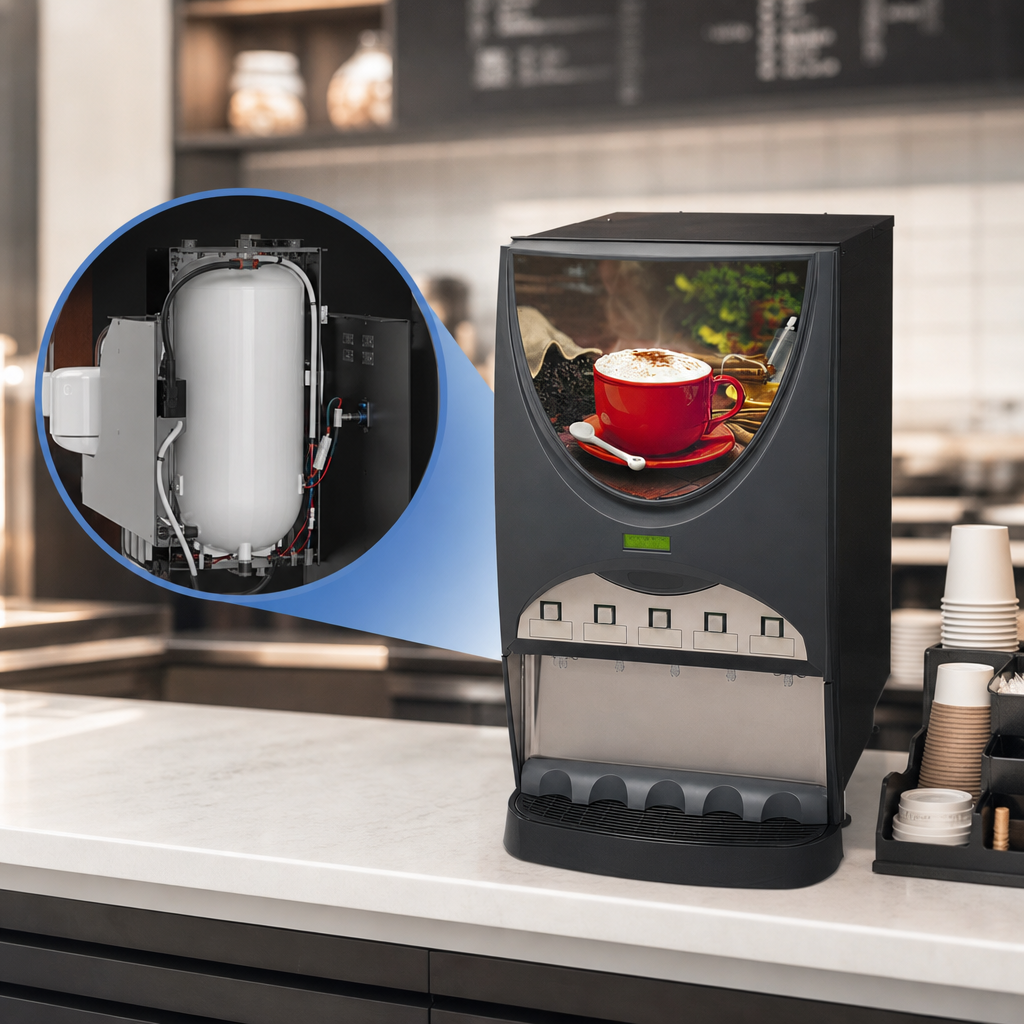

- Large 7 gal (26.5 L) hot-water tank supplies peak-demand periods and delivers ≈ 4.5 gal of finished drink per hour.
- Selectable push-&-hold or single-portion dispense modes for maximum service flexibility.
- Heavy-duty, variable-speed whipper (0.75 – 6.6 g/s) produces consistently smooth, creamy drinks.
- Alphanumeric display broadcasts promotions, machine status and diagnostic messages.
- High-efficiency LED back-lit graphics panel attracts impulse purchases and is easy to swap.
- 7.25″ (18.4 cm) cup clearance—adjustable to 8.12″ (20.6 cm)—accommodates popular to-go cups.
- Tool-free, spring-loaded auger drive for fast hopper installation and cleaning.
- Top-hinged, key-lock lift door and side-hinge service door safeguard product and simplify access.
- Front access to tank drain, dump valves and control board speeds calibration and maintenance.
- NSF & ETL certified for commercial food-service environments.
Specifications
Model | iMIX®-5S+ Silver Series® |
---|---|
BUNN Part # | 38100.0003 |
Hoppers | 5 × 8 lb (3.6 kg) each |
Hot-Water Tank | 7 gal (26.5 L) |
Hourly Output | ≈ 4.5 gal (17 L) finished beverage |
Dispense Modes | Push-&-hold or single-portion control |
Cup Clearance | 7.25″ (18.4 cm), adjustable to 8.12″ (20.6 cm) |
Dimensions (H × W × D) | 32.8″ × 19.3″ × 24.0″ (83.3 × 49.0 × 61.0 cm) |
Electrical | 120 V / 1 ph / 60 Hz, 15 A, 1 800 W, NEMA 5-15P (cord attached) |
Water Connection | Plumbed, 1/4″ male flare, 20–100 PSI (138–689 kPa) |
Construction / Finish | Silver Series® cabinet with black & silver accents |
Certifications | NSF, ETL (Intertek) |
Perfect For
- Convenience stores & travel plazas
- University & corporate cafeterias
- Hotel lobby breakfast bars
- Concession stands & arenas
- OCS & micro-market programs
Optional Accessories (Sold Separately)
- LED Graphic Display kits – #36768.0000 (iMIX-4/5) & #36768.0005 (Iced CAP)
- BUNN EQHP-10 & EQHP-10L water filter systems – extend equipment life and improve flavor
- BUNN WQ-55(2)5 and WEQ-10(1.5)5 filtration systems & replacement cartridges
Warranty: 2 years parts / 1 year labor on the entire dispenser • 3 years parts & labor on electronic control boards. Full terms available at BUNN.com.
