BUNN 20500.0000 Coffee Brewers
Description

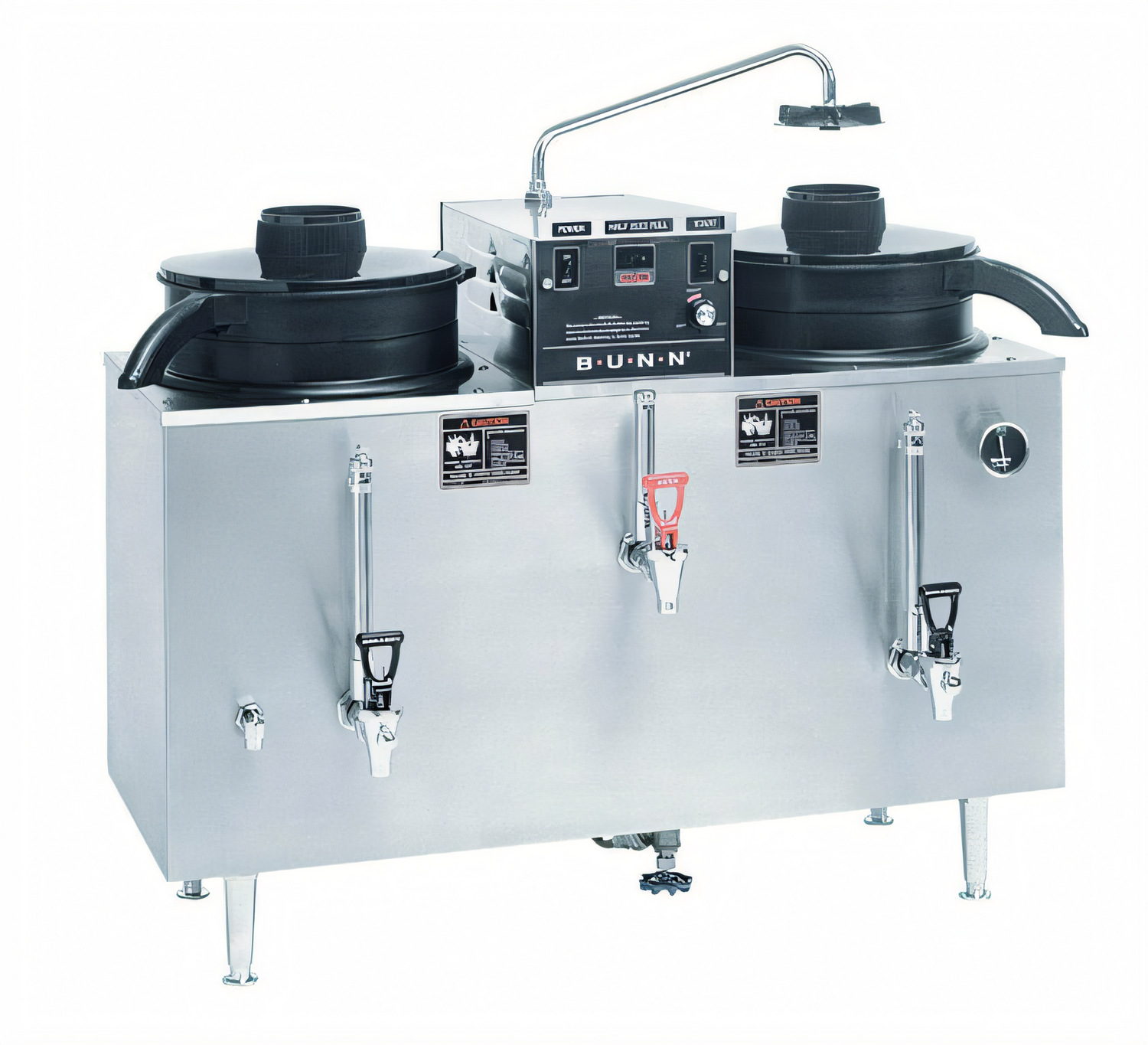

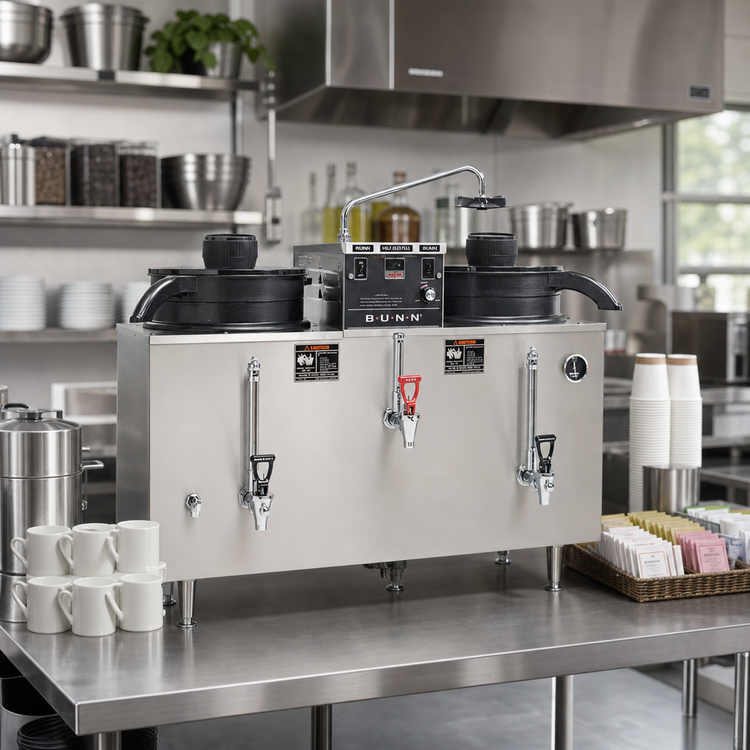

BUNN U3 Twin 3-Gallon Automatic Coffee Urn
Model 20500.0000 | 120/208 V Single-PhaseEngineered for hotels, banquets and high-volume foodservice, the BUNN U3 brews up to 16.3 gallons (269 eight-ounce cups) per hour and keeps coffee tasting its best in two independent 3-gallon reservoirs. A massive 20-gallon internal tank, selectable half-batch brew mode and built-in hot-water faucet give you round-the-clock versatility from one rock-solid stainless steel brewer.
Key Features

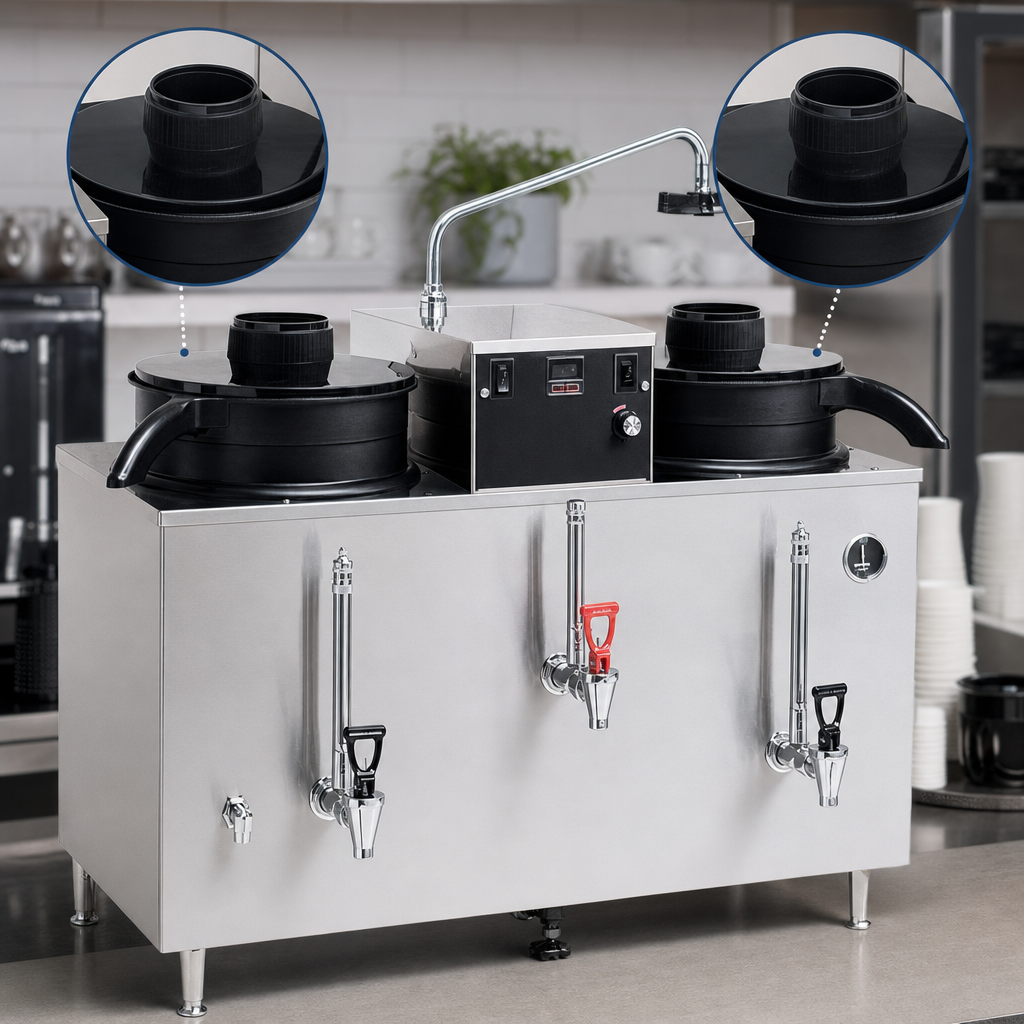

- Brews full or half batches directly into two 3-gallon holding reservoirs
- High output – 16.3 gal / 61.7 L per hour
- 20 + gallon heated water tank assures consistent brew temperature & recovery

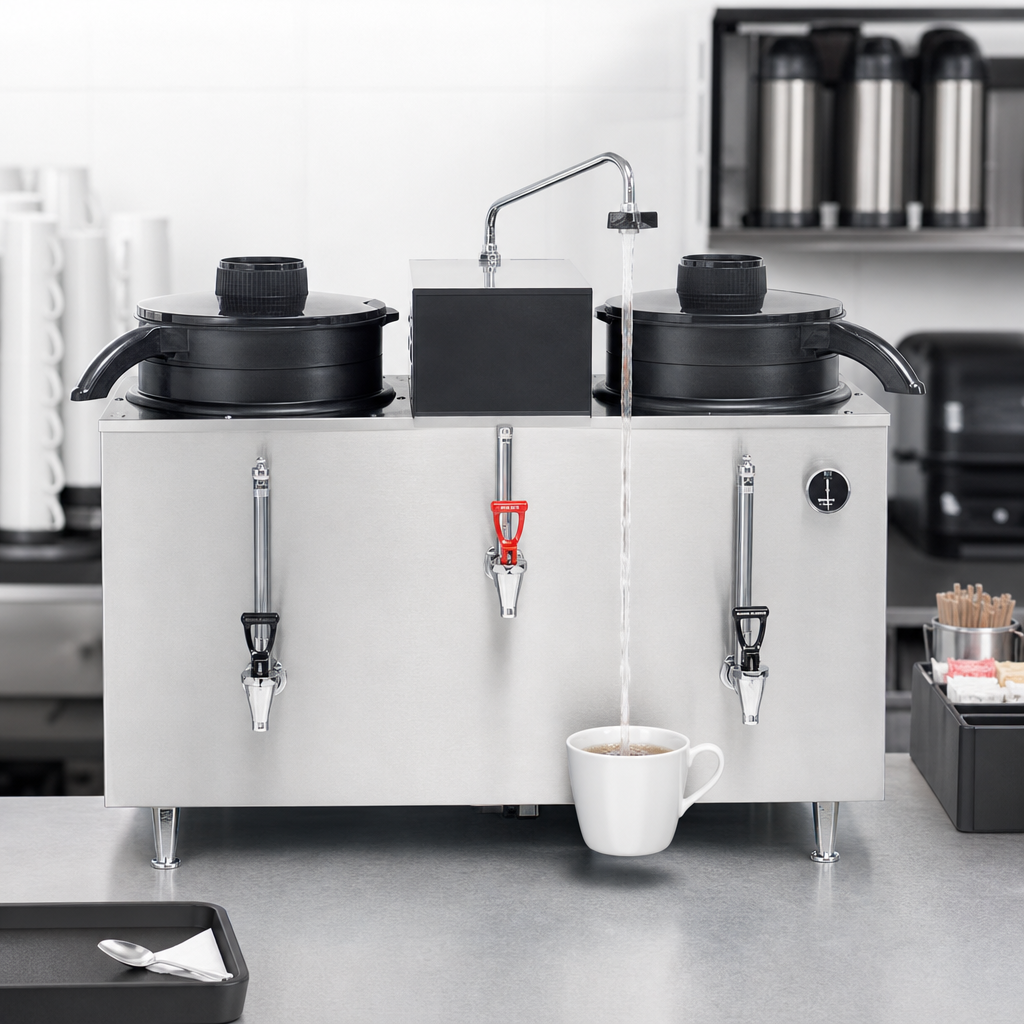

- Dedicated hot-water faucet for tea, cocoa & soup without impacting brew cycle
- Selectable half-batch mode cuts waste during slower service periods
- Low-evaporation design preserves coffee flavor during extended holding
- All-stainless exterior with top-mounted components for fast, tool-free service access
- NSF & UL Listed for commercial installation
Performance Snapshot
| Brewer type | Automatic, plumbed-in coffee urn |
|---|---|
| Total capacity | 6 gal (two 3-gal reservoirs) |
| Hourly brew rate | 16.3 gal / 269 cups (8 oz) |
| Water tank | Over 20 gal, internally heated |
| Hot-water faucet | Yes |
| Construction | Stainless steel with black plastic funnels |
Electrical
| Voltage | 120/208 V |
|---|---|
| Phase | Single-phase (3 wires + ground) |
| Amperage | 28 A |
| Wattage | 5,825 W |
| Frequency | 60 Hz |
| Power cord | Attached – no plug supplied |
Plumbing
| Connection | 3/8 in male flare fitting (included) |
|---|---|
| Water pressure | 20 – 90 PSI (138 – 621 kPa) |
Dimensions & Weight
| Height | 32.4 in / 82.3 cm |
|---|---|
| Width | 34.5 in / 87.6 cm |
| Depth | 21.0 in / 53.3 cm |
| Shipping weight | 100 lb / 45.4 kg |
Compatible Accessories (sold separately)
- RWS1 120 V Single-Warmer Stand (12203.0010)
- 1.5 GPR-FF Portable Server with Fast-Flow Faucet (20950.0004)
- U3 Paper Filters 18 × 7 in – case of 252 (20109.0000)
- Drip Tray with Cover (07284.0000)
- EQHP & WQ Series water-filtration systems for optimal taste and scale control
Servers and accessories are not included and must be ordered separately.
Backed by BUNN’s commercial warranty – 2 years parts & 1 year labor.
