Blue Air FSE LLC

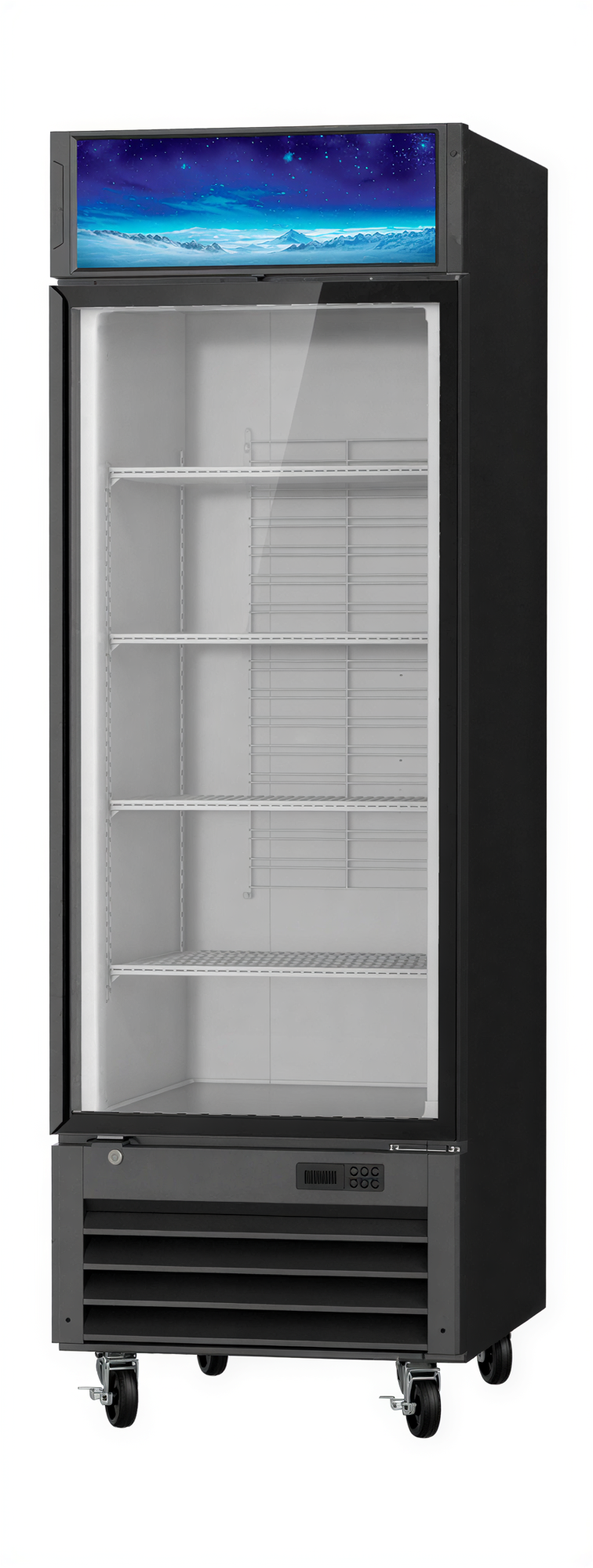

Blue Air FSE LLC BGM23B-HC 23 Cu. Ft. One-Section Refrigerated Merchandiser, Hinged Glass Door, Bottom-Mount Self-Contained

SKU: BGM23B-HC
$2,970.91
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Blue Air FSE LLC Commercial Refrigeration Commercial Refrigerators Display Refrigeration Display Refrigeration Food Merchandisers Glass Door Merchandisers Glass Door Merchandisers Glass-Door Refrigerator & Freezer Merchandisers New Arrivals Refrigerated Merchandiser Equipment Refrigeration & Ice Restaurant Equipment

The BGM23B-HC is a one-section refrigerated glass door merchandiser with 23 cu. ft. capacity and bottom-mount self-contained refrigeration.

  • Includes one double-pane locking hinged glass door and four adjustable epoxy-coated wire shelves.
  • LED interior lighting, a backlit graphic panel, and digital temperature monitoring support product presentation and monitoring.
  • The cabinet has a black painted steel exterior and trim with a white painted steel interior.
  • Refrigeration uses R-290 hydrocarbon refrigerant and operates across a 33°F to 39°F temperature range.
  • Electrical specifications are 115 V/60 Hz/1 ph, 4.5 A, with a NEMA 5-15P cord.

Overall Dimensions:

27.0"W x 31.5"D x 84.0"H

Product Weight:

320.0 lb

Bottom-mount refrigeration

The self-contained refrigeration system has a bottom-mounted compressor.

Locking hinged glass door

The unit has one double-pane locking hinged glass door with a self-closing design and automatic hold-open feature.

Adjustable shelving

Four epoxy-coated wire shelves provide adjustable shelving height.

Temperature monitoring

A digital temperature control and monitoring system provides a digital display.

Interior lighting

LED interior lighting is included.

Cabinet construction

The exterior and trim are black painted steel, and the interior is white painted steel.

Door-open alarm

A visual and audible alarm activates when the door is not completely closed.

Mobility

Four 4-inch casters are included, with two braked casters.

Capacity 23 cu. ft.
Configuration One section
Number of Doors 1
Door Type Hinged glass door
Door Glazing Double pane
Door Lock Locking
Shelves 4 adjustable epoxy-coated wire shelves
Temperature Range 33°F to 39°F
Refrigeration Self-contained, bottom-mounted
Refrigerant R-290 hydrocarbon
Compressor 1/2 HP
Exterior Finish Black painted steel exterior and trim
Interior Finish White painted steel
Interior Lighting LED
Graphic Panel Backlit
Casters Four 4-inch casters; two braked
Voltage 115 V
Frequency and Phase 60 Hz/1 ph
Current 4.5 A
Power Cord 9.8 ft flexible three-wire cord
Plug Configuration NEMA 5-15P
Insulation Cyclopentane

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Five-year parts-and-labor warranty and seven-year compressor warranty, subject to the supplied warranty certificate terms.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty certificate PDF Download PDF Warranty certificate PDF Download

Frequently Asked Questions

The merchandiser has a listed capacity of 23 cu. ft.
It has one double-pane locking hinged glass door.
Four adjustable epoxy-coated wire shelves are included.
The specified temperature range is 33°F to 39°F.
The unit uses 115 V/60 Hz/1 ph power, draws 4.5 A, and has a NEMA 5-15P cord.
It uses R-290 hydrocarbon refrigerant.
The listed dimensions are 27 inches wide by 31.5 inches deep by 84 inches high, with a listed weight of 320 pounds.
