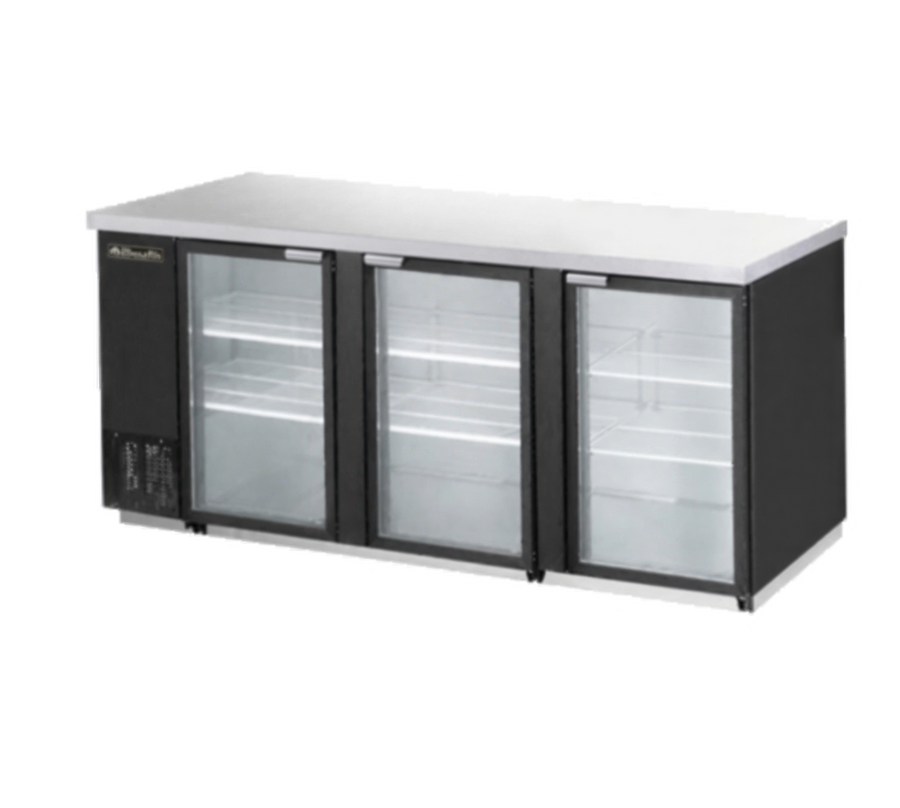

Blue Air FSE LLC BBB90-4SG-HC Three-Section Back Bar Cooler, 90-3/8"W, 3 Locking Glass Doors, Stainless Steel Exterior, Side-Mounted Refrigeration

SKU: BBB90-4SG-HC
$6,462.07
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

The Blue Air FSE LLC BBB90-4SG-HC is a three-section back bar cooler with side-mounted self-contained refrigeration.

  • Three locking glass hinged doors and six adjustable shelves provide organized refrigerated storage.
  • The unit has a stainless steel exterior and top, with a galvanized steel interior and stainless steel floor.
  • Interior LED lighting, automatic defrost, and an R290 hydrocarbon refrigerant system are included.
  • It measures 90.38 in. wide by 27.13 in. deep by 37.0 in. high and has a listed 31.6 cu. ft. capacity.
  • Electrical requirements are 115 V, 60 Hz, single-phase, 3.5 amps, with a cord and NEMA 5-15P plug.

Overall Dimensions:

90.38"W x 27.13"D x 37.0"H

Product Weight:

364.0 lb

Three-section layout

Provides three refrigerated sections in a back bar cooler configuration.

Locking glass doors

Includes three locking glass hinged doors.

Adjustable shelving

Includes six adjustable shelves.

Side-mounted refrigeration

Uses self-contained refrigeration mounted on the side.

Interior LED lighting

Illuminates the cooler interior with LED lighting.

Automatic defrost

Includes an automatic defrost system.

Stainless steel cabinet surfaces

Features a stainless steel exterior and top, plus a stainless steel interior floor.

R290 refrigerant

Uses R290 hydrocarbon refrigerant.

Product type Three-section back bar cooler
Capacity 31.6 cu. ft.
Door count 3
Door type Locking glass hinged doors
Shelves 6 adjustable shelves
Refrigeration configuration Self-contained, side-mounted
Temperature range 33°F to 39°F
Exterior finish Stainless steel
Top finish Stainless steel
Interior construction Galvanized steel with stainless steel floor
Lighting Interior LED
Defrost Automatic
Refrigerant R290 hydrocarbon
Compressor 3/8 HP
Electrical requirements 115 V / 60 Hz / 1 ph
Current draw 3.5 amps
Plug NEMA 5-15P
Cord length 9.8 ft (3 m)

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of UL Certified
UL Certified

Warranty & Protection

Three years parts and labor, plus five years on the compressor in the USA.

Frequently Asked Questions

It has three locking glass hinged doors and six adjustable shelves.
The refrigeration system is self-contained and side-mounted.
The listed temperature range is 33°F to 39°F.
The unit requires 115 V, 60 Hz, single-phase power, draws 3.5 amps, and uses a NEMA 5-15P plug.
The cooler is 90.38 inches wide, 27.13 inches deep, and 37.0 inches high.
