Customize Blue Air FSE LLC Model no. BACB74M-HC

Configuration
Accessories
Review
0 selected · total
$6,527.35
Blue Air FSE LLC

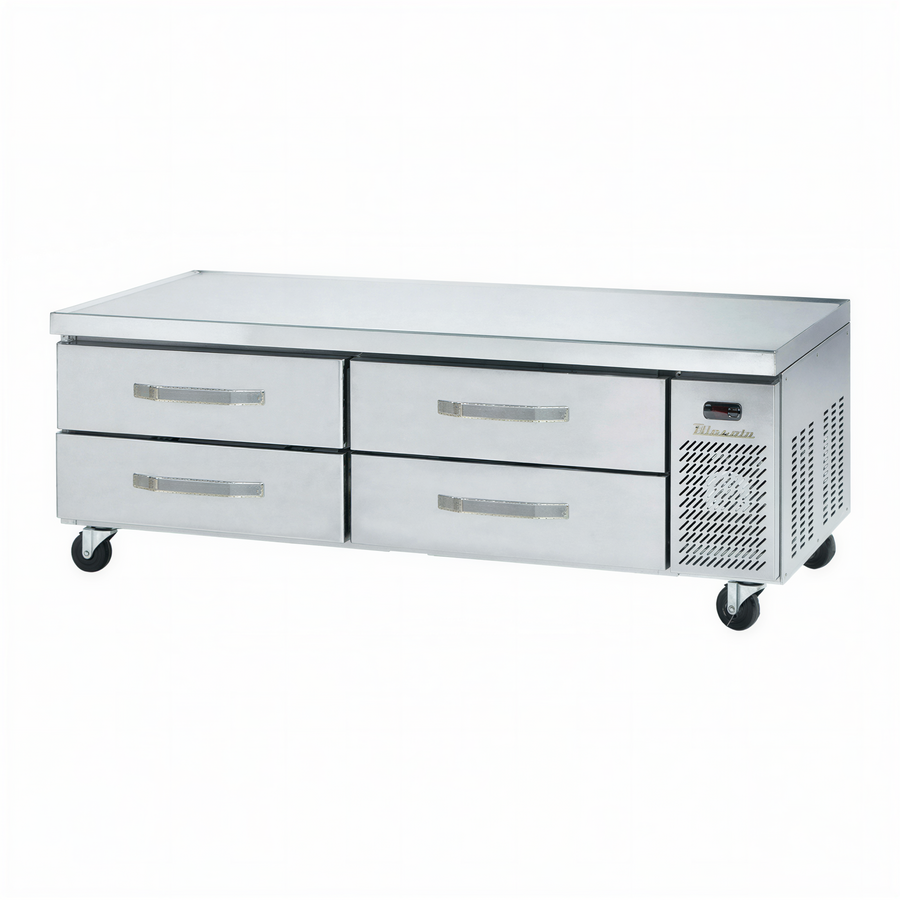

Blue Air FSE LLC BACB74M-HC Refrigerated Chef Base Equipment Stand, 74-1/8"W, Side-Mounted Self-Contained, Stainless Steel, 4 Drawers

SKU: BACB74M-HC
$6,527.35
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Blue Air FSE LLC Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Refrigerated & Freezer Equipment Bases Refrigeration & Ice Refrigerators & Freezers Restaurant Equipment Undercounter & Worktop Cabinet Equipment Undercounter & Worktop Refrigeration

The BACB74M-HC refrigerated chef base features a stainless steel top with a marine edge and four drawers for use with countertop cooking equipment.

  • Side-mounted, self-contained refrigeration with a 33°F to 39°F temperature range.
  • Stainless steel interior and stainless steel front and sides.
  • Automatic defrost and R290 hydrocarbon refrigerant.
  • 115V/60Hz single-phase electrical connection with a 3-amp draw and NEMA 5-15P cord.

The drawers accommodate 4-inch-deep 12 x 20-inch pans. Heavy-duty pan adapter bars are supplied; pans are not included.

Overall Dimensions:

74.13"W x 31.0"D x 25.5"H

Product Weight:

309.0 lb

Four drawers

The drawers accommodate 4-inch-deep 12 x 20-inch pans; heavy-duty pan adapter bars are supplied, but pans are not included.

Stainless steel work top

The top is stainless steel and includes a marine edge.

Self-contained refrigeration

The refrigeration system is side-mounted and self-contained, with a 33°F to 39°F temperature range.

Automatic defrost

The unit uses an automatic defrost system.

Stainless steel construction

The interior and the front and sides are stainless steel.

Mobility

Six 4-inch swivel casters are provided, including two braked casters.

Electrical connection

The unit uses 115V/60Hz single-phase power, draws 3 amps, and includes a NEMA 5-15P cord.

R290 refrigerant

The refrigeration system uses R290 hydrocarbon refrigerant.

Product type Refrigerated chef base equipment stand
Width 74.13 in
Depth 31.0 in
Height 25.5 in
Capacity 14.3 cu. ft.
Drawer quantity 4 drawers
Top material Stainless steel with marine edge
Interior finish Stainless steel
Exterior finish Stainless steel front and sides
Refrigeration system Self-contained, side-mounted
Temperature range 33°F to 39°F
Defrost Automatic
Refrigerant R290 hydrocarbon
Compressor 1/4 HP
Voltage 115 V
Frequency 60 Hz
Phase Single-phase
Current 3 amps
Power cord and plug Cord with NEMA 5-15P
Casters 6 swivel casters, 4 in. high; 2 braked
Pan compatibility 4 in. deep, 12 x 20 in. pans

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of UL Certified
UL Certified

Warranty & Protection

Three-year parts-and-labor warranty for BACB chef bases, with a five-year compressor-only warranty.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty certificate PDF Download PDF Warranty certificate PDF Download

Frequently Asked Questions

It has four drawers.
The temperature range is 33°F to 39°F.
It uses side-mounted, self-contained refrigeration with R290 hydrocarbon refrigerant.
The unit uses 115V/60Hz single-phase power, draws 3 amps, and includes a cord with a NEMA 5-15P plug.
No. Pans are not included, although heavy-duty pan adapter bars are supplied.
The warranty certificate lists a three-year parts-and-labor warranty for BACB chef bases and a five-year compressor-only warranty, subject to the certificate terms.
