Blue Air FSE LLC

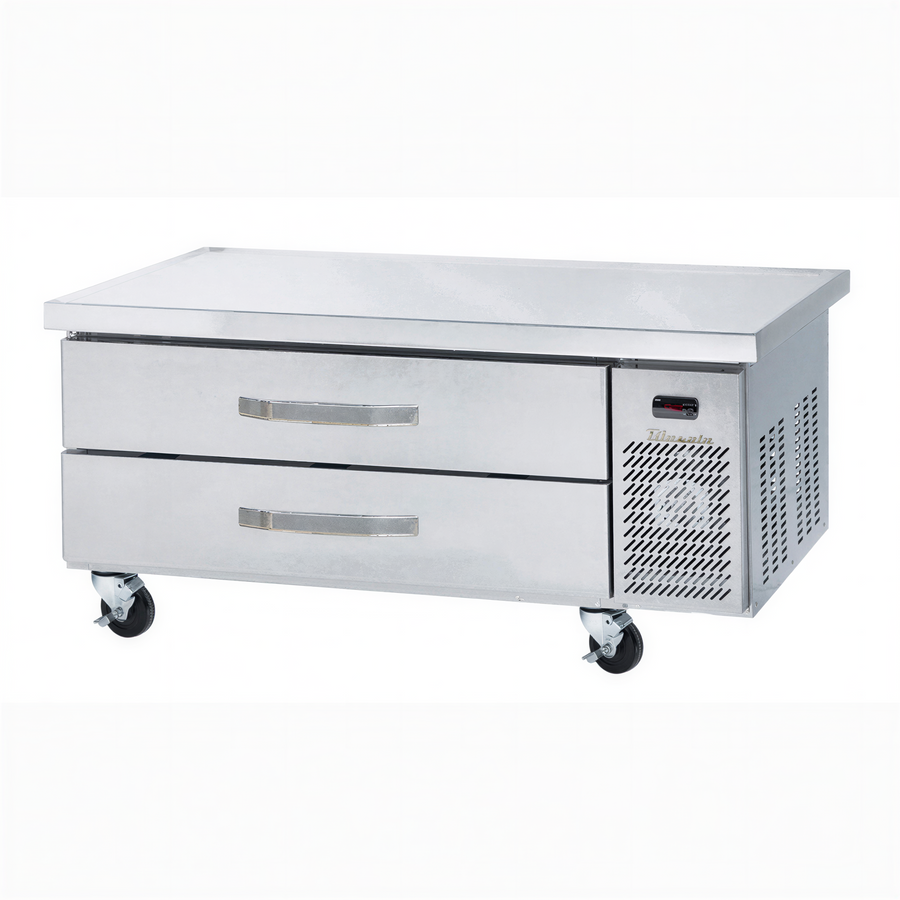

Blue Air FSE LLC BACB60M-HC 60-Inch Refrigerated Chef Base Equipment Stand, Side-Mounted Self-Contained, 2 Drawers, Stainless Steel Top

SKU: BACB60M-HC
$6,029.93
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Blue Air FSE LLC Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Refrigerated & Freezer Equipment Bases Refrigeration & Ice Refrigerators & Freezers Restaurant Equipment Undercounter & Worktop Cabinet Equipment Undercounter & Worktop Refrigeration

The BACB60M-HC is a 60-inch refrigerated chef base equipment stand with side-mounted, self-contained refrigeration, a stainless steel top with marine edge, and two drawers.

  • Automatic defrost and a temperature range of 33°F to 39°F.
  • Stainless steel interior with stainless steel front and sides.
  • Four 4-inch swivel casters, including two braked casters.
  • R-290 hydrocarbon refrigerant, 1/4 HP compressor, and 115V/60Hz/1-phase electrical service.
  • Upper and lower drawers accommodate 4-inch-deep 12-inch x 20-inch pans; pans are not included.

Overall Dimensions:

60.0"W x 31.0"D x 25.5"H

Product Weight:

231.0 lb

Side-mounted self-contained refrigeration

The unit uses a side-mounted, self-contained refrigeration system.

Stainless steel top

The heavy-duty top is stainless steel and includes a marine edge.

Two drawers

The upper and lower drawers accommodate 4-inch-deep 12-inch x 20-inch pans.

Automatic defrost

The refrigeration system provides automatic defrost.

Stainless steel construction

The interior and the front and sides are stainless steel; the back and bottom are galvanized steel.

Pan adapter bars

Heavy-duty pan adapter bars are supplied for full-size pans. Pans are not included.

Swivel casters

Four 4-inch swivel casters are standard, with brakes on two casters.

Drawer slides

Stainless steel telescoping drawer slides support a maximum of 200 lb per drawer without deflection.

Product Type Refrigerated chef base equipment stand
Refrigerated Capacity 9.8 cu. ft.
Temperature Range 33°F to 39°F
Drawer Count 2 drawers
Top Stainless steel with marine edge
Interior Construction Stainless steel
Exterior Construction Stainless steel front and sides; galvanized steel back and bottom
Refrigeration System Self-contained, side-mounted
Defrost Automatic
Refrigerant R-290 hydrocarbon
Compressor 1/4 HP
Electrical Service 115V/60Hz/1-phase
Current Draw 3 amps
Power Cord and Plug 9.8 ft (3 m) three-wire cord with NEMA 5-15P
Casters Four 4-inch swivel casters; two braked
Pan Accommodation Upper and lower drawers accommodate 4-inch-deep 12-inch x 20-inch pans
Drawer Load Rating 200 lb maximum per drawer without deflection
Insulation High-density foamed-in-place polyurethane

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of UL Certified
UL Certified

Warranty & Protection

Three-year parts and labor warranty; five-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty certificate PDF Download PDF Warranty certificate PDF Download

Frequently Asked Questions

The product measures 60 inches wide by 31 inches deep by 25.5 inches high and weighs 231 lb.
The BACB60M-HC has two drawers.
The temperature range is 33°F to 39°F.
It uses R-290 hydrocarbon refrigerant.
The unit uses 115V/60Hz/1-phase electrical service, draws 3 amps, and has a NEMA 5-15P plug.
No. The pans are not included, although heavy-duty pan adapter bars are supplied for full-size pans.
Yes. It includes four 4-inch swivel casters, with two braked casters.
