Blodgett (Middleby)  |  Zephaire Series  |  SKU: ZEPH-200-G DBL

Blodgett (Middleby) ZEPH-200-G DBL Zephaire Series Convection Ovens

$13,598.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Start up doc Parts list Stacked zeph200g/bcx14g Middleby financial flyer French manual Installation & operation Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

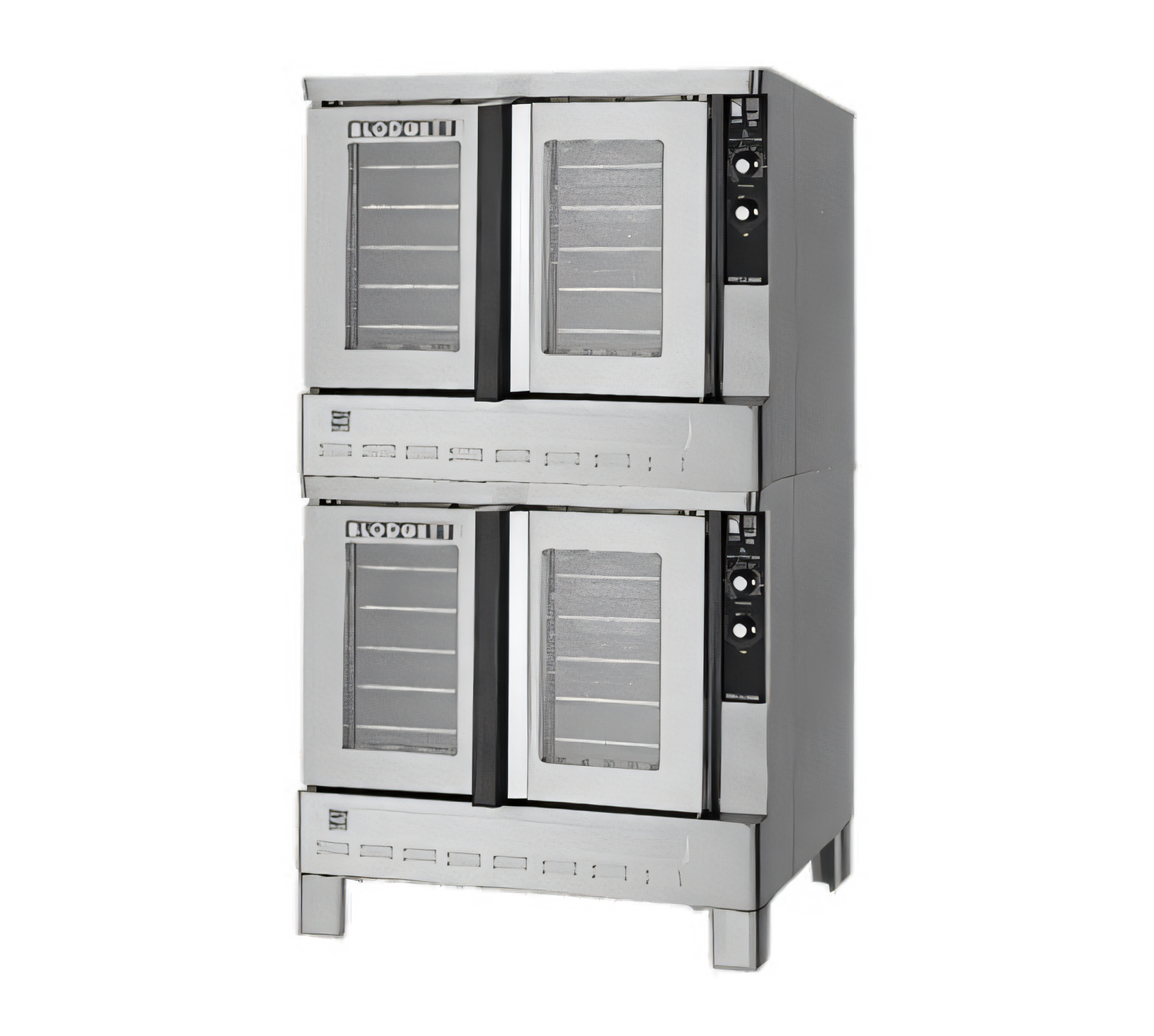

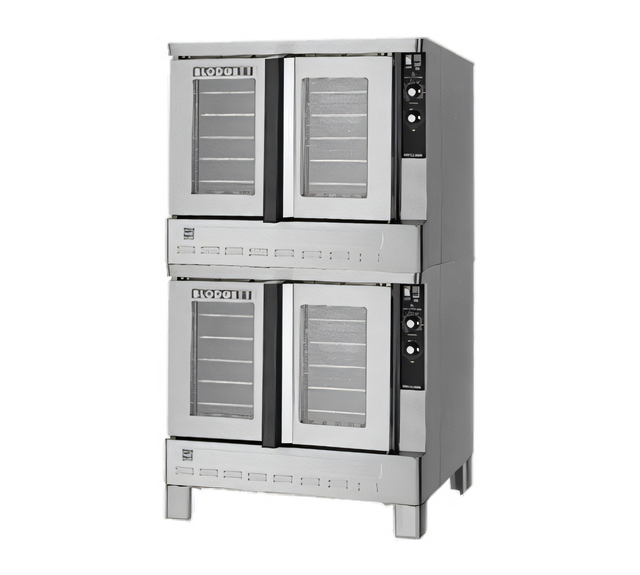

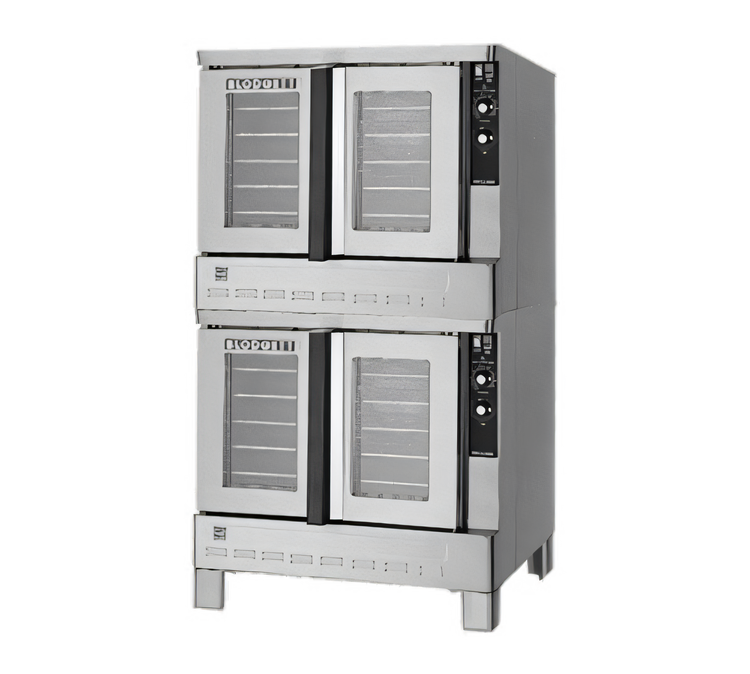

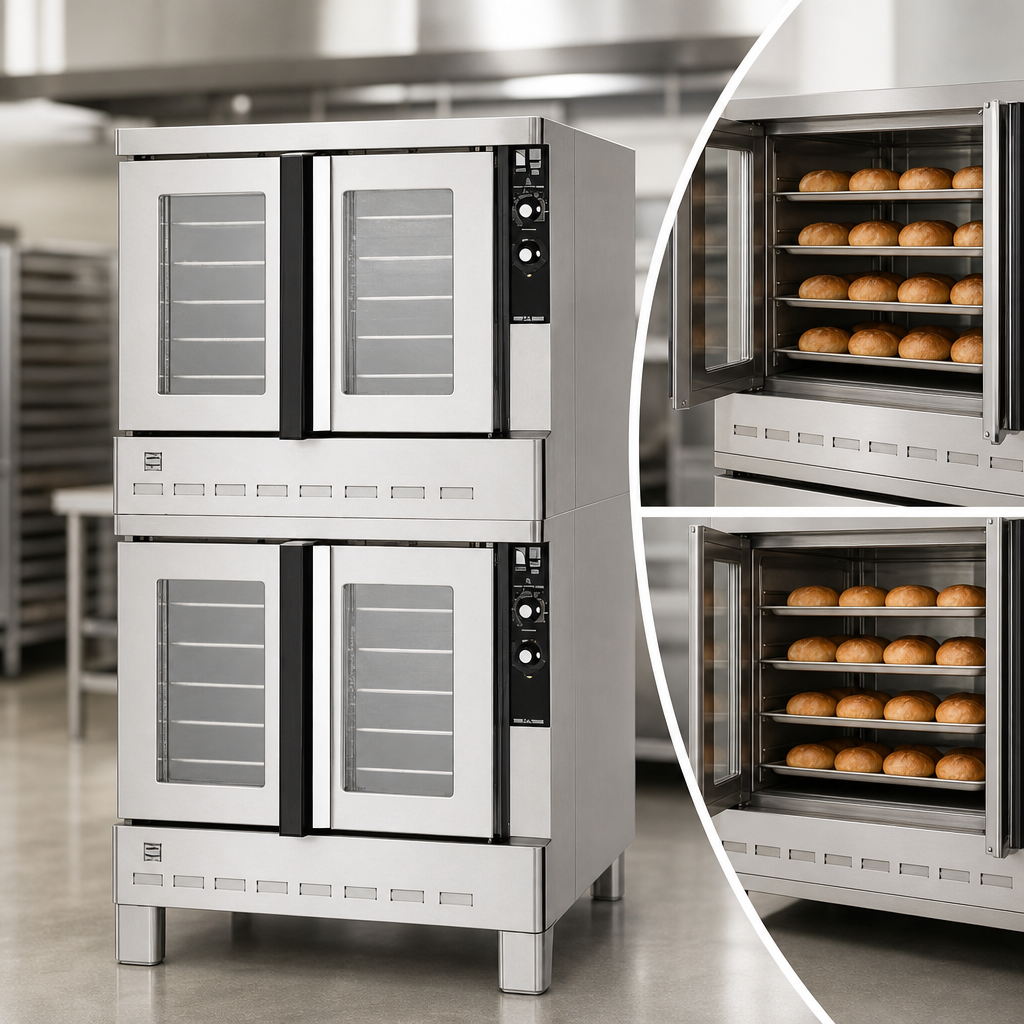

Blodgett Zephaire-200-G Double-Deck Gas Convection Oven

Full-Size Bakery Depth • 120,000 BTU • SSI-M Controls

Engineered for high-volume bakeries, restaurants and commissaries, the Zephaire-200-G delivers even baking, fast recovery and unparalleled reliability in a space-saving stacked design. Two independent 60,000 BTU oven cavities each accommodate five full-size (18 × 26") pans, giving you the capacity and consistency you need for every shift.

Why You’ll Love It

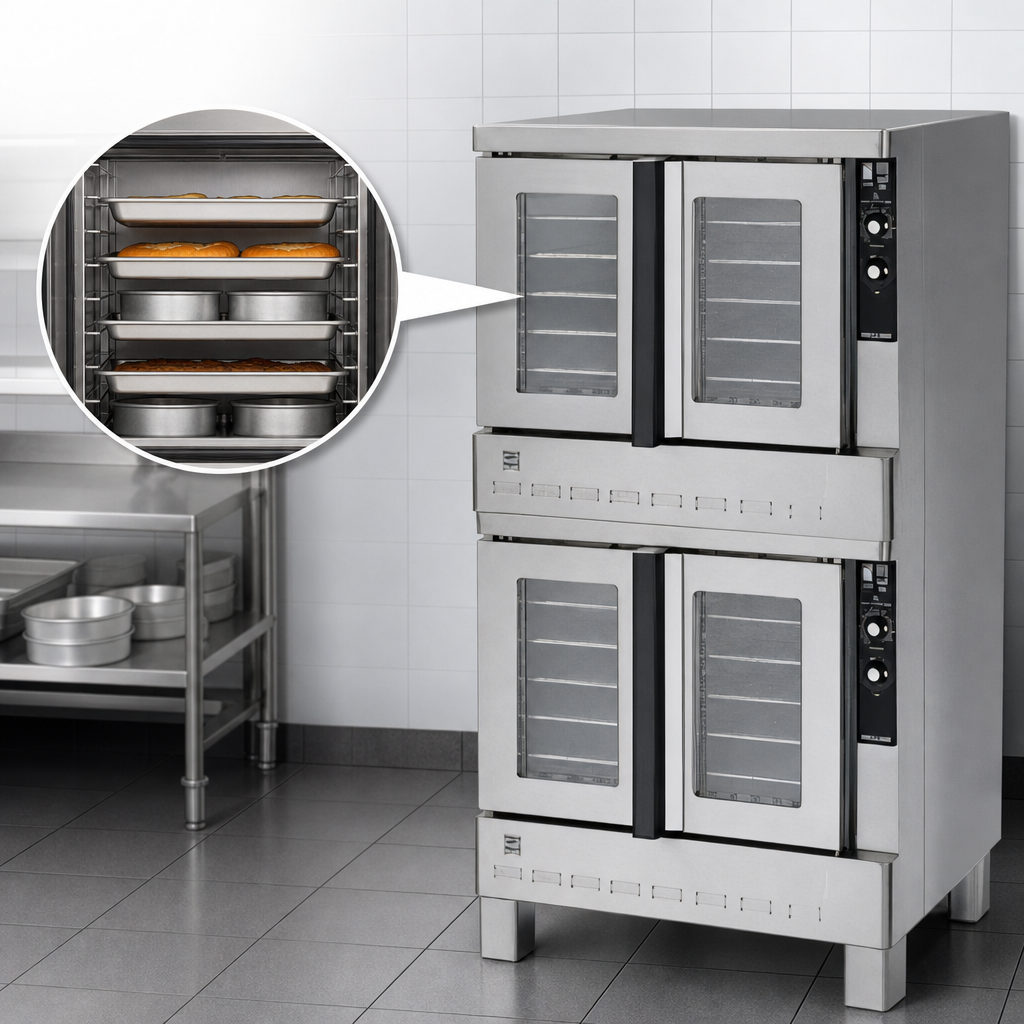

  • Bakery-depth interior accepts pans left-to-right or front-to-back for maximum flexibility.
  • SSI-M solid-state infinite controls with separate dials for temperature and a 60-minute timer—simple, dependable operation your staff will master in minutes.
  • Two-speed, ½ HP blower motor and dual-inlet wheel circulate heat evenly for perfectly browned results, batch after batch.
  • Dual-pane glass dependent doors open simultaneously with a single, powder-coated handle—reducing heat loss and speeding load/unload.
  • Rugged stainless steel front, sides, top and 6" legs stand up to daily commercial abuse and simplify cleaning.
  • Blodgett’s Dual Flow Gas system blends direct & indirect heat for faster preheat and superior product quality.
  • Interior lighting and five chrome racks (11 positions) per cavity keep production moving.
  • ETL, CE and NSF listed for worry-free code compliance.
At-a-Glance Specs
Capacity (5) 18" × 26" pans per cavity • 10 pans total
Heat Source Natural or LP gas, 60,000 BTU/hr per cavity (120,000 BTU total)
Temperature Range 200 °F – 500 °F (93 °C – 260 °C)
Controls SSI-M solid-state infinite thermostat & 60-min manual timer
Fan Two-speed, ½ HP motor with automatic thermal overload protection
Interior Dimensions (each) 29" W × 20" H × 28 ¼" D (737 × 508 × 718 mm)
Overall Footprint 38 ¼" W × 36 ⅞" D × 70 ⅝" H
(972 × 936 × 1794 mm)
Gas Connection 3/4" NPT (per cavity) • NG 7–10.5" WC • LP 10.5–13" WC
Electrical 115 V, 1-phase, 6 A, 6′ cord & plug (one per oven section)
Shipping Weight Approx. 1,193 lb (541 kg)
Clearances 6" (152 mm) from combustible or non-combustible surfaces
Certifications ETL Sanitation • ETL (US/Canada) • CE • NSF
Warranty 2 yr parts & labor • 3 yr limited door warranty
Standard Construction Details
  • Full angle-iron frame with solid mineral fiber insulation on all sides.
  • Double-sided, 14-gauge porcelainized liner for a long-lasting, easy-clean bake compartment.
  • Aluminized steel combustion chamber with removable dual-tube burners.
  • Pressure regulator, manual gas shut-off valve and front-mounted control panel for quick service access.
  • (2) 50 W oven lamps per cavity for bright interior visibility.
Popular Options & Accessories
  • 6" or 4" heavy-duty casters (standard legs are adjustable 6" SS)
  • Solid stainless steel doors
  • Draft diverter or draft hood
  • Extra oven racks
  • Quick-disconnect gas hose & restraining device
Need professional commissioning?
Factory start-up service is available and must be ordered with the oven. All utilities and ventilation must be installed and operational before scheduling. Contact Blodgett Service at 847-481-6675 for details.

Looking to preserve cashflow? Middleby Equipment Financing can spread your investment over low, fixed monthly payments. Learn more.

Features & Specs

Manufacturer

Blodgett (Middleby)

Brand_name

Zephaire Series

Certifications

NSF, CE, ETL

Height

70.63in

Width

38.25in

Depth

36.88in

Shipping Weight

1193.0lbs

Base

legs

Type

standard

Interior Finish

porcelain interior

Deck Qty

2 decks

Exterior Finish

all stainless steel exterior

Control Type

solid state controls

Capacity per Compartment

5 pan capacity, per compartment

Size

deep/bakery size

Specifications

Zephaire Convection Oven, gas, double-deck, bakery depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, flue connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, 120,000 BTU, ETL, CE, NSF
