Blodgett (Middleby) ZEPH-100-G DBL Zephaire Series Convection Ovens
Description

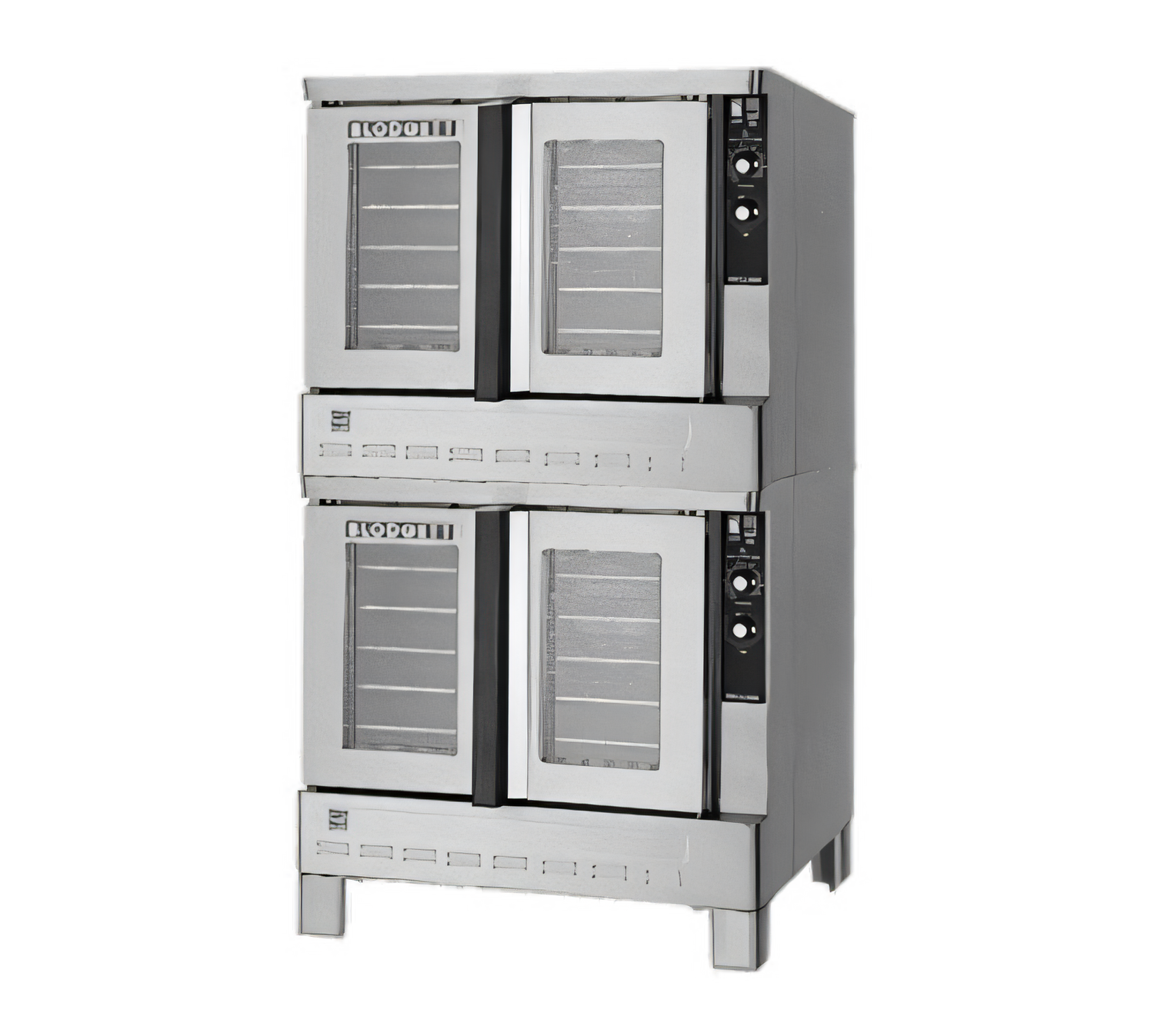

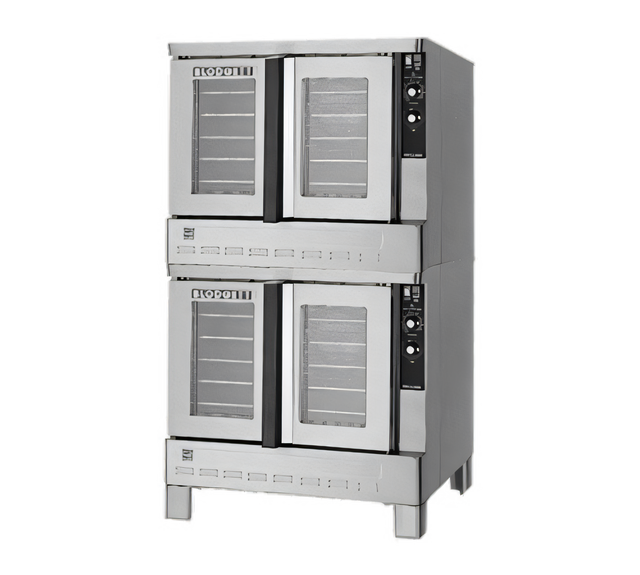

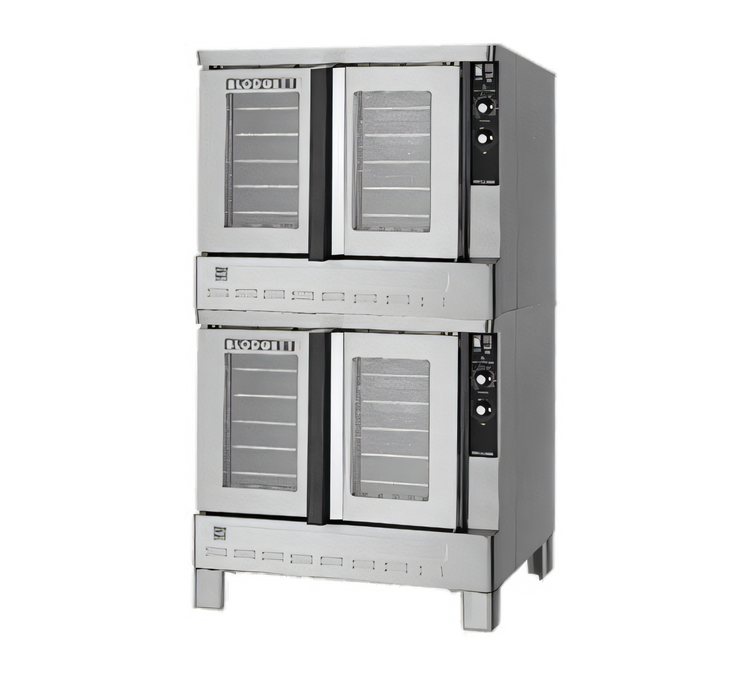

Blodgett Zephaire-100-G Double-Deck Gas Convection Oven
Full-size • Standard depth • 100,000 BTU/hrEngineered for high-volume kitchens that refuse to compromise on bake quality, the Zephaire-100-G delivers Blodgett’s legendary reliability in a space-saving double-deck footprint. Each deck uses Blodgett’s Dual Flow gas system to combine direct & indirect heat with a two-speed fan, guaranteeing even color and consistent results—pan after pan, shift after shift.
Why you’ll love the Zephaire-100-G
- 10-pan capacity – five 18" × 26" full-size sheet pans per compartment
- SSI-M solid-state infinite controls with 60-minute manual timer & cool-down mode
- Two-speed, ½ HP fan motor for delicate bakes or high-production roasting
- Dual pane thermal-glass dependent doors open simultaneously with one handle
- Stainless steel front, sides, top & 6" adjustable legs built on a full angle-iron frame
- Porcelainized 29" W × 24¼" D cavity with 11 rack positions & 5 chrome racks included
- Electronic spark ignition & removable dual-tube burners for quick, low-cost service
- Interior lights keep production visible without opening the doors
- ETL & NSF listed; 2-year parts & labor warranty plus 3-year limited door warranty
Technical Specifications
| Model | Zephaire-100-G DD (Double-Deck) |
|---|---|
| Fuel | Natural or LP gas, 3/4" NPT connection |
| Total Input | 100,000 BTU/hr (50,000 BTU per deck) |
| Temperature Range | 200 – 500 °F (93 – 260 °C) |
| Pan Capacity | 10 full-size (18" × 26") sheet pans |
| Interior (each deck) | 29" W × 20" H × 24¼" D |
| Exterior (overall) | 38¼" W × 36⅞" D × 70 5⁄8" H |
| Electrical | 115 VAC, 1-phase, 6 A (cord & plug included) |
| Fan Motor | ½ HP, two-speed, 1120 & 1710 RPM with thermal overload |
| Shipping Weight | Approx. 1,070 lb (485 kg) |
| Clearances | Sides 2" • Back 0" • Combustible/non-combustible |
| Certifications | ETL Listed, ETL Sanitation (NSF) |
Popular Options & Accessories
- 6" seismic legs or heavy-duty locking casters
- 25" stainless steel open stand with pan supports
- Solid stainless steel doors
- SSD digital controls with Cook & Hold and Pulse Plus® modes
- Extra oven racks or stainless steel solid back panel
- Factory start-up service for worry-free commissioning
Peace-of-Mind Coverage
Includes 2-year parts & labor and 3-year limited door warranties. Factory-authorized start-up is available nationwide to verify proper installation and ensure peak performance.
