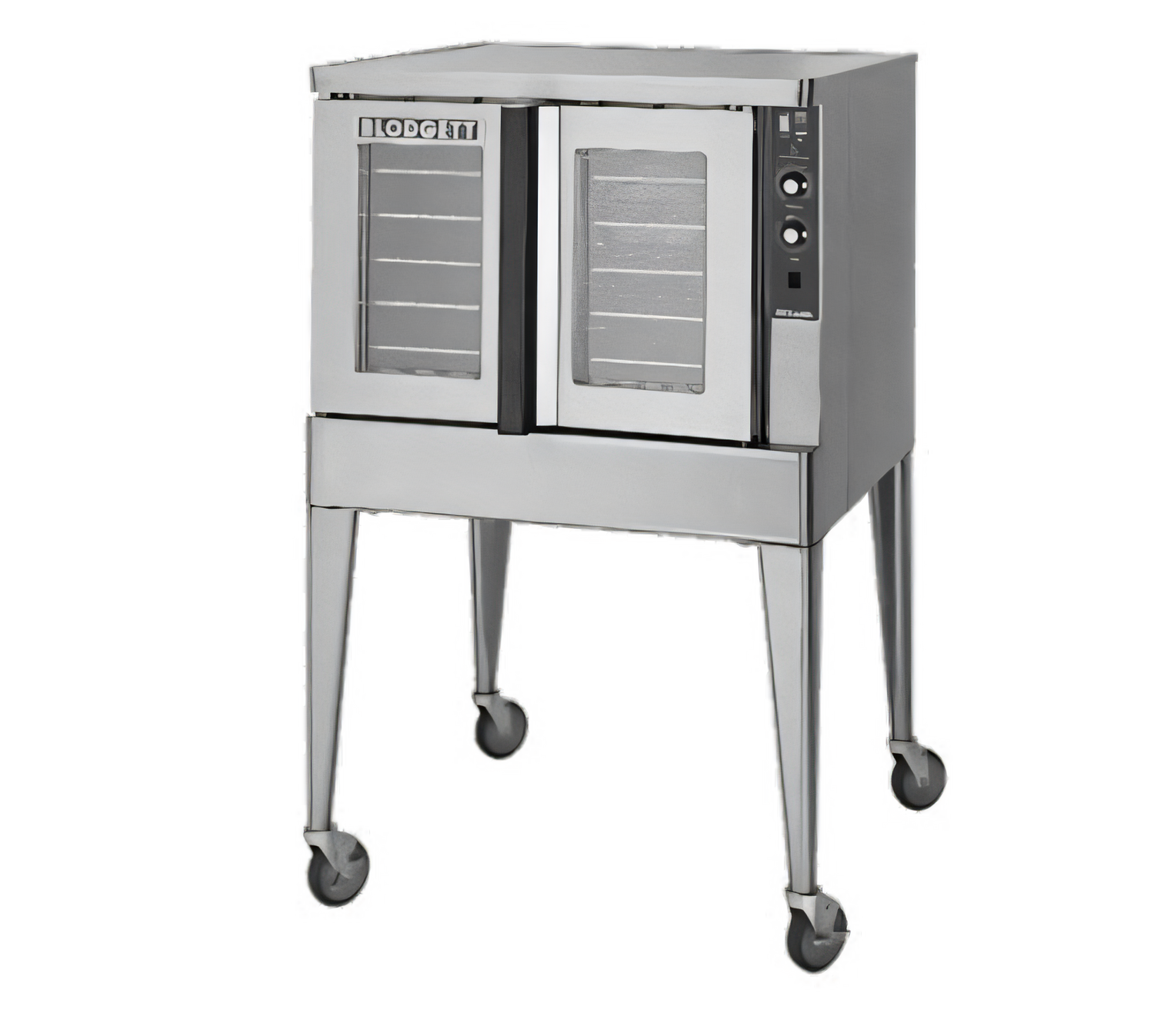

Blodgett (Middleby) ZEPH-100-E SGL Zephaire Series Convection Ovens
Description
Zephaire Series Electric Convection Oven
Model ZEPHAIRE-100-E • Single-Deck • Ships in 5 DaysBuilt for busy commercial kitchens that refuse to compromise on speed, consistency, or durability, the Blodgett Zephaire-100-E handles everything from delicate pastries to high-volume roasts with ease. A rugged stainless-steel exterior, ENERGY STAR® efficiency, and Blodgett’s legendary airflow design make this the go-to full-size convection oven for restaurants, schools, resorts, and commissaries that demand dependable, even results—every single shift.
Top-Line Advantages

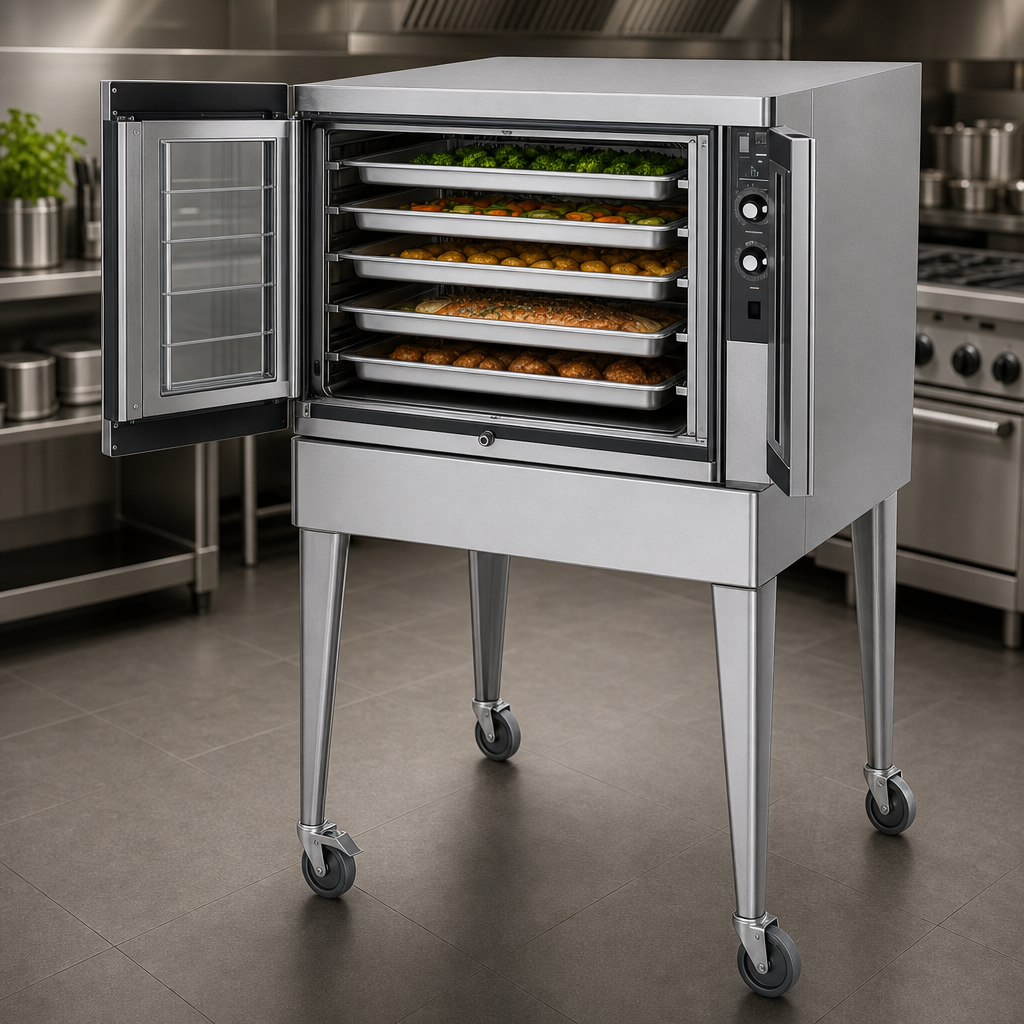

- Holds (5) 18" x 26" full-size sheet pans—standard depth cavity.

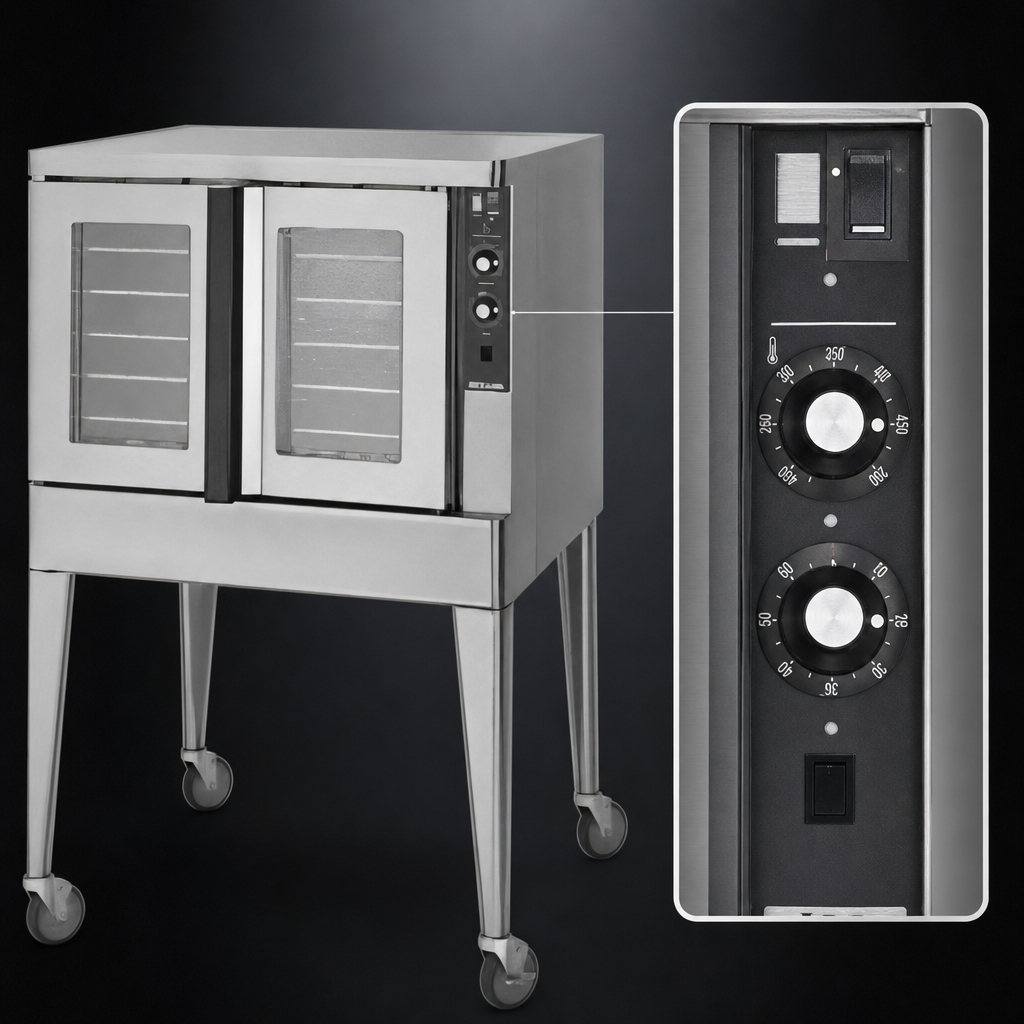

- SSI-M solid-state infinite controls with separate temperature (200-500 °F) and 60-minute timer dials.
- Two-speed ½ HP fan and three tubular heaters for faster heat recovery and ultra-even baking.
- Dependent, dual-pane glass doors open simultaneously with a single, powder-coated handle.
- Fully welded angle-iron frame and stainless front, sides, and top stand up to years of abuse.
- 11 ENERGY STAR® kW input keeps utility costs in check.
- Ships with five chrome racks, 11 positions, plus bright interior lighting.
- Includes 25" adjustable stainless-steel legs—no extra stand required.
- Backed by a 2-year parts & labor warranty and 3-year limited door warranty.
Built to Outlast the Rush
- Exterior: Full angle-iron chassis; stainless door frames; mineral fiber insulation on all sides.
- Interior: 14-gauge double-sided porcelain liner resists corrosion and wipes clean fast.
- Pressure-lock doors: Triple-mounted with turnbuckle assembly for a consistent, positive seal.
- Control area cooling fan protects components and extends service life.
Technical Specifications
| Capacity | (5) full-size 18" × 26" pans, left-to-right |
|---|---|
| Interior (W × H × D) | 29" × 20" × 24.25" (737 × 508 × 616 mm) |
| Exterior (W × D × H) | 38.25" × 36.88" × 57" (972 × 937 × 1448 mm on supplied 25" legs) |
| Power Input | 11 kW, three tubular heating elements |
| Voltage Options |
208 V / 1 ph / 51 A 208 V / 3 ph / 31-29-29 A 220-240 V / 1 ph / 44 A 220-240 V / 3 ph / 26-24-24 A 440 V / 3 ph / 15-14-14 A 480 V / 3 ph / 14-13-13 A |
| Fan Motor | ½ HP, two-speed (1120 & 1710 RPM) with overload protection |
| Clearance | ½" (13 mm) from combustible or non-combustible construction |
| Shipping Weight | ≈ 480 lb (218 kg) |
| Approvals | ETL, NSF, ENERGY STAR® |
Popular Options (Sold Separately)
- Hoodini™ VLF ventless hood—zero top clearance, no water or drain required.
- Caster kits: 6" standard, 4" low-profile, or 6" seismic.
- SSD digital control with LED display, Cook & Hold, and Pulse Plus®.
- 25" stainless open stand with rack guides.
- Solid stainless doors or extra oven racks.
- 480 V, 3-phase factory wiring.
Standard warranty: 2 years parts & labor • 3 years limited on doors.
Extended labor coverage available—ask your representative for details.
