Blodgett (Middleby) ZEPH-100-E ADDL Zephaire Series Convection Ovens
Description

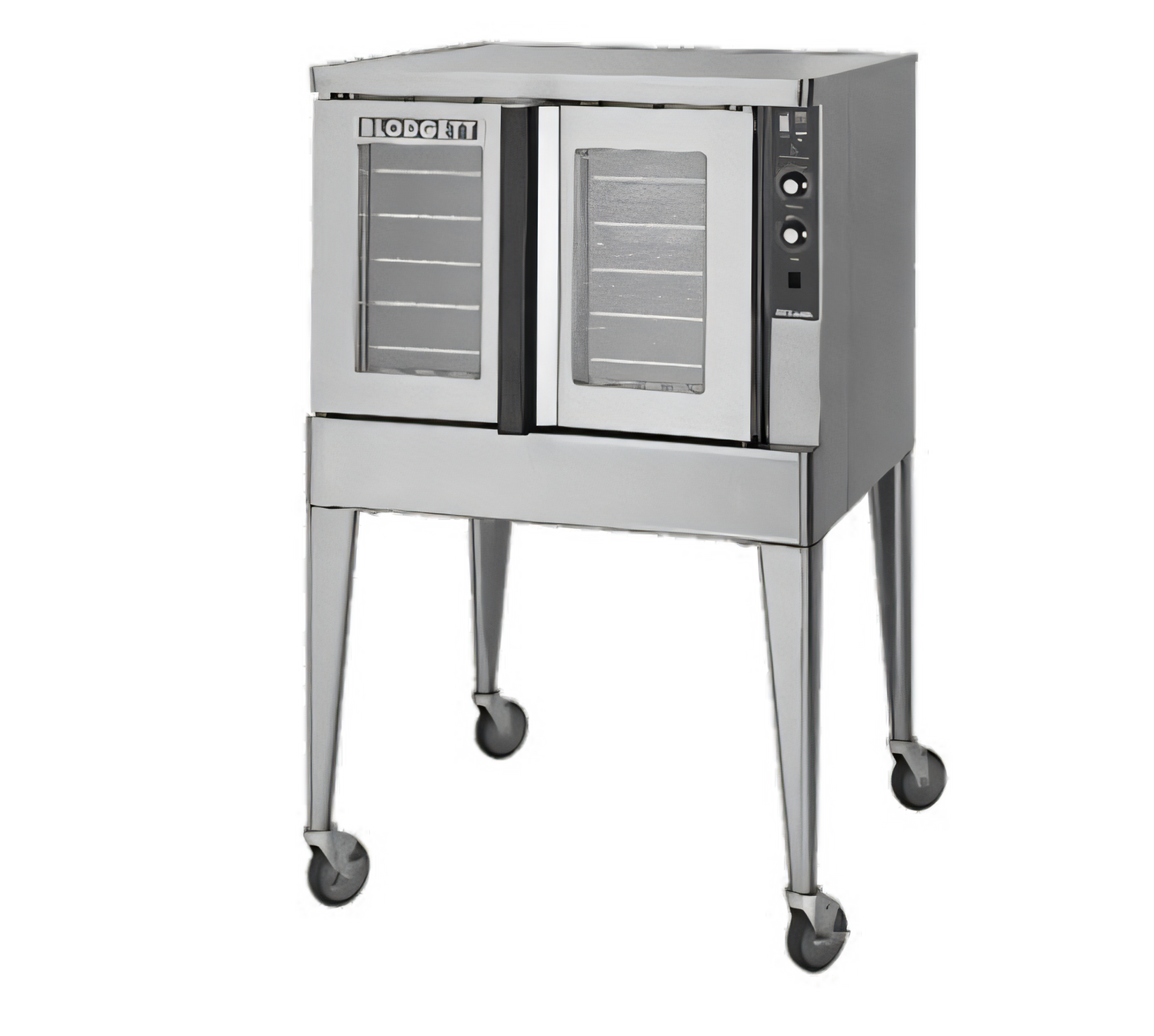

Blodgett Zephaire Series Electric Convection Oven
Model Zephaire-100-E | Single-Deck • Standard Depth • ENERGY STAR®Designed around the rigorous demands of high-volume kitchens, the Zephaire-100-E delivers the legendary Blodgett bake with rock-solid construction, intuitive SSI-M controls, and best-in-class efficiency—all in a space-saving single-deck footprint that holds five full-size sheet pans.
Why It Belongs in Your Kitchen

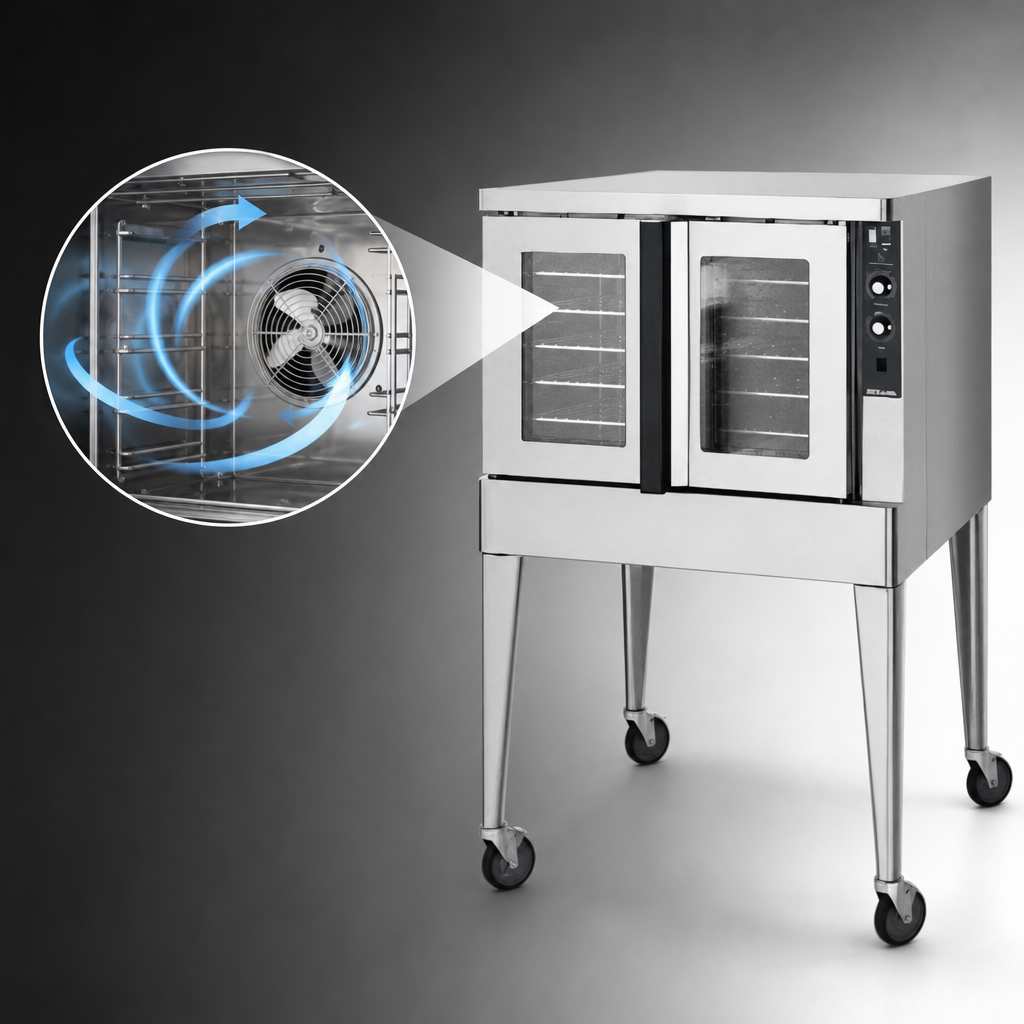

- Consistent, even bake – high-velocity two-speed fan and three tubular heaters blanket every rack with uniform heat.

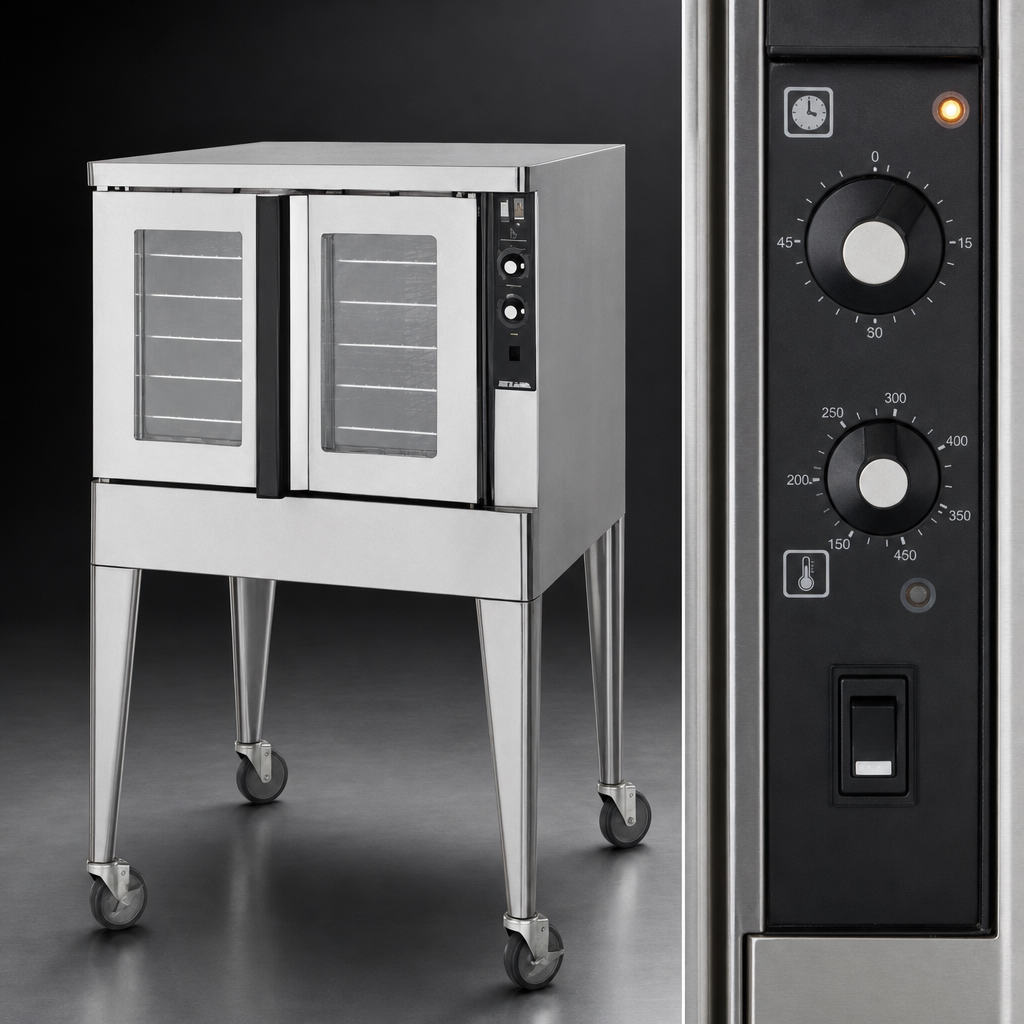

- SSI-M solid-state controls – independent temperature (200-500 °F) and 60-minute timer dials for simple, reliable operation.
- Energy Smart – ENERGY STAR® certified to cut utility costs without sacrificing performance.
- Built to last – full angle-iron frame, stainless steel front/sides/top, and porcelainized 14-gauge liner stand up to daily abuse.
- Five chrome racks, eleven positions – load up 18" × 26" pans left-to-right with 1-5/8" spacing.
- Dependable glass doors – dual-pane thermal windows with powder-coated handle open simultaneously for one-handed access.
- Service-friendly – removable front control panel and cooling fan keep electronics protected and accessible.
At-a-Glance Specs
| Capacity | (5) full-size 18" × 26" sheet pans |
|---|---|
| Interior (W × H × D) | 29" × 20" × 24-1/4" (737 × 508 × 616 mm) |
| Controls | SSI-M solid-state thermostat & 60-min manual timer |
| Temperature Range | 200 – 500 °F (93 – 260 °C) |
| Fan | Two-speed, 1/2 HP motor with thermal overload |
| Heat Input | 11 kW per oven section |
| Electrical | 208–240 V / 1 or 3 ph; 480 V 3 ph optional |
| Exterior (W × D × H) | 38-1/4" × 36-7/8" × 57" (972 × 936 × 1448 mm), plus 6" adjustable SS legs |
| Clearance | 1/2" sides & back |
| Certifications | ETL, NSF, ENERGY STAR® |
| Shipping Weight | Approx. 480 lb (218 kg) |
Built for the Long Haul
- Full angle-iron frame resists warping.
- Solid mineral fiber insulation on all sides locks in heat.
- Triple-mounted pressure-lock door design maintains a perfect seal.
- Aluminized blower wheel for corrosion resistance.
- Interior lighting for easy product monitoring.
What’s Included
- (5) chrome-plated racks
- 6" stainless steel adjustable legs
- Stacking kit (add a second deck any time)
- Two-year parts & labor warranty + three-year limited door warranty
Popular Options (factory-installed)
- Stainless steel solid doors
- 25" or 29" stainless steel stands
- 6" or low-profile casters
- SSD digital control with Cook & Hold and Pulse Plus®
- Ventless VLF hood
- 480 V, 3 phase power configuration
Peace-of-Mind Coverage
Factory start-up service is available for an additional fee and must be ordered with the oven. Contact Blodgett Service (847-481-6675) at least five days before the desired start-up date.
