Blodgett (Middleby)

Blodgett (Middleby) HydroVection Series HV-100G SGL Gas HydroVection Oven, Full Size, 5-Pan, Programmable Manual Controls

SKU: HV-100G SGL
$29,245.00
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

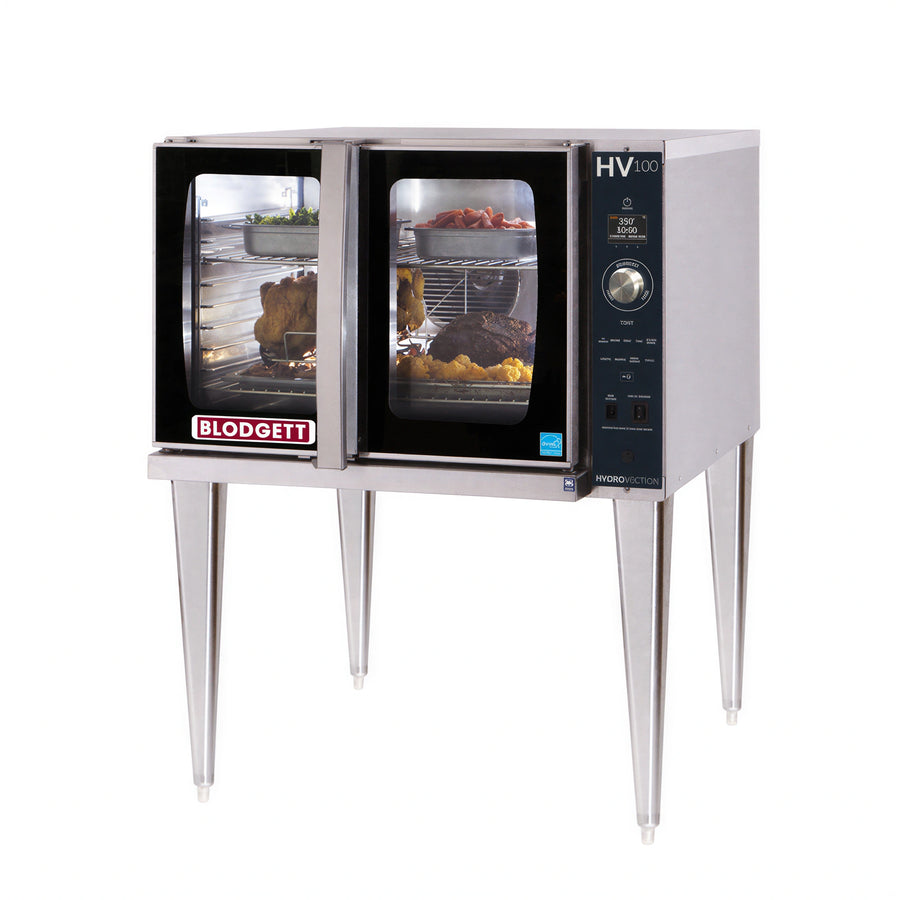

The Blodgett HV-100G SGL is a full-size gas HydroVection oven that accepts five 18 in. x 26 in. standard full-size baking pans. Programmable manual controls provide hot air, humidity and cool down functions.

  • Cooking and control: Four-speed auto-reversing fan motor with overload protection, 4 in. fillet core probe and USB connection.
  • Construction: 304 stainless steel insulated interior liner with stainless steel front, top, sides and back.
  • Convenience: Five stainless steel racks, ten rack positions, black glass doors, two halogen lamps, cavity vent and side-mounted hand shower.
  • Gas heat: Three inshot burners, direct spark ignition and 60,000 BTU input.

Overall Dimensions:

38.07"W x 45.9"D x 50.56"H

Product Weight:

520.0 lb

Five-pan capacity

Accepts five 18 in. x 26 in. standard full-size baking pans in left-to-right positions.

Programmable manual controls

Provides hot air, humidity and cool down functions and can store 100 recipes.

Auto-reversing fan

Four-speed auto-reversing fan motor includes overload protection.

Core probe and USB connection

Includes a 4 in. fillet core probe and USB connection.

Rack configuration

Includes five stainless steel racks and ten rack positions.

Stainless steel construction

Features a 304 stainless steel insulated interior liner and stainless steel front, top, sides and back.

Doors and lighting

Black glass doors and two halogen lamps are specified for the oven.

Cleaning and venting

Includes a side-mounted hand shower and cavity vent.

Related Searches

Best Sellers Blodgett (Middleby) Commercial Ovens Convection Ovens Cooking Equipment Equipment New Arrivals
Oven type Gas HydroVection oven
Capacity Five pans
Pan size 18 in. x 26 in. standard full-size pans
Burners 3 inshot burners
Ignition Direct spark ignition
Control type Programmable manual controls
Cooking functions Hot air, humidity and cool down
Recipe storage 100 recipes
Temperature range 140-500°F
Fan motor Four-speed auto-reversing with overload protection
Motor power 3/4 HP
Core probe 4 in. fillet core probe
USB connection Included
Racks 5 stainless steel racks
Rack positions 10
Door construction Black glass doors
Interior liner 304 stainless steel insulated liner
Exterior construction Stainless steel front, top, sides and back
Interior lighting 2 halogen lamps
Legs 25 in. adjustable stainless steel legs
Gas input 60,000 BTU/hr
Gas connection 3/4 in. NPT
Standard power supply 115 VAC, 10 amp, NEMA 5-20R dedicated receptacle
Gas inlet pressure Natural gas 7.0 in. W.C. static; propane 14.0 in. W.C. static
Water connection 3/4 in. NPT garden hose, cold water only
Drain connection 1.25 in. O.D.
Water pressure 30-50 PSI
Water consumption 2.5-4.0 GPH based on cooking mode

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and 1 year labor warranty.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Stacked hv100g-dfg100es PDF Download PDF Platinum installation PDF Download PDF Middleby financial flyer PDF Download PDF Spanish manual PDF Download PDF Stacked hv100g/zeph200g PDF Download PDF Stacked hv100g-zeph200ges PDF Download PDF Portuguese manual PDF Download PDF French manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accepts five 18 in. x 26 in. standard full-size baking pans.
It has programmable manual controls with hot air, humidity and cool down functions, with storage for 100 recipes.
Yes. The specifications include a 4 in. fillet core probe and USB connection.
The oven uses a 3/4 in. NPT gas connection and has a standard 115 VAC, 10 amp, NEMA 5-20R dedicated receptacle.
Yes. It uses a 3/4 in. NPT garden hose connection for cold water and has listed water consumption of 2.5-4.0 GPH based on cooking mode.
The product specification lists a 1 year parts and 1 year labor warranty.
