Key specifications

Amps
26.3-31 Amps
Phase
3-Phase
Dimensions
28.38"W × 29.0"D × 56.83"H
Type
Door-Type Dishwasher
Style
Hood Type
Installation Type
Floor Model
Spec sheet
Blakeslee SKU: D-18D-3

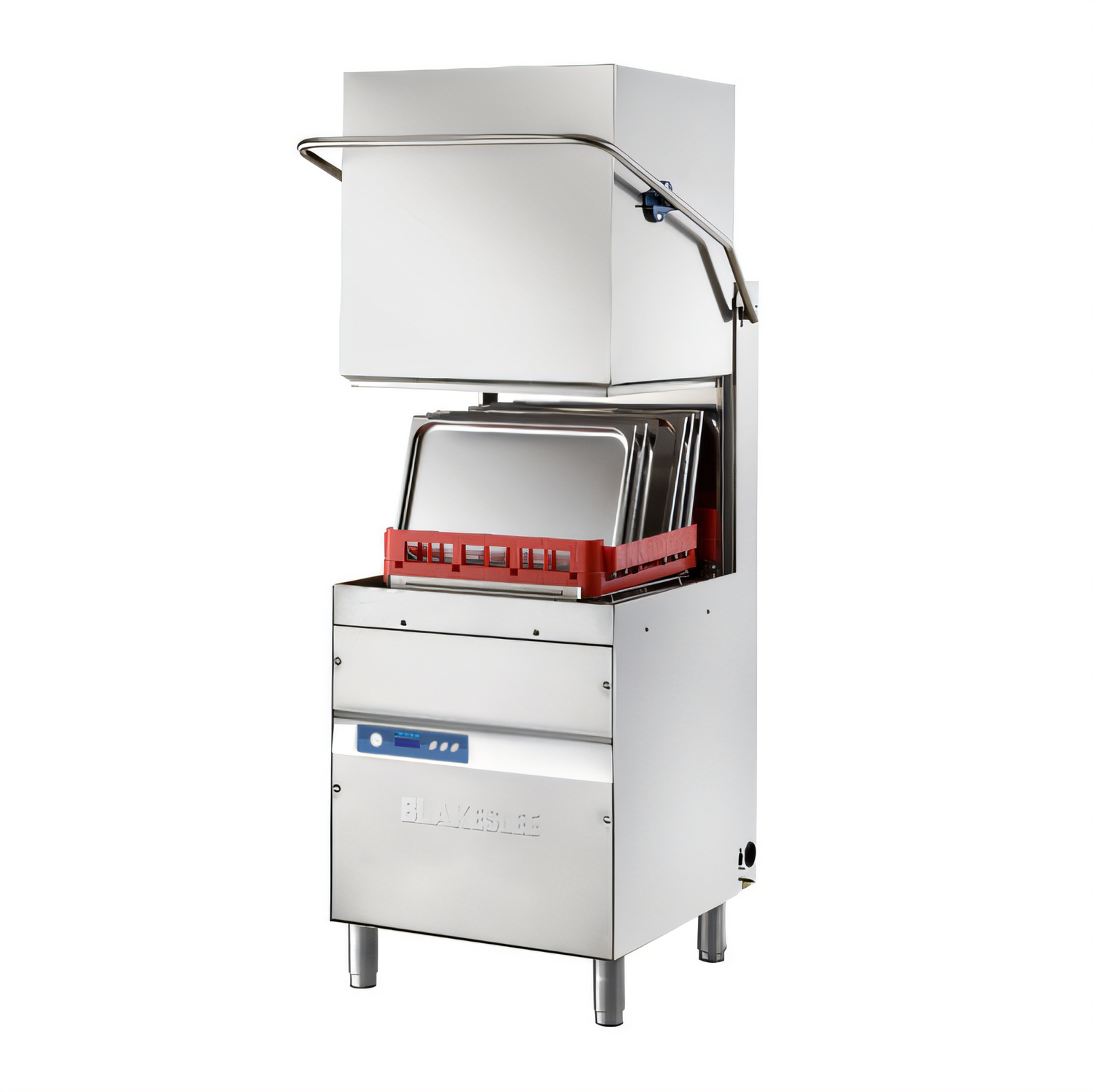

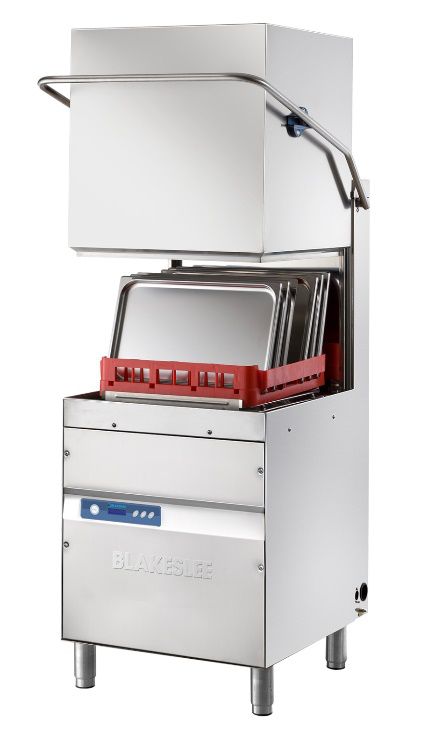

Blakeslee D-18D-3 Hood-Type High-Temperature Dishwasher

$7,127.51
/each
Estimated to ship in 16–19 business days
Included: Blakeslee warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $659/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door-Type Dishwasher
Style Hood Type
Installation Type Floor Model
Material 304 Stainless Steel
Tank Material 316 Stainless Steel
Installation Configuration Straight-Thru / Corner
Rack Capacity Up to 30 Racks/Hour
Rack Size 20 in x 20 in
Maximum Dish Height 12.25 in
Plate Diameter 16.125 in
Wash Tank Capacity 11.1 gal
Booster Capacity 3.96 gal
Tank Heat Electric
Booster Heater 9 kW
Tank Heater Power 2.94 kW
Controls Digital Controls with LCD Screen
Operating Cycles 5
Cycle Times 120 / 180 / 240 / 300 / 360 Seconds
Water Usage 0.69 gal/Rack
Temperature Range 165°F Wash / 180°F Rinse
Voltage 208/240 Volts
Amps 26.3-31 Amps
Watts 10.75 kW
Hertz 60 Hz
Phase 3-Phase
Water Connection 3/4 in
Noise Level 63.6 ± 0.7 dB(A)
Pump Power 2.3 HP
Drain Pump Built-In

Description

The Blakeslee D-18D-3 is a hood-type, high-temperature dishwasher with front-mounted digital controls and an LCD screen.

It provides a 180°F sanitizing final rinse through the Perfecta-Rinse system, with a built-in 9 kW booster heater, 2.94 kW wash tank heater, and capacity for up to 30 racks per hour.

  • Built-in detergent and rinse-aid pumps
  • Hood-operated start/stop functions
  • Upper and lower revolving wash sprays
  • Triple filter system
  • 304 stainless steel exterior panels and interior
  • Deep formed 316 stainless steel tank
  • Built-in drain pump

Overall Dimensions:

28.38"W x 29.0"D x 56.83"H

Product Weight:

308.0 lb

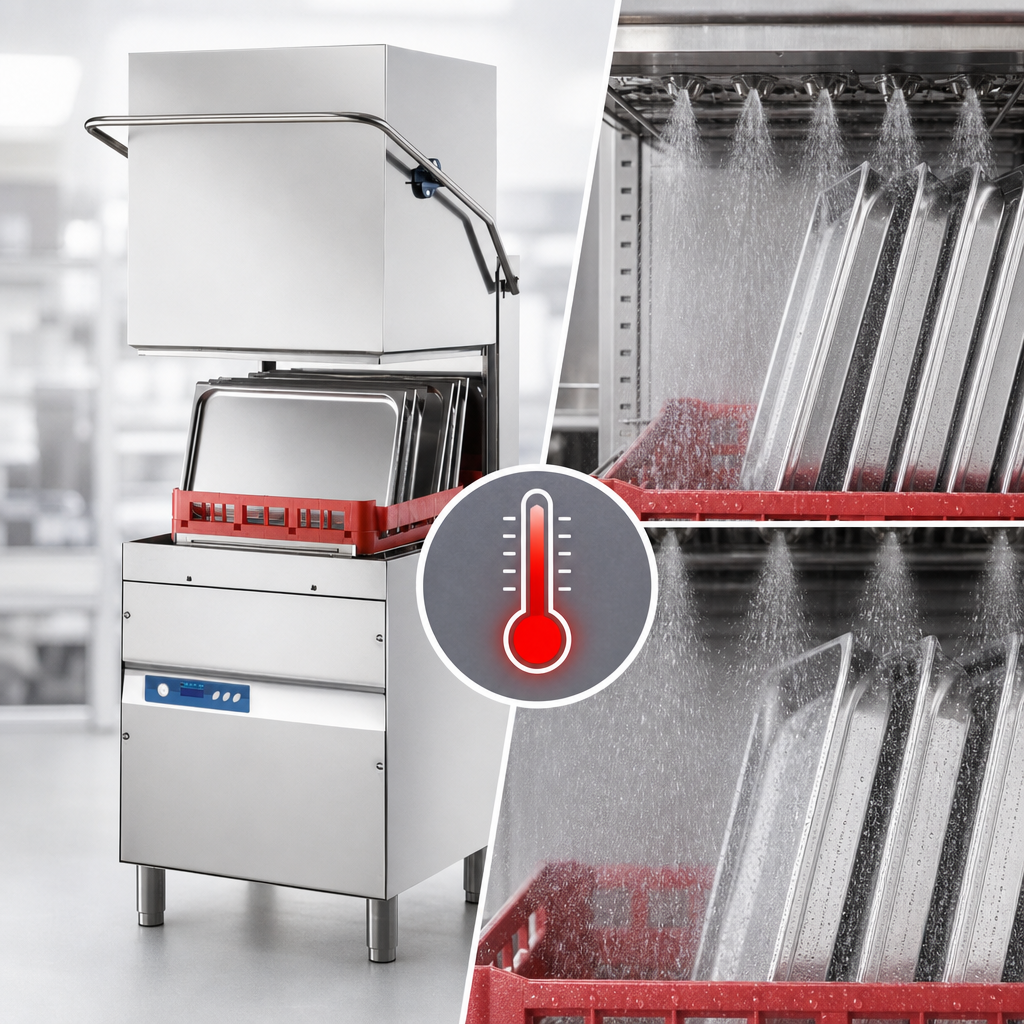

High-Temperature Sanitizing

The Perfecta-Rinse system extends the wash cycle to provide a 180°F final rinse on every cycle.

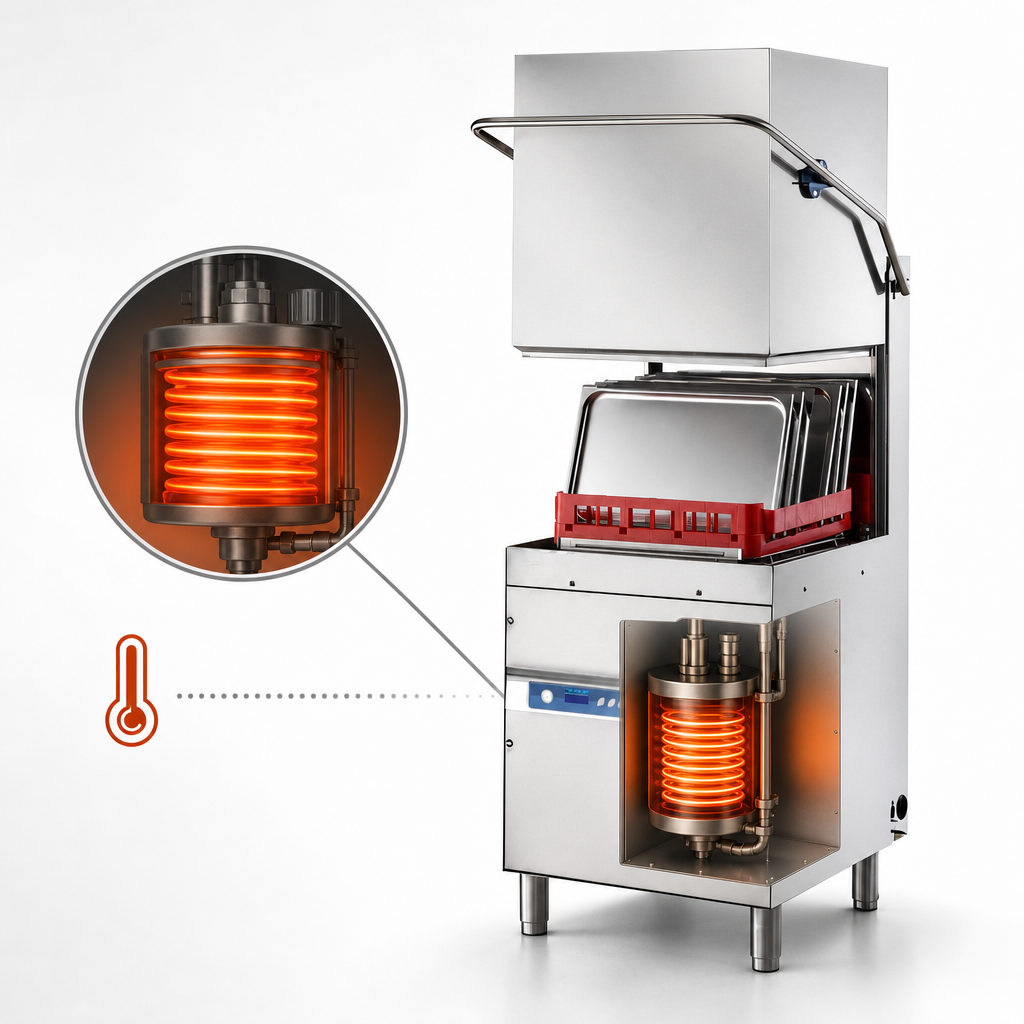

9 kW Booster Heater

The built-in booster heater provides 180°F final rinse water.

Digital LCD Controls

Front-mounted digital controls include an LCD screen.

Hood-Operated Start/Stop

The hood operates the dishwasher's start and stop functions.

Built-In Chemical Pumps

Built-in pumps dispense detergent and rinse aid.

Wash and Rinse Sprays

Upper and lower revolving wash sprays are removable.

Triple Filter System

The triple filtering system uses stainless steel filters to capture soil and debris.

Drain Pump

The built-in drain pump supports installation flexibility.

Five Operating Cycles

The dishwasher provides five operating cycles with listed cycle times from 120 to 360 seconds.

Frequently Asked Questions

The dishwasher provides a 180°F final rinse on every cycle.
It has a rated capacity of up to 30 racks per hour.
It has five operating cycles with listed times of 120, 180, 240, 300, and 360 seconds.
Yes. Built-in detergent and rinse-aid pumps are included.
Yes. The specified installation configuration supports straight-through or corner installation.
The specified electrical supply is 208/240 Volts, 60 Hz, 3-Phase, with total amperage listed as 26.3 to 31 Amps.
The specified dish rack size is 20 in x 20 in.
