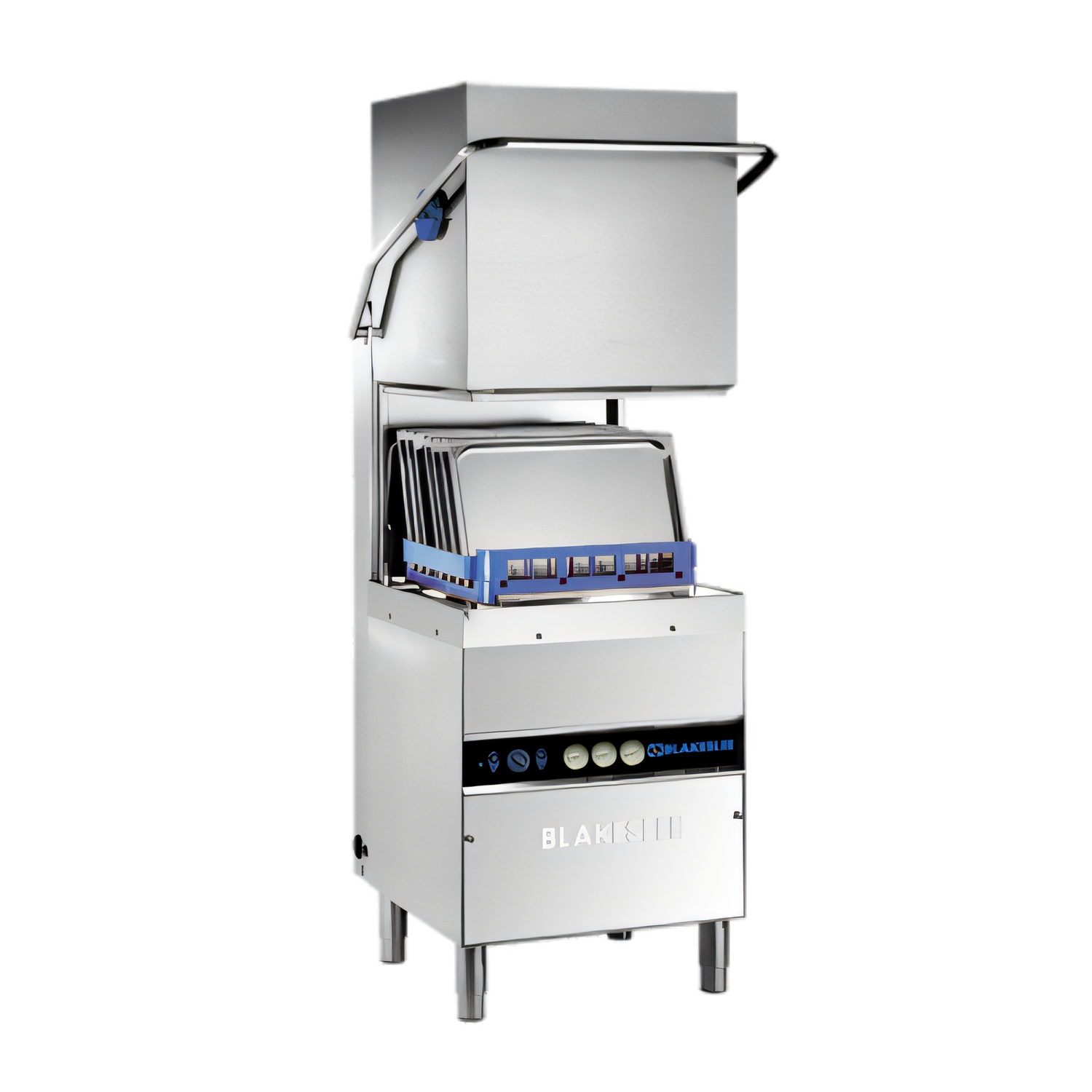

Blakeslee D-18-3 Hood-Type High-Temp Dishwasher, 30 Racks/Hour, 3-Phase

220-240V, 3-Phase, 180°F Sanitizing Rinse, Built-In Pumps

Built for high-volume kitchens, this hood-type high-temp dishwasher delivers a 180°F sanitizing rinse and up to 30 racks per hour for efficient warewashing.

  • Washes up to 30 racks per hour on a 2-minute cycle.
  • Built-in 9.8 kW booster heater supports a 180°F final rinse for high-temp sanitizing.
  • Includes built-in detergent and rinse-aid pumps plus a built-in drain pump.
  • 304 stainless steel interior/exterior and a 316 stainless steel tank for durability.
  • Removable upper and lower wash/rinse arms and triple filtration simplify cleaning and maintenance.
  • Designed for straight-through or corner installation with low 0.79-gallon-per-rack water usage.

Overall Dimensions:

28.38"W x 29.0"D x 56.88"H

Product Weight:

285.0 lb

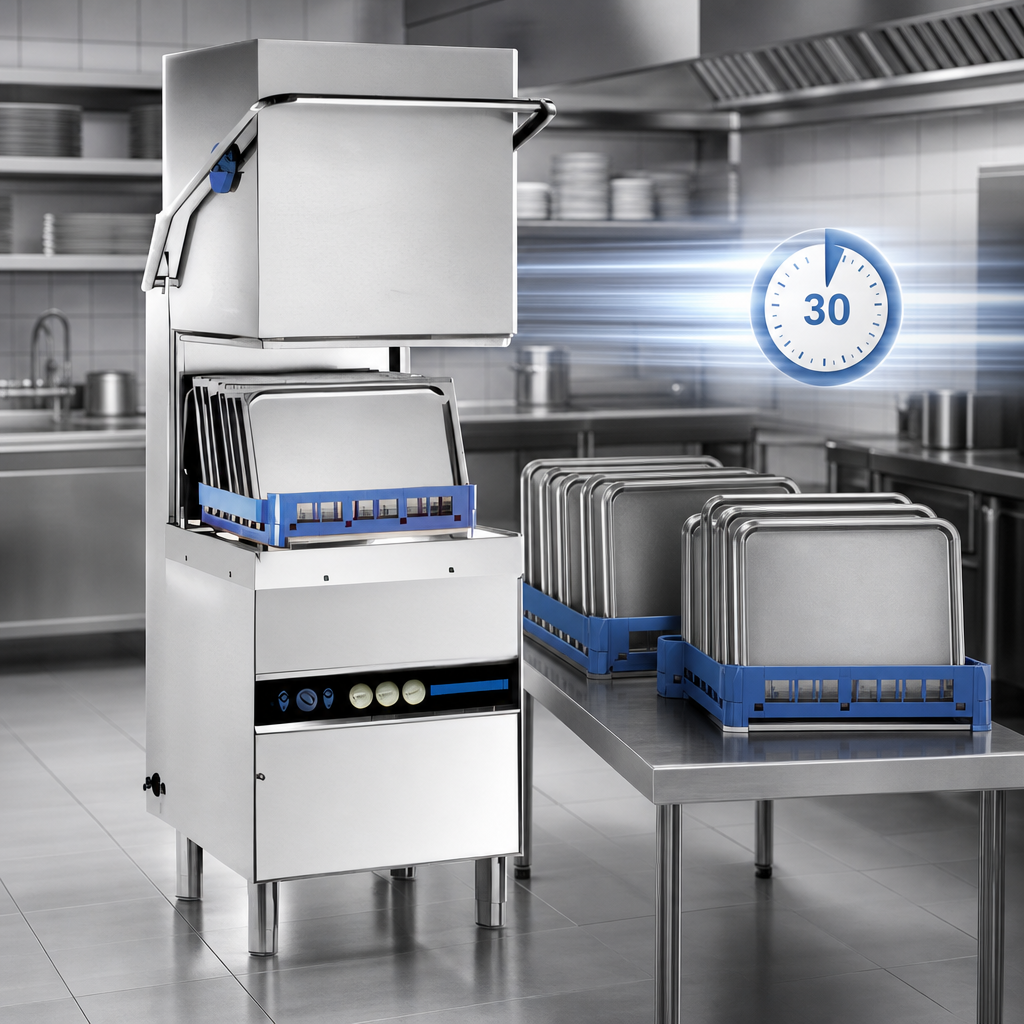

30 Racks Per Hour

Handles up to 30 racks per hour on a 2-minute cycle for high-volume operation.

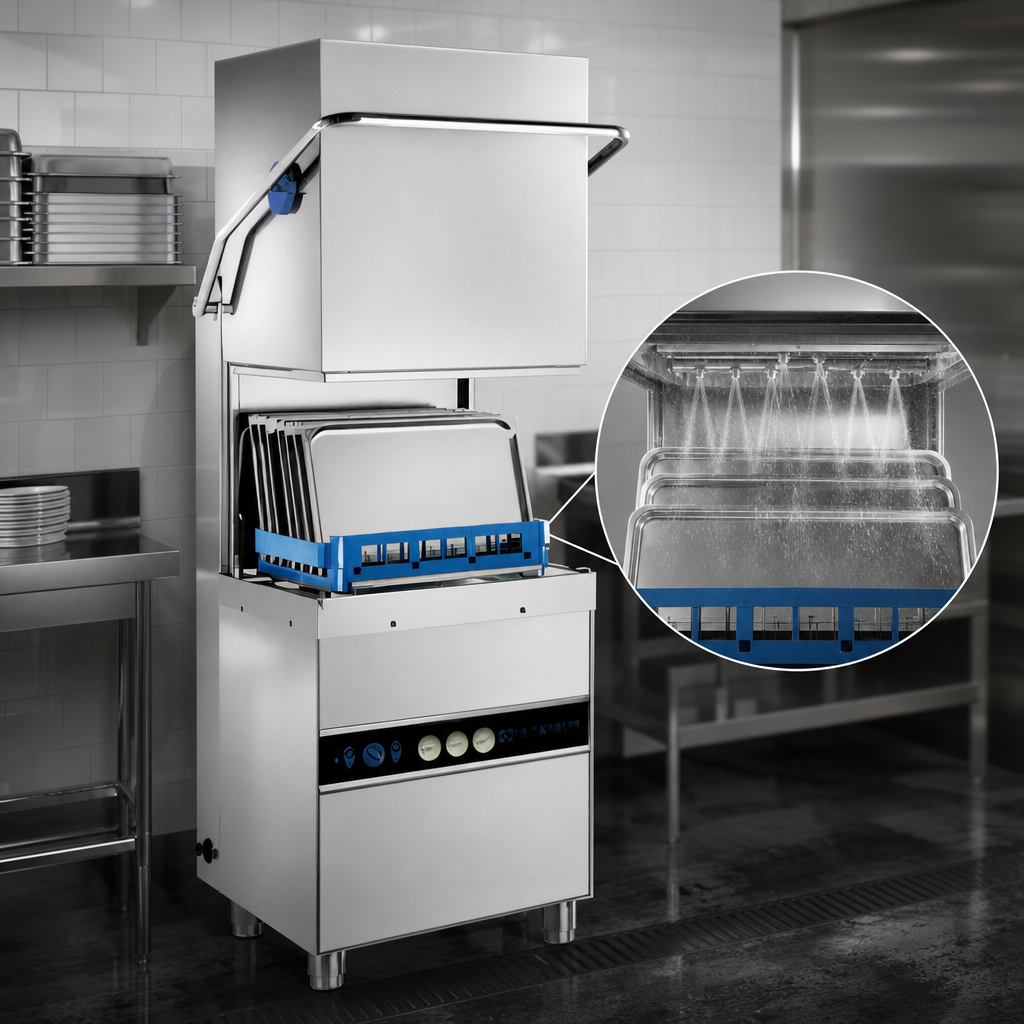

Perfecta Rinse™ Cycle

Extends wash time to help ensure a 180°F final rinse every cycle.

9.8 kW Booster Heater

Built-in booster heater helps maintain sanitizing final-rinse temperature.

Built-In Chemical Pumps

Detergent and rinse-aid pumps are included for convenient chemical dispensing.

Removable Wash/Rinse Arms

Upper and lower revolving spray arms lift out for easier cleaning and service.

Triple Filtration System

Stainless steel filters capture soil and debris to help keep the wash water cleaner.

304/316 Stainless Steel Construction

Features 304 stainless steel interior/exterior panels and a 316 stainless steel tank.

Drain Pump and Universal Installation

Built-in drain pump supports straight-through or corner installation flexibility.

Type High-Temp Dishwasher
Style Hood Type
Installation Type Floor Model
Capacity 30 Racks Per Hour
Rack Size 20 x 20 Inches
Cycle Time 120 Seconds / 180 Seconds
Water Consumption 0.79 Gallons Per Rack
Wash Temperature 165°F
Rinse Temperature 180°F
Wash Tank Capacity 7.9 Gallons
Booster Capacity 2.65 Gallons
Material Stainless Steel
Interior Finish 304 Stainless Steel
Controls Electromechanical
Voltage 220-240 Volts
Amps 28.2/25.9 Amps
Watts 10.92 kW
Hertz 60 Hz
Phase 3-Phase
Water Inlet Temperature 140°F
Water Inlet Pressure 25-60 PSI
Flow Pressure 15-25 PSI
Water Inlet Size 3/4 Inch G
Drain Connection Size 15/16 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 37 Inches
Shipping Depth 41 Inches
Shipping Height 63 Inches
Shipping Weight 285 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year from date of installation

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is rated for up to 30 racks per hour on a 2-minute cycle.
It requires 220-240V, 60 Hz, 3-phase power with 10.92 kW total power.
Yes. It delivers a 180°F final rinse every cycle and includes a built-in 9.8 kW booster heater.
The unit uses a 3/4 inch G water inlet and a 15/16 inch drain connection.
Yes. The dishwasher is designed for straight-through or corner installation.
Blakeslee provides a one-year warranty from the date of installation against defective materials and workmanship.
