Key specifications

Amps
48.8/44.8 Amps
Phase
1-Phase
Dimensions
28.38"W × 29.0"D × 56.83"H
Type
Door Dishwasher
Style
Hood Type
Installation Type
Floor Model
Spec sheet
Blakeslee SKU: D-18-1

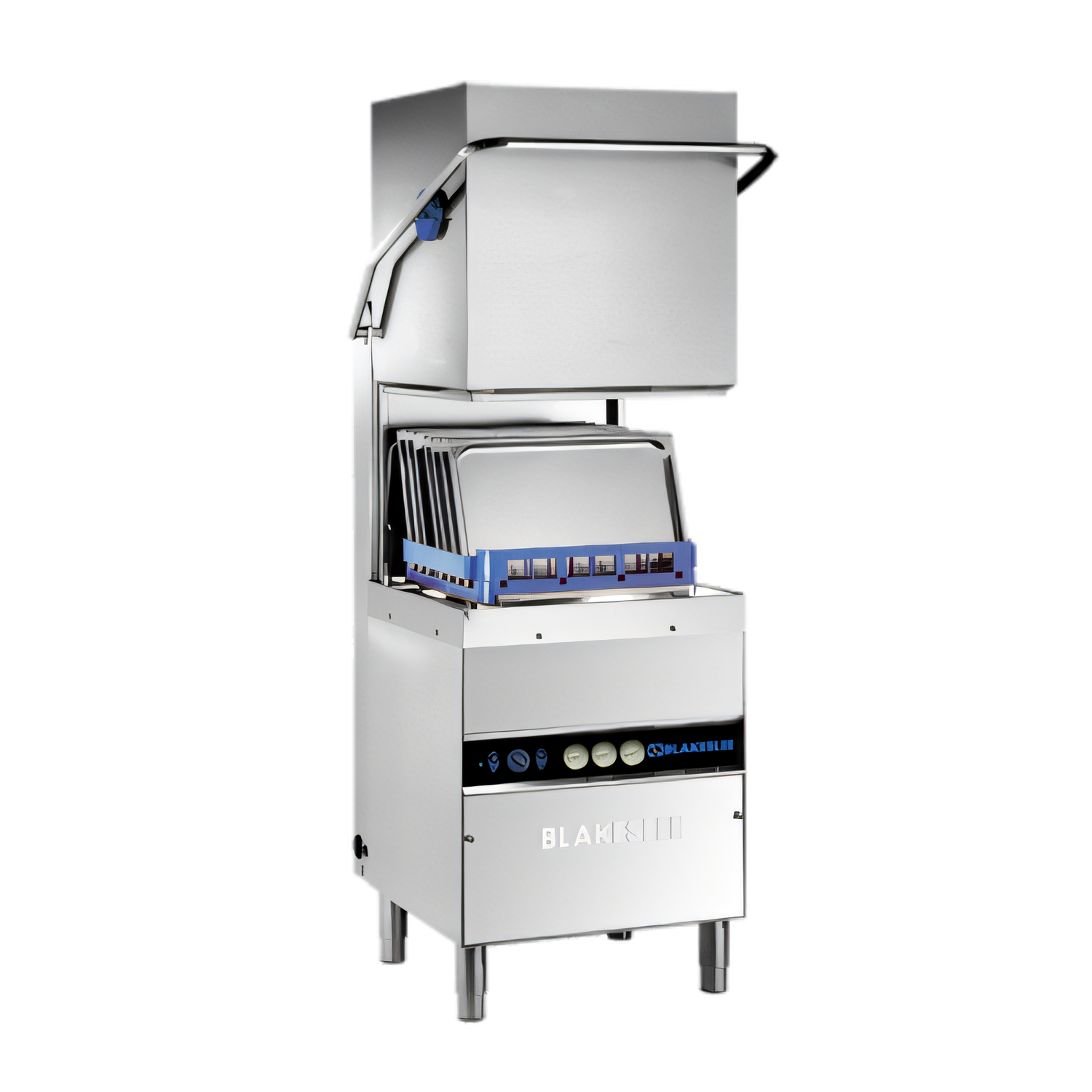

Blakeslee D-18-1 Hood-Type Dishwasher, 30 Racks/Hour

$5,346.00
/each
Estimated to ship in 16–19 business days
Included: Blakeslee warranty One-year warranty from the date of installation against defective materials and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $495/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door Dishwasher
Style Hood Type
Installation Type Floor Model
Material 304 Stainless Steel
Capacity 30 Racks/Hour
Rack Size 20 in x 20 in
Wash Tank Capacity 7.9 gal
Booster Capacity 2.65 gal
Temperature Range 165°F Wash; 180°F Rinse
Water Consumption 0.79 gal/Rack
Voltage 220-240 Volts
Amps 48.8/44.8 Amps
Watts 10.92 kW
Booster Heater Power 9.8 kW
Tank Heater Power 2.94 kW
Hertz 60 Hz
Phase 1-Phase
Controls Hood Operated Start/Stop
Pump Motor Power 1.5 HP
Filter System Triple
Tank Material 316 Stainless Steel
Water Inlet Temperature 140°F
Water Inlet Pressure 25-60 psi
Flow Pressure 15-25 psi

Description

Blakeslee D-18-1 is a hood-type high-temperature door dishwasher designed for up to 30 racks per hour. It provides a 180°F sanitizing rinse every cycle with a built-in 9.8 kW booster heater.

The dishwasher supports straight-through or corner installation and includes built-in detergent and rinse-aid pumps, hood-operated start/stop functions, a drain pump, upper and lower revolving wash sprays, and a triple filtering system.

  • 304 stainless steel interior and exterior with a 316 stainless steel tank
  • Electric 2.94 kW wash tank heater
  • 20 inch by 20 inch rack size
  • 0.79 gallon water usage per rack

Overall Dimensions:

28.38"W x 29.0"D x 56.83"H

Product Weight:

285.0 lb

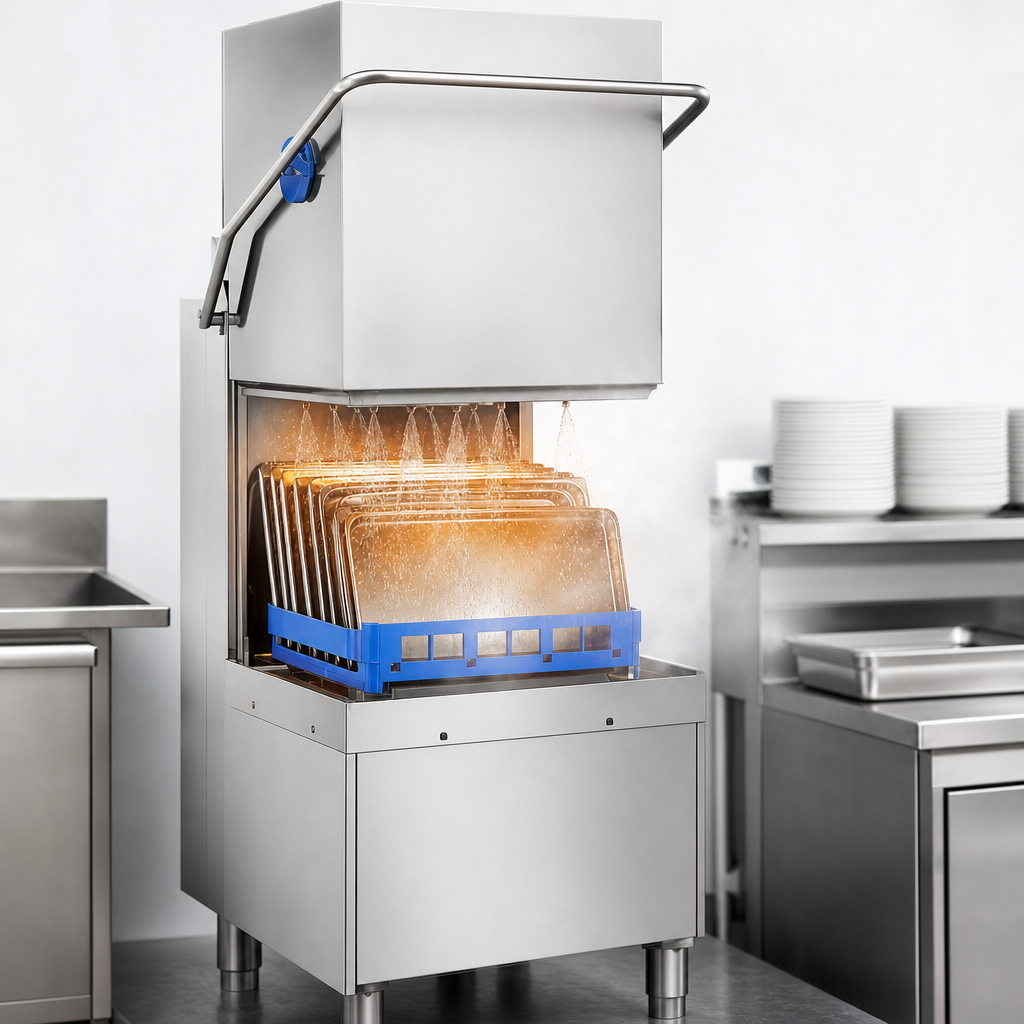

High-Temperature Sanitizing Rinse

Provides a 180°F sanitizing rinse every cycle.

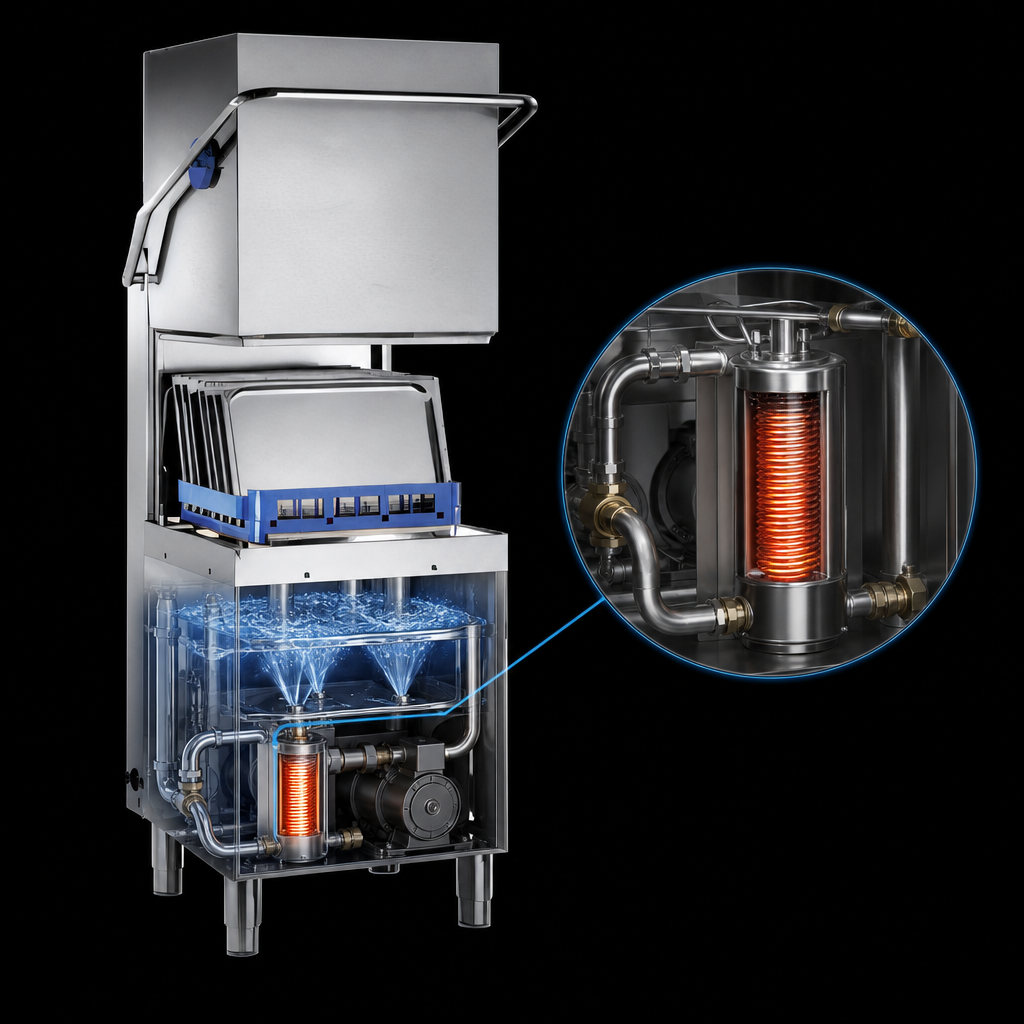

Built-In Booster Heater

Includes a 9.8 kW booster heater for the final rinse.

Hood-Operated Start/Stop

The hood operates the dishwasher start/stop functions.

Detergent and Rinse-Aid Pumps

Built-in pumps are provided for detergent and rinse aid.

Straight-Through or Corner Installation

Supports universal straight-through or corner installation.

Triple Filtering System

Uses a triple filtering system with stainless steel filters.

Revolving Wash Sprays

Includes upper and lower revolving wash sprays.

Drain Pump

A built-in drain pump supports installation versatility.

Frequently Asked Questions

The dishwasher is rated for up to 30 racks per hour.
It provides a 180°F sanitizing rinse every cycle.
It uses a 20 inch by 20 inch dish rack.
Yes. The dishwasher supports straight-through or corner installation.
The D-18-1 uses 220-240 Volts, 60 Hz, single-phase electrical service.
Blakeslee dishwashers are warranted for one year from the date of installation against defective materials and workmanship in the USA and Canada.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
