BK Resources UBDW-21-IBCP48-8 Bar Equipment
BK Resources UBDW-21-IBCP48-8 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UBDW-21-IBCP48-8 Bar Equipment
Description

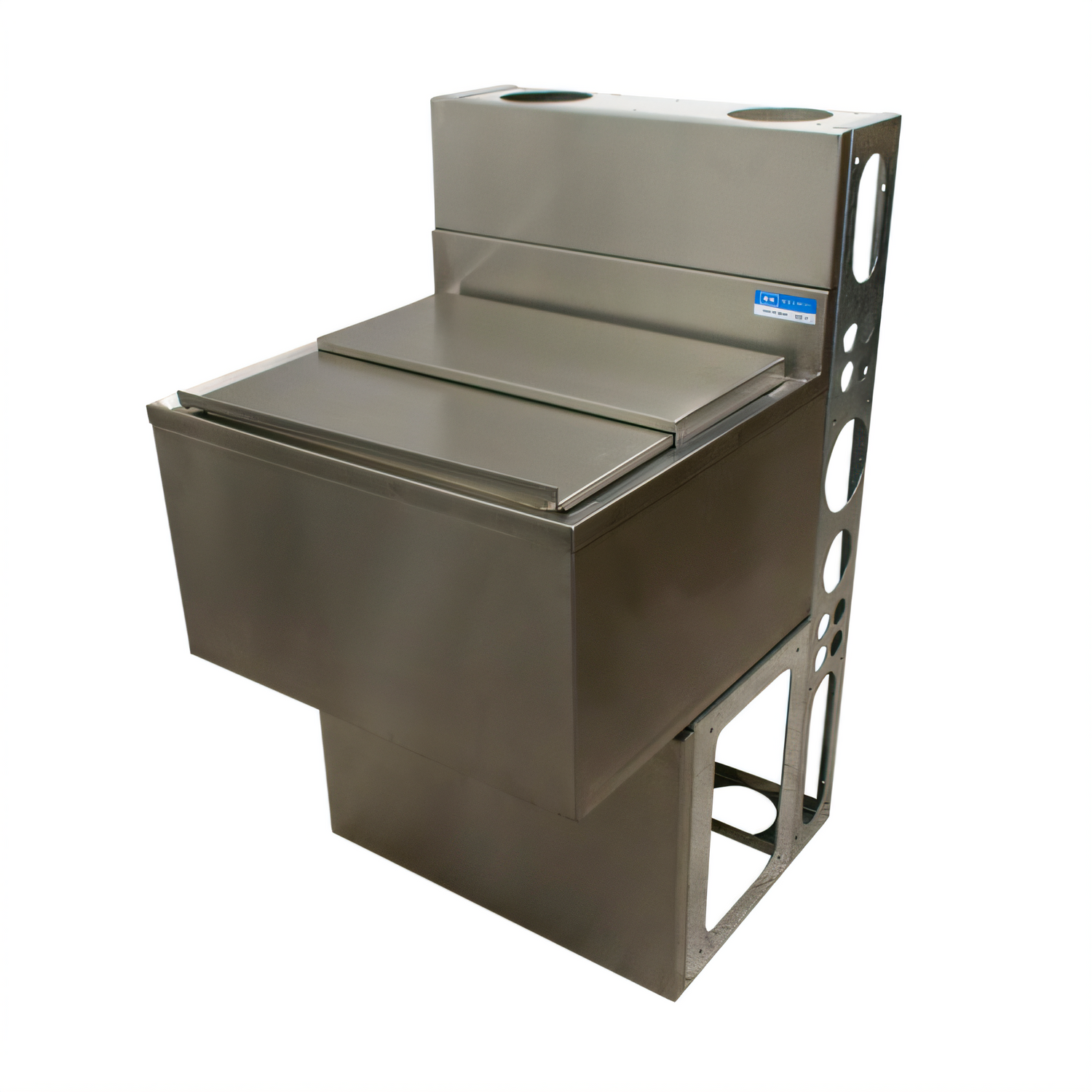

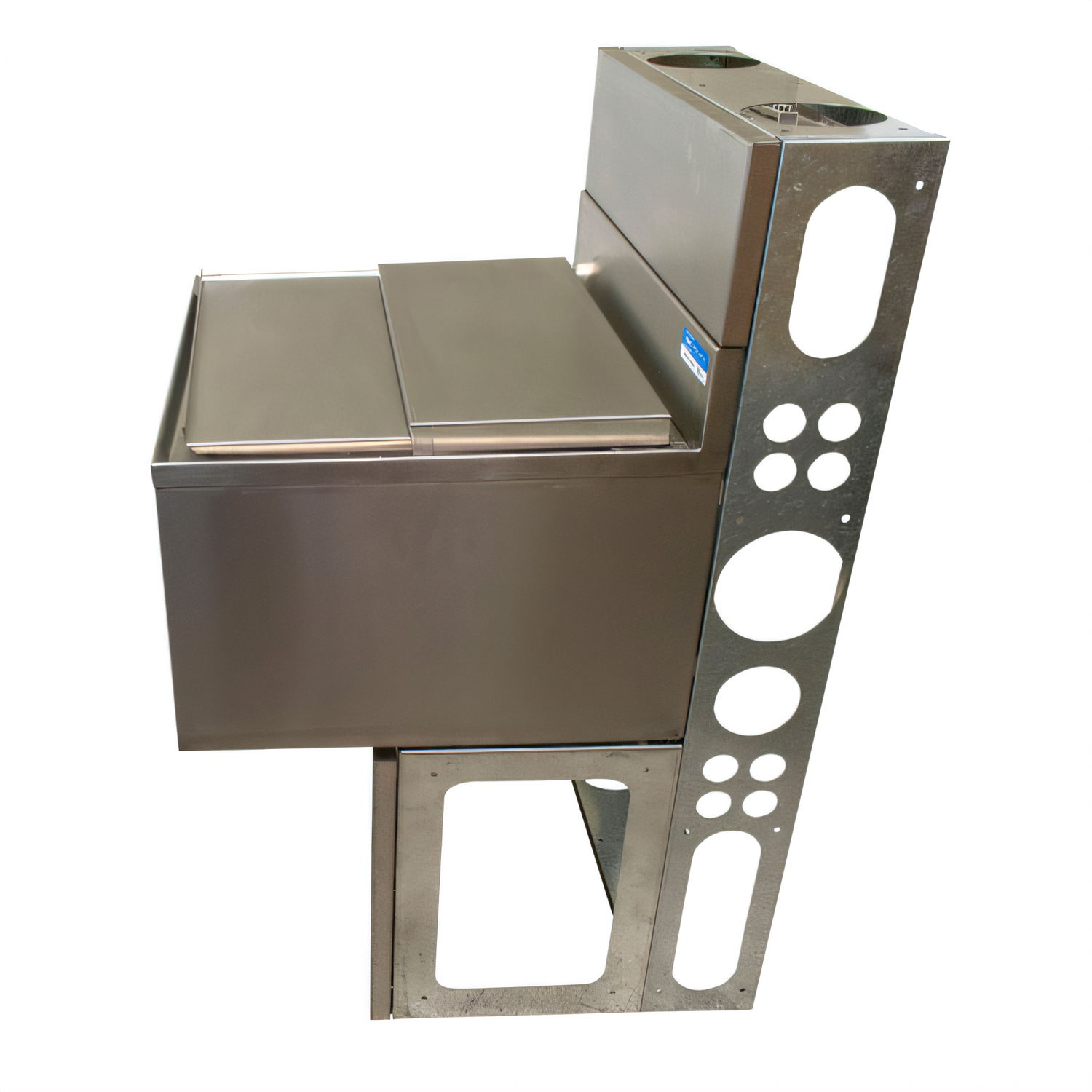

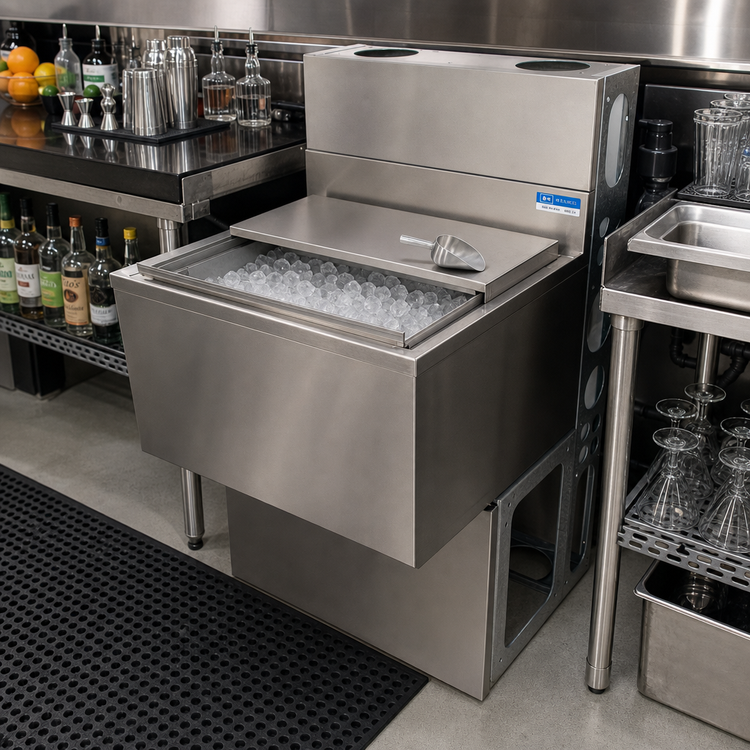

48" Underbar Ice Bin with 8-Circuit Cold Plate
BK Resources model UBDW-21-IBCP48-8 • NSF CertifiedEngineered for high–volume bars that refuse to compromise on speed or sanitation, this deep, insulated ice bin holds up to 167 lbs of ice while simultaneously chilling up to eight beverage lines through its built-in aluminum cold plate. Constructed entirely from heavy-duty 18 ga 304 stainless steel, it delivers the corrosion resistance, cleanability and long service life today’s professional bar programs demand.
Key Features

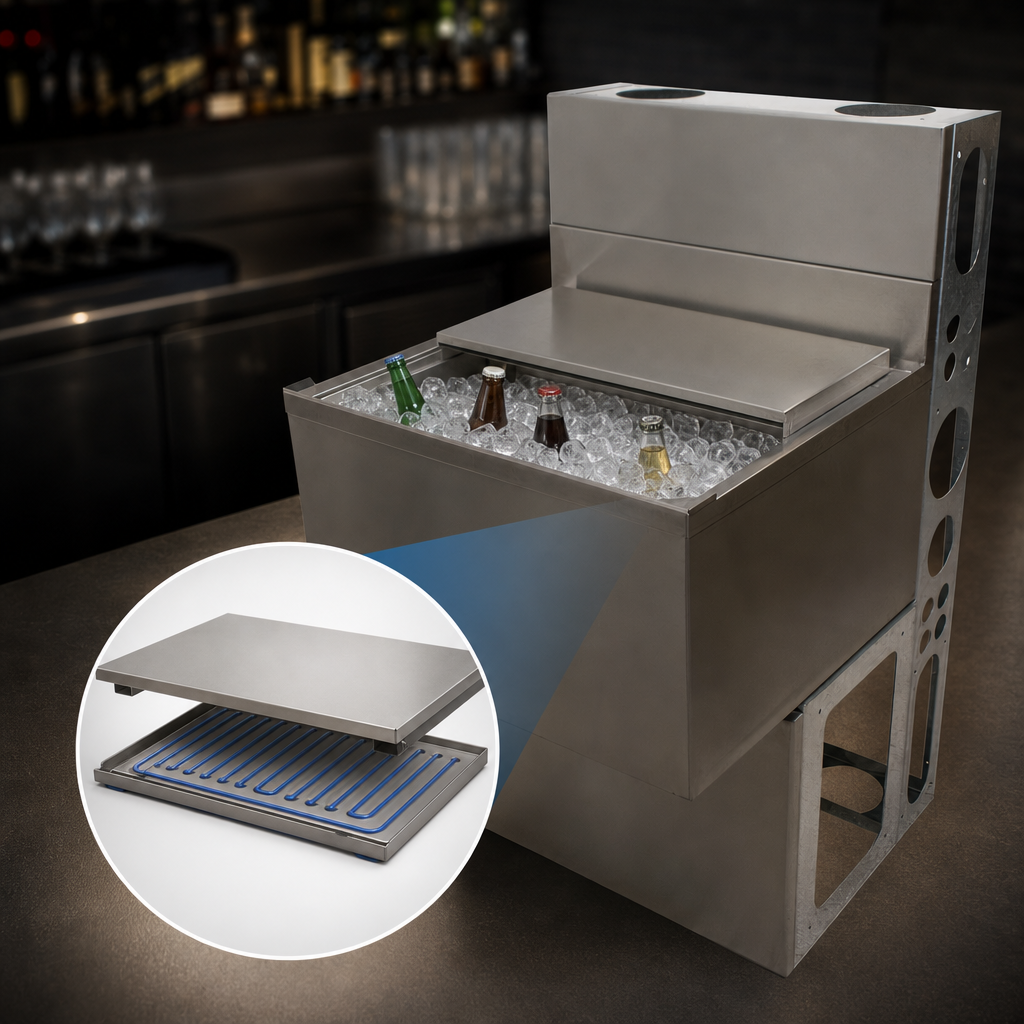

- 8-circuit aluminum cold plate pre-installed for rapid drink cooling
- Deep 12-9/16" insulated bin keeps ice solid through the rush
- 18 ga, type 304 stainless steel – inside, outside, lids, die wall & base
- 4" welded backsplash helps protect walls and keeps spills contained
- Adjustable high-impact corrosion-resistant feet for quick leveling
- Stainless steel sliding lids minimize ice contamination when not in use
- NSF listed for food-zone peace of mind
At-a-Glance Specs

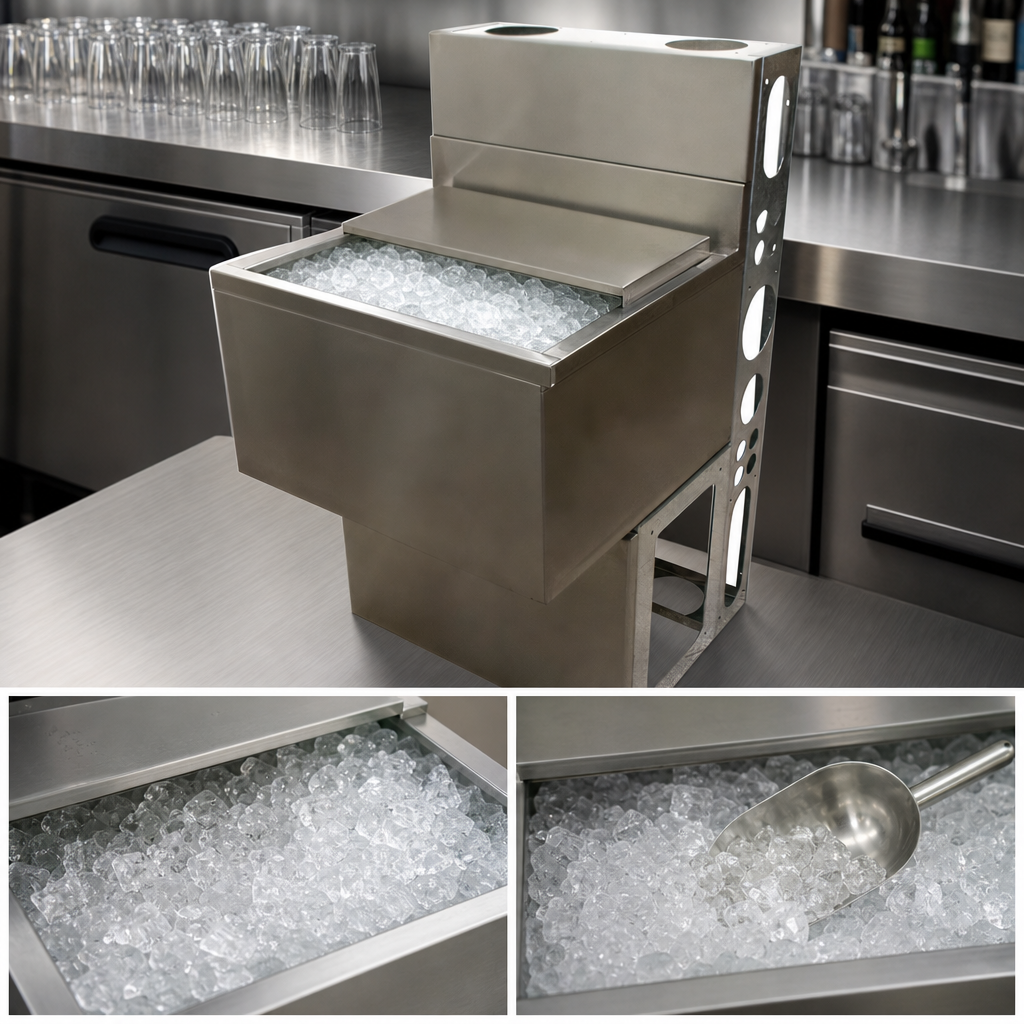

| Ice Capacity | 167 lbs |
|---|---|
| Cold Plate | Aluminum, 8 sealed circuits |
| Interior Bin (L × W × D) | 43" × 18" × 12-9/16" |
| Overall Unit (L × W) | 48" × 26-3/4" |
| Work Height | 30" |
| Overall Height (incl. backsplash) |
41" |
| Backsplash Height | 4" |
| Material / Gauge | 18 ga 304 stainless steel |
| Certifications | NSF |
Why Choose BK Resources?
- Reinforced die wall & base stand up to daily commercial abuse
- Precision-welded seams reduce potential leak points
- Polished #4 finish matches other premium stainless bar equipment
- Backed by responsive U.S.-based customer support
Faucets, tubing, and additional underbar components are sold separately. Always consult local plumbing codes before installation.
