BK Resources UBDW-21-IBCP30-10 Bar Equipment
Description

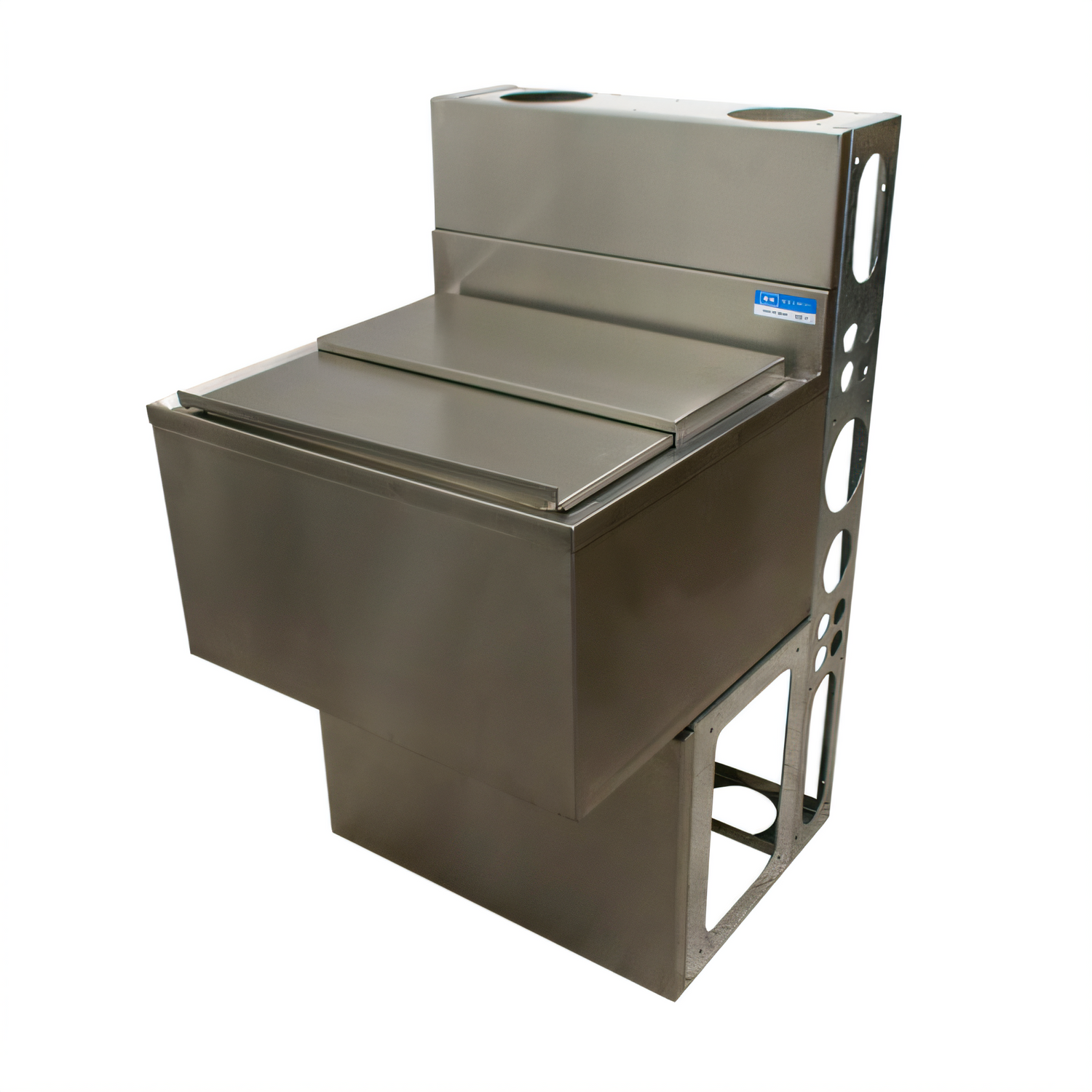

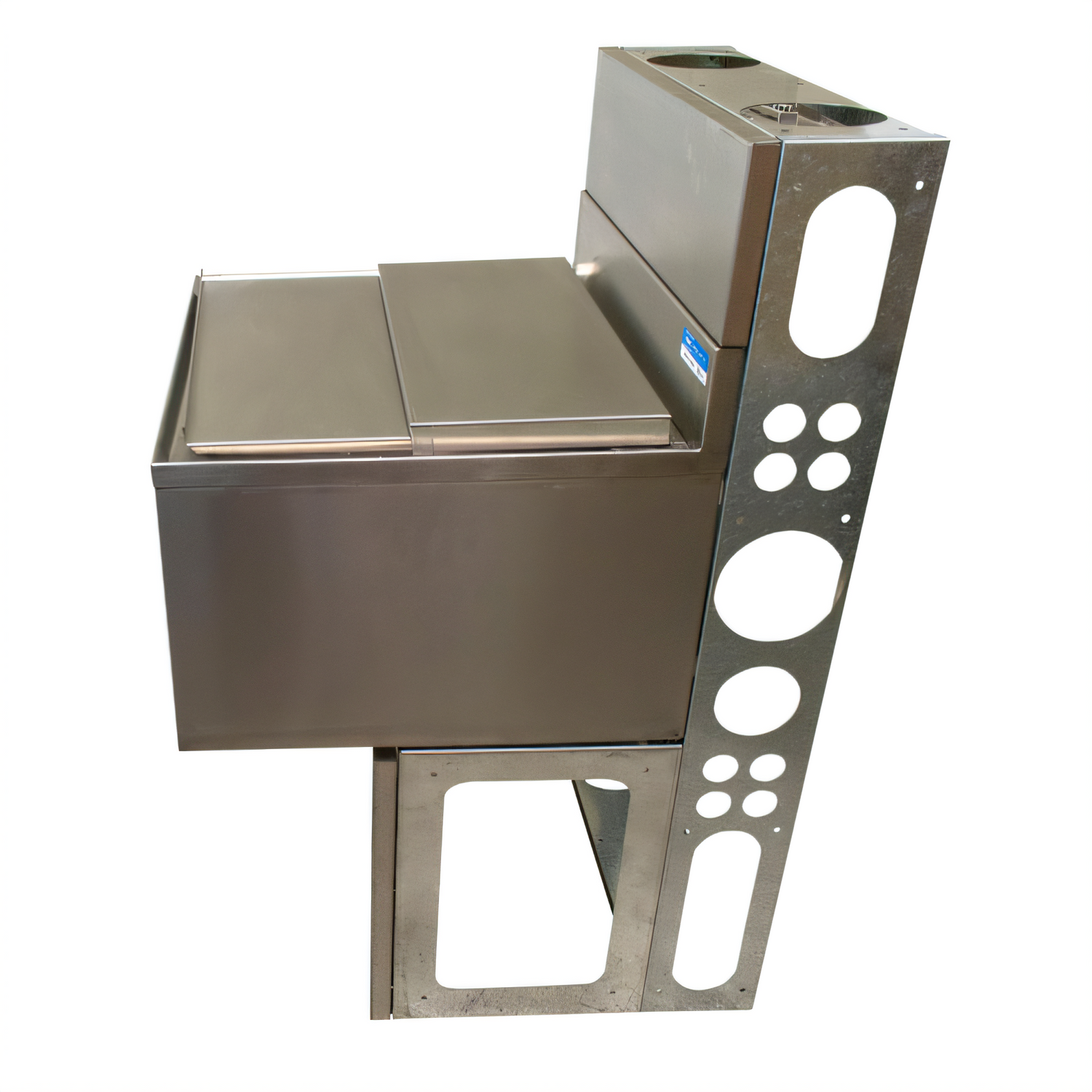

BK Resources 30" Underbar Ice Bin w/ 10-Circuit Cold Plate
Model UBDW-21-IBCP30-10 | 97 lb Ice CapacityDeliver ice-cold drinks, faster. Built from heavy-gauge 304 stainless steel and insulated on all sides, this underbar ice bin keeps up to 97 pounds of ice at the ready while its integrated 10-circuit aluminum cold plate chills beverage lines for consistent pours — even during peak service.
Key Features

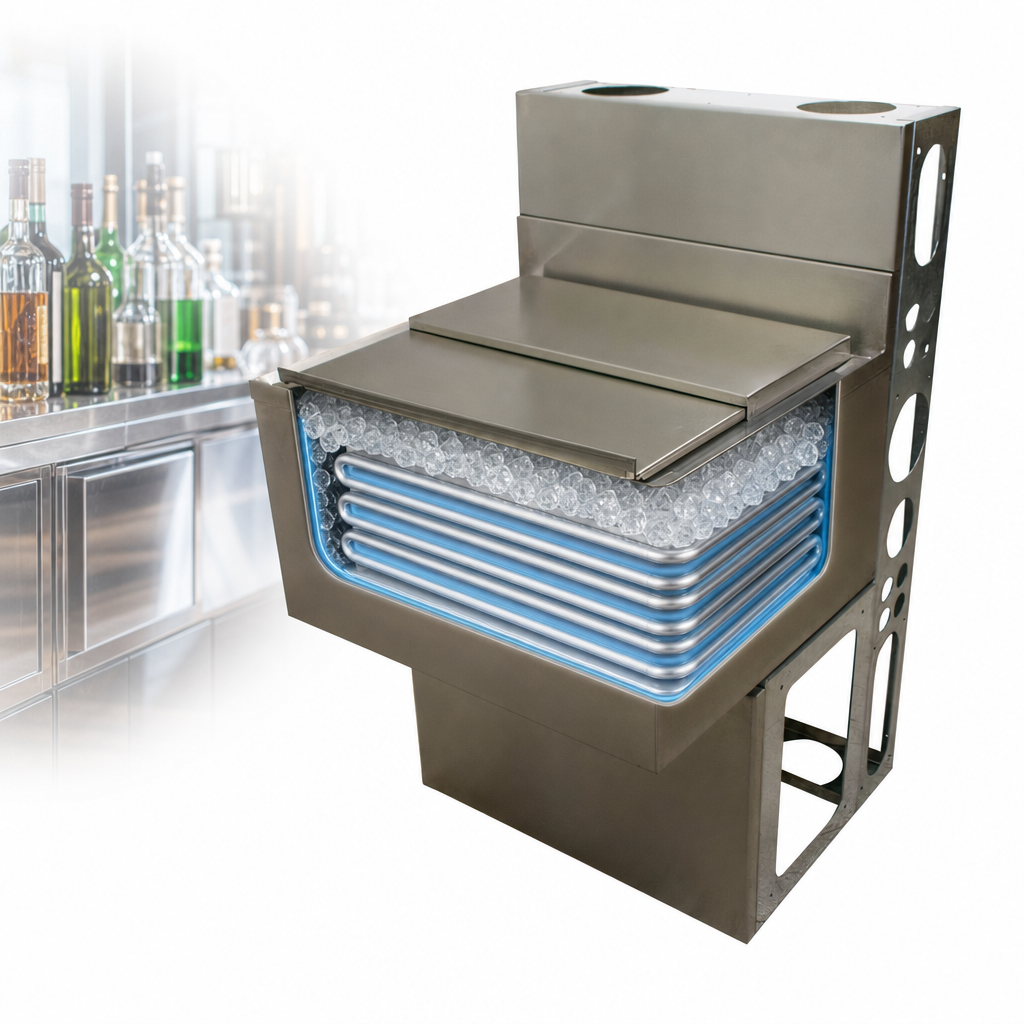

- 10-circuit cast-aluminum cold plate chills up to ten syrup or beverage lines.

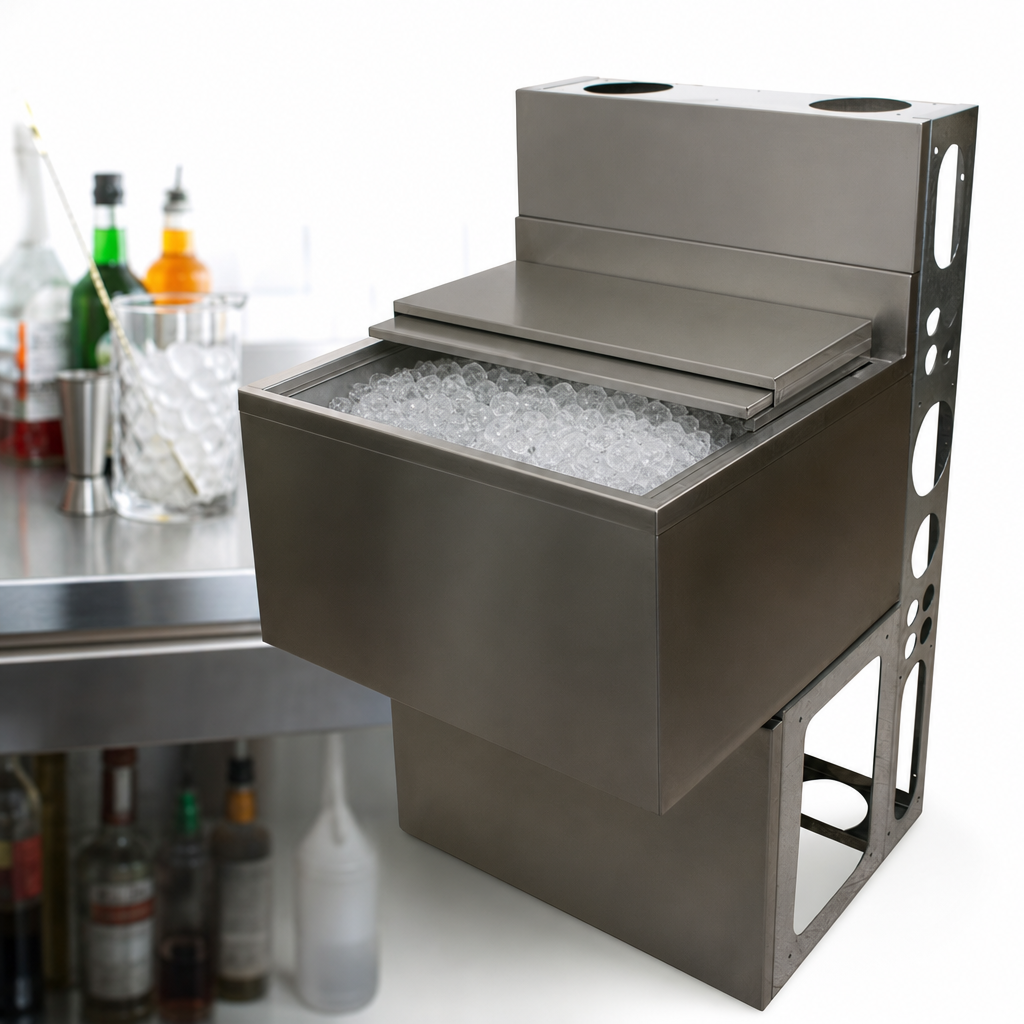

- Deep ice bin (12-9/16") holds 97 lbs, reducing refill trips.
- All-welded 18 ga 304 stainless steel bin, walls, backsplash & sliding lids.
- 4" high backsplash protects surrounding walls from splashes.
- Die-stamped wall & base add rigidity for demanding bar environments.
- Adjustable, high-impact corrosion-resistant feet for fast leveling.
- 41" overall height with a comfortable 30" work height.
- NSF listed for safe, worry-free operation.
Specifications
| Part Number | UBDW-21-IBCP30-10 |
|---|---|
| Ice Capacity | 97 lbs (44 kg) |
| Ice Bin Interior (W × D × H) | 25" × 18" × 12-9/16" |
| Overall Dimensions (W × D × H) | 30" × 26-3/4" × 41" |
| Work Height | 30" |
| Cold Plate | 10-circuit, integral cast aluminum |
| Construction | 18 ga 304 stainless steel (bin, walls, backsplash & lids) |
| Backsplash | 4" H, welded |
| Feet | Adjustable, high-impact, corrosion-resistant |
| Certifications | NSF |
Note: Beverage tubing & fittings are not included and must be supplied by the installer.
BK Resources reserves the right to modify product specifications without prior notice.
