BK Resources  |  SKU: UBDW-21-IB30

BK Resources UBDW-21-IB30 Bar Equipment

$1,603.79
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources 30" Underbar Ice Bin – 97 lb Capacity

Model UBDW-21-IB30 | includes BKDR-325CP drain & BKIB-L-3021 sliding cover

Keep cocktails cold and service moving with this commercial-grade underbar ice bin from BK Resources. Built from durable 18 ga, 304 stainless steel and insulated on every side, it holds up to 97 lbs of ice while fitting neatly into a 30 in. bar run. A factory-installed 1 in. NPS drain, removable plug, and sliding lid make cleanup and sanitation effortless, so you can focus on serving guests—not managing melt-water.

Key Features

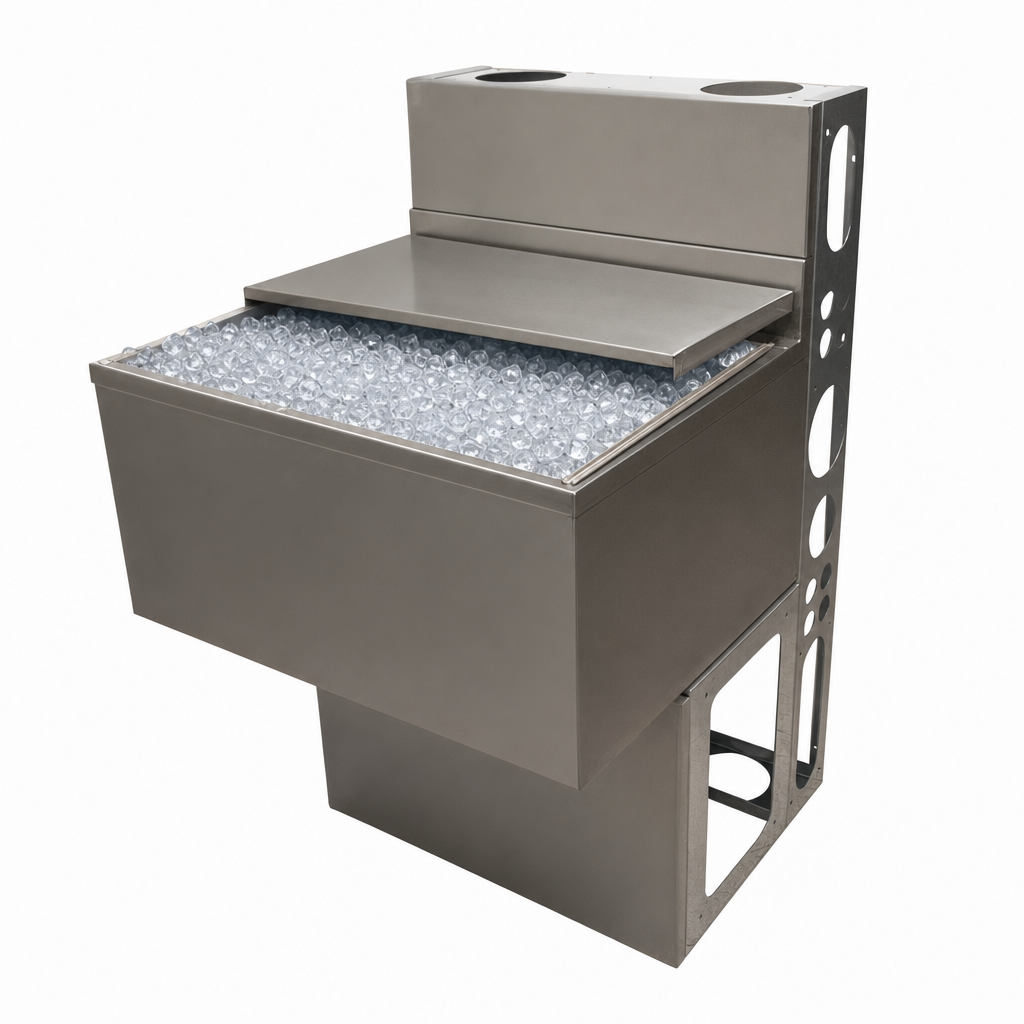

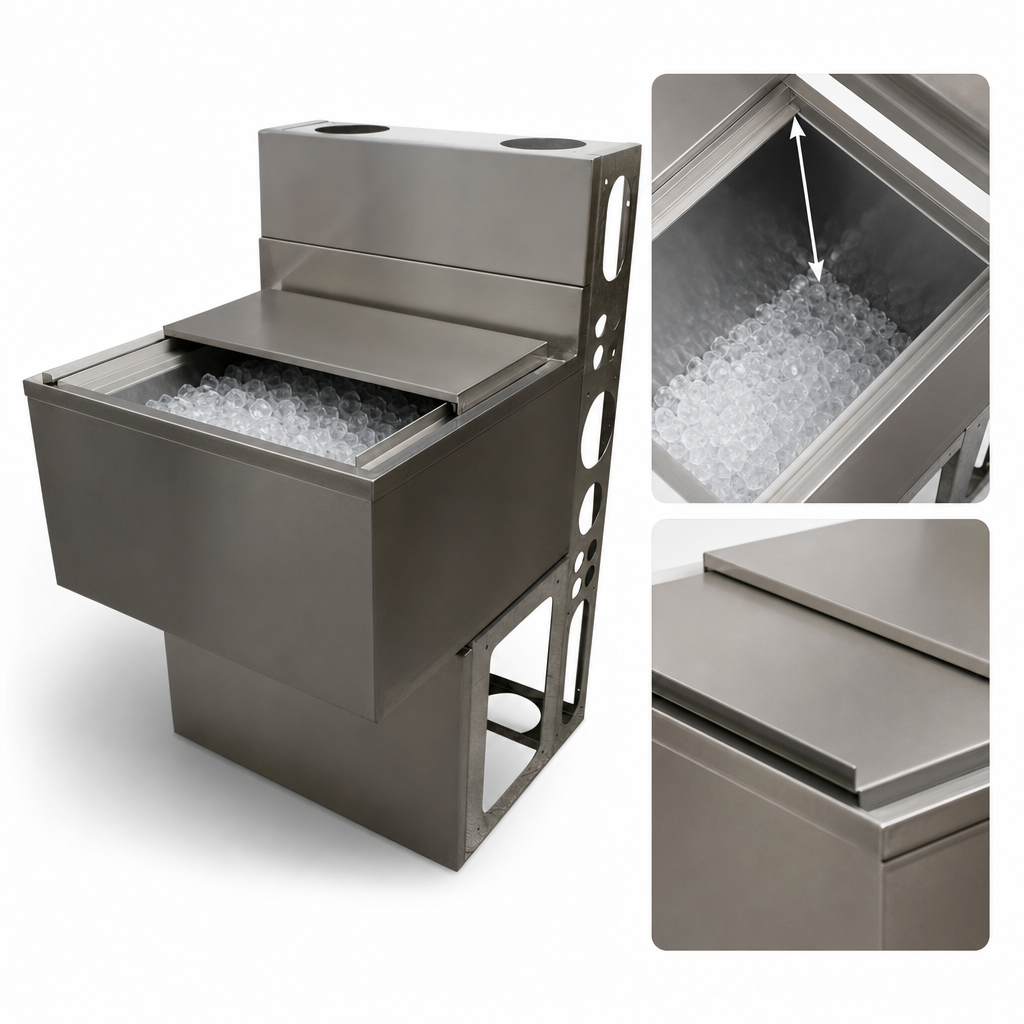

  • Generous 97 lb ice capacity with a 12 9⁄16 in. deep, fully insulated bin
  • 18 ga, type 304 stainless steel interior & front for corrosion-proof performance
  • Galvanized die-wall and base add structural strength where it matters most
  • 4 in. integrated backsplash contains splashes and protects surrounding surfaces
  • 1 in. NPS gravity drain with removable plug (BKDR-325CP) for fast emptying
  • Sliding stainless steel cover (BKIB-L-3021) keeps ice protected and is required for human consumption
  • NSF listed for safe, code-compliant installation in any professional bar or restaurant

What’s Included

  • Ice bin with welded 4 in. backsplash
  • Sliding stainless steel bin cover (BKIB-L-3021)
  • 1 in. NPS drain fitting & removable plug (BKDR-325CP)

Specifications

Overall width 30 in. (762 mm)
Overall depth 21 in. (533 mm)
Bin depth (usable) 12 9⁄16 in. (319 mm)
Backsplash height 4 in. (102 mm)
Ice capacity 97 lbs (44 kg)
Drain size & type 1 in. NPS with removable plug
Material 18 ga, type 304 stainless steel (front & bin) with galvanized die-wall/base
Finish #4 satin polish on exposed surfaces
Certifications NSF

Perfect For

  • Back-bar cocktail stations
  • Hotel lounges & banquet bars
  • High-volume nightclubs
  • Catering & event service lines

Need a different size? Explore additional BK Resources underbar ice bins by searching “BK Resources ice bin” in our store.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Width

30.0in

Depth

21.0in

Bin Depth

12" deep ice bin

Cold Plate

without

Construction

stainless steel construction

Splash

4"

Ice Capacity

70 - 99 lbs.

Width (side - side) OA

25" - 30"

Depth (front - back) OA

20" - 21"

Specifications

Underbar Ice Bin, 30"W x 21"D, 97 lbs capacity, 12-9/16" deep bin, 4"H backsplash, 1" NPS drain with plug (BKDR-325CP), includes sliding bin cover (BKIB-L-3021), 18/304 stainless steel construction, die wall and base, NSF
