BK Resources  |  SKU: UBDW-21-DB24

BK Resources UBDW-21-DB24 Bar Equipment

$955.34
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

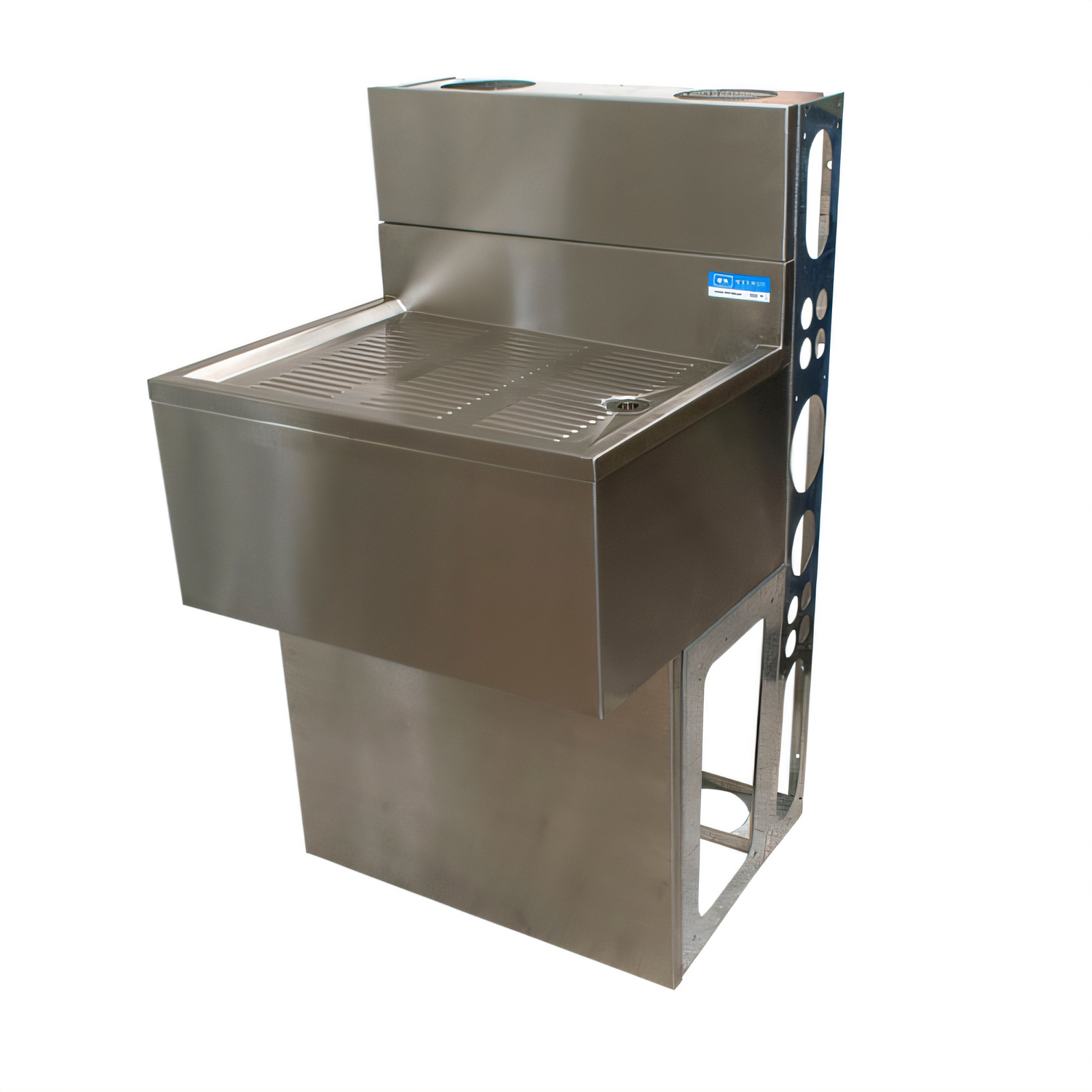

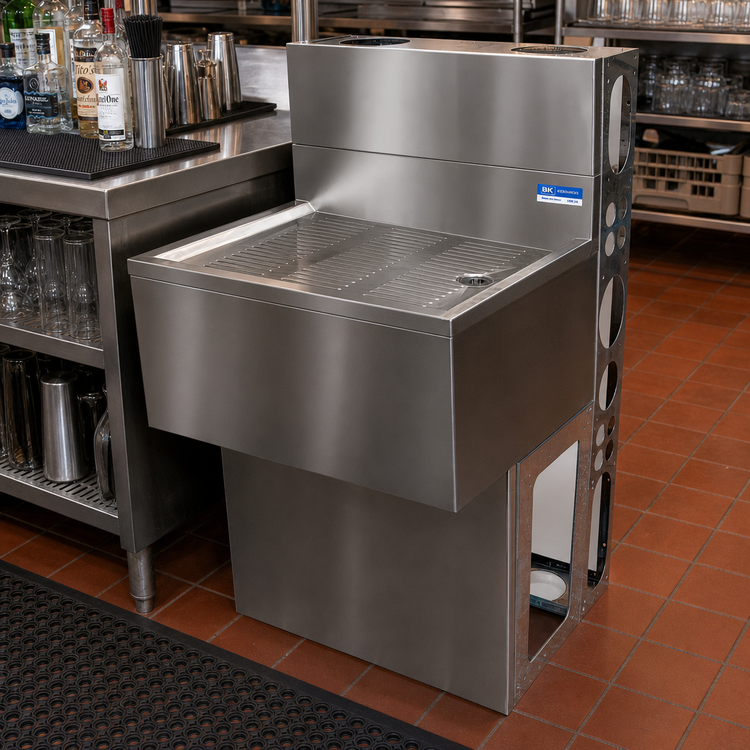

BK Resources 24" Underbar Stainless Steel Drain Board

Includes BKDR-15CP Drain • NSF Listed

Keep your bar line running smoothly with a heavy-duty, easy-to-clean drain board that’s purpose-built for high-volume beverage service.

Key Features

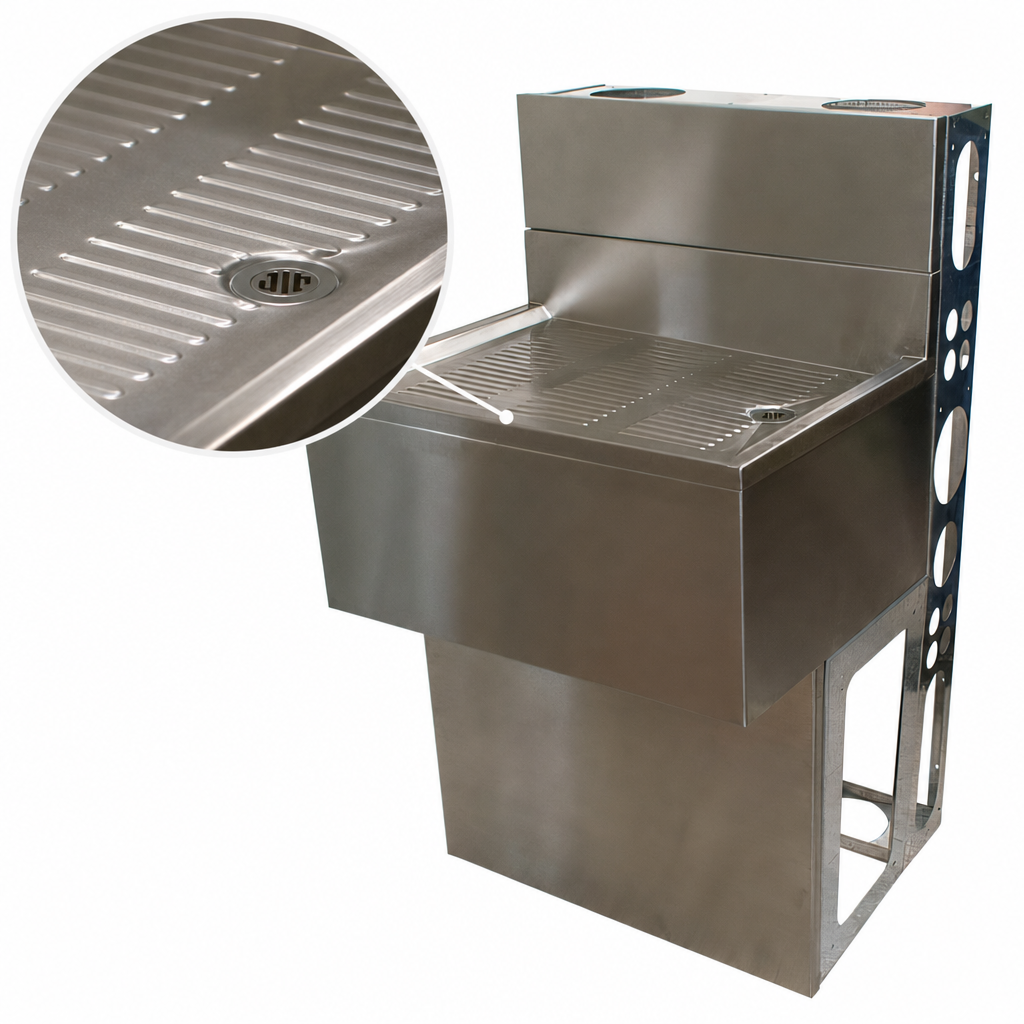

  • One-piece 24" wide stamped & pitched drainboard quickly directs water to the included drain.
  • 21-1/4" overall depth integrates perfectly with standard 21" underbar equipment.
  • 18-gauge T-304 stainless steel top, sides, and backsplash resist rust and corrosion.
  • Galvanized die wall & base with removable 18-ga stainless steel front panel for easy access and maintenance.
  • BKDR-15CP 1-½" drain assembly comes pre-installed—no extra parts to purchase.
  • NSF certified for safe, sanitary use in commercial food-service environments.

Built for Busy Bars

  • Smooth, seamless top eliminates crevices where bacteria can hide.
  • Precision pitching ensures rapid drainage, keeping glassware and shakers dry.
  • Rugged construction stands up to daily knocks, spills, and chemicals.
  • Compact footprint slips easily between sinks, ice bins, and cocktail stations.

Specifications

Item Underbar Drain Board
Manufacturer BK Resources
Model / Part # Special-order unit (drain included: BKDR-15CP)
Overall Dimensions (W × D × H) 24" × 21-1/4" × 33-1/2"
(610 mm × 540 mm × 851 mm)
Work Height 30" (762 mm)
Top Material 18-ga T-304 stainless steel
Base / Die Wall Galvanized steel with removable 18-ga stainless front panel
Drainboard Style Stamped & pitched for positive drainage
Drain Connection 1-½" NPS chrome-plated brass (BKDR-15CP)
Certifications NSF
Special Order: This item is manufactured to order and is non-cancellable and non-returnable once production begins.

Looking for another size? Ask about additional widths (12"–48") and 18" depth options available from BK Resources.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Base Type

open base

Type

modular

Specifications

Underbar Drain Board, 24"W x 21-1/4"D x 33-1/2"H, 18/304 stainless steel, stamped drainboard, drain included (BKDR-15CP), die wall and base, NSF
