BK Resources  |  SKU: UBDW-21-360TS

BK Resources UBDW-21-360TS Bar Equipment

$2,283.28
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources 60" Slimline Underbar Triple-Bowl Sink

Model: UBDW-21-360TS | NSF Certified

Built for busy bars, cafés and concession areas, this 60 inch Slimline Underbar Sink delivers commercial-grade durability in a narrow 21-1/4 inch footprint. Three fully welded bowls, dual stamped drainboards and an included lead-free faucet arrive ready to drop in, plumb and start serving.

Key Features

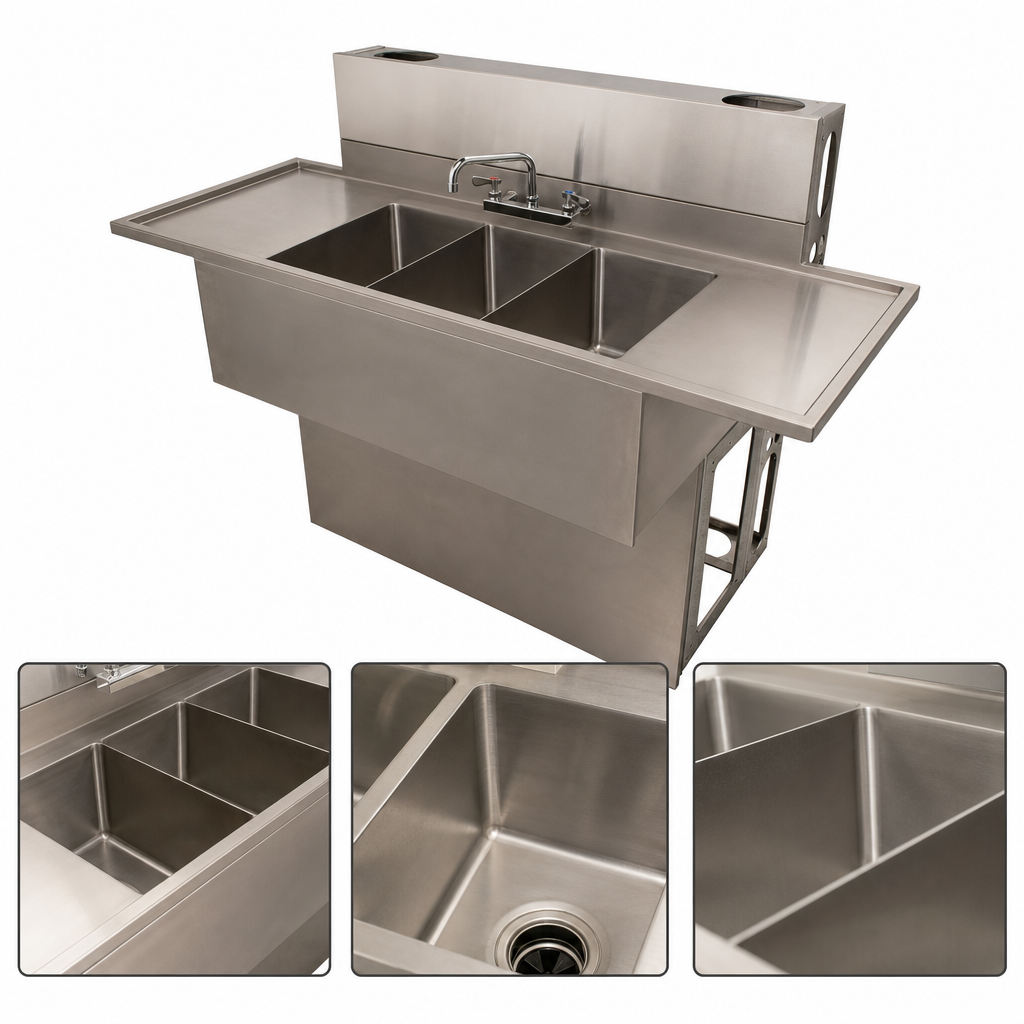

  • Three integrally welded bowls – 10" W x 14" F/B x 10" D each

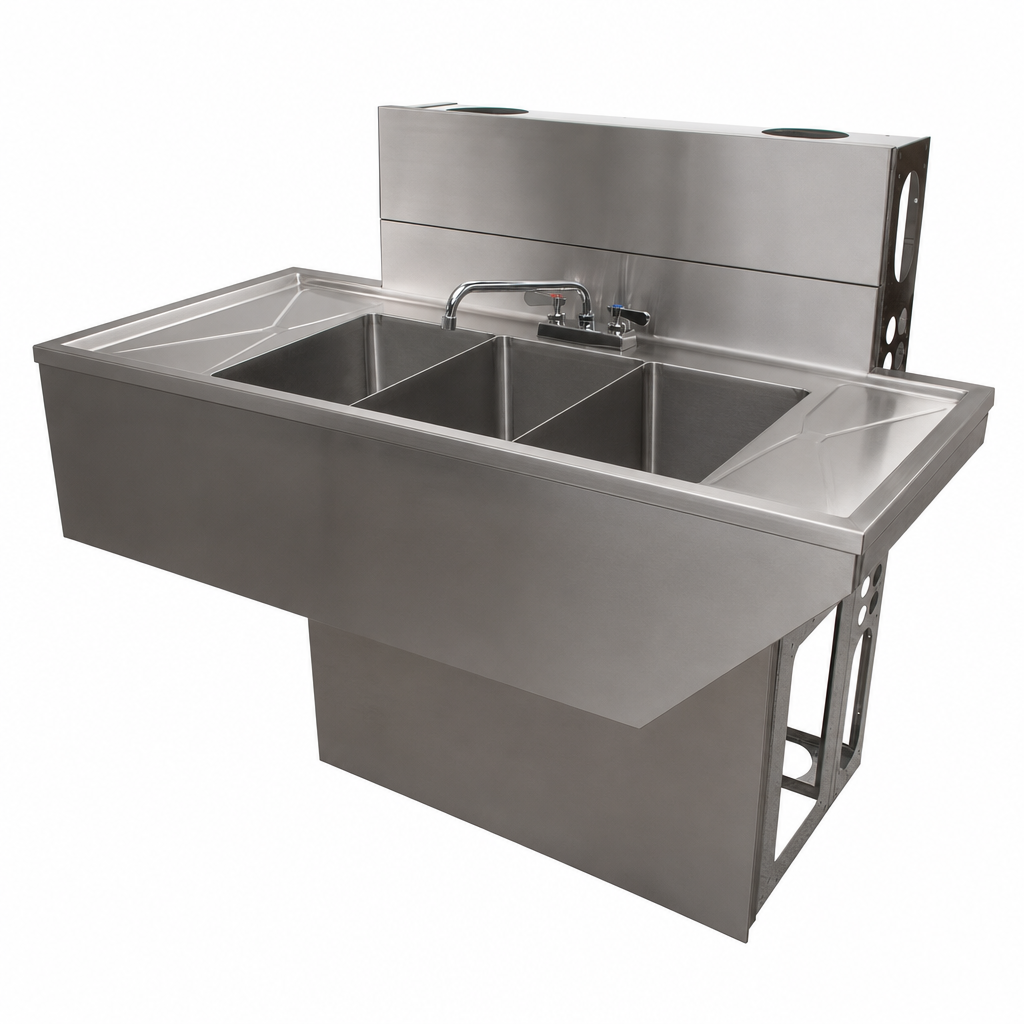

  • (2) 13-1/2" left & right stamped drainboards with positive pitch
  • 4-1/2" rear backsplash with pre-punched 4" on-center faucet holes
  • BKD-10-G lead-free deck-mount faucet included (4" O.C.)
  • Basket drains (BKDR-2) & 7" removable overflow standpipes (BK-OT-15075) included
  • 18 ga, 304 stainless steel bowls, apron, die wall & base
  • Removable stainless front & side panels for quick access to plumbing
  • NSF listed for food-service sanitation compliance

At-a-Glance Specs

Overall Dimensions 60" W x 21-1/4" D x 33-1/2" H
Working Height 30" (to bowl rim)
Number of Compartments 3
Bowl Interior (each) 10" W x 14" F/B x 10" D
Drainboards Left & right – 13-1/2" L, stamped & pitched
Backsplash Height 4-1/2"
Faucet BKD-10-G deck mount, 4" on-center, lead-free brass
Drains (3) 1-1/2" IPS outlets with BKDR-2 basket strainers
Overflow Protection (3) 7" removable standpipes (BK-OT-15075)
Material / Gauge 304 Stainless Steel / 18 ga
Certifications NSF, Lead-Free (faucet)
Mounting Style Freestanding underbar, adjustable bullet feet

Need added convenience? Pair this sink with a BK Resources underbar speed rail or dump station to build a seamless beverage line.

Plumbing notice: Local codes may require floor sinks, air gaps or additional back-flow protection. Consult your licensed plumber before installation.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Bowl Size

10" x 14" front-to-back

Sink Compartments

(3)

Construction

stainless steel top, front, ends & legs

Top Stainless Series

300 series

Bowl Depth (rim - drain)

10"

Depth (front - back) OA

20" - 21"

Drainboards

drainboards on left & right

Splash

4"

Width (side - side) OA

55" - 60"

Specifications

Underbar Sink, three compartment, 60”W x 21-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 13-1/2" stamped drainboards, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
