BK Resources  |  SKU: UBDW-21-348RS

BK Resources UBDW-21-348RS Bar Equipment

$2,017.62
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources 48" Slimline 3-Compartment Underbar Sink w/ Right Drainboard

Model UBDW-21-348RS | NSF Certified | 18 ga 304 Stainless Steel

Keep drinks flowing and sanitation effortless behind the bar. BK Resources’ Slimline underbar sink fits a full three-bowl washing system, a generous drainboard, and a lead-free faucet into a trim 21-1/4" depth—freeing up valuable space without sacrificing performance.

Key Features

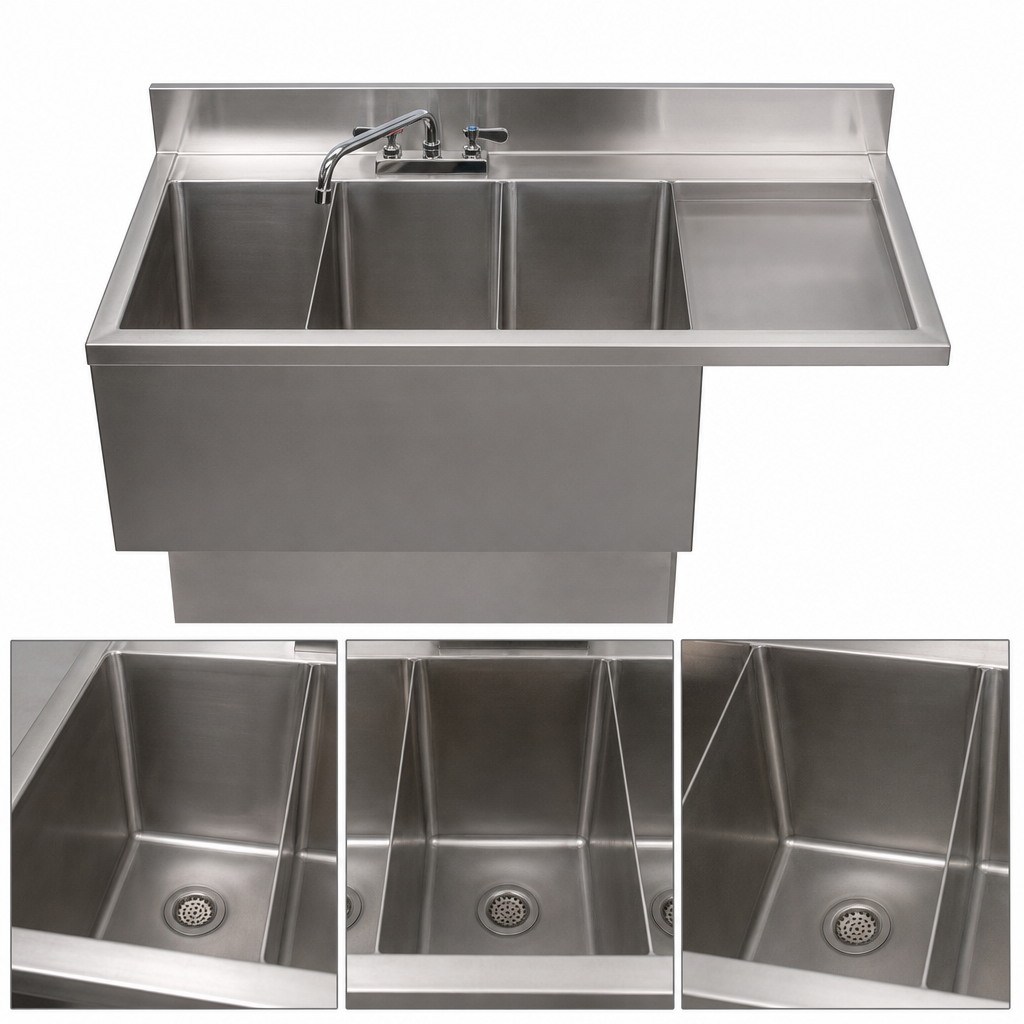

  • Three integrally-welded bowls  –  10" W × 14" F-B × 10" D each.
  • Stamped 13-5/8" drainboard (right side) pitched for rapid drainage.
  • 4-1/2" backsplash protects walls and supports deck-mount faucet.
  • 4" on-center lead-free faucet (BKD-10-G) included—no need to source separately.
  • Basket drains (BKDR-2) and removable 7" overflow standpipes (BK-OT-15075) come standard.
  • Heavy-duty 18 ga Type 304 stainless steel resists corrosion and cleans up fast.
  • Die-formed walls/base and removable stainless apron for quick plumbing access.
  • NSF listed for food-service code compliance.

Specifications

Overall width 48" (1219 mm)
Overall depth 21-1/4" (540 mm)
Overall height 33-1/2" (851 mm) to work surface
Bowl dimensions (each) 10" W × 14" F-B × 10" D
Number of bowls 3
Drainboard size 13-5/8" (right side)
Backsplash height 4-1/2"
Faucet centers 4" OC (faucet supplied)
Material / gauge Type 304 stainless steel / 18 ga
Included accessories (1) BKD-10-G faucet
(3) BKDR-2 basket drains
(3) BK-OT-15075 overflow standpipes
Certifications NSF

Looking for a left-hand drainboard or different length? Ask us about the full BK Resources Slimline series.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Width (side - side) OA

43" - 48"

Top Stainless Series

300 series

Bowl Size

10" x 14" front-to-back

Sink Compartments

(3)

Drainboards

drainboard on right

Depth (front - back) OA

20" - 21"

Construction

stainless steel top, front, ends & legs

Bowl Depth (rim - drain)

10"

Splash

4"

Specifications

Underbar Sink, three compartment, 48”W x 21-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 13-5/8” stamped drainboard on right, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
