BK Resources  |  SKU: UBDW-21-348LS

BK Resources UBDW-21-348LS Bar Equipment

$2,017.62
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources 48" Slimline Underbar 3-Compartment Sink w/ Left Drainboard

Model UBDW-21-348LS · 18 ga 304 Stainless Steel

Maximize every inch behind the bar with this NSF-listed three-compartment sink. Its slim 48" body slips neatly under standard bar tops while still giving you full-size 10" x 14" x 10" bowls, a 13 5⁄8" stamped drainboard, and all the plumbing accessories you need to get to work fast.

Key Features

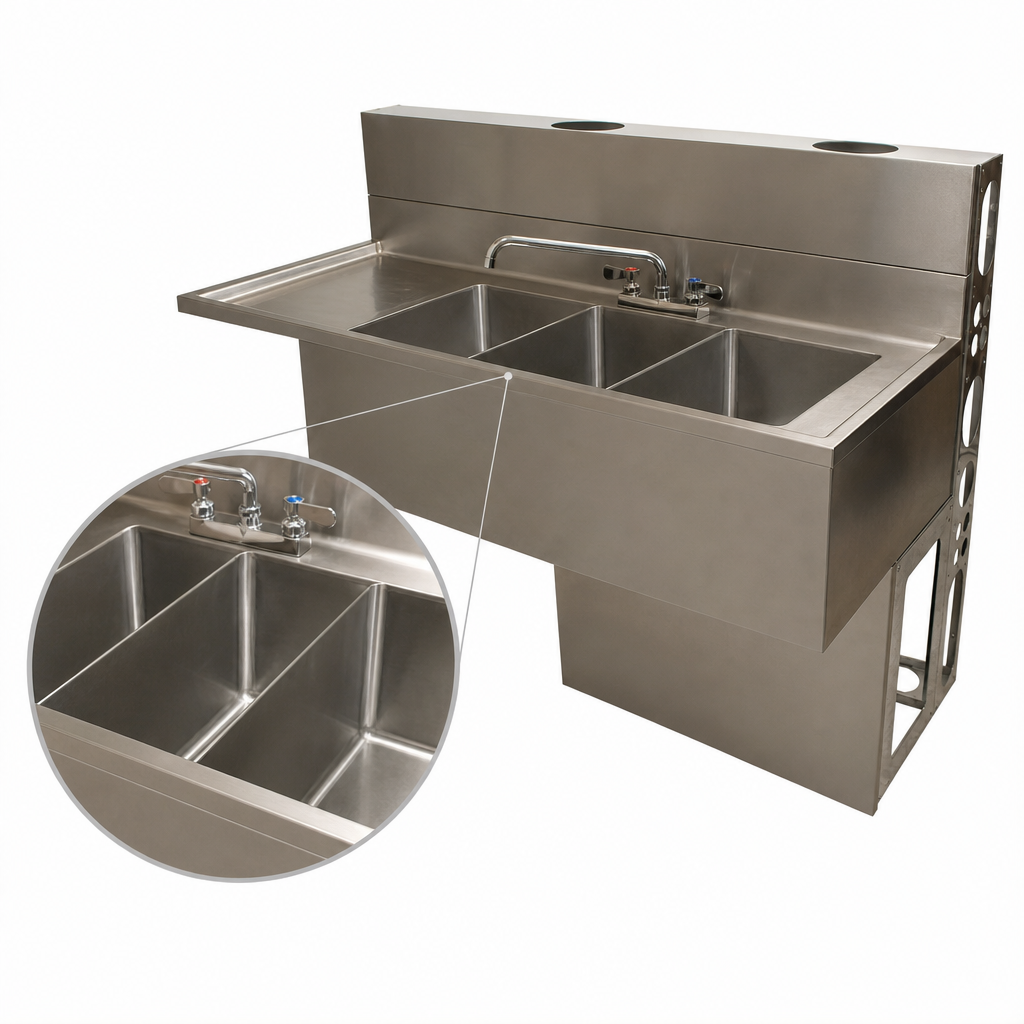

  • Three integrally welded bowls – 10" W x 14" F-B x 10" D each

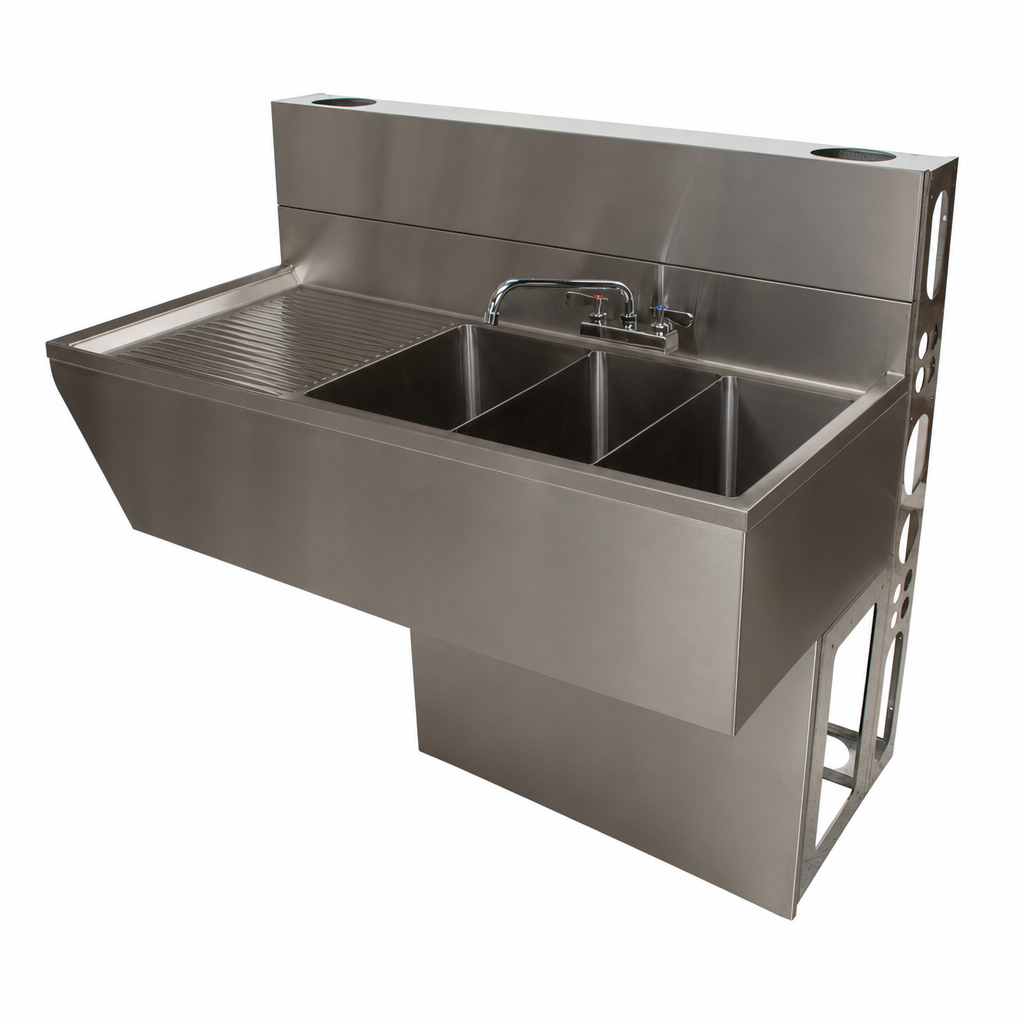

  • Left-side stamped & pitched drainboard (13 5⁄8" L) for efficient drying
  • 4 1⁄2" backsplash with pre-punched 4" on-center faucet holes
  • Includes BKD-10-G lead-free deck-mount faucet
  • (3) BKDR-2 basket drains & (3) BK-OT-15075 removable overflow standpipes included
  • Removable stainless steel front & side apron for easy plumbing access
  • Die wall & base construction for added rigidity without extra weight
  • 18-gauge T-304 stainless steel resists corrosion and is easy to sanitize
  • NSF certified for commercial foodservice use

Specifications

Overall width 48"
Overall depth 21 1⁄4"
Overall height 33 1⁄2" (30" working height + 4 1⁄2" backsplash)
Number of compartments 3
Bowl size (each) 10" W x 14" F-B x 10" D
Drainboard Left side, 13 5⁄8" L
Faucet centers 4" on-center (faucet included)
Material / gauge 304 stainless steel / 18 ga
Certifications NSF
Included accessories BKD-10-G faucet, (3) BKDR-2 basket drains, (3) BK-OT-15075 overflow standpipes

Perfect For

  • Bars, pubs & nightclubs
  • Cafés & coffee shops
  • Compact beverage service stations
  • Food trucks & concession trailers
Installation note: For optimal performance and to maintain NSF compliance, this sink should be installed and plumbed by a licensed professional. Mounting hardware and supply lines are not included.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Width (side - side) OA

43" - 48"

Sink Compartments

(3)

Bowl Size

10" x 14" front-to-back

Depth (front - back) OA

20" - 21"

Construction

stainless steel top, front, ends & legs

Bowl Depth (rim - drain)

10"

Drainboards

drainboard on left

Top Stainless Series

300 series

Splash

4"

Specifications

Underbar Sink, three compartment, 48”W x 21-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 13-5/8” stamped drainboard on left, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
