BK Resources  |  SKU: UBDW-21-336S

BK Resources UBDW-21-336S Bar Equipment

$1,981.97
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources Slimline Underbar Sink – 48" 3-Compartment

Complete bar sink with faucet, basket drains & overflow standpipes included

Built for high-volume beverage programs, this BK Resources underbar sink combines rugged 18-gauge stainless steel construction with a compact 48" footprint. The three 10"-deep bowls keep wash, rinse and sanitize tasks moving, while the included lead-free faucet and drains let you install and get to work the same day.

Key features

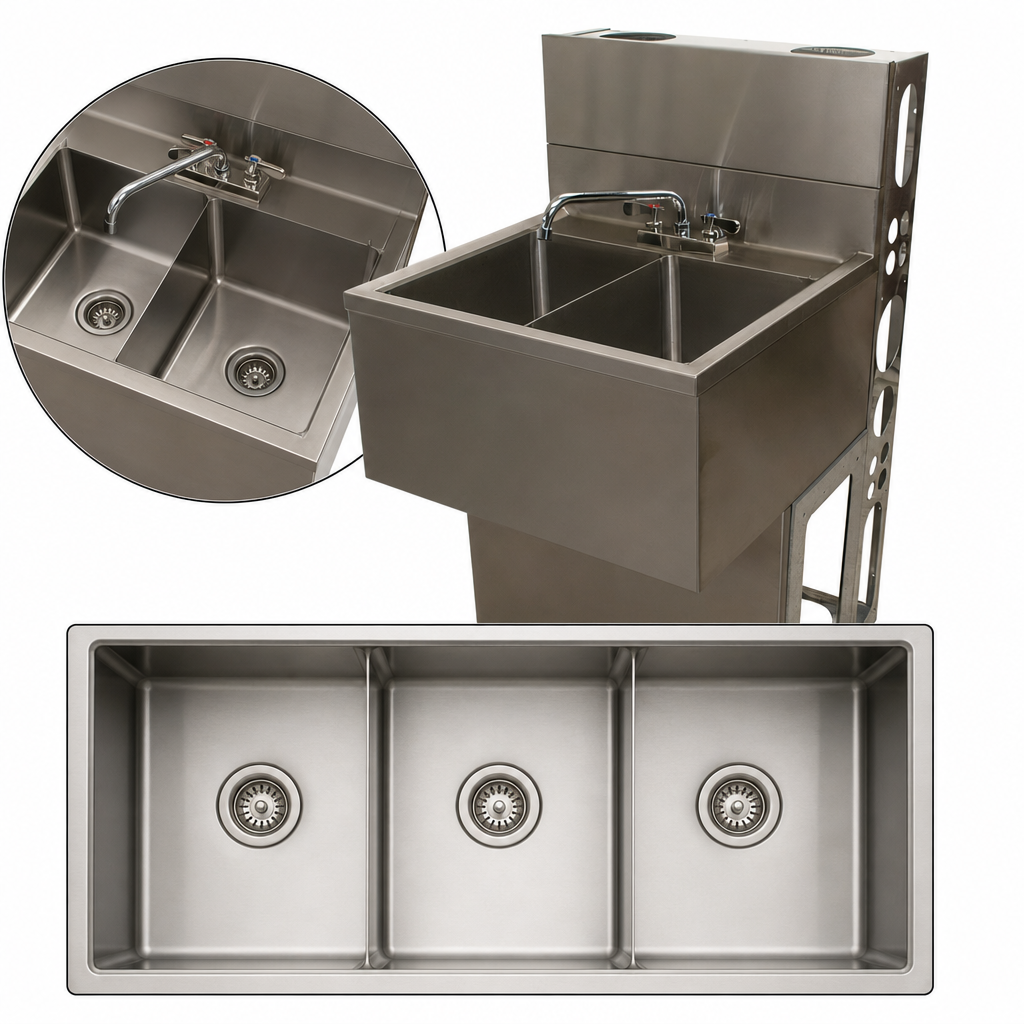

  • Three integrally welded bowls – 10" W x 14" F-B x 10" D each
  • 18/304 stainless steel throughout for superior corrosion resistance
  • Stainless steel apron on front & sides hides plumbing for a clean bar face
  • 4-1/2" backsplash protects surrounding walls from splashes
  • 4" on-center deck-mount faucet (BKD-10-G) – lead-free & NSF compliant
  • BKDR-2 basket drains with BK-OT-15075 removable 7" overflow standpipes
  • Die-wall & base construction adds strength without extra weight
  • NSF certified for food-service sanitation

What’s included

  • (1) 48" three-compartment underbar sink
  • (1) BKD-10-G 4" OC deck-mount faucet with swing spout
  • (3) BKDR-2 stainless steel basket drains
  • (3) BK-OT-15075 stainless steel overflow standpipes (removable)

Technical specifications

Overall dimensions 48" W x 21-1/4" D x 33-1/2" H
Working height 30"
Backsplash height 4-1/2"
Compartments 3
Bowl size (each) 10" W x 14" F-B x 10" D
Material 18-gauge, type 304 stainless steel
Faucet centers 4" on-center deck mount
Included faucet BKD-10-G (lead-free)
Drain openings 1-1/2" NPS
Accessories Basket drains & overflow standpipes (included)
Certifications NSF, Lead-Free
Warranty 1-year limited manufacturer warranty

Looking for a different size or a model with drainboards? Contact us for the full BK Resources Slimline catalog.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Sink Compartments

(3)

Width (side - side) OA

43" - 48"

Top Stainless Series

300 series

Bowl Size

10" x 14" front-to-back

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Depth (front - back) OA

20" - 21"

Splash

4"

Drainboards

without drainboards

Specifications

Underbar Sink, three compartment, 48”W x 21-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
