BK Resources | SKU:
UBDW-21-248TS
BK Resources UBDW-21-248TS Bar Equipment
$1,834.47
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
BK Resources UBDW-21-248TS Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UBDW-21-248TS Bar Equipment
$1,834.47
Unit price
/
Unavailable
Description

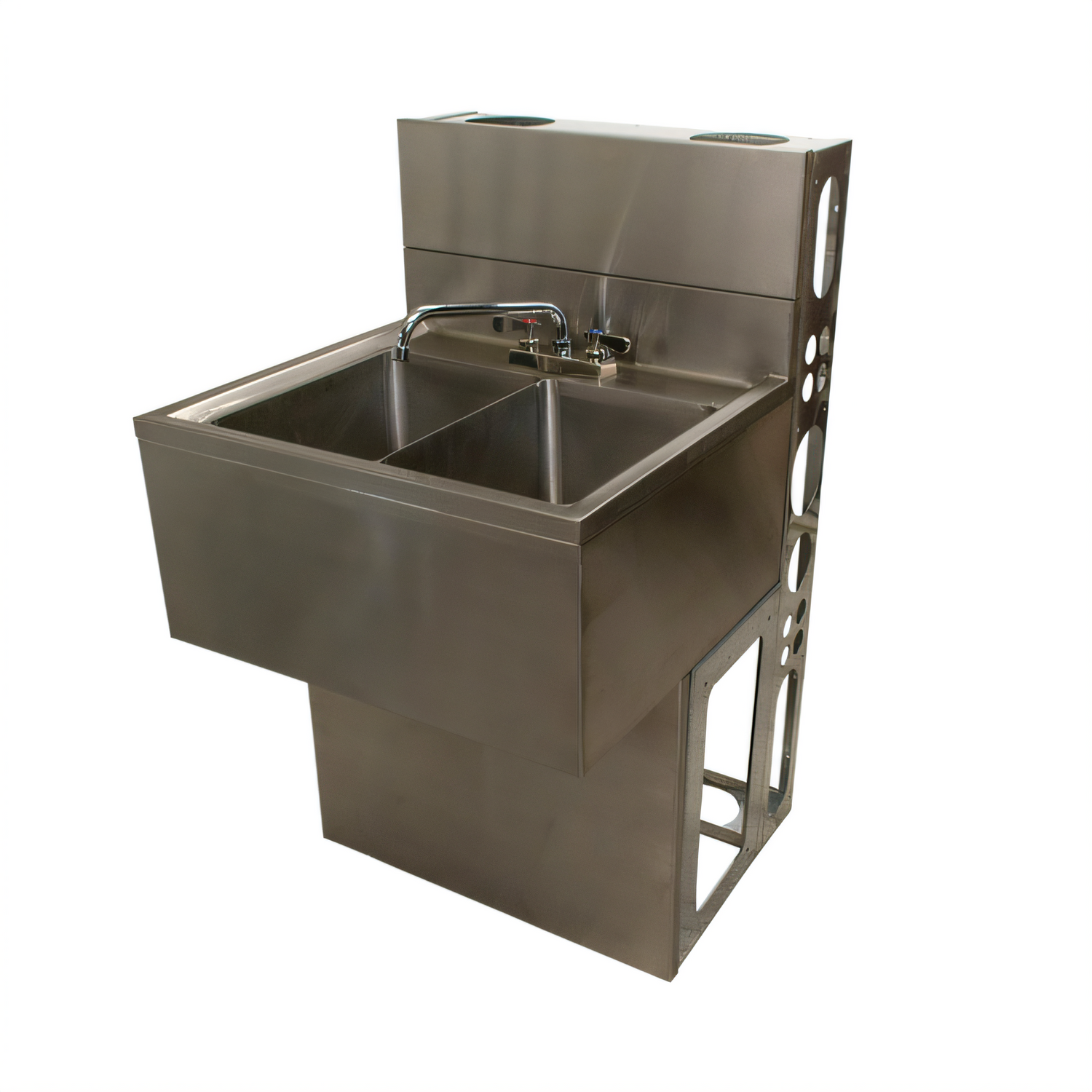

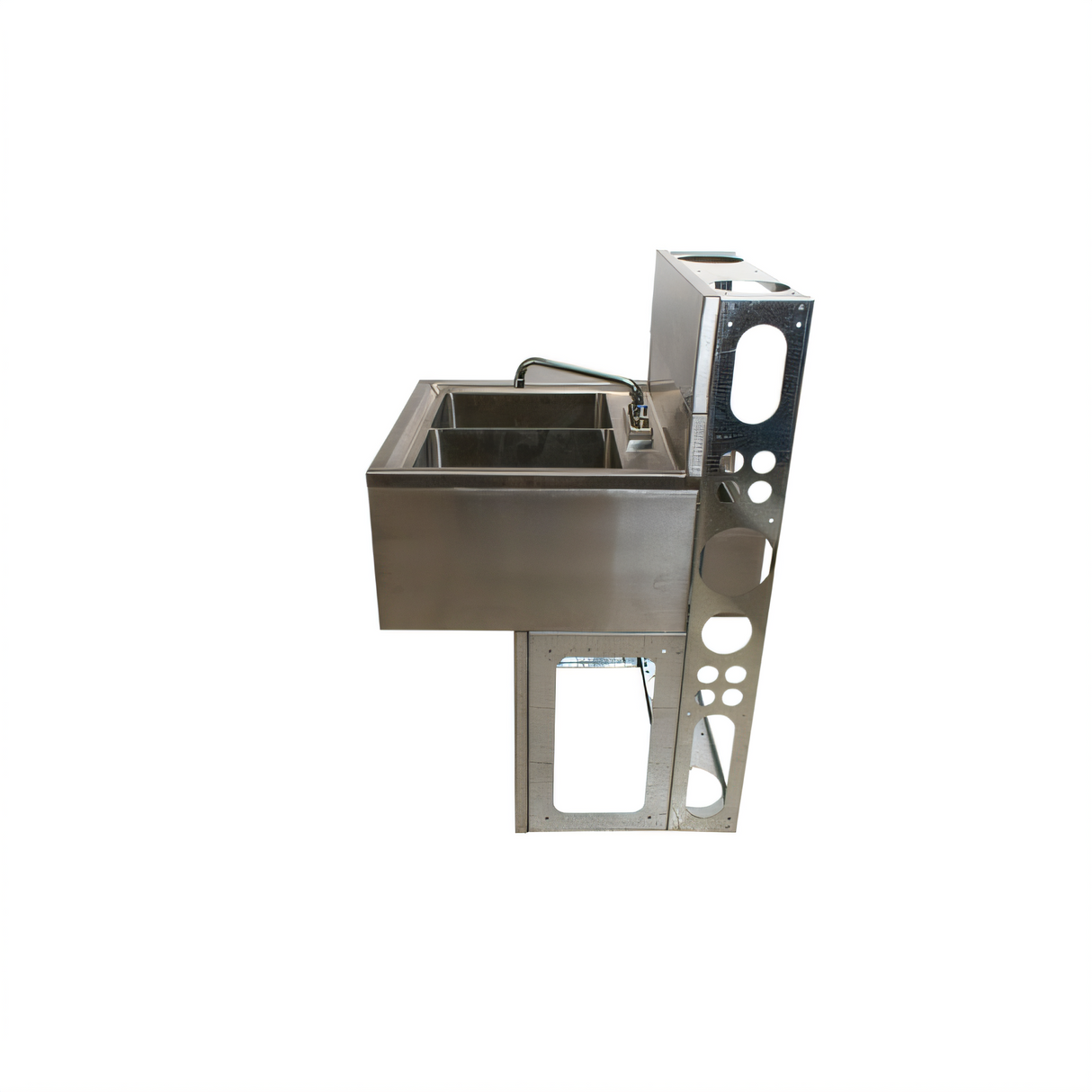

BK Resources 48" Slimline Two-Compartment Underbar Sink
Model UBDW-21-248TS | 18 ga 304 Stainless SteelEngineered for high-volume bars that don’t have space to spare, this NSF-listed sink delivers deep dual bowls, twin drainboards and a complete faucet & drain kit—all in a slim 21-1/4" footprint that slots neatly under your bar top.
Key Features

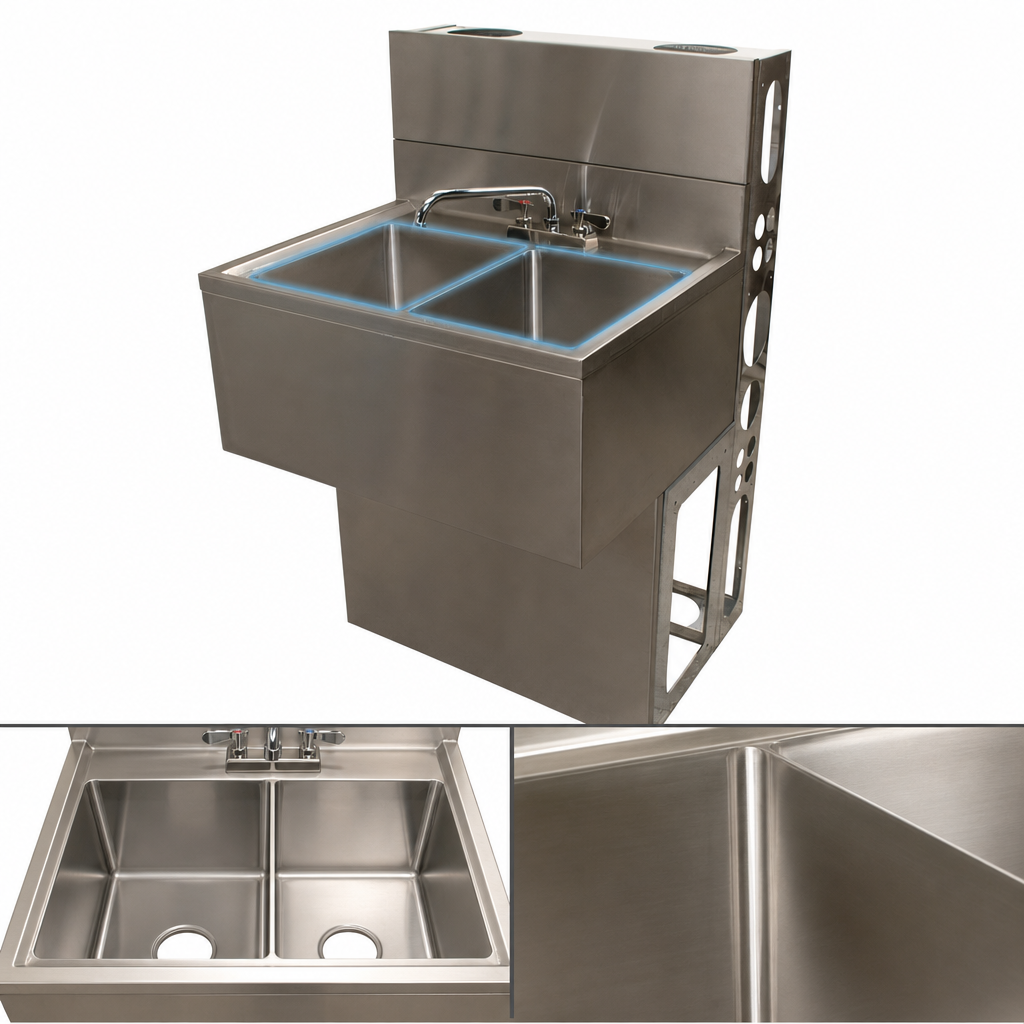

- Two integrally welded bowls – 10" W × 14" F-B × 10" D

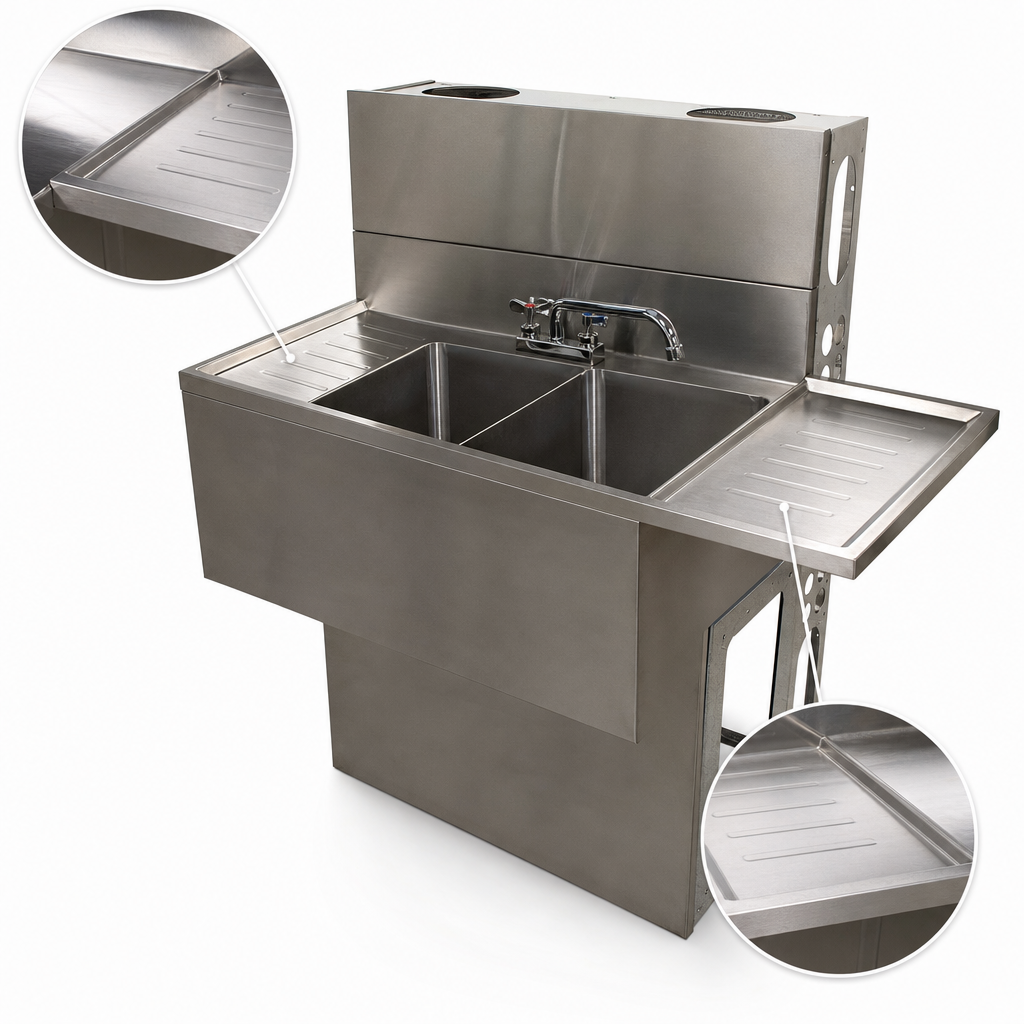

- Left & right 13-3/16" stamped, pitched drainboards for fast drying
- 4-1/2" backsplash with pre-punched 4" O.C. faucet holes
- Included BKD-10-G lead-free deck-mount faucet (4" centers)
- Basket drains (BKDR-2) & 7" removable overflow standpipes (BK-OT-15075) included
- 18 ga, Type 304 stainless steel bowls, backsplash, apron, walls & base
- Die-wall construction with fully welded seams for long-term durability
- Removable stainless steel front apron simplifies installation & servicing
- NSF certified for food-contact sanitation
Why It’s Perfect for Your Bar
- Saves aisle space with a slim 21-1/4" depth while keeping full 10" bowl depth
- Dual drainboards keep glassware, shakers and smallwares organized & off the countertop
- Ships as a complete kit—no surprise add-ons needed at install
- Type 304 stainless steel shrugs off acidic juices, fruit sugars and heavy daily use
- Quick-access front panel speeds up plumbing connections and routine cleaning
Technical Specifications
| Overall width | 48" (1219 mm) |
|---|---|
| Overall depth | 21-1/4" (540 mm) |
| Overall height | 33-1/2" (851 mm) |
| Bowl dimensions (each) | 10" W × 14" F-B × 10" D |
| Number of bowls | 2 |
| Drainboards | (2) 13-3/16" L & R stamped, pitched |
| Backsplash height | 4-1/2" |
| Faucet | BKD-10-G, 4" on-center, lead-free |
| Drain fittings | (2) BKDR-2 basket drains, 3-1/2" opening |
| Overflow | (2) BK-OT-15075 removable 7" standpipes |
| Material / gauge | 18 ga Type 304 stainless steel |
| Certifications | NSF |
What’s in the Box
- UBDW-21-248TS two-compartment underbar sink
- BKD-10-G 4" on-center deck-mount faucet
- (2) BKDR-2 basket drains
- (2) BK-OT-15075 7" overflow standpipes
- Removable stainless steel front apron panel
Have questions about installation or bar layout? Chat with our team—we’ll help you put together the perfect underbar workflow.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Bowl Depth (rim - drain)
10"
Bowl Size
10" x 14" front-to-back
Top Stainless Series
300 series
Width (side - side) OA
43" - 48"
Sink Compartments
(2)
Construction
stainless steel top, front, ends & legs
Depth (front - back) OA
20" - 21"
Drainboards
drainboards on left & right
Splash
4"
Specifications
Underbar Sink, two compartment, 48”W x 21-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 13-3/16" stamped drainboards, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
