Description

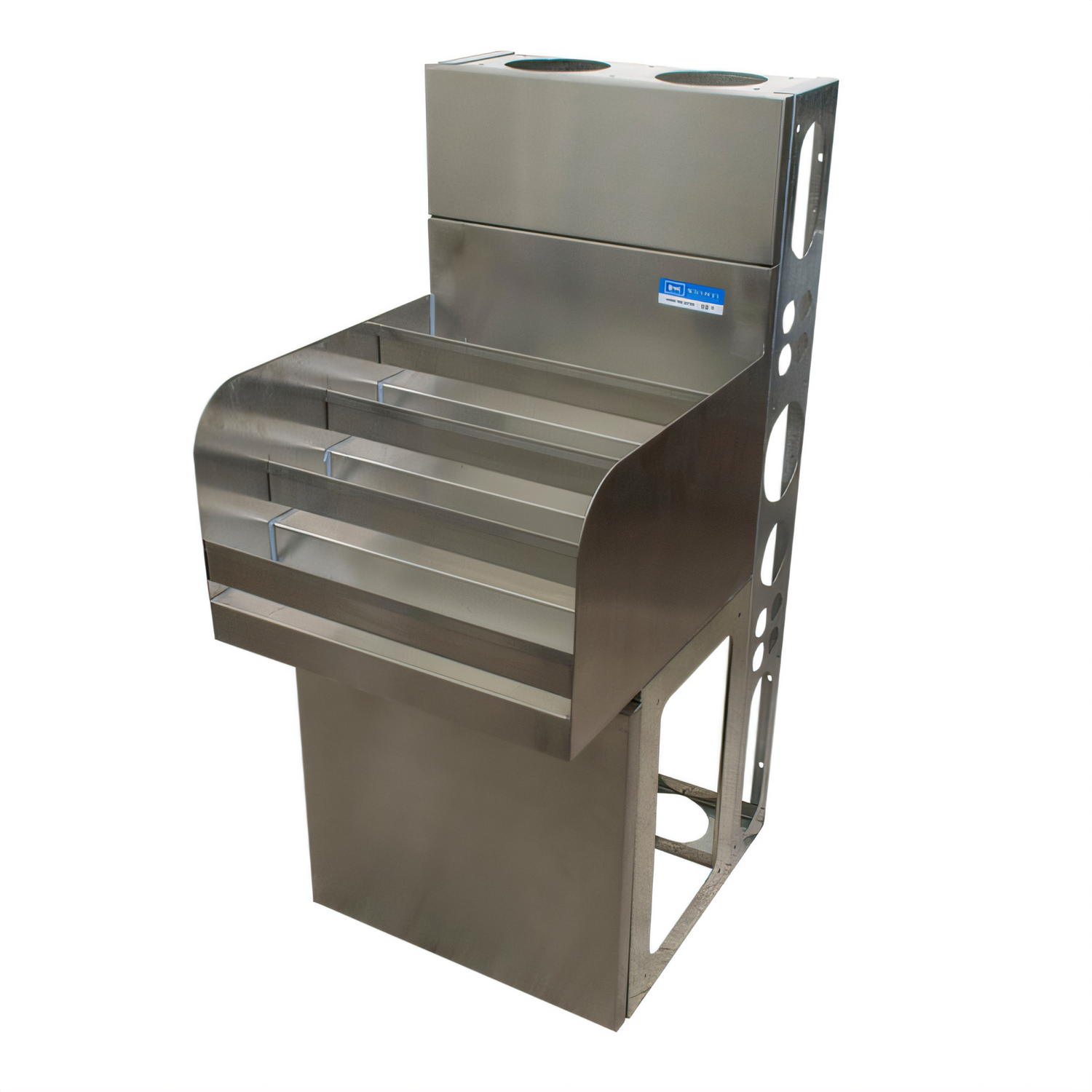

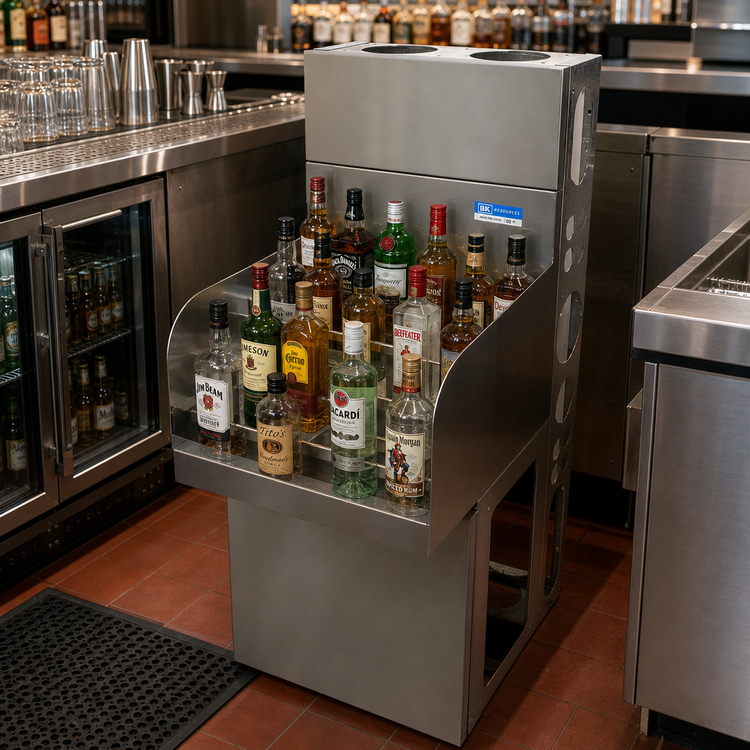

BK Resources 4-Step Underbar Liquor Bottle Display – 18" Wide

Model UBDW-18-LD18 | ~20 Bottle Capacity | NSF Listed

Showcase premium spirits and speed up service with this compact, four-tier liquor display. Built from food-grade 18 ga. T-304 stainless steel, it integrates seamlessly with other BK Resources underbar modules while standing up to the daily rigors of a high-volume bar.

Highlights & Benefits

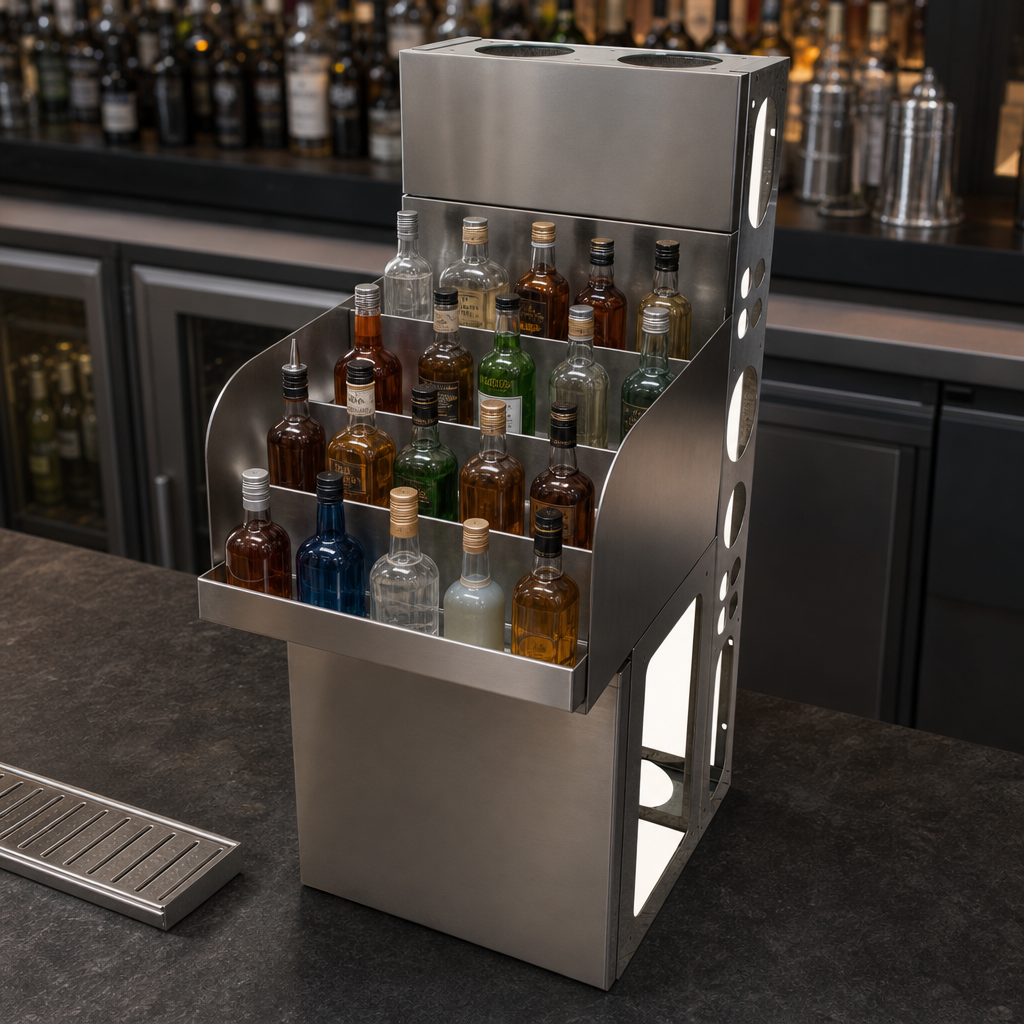

  • Four full-width steps with protective guard rail on each tier – keeps bottles safe and visible.

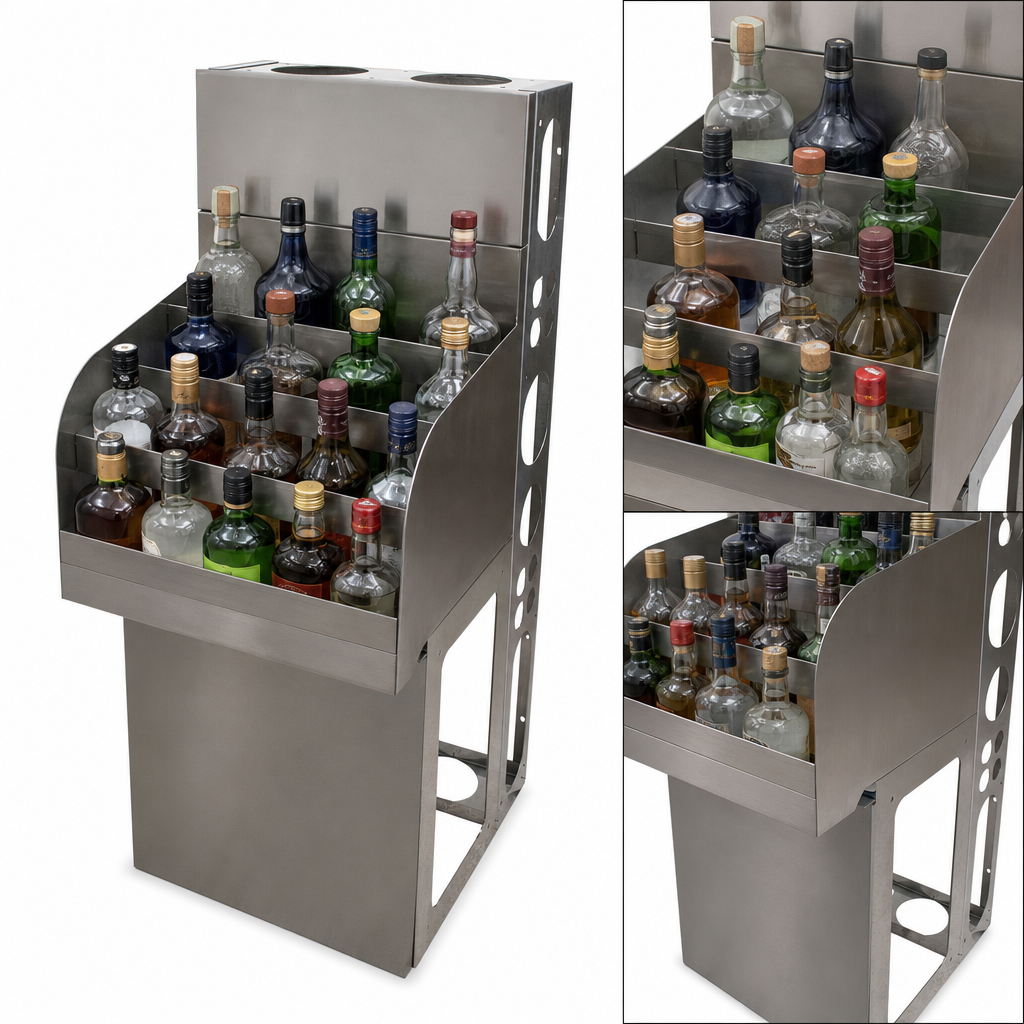

  • Approximate 20-bottle capacity (based on 1 L / 3.5" dia. bottles).
  • Uniform fit with BK Resources underbar stations for a clean, continuous line-up.
  • 18 ga. T-304 stainless steel construction resists corrosion and is easy to sanitize.
  • 1-5/8" diameter die-wall and base add strength without bulky framing.
  • Removable stainless steel front panel simplifies under-counter access and cleaning.
  • #4 polished finish on exposed surfaces delivers a professional back-bar presentation.
  • Adjustable plastic bullet feet level the unit on uneven floors.
  • NSF certified for open-food zone use.

Technical Specifications

Model / Part No. UBDW-18-LD18
Overall Width 18" (457 mm)
Overall Depth 18 1/4" (464 mm)
Overall Height 33 1/2" (851 mm)
Number of Steps 4, each with integrated guard rail
Bottle Capacity Approx. 20 (1 L bottles)
Material / Gauge 18 ga. T-304 stainless steel
18 ga. SS front panels with galvanized die wall
Base Tube Diameter 1 5/8" (41 mm)
Feet Adjustable plastic bullet feet
Finish #4 polished on all exposed surfaces
Compliance NSF Listed

Dimensions are nominal and subject to manufacturing tolerances of ±1/8".

Special Order Item: This product is built to order and is non-cancellable and non-returnable once production has begun.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Type

free standing

Construction

stainless steel

Steps

(4)

Specifications

Underbar Liquor Bottle Display Unit, 18"W X 18-1/4"D x 33-1/2"H, (4) steps with guard rail, approximately (20) bottle capacity, 18/304 stainless steel construction, 1-5/8" diameter die wall and base, adjustable plastic bullet feet, NSF
