Description

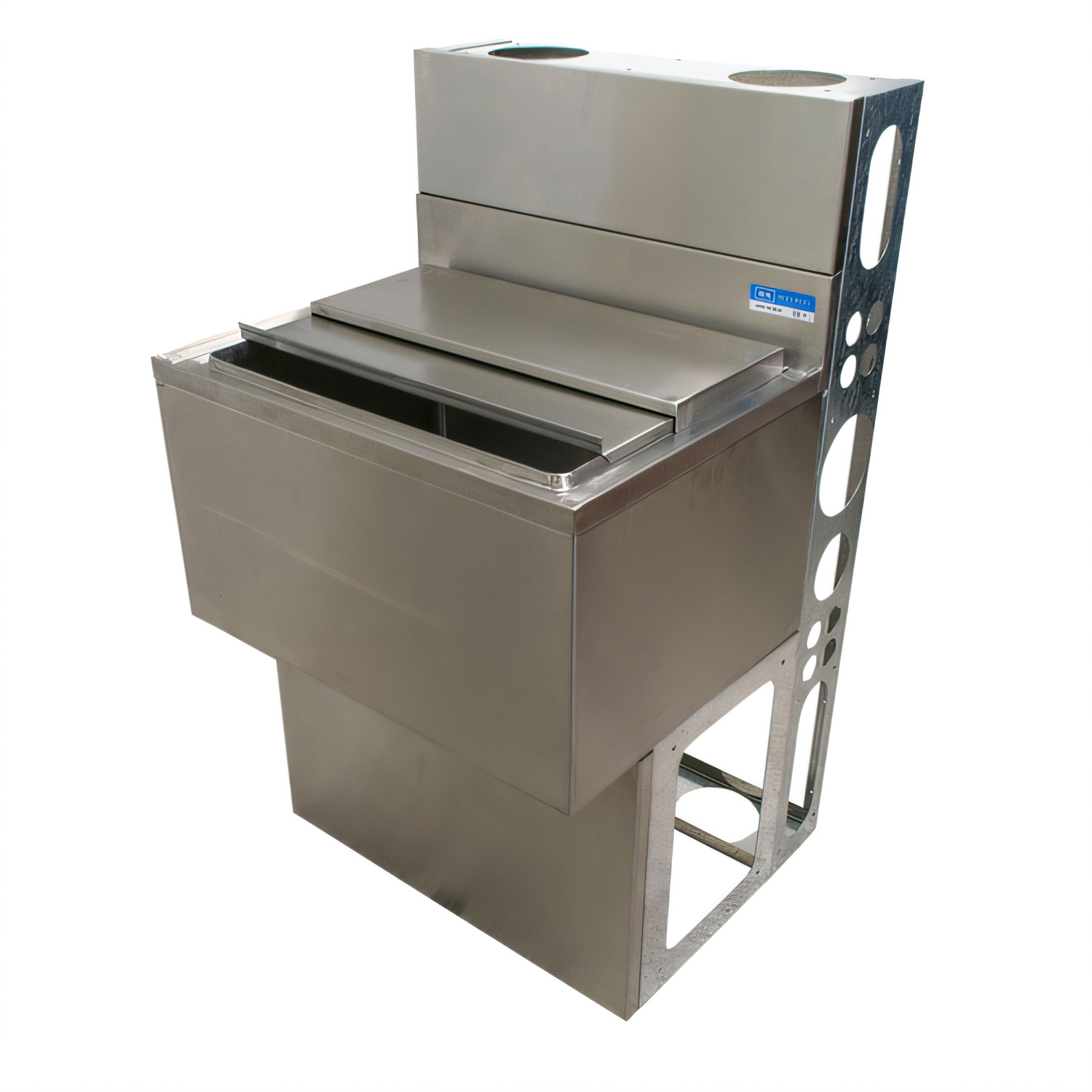

BK Resources 48" Underbar Insulated Ice Bin with 7-Circuit Cold Plate

Model UBDW-18-IBCP48-7  |  140 lb Ice Capacity  |  NSF Listed

Keep cocktails flowing and sodas ice-cold during the busiest rush with BK Resources’ heavy-duty underbar ice bin. A built-in 7-circuit aluminum cold plate chills beverage lines on contact while the fully insulated stainless steel bin preserves up to 140 lbs of fresh ice service after service.

Key Features

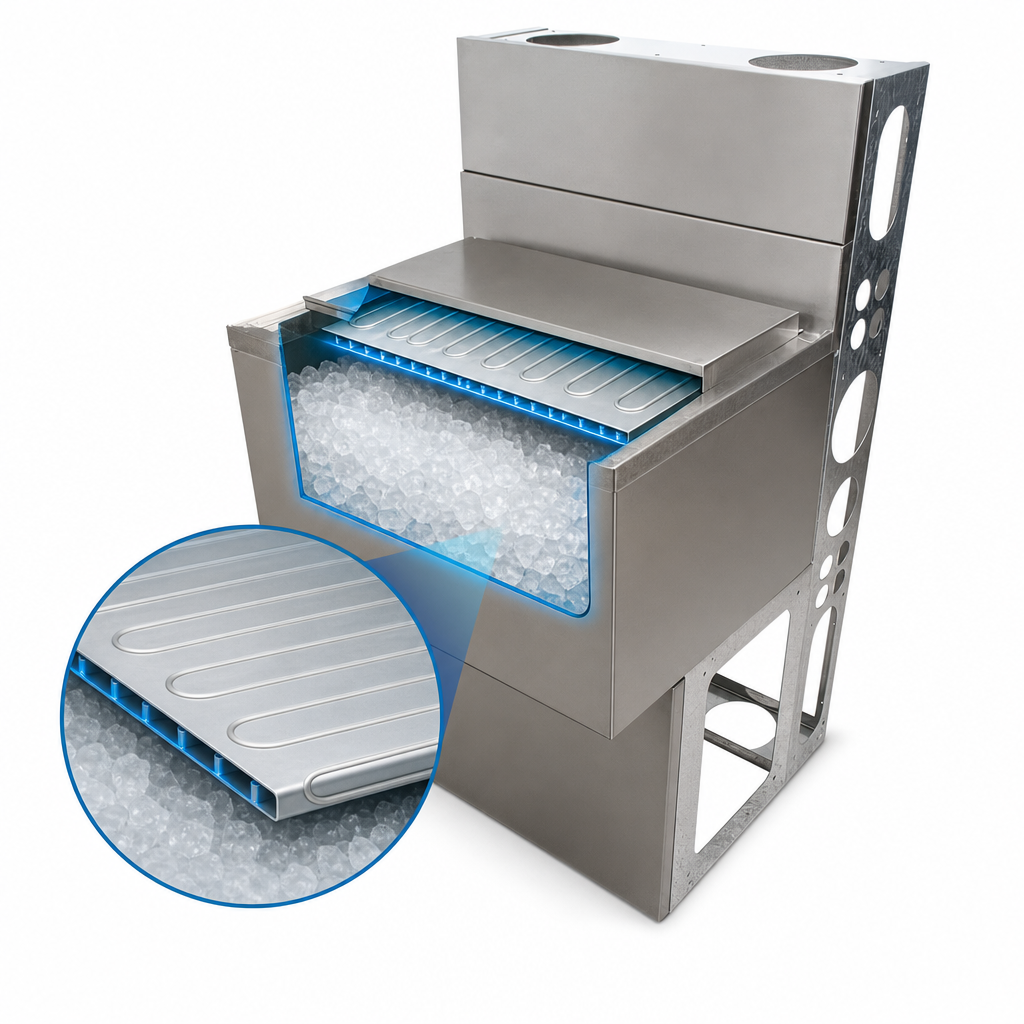

  • Integrated 7-circuit aluminum cold plate cools soda guns and liquor lines—no remote chiller required.

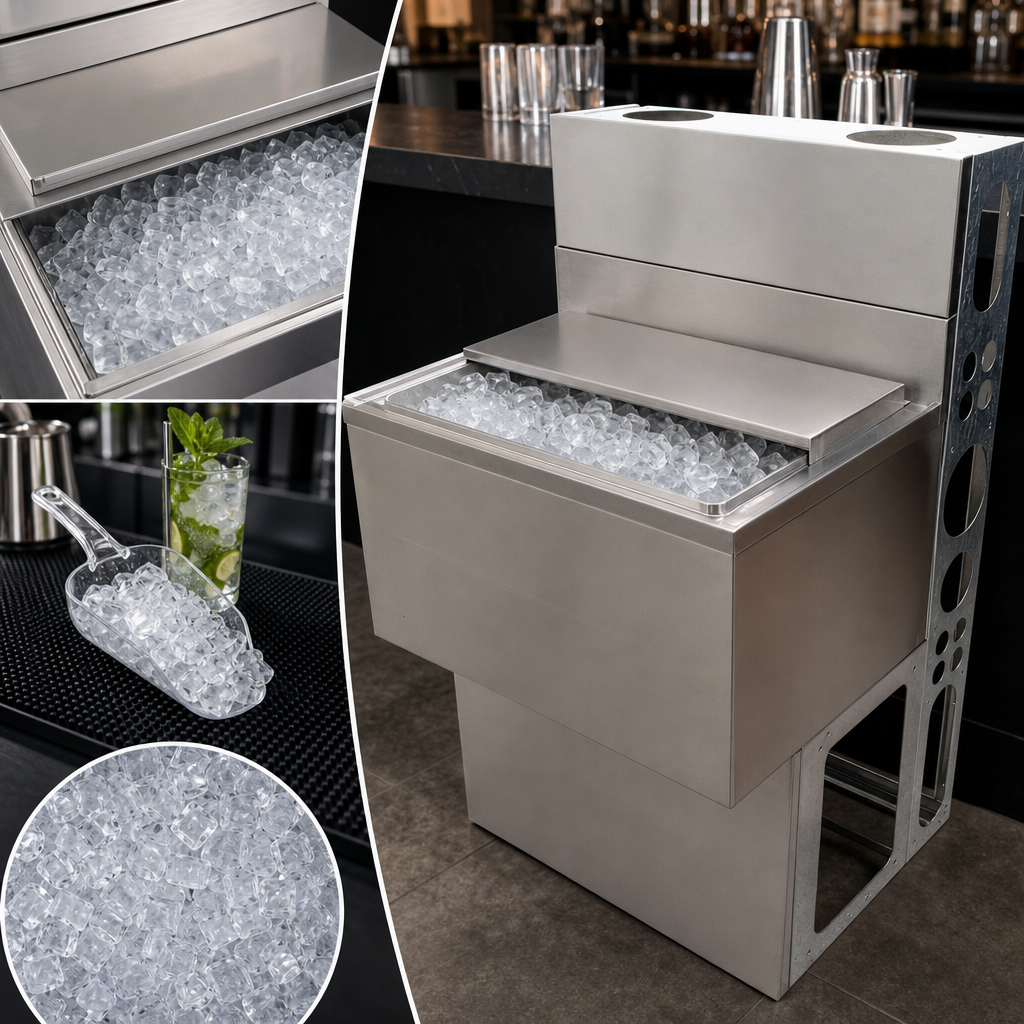

  • Spacious 43" L × 15" W × 12-9/16" D ice compartment holds 140 lbs of ice.
  • 18 ga T-304 stainless steel construction with welded die wall and base for maximum durability.
  • 4" high rear backsplash contains splashes and meets health code requirements.
  • Includes easy-glide stainless steel sliding covers to protect ice between uses.
  • 41" ergonomic working height with adjustable, corrosion-resistant bullet feet for perfect leveling.
  • NSF certified for safe, sanitary beverage service.

Perfect For

  • High-volume bars & nightclubs
  • Restaurant beverage stations
  • Hotels, resorts & event venues
  • Concession or catering operations

Specifications

Manufacturer BK Resources
Model UBDW-18-IBCP48-7
Ice Capacity 140 lbs
Cold Plate 7-circuit aluminum
Ice Bin Interior (L × W × D) 43" × 15" × 12-9/16"
Overall Dimensions (L × W) 48" × 23 3/4"
Working Height 41"
Backsplash Height 4"
Material 18 ga 304 stainless steel (bin & lid) / aluminum cold plate
Feet Adjustable high-impact, corrosion-resistant bullet feet
Certifications NSF

Need additional sizes or circuit counts? Email us at sales@bk-resources.com—our equipment specialists are ready to help.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Bin Depth

12" deep ice bin

Splash

4"

Ice Capacity

100 - 149 lbs.

Cold Plate

(7) circuit

Construction

stainless steel construction

Specifications

Underbar Ice Bin, with 7-circuit aluminum cold plate, 140 lbs capacity, 43" wide x 15" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, die wall and base, NSF
