BK Resources UBDW-18-IBCP30-8 Bar Equipment
BK Resources UBDW-18-IBCP30-8 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UBDW-18-IBCP30-8 Bar Equipment
Description

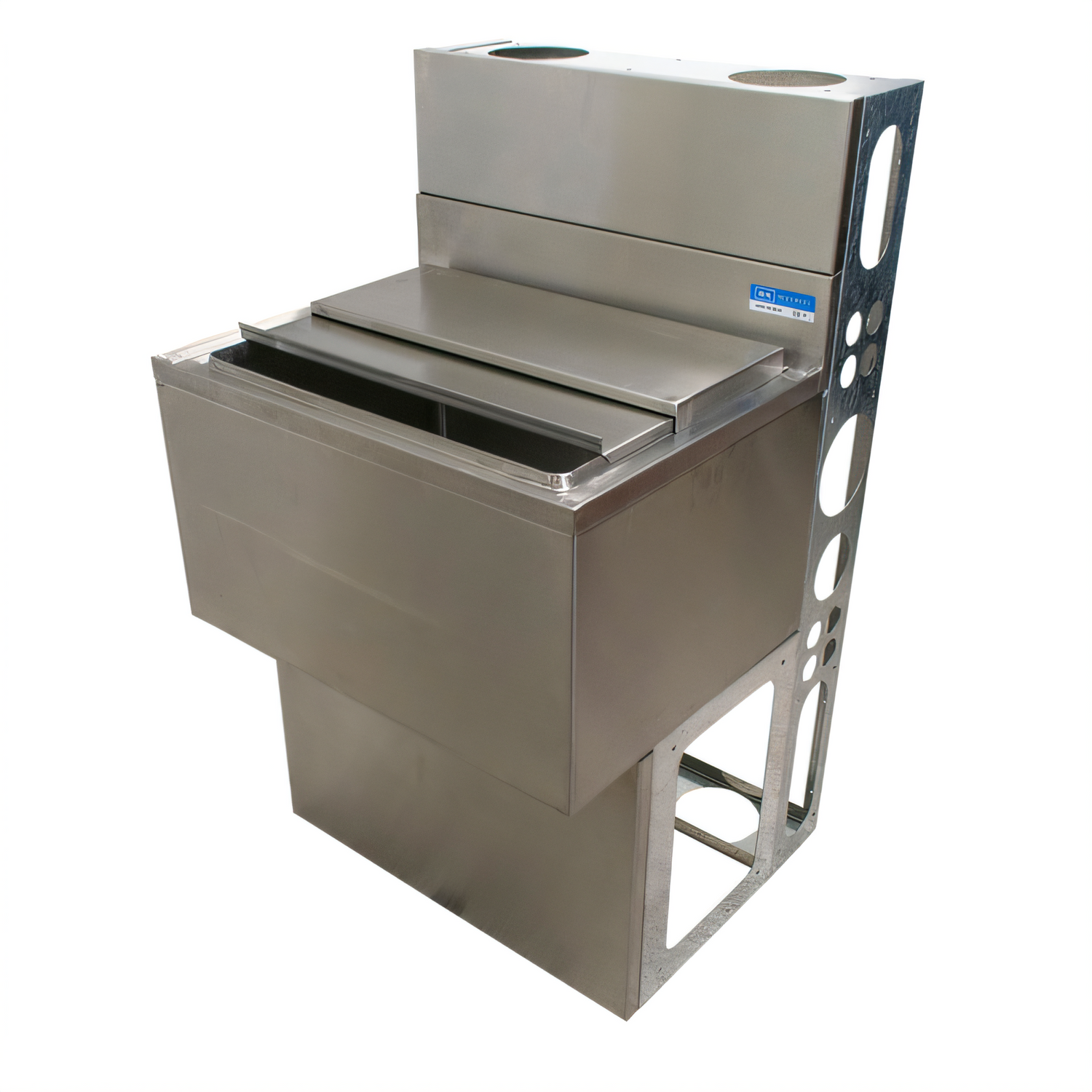

BK Resources Underbar Ice Bin with 8-Circuit Cold Plate – 80 lb Capacity
Model UBDW-18-IBCP30-8 | NSF CertifiedKeep cocktails cold and service flowing with this heavy-duty, fully insulated ice bin from BK Resources. Engineered for busy bars, restaurants, and event venues, it pairs a generous 80 lb ice capacity with an 8-circuit aluminum cold plate for rapid, consistent drink chilling.
Key Features

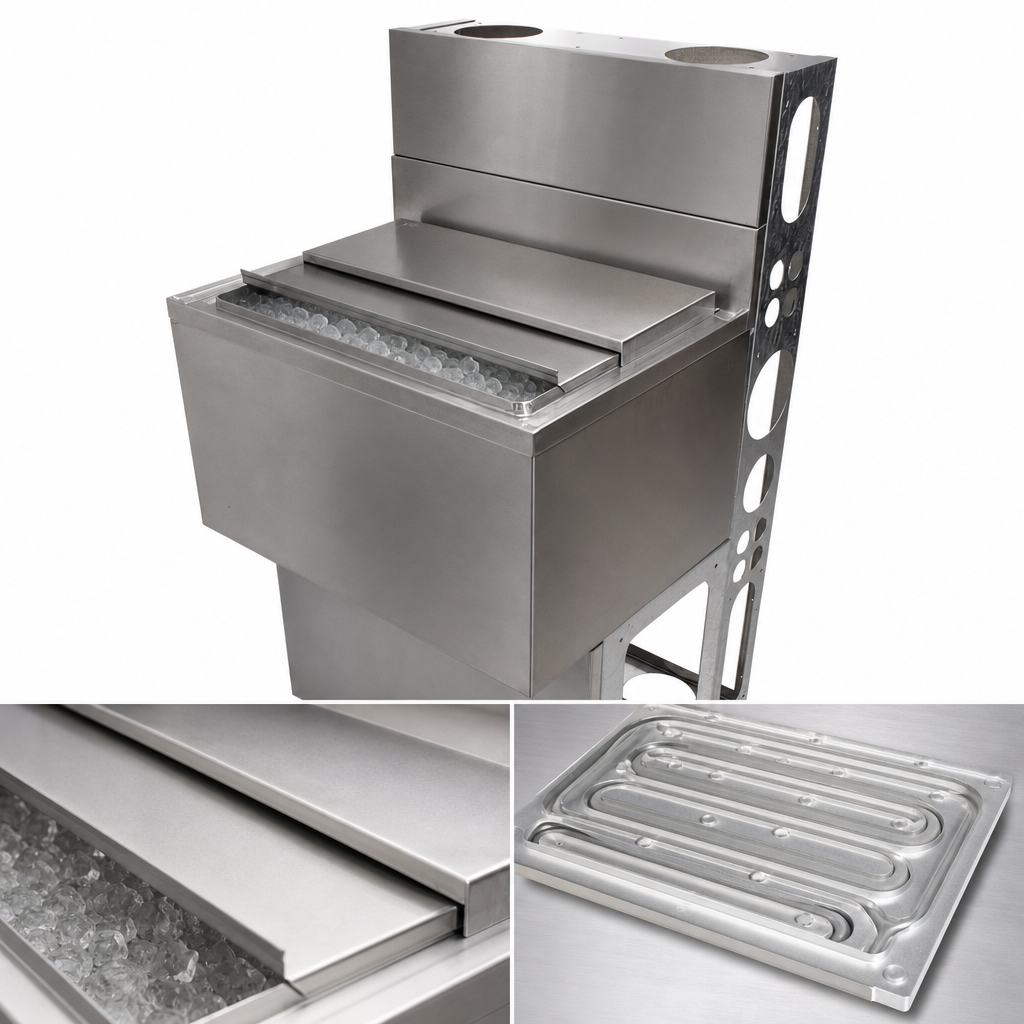

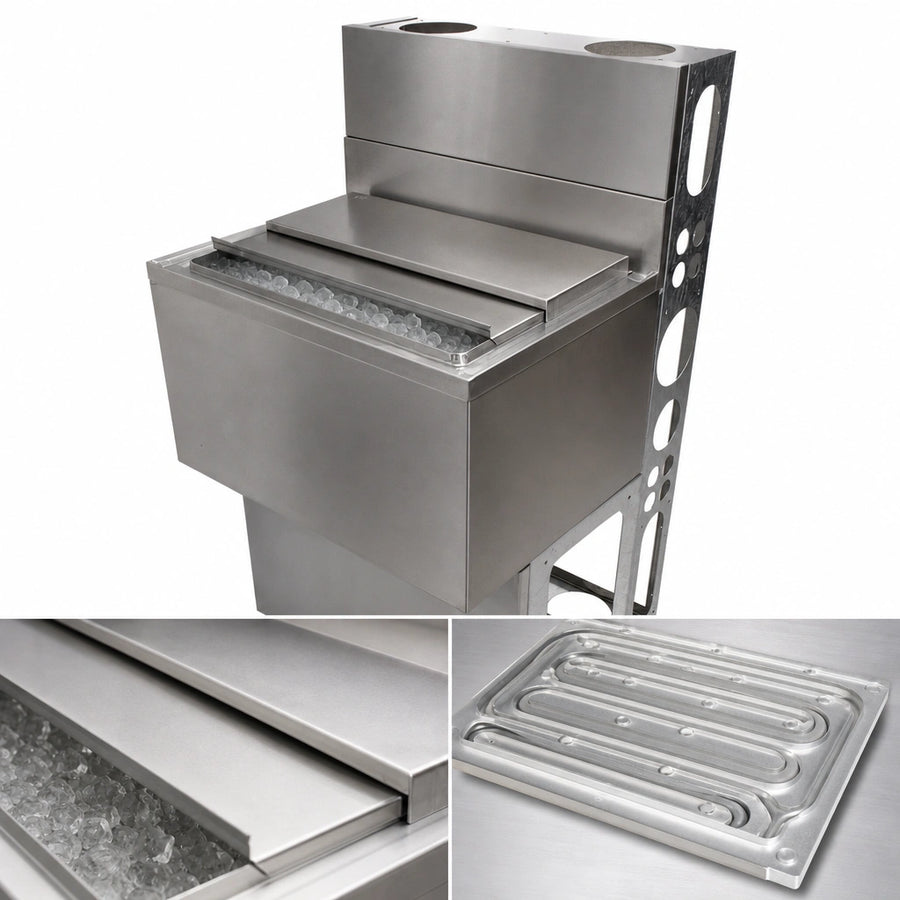

- 8-circuit aluminum cold plate chills multiple beverage lines simultaneously.

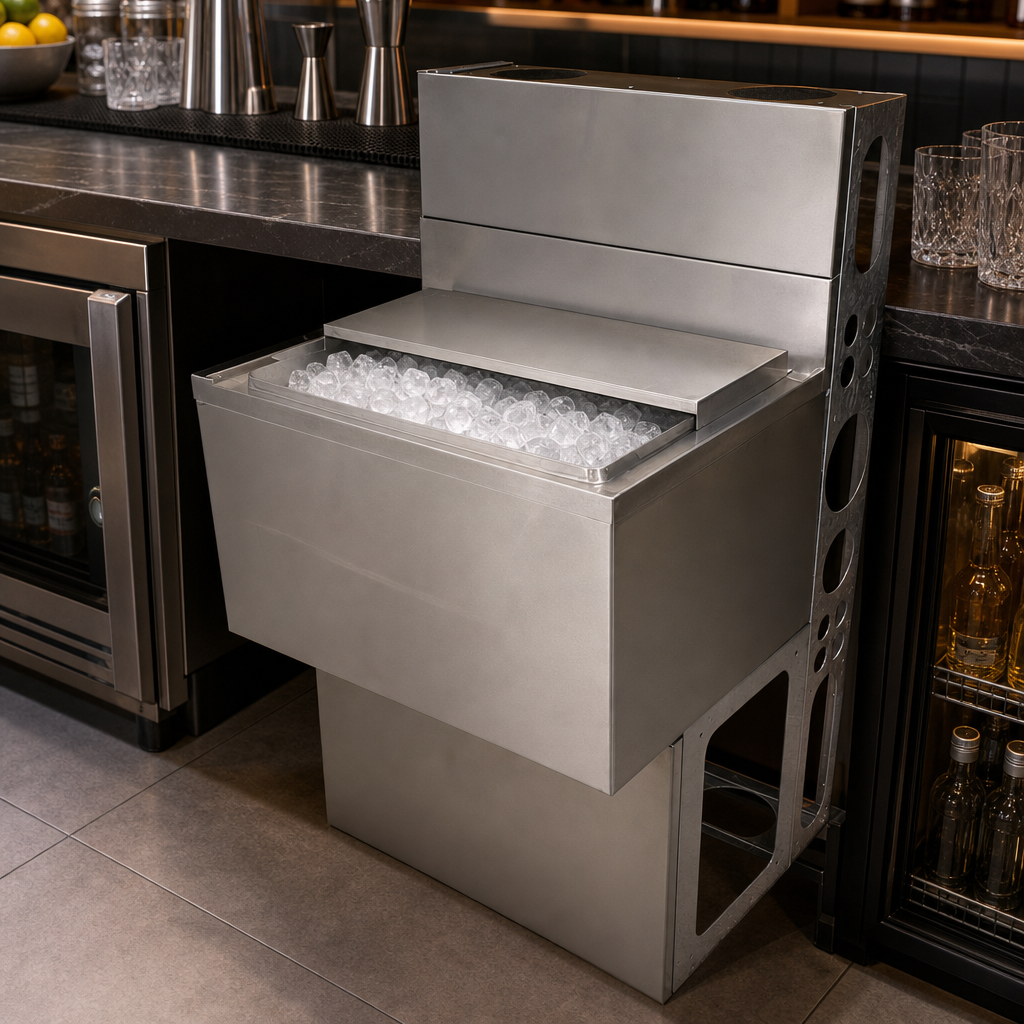

- Ice bin holds up to 80 lb; interior dimensions: 25" W × 15" D × 12-9/16" H.
- 18 ga, Type 304 stainless-steel construction with die-wall sides & base for superior insulation and durability.
- 4" rear backsplash helps contain melt water and protects surrounding surfaces.
- Stainless-steel lid(s) keep ice clean and reduce melt rate when not in use.
- Adjustable high-impact, corrosion-resistant feet for quick leveling on uneven floors.
- 30" work height aligns with standard underbar equipment; 41" overall height including backsplash.
- NSF listed for safe, sanitary operation in commercial environments.
Specifications
| Model | UBDW-18-IBCP30-8 |
|---|---|
| Ice Capacity | 80 lb (36 kg) |
| Cold Plate | 8-circuit aluminum |
| Ice Bin Interior (W × D × H) | 25" × 15" × 12-9/16" |
| Overall Dimensions (W × D × H) | 30" × 23-3/4" × 41" |
| Backsplash Height | 4" |
| Construction Material | 18 ga 304 stainless steel, #4 brushed finish |
| Feet | High-impact, corrosion-resistant, adjustable |
| Certifications | NSF |
Need matching speed rails, cocktail stations, or other underbar components? Explore the full BK Resources line to build a seamless bar setup.
