Description

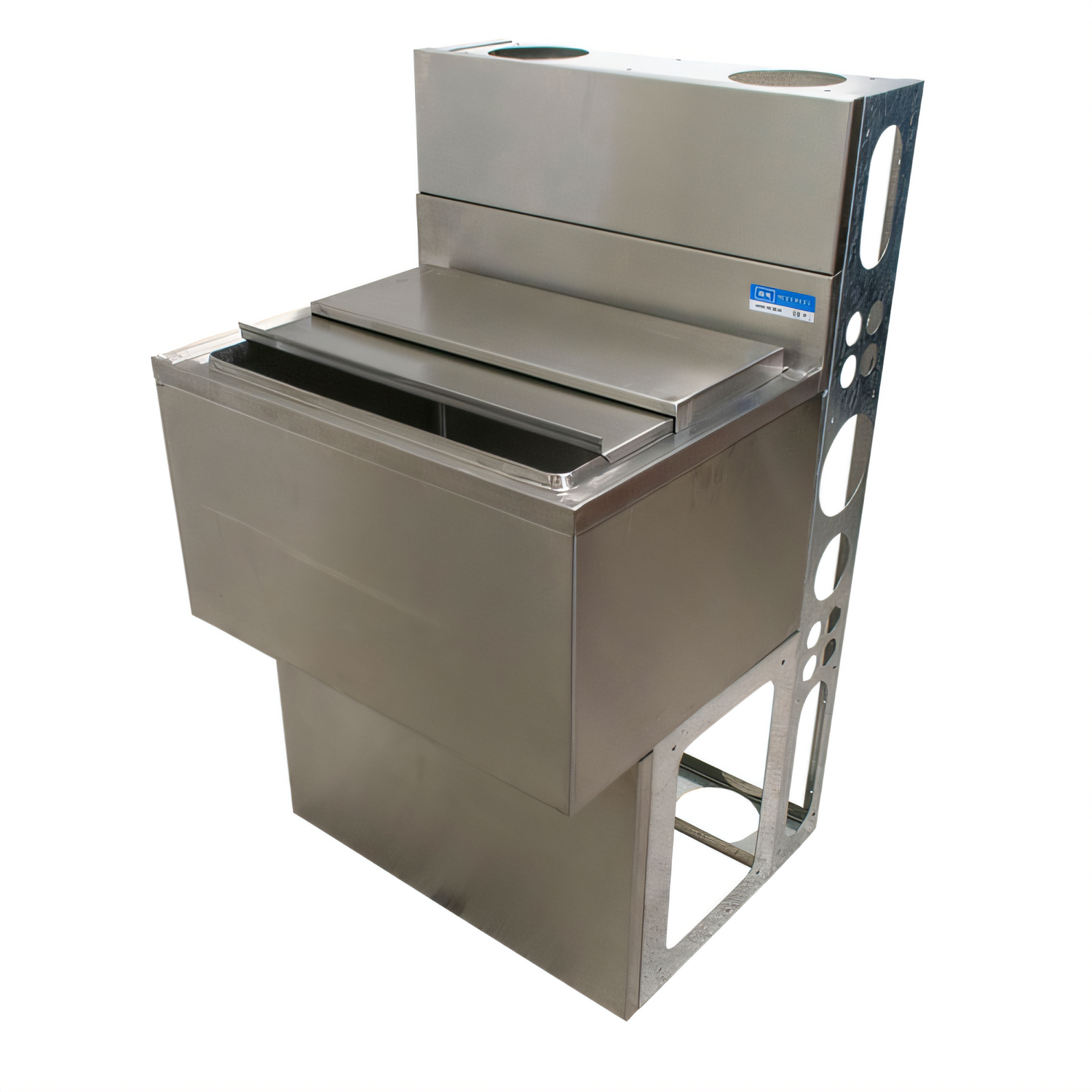

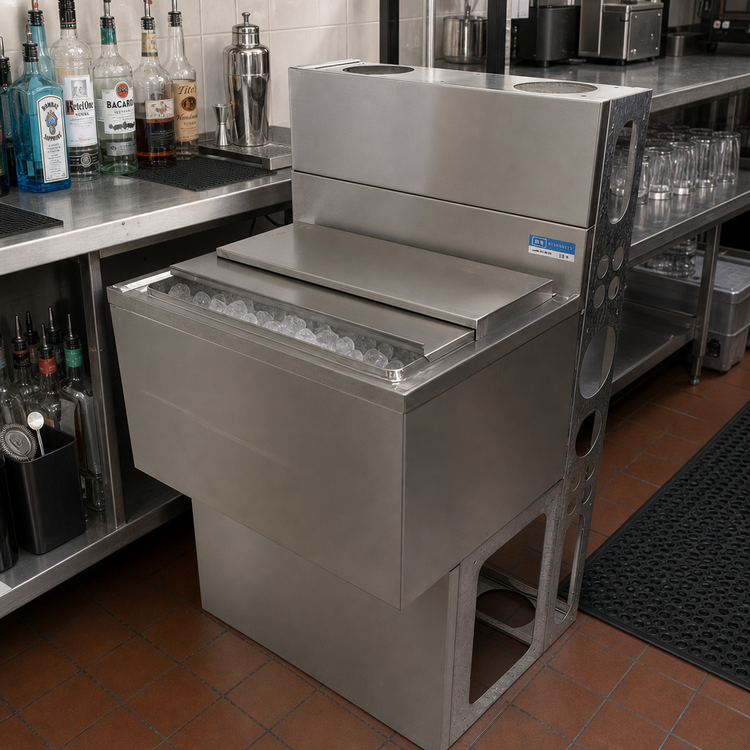

BK Resources 30" Underbar Ice Bin with 10-Circuit Cold Plate – 80 lb Capacity

Model #: UBDW-18-IBCP30-10  |  NSF Certified

Designed for high-volume bars, cafés, and beverage stations, this BK Resources underbar ice bin pairs a generous 80-pound ice capacity with an integrated 10-circuit aluminum cold plate, delivering ice-cold fountain and cocktail mixes at peak service speed.

Key Features

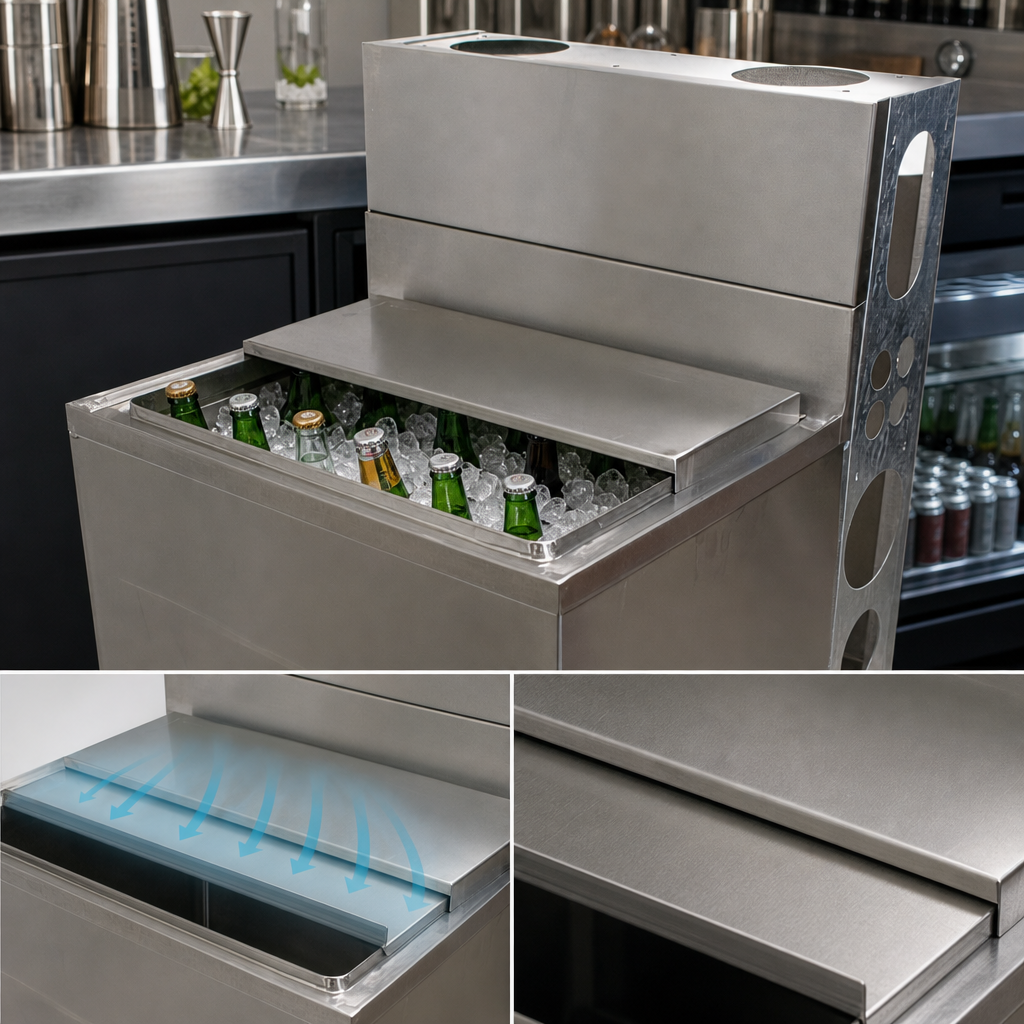

  • 10-circuit aluminum cold plate chills up to ten beverage lines directly in the ice.

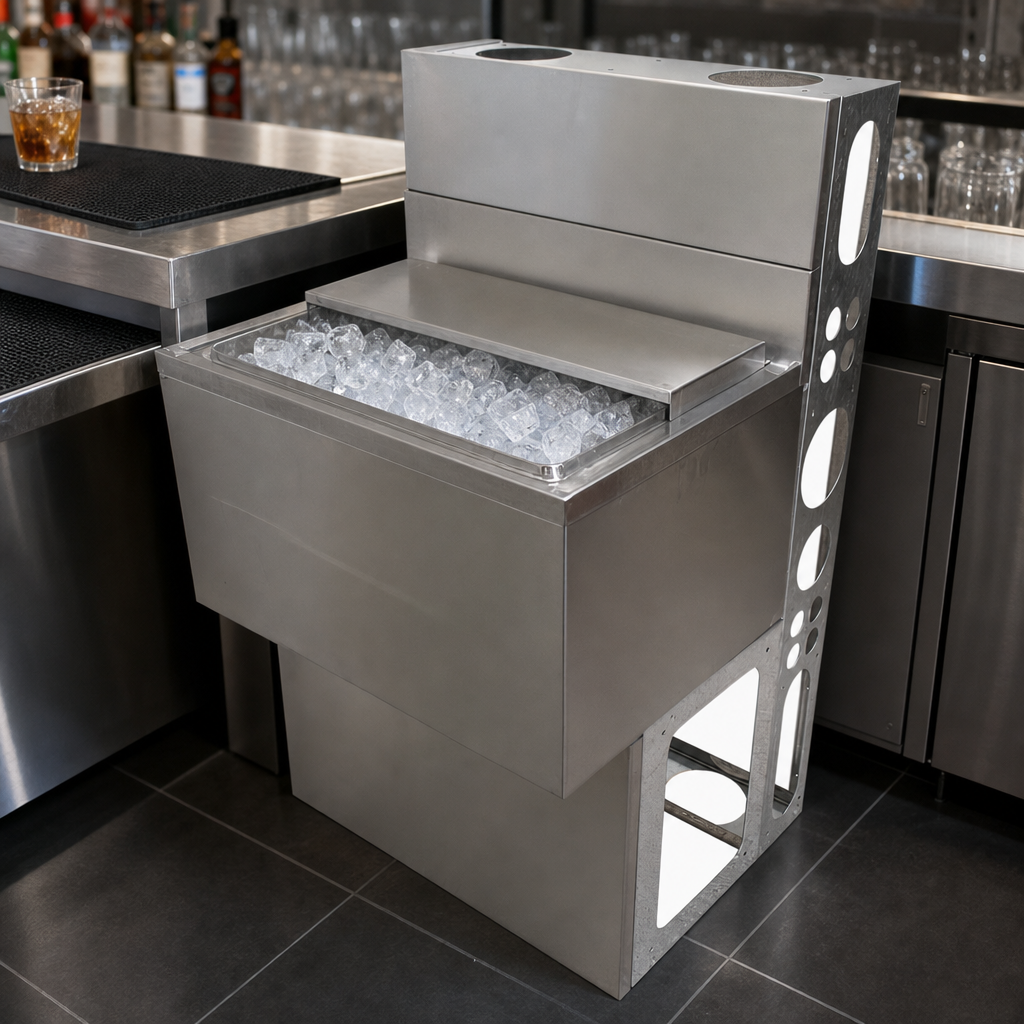

  • Fully insulated 80 lb ice bin (25" L × 15" W × 12-9/16" D) limits melt and reduces ice costs.
  • 18 ga Type 304 stainless steel construction for superior corrosion resistance.
  • 4" coved backsplash protects walls and meets health-code requirements.
  • Die-formed walls and base add structural rigidity for long-term durability.
  • Sliding stainless-steel lid keeps ice protected when not in use.
  • Adjustable high-impact, corrosion-resistant bullet feet for quick leveling.
  • NSF listed for easy code compliance in commercial kitchens and bars.

Specifications

Brand / Manufacturer BK Resources
Model / Part # UBDW-18-IBCP30-10
Product Type Underbar insulated ice bin with cold plate
Ice Capacity 80 lbs
Cold Plate Aluminum, 10 beverage circuits
Ice Bin Interior (L × W × D) 25" × 15" × 12-9/16"
Overall Dimensions (L × W × H) 30" × 23-3/4" × 41" (including 4" backsplash)
Work Height 30"
Construction 18 ga Type 304 stainless steel bin, wall & base; aluminum cold plate
Backsplash Height 4"
Feet Adjustable, high-impact & corrosion-resistant bullet feet
Certifications NSF

Need a different size or circuit count? Explore the full BK Resources ice bin line or contact us for assistance.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Bin Depth

12" deep ice bin

Splash

4"

Construction

stainless steel construction

Cold Plate

(10) circuit

Ice Capacity

70 - 99 lbs.

Specifications

Underbar Ice Bin, with 10-circuit aluminum cold plate, 80 lbs capacity, 25" wide x 15" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, die wall and base, NSF
