BK Resources UBDW-18-IBCP24-8 Bar Equipment
Description

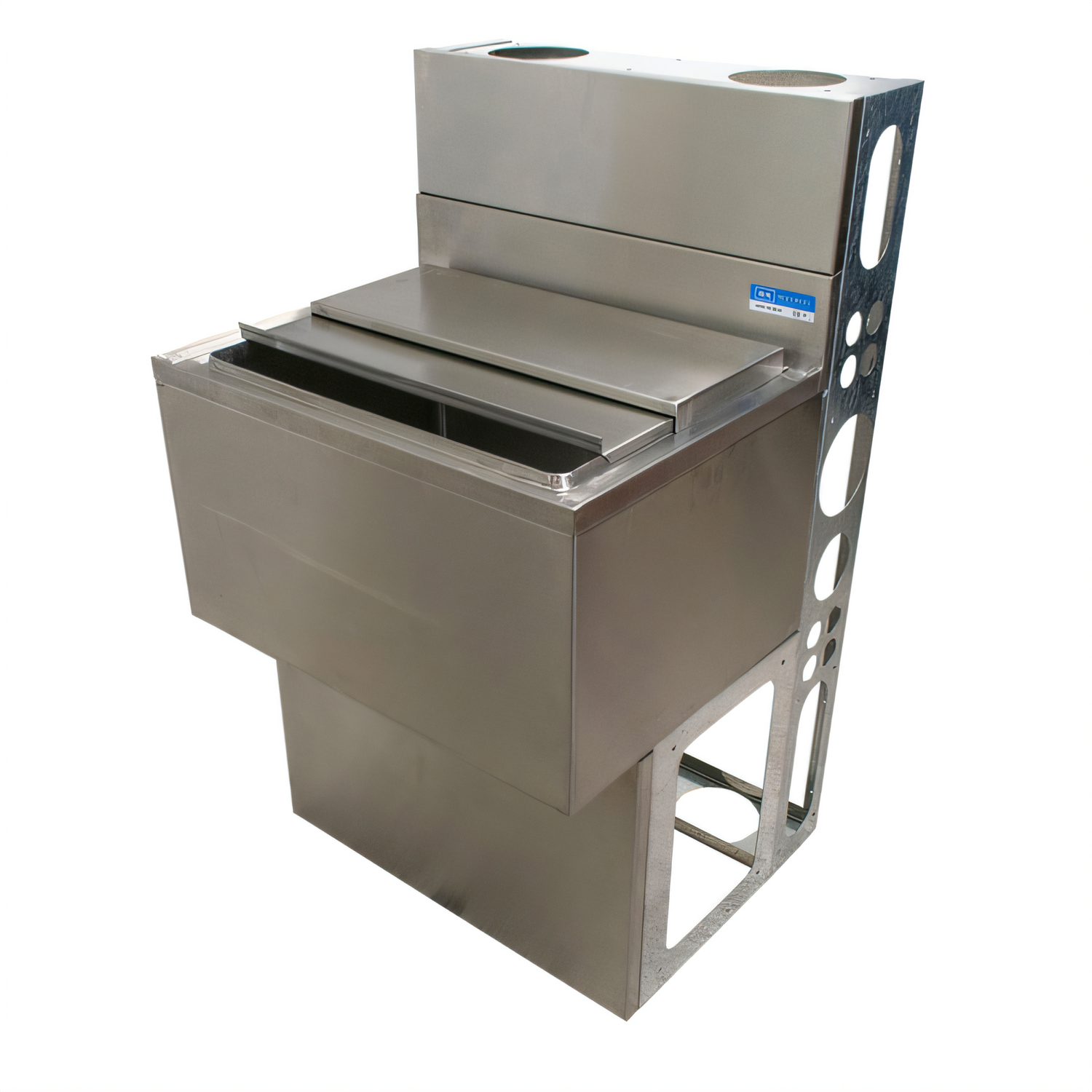

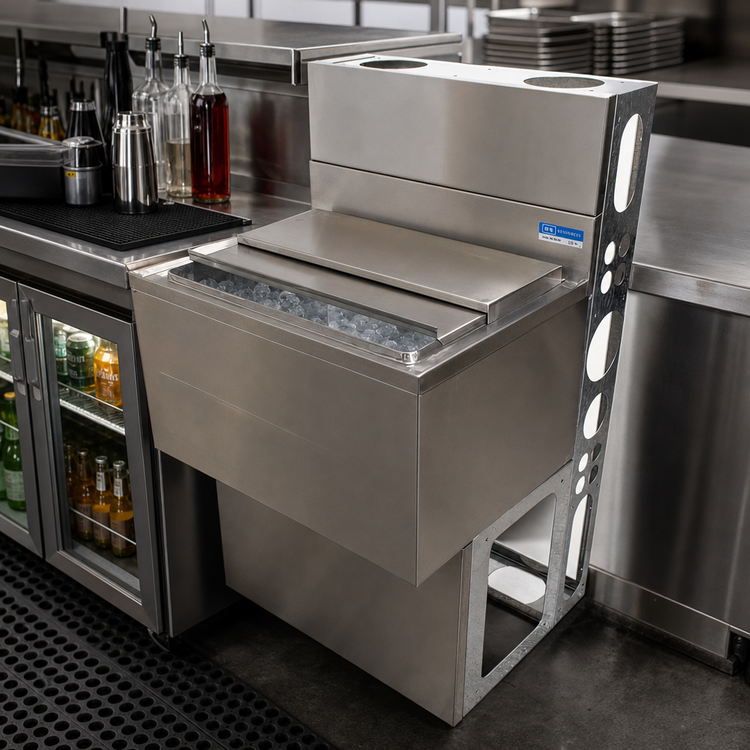

BK Resources Underbar Ice Bin w/ 8-Circuit Cold Plate
Model UBDW-18-IBCP24-8 · NSF CertifiedKeep cocktails crisp and soda service seamless with BK Resources’ compact 24 in. insulated ice bin. Engineered for high-volume bars that refuse to compromise on footprint or performance, this unit marries a 66 lb ice capacity with an integrated 8-circuit aluminum cold plate—so you can chill beverage lines and ice from a single, space-saving station.
Why You’ll Love It
- Integrated 8-circuit aluminum cold plate chills up to eight beverage lines for frosty pours every time.

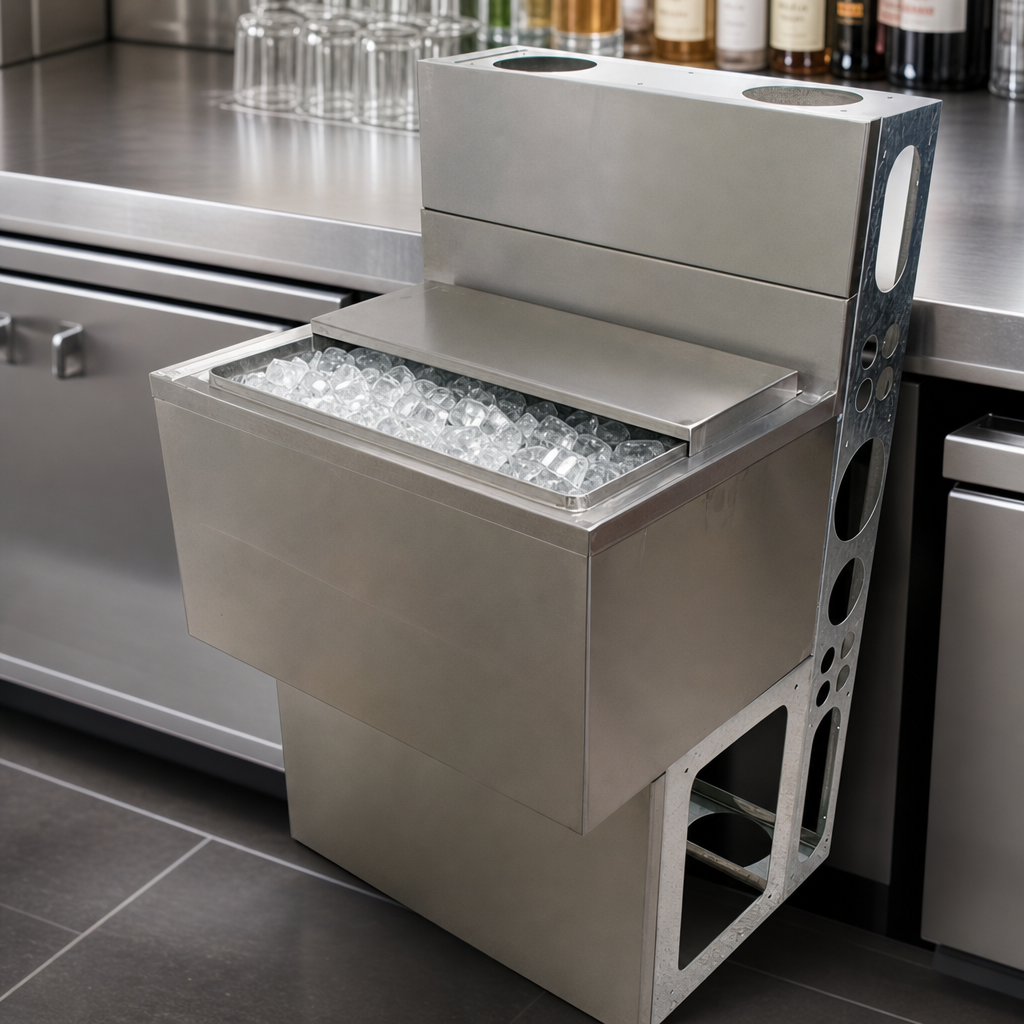

- Generous 66 lb ice capacity keeps busy shifts running without constant refills.
- Durable 18 ga 304 stainless steel construction—including die wall & base—stands up to daily bar abuse.
- Deep, fully insulated bin (12 9⁄16 in. internal depth) minimizes melt and maximizes usable ice.
- 4 in. backsplash protects surrounding surfaces from splashes and spills.
- Pair of sliding stainless-steel lids helps maintain sanitation between orders.
- Adjustable, high-impact, corrosion-resistant feet ensure rock-solid stability on uneven floors.
- NSF listed for worry-free code compliance.
Technical Specs
| Ice Capacity | 66 lbs (30 kg) |
|---|---|
| Cold Plate | 8-circuit aluminum; factory sealed |
| Overall Unit Size (L × W) | 24 in. × 23 3⁄4 in. |
| Ice Bin Interior (W × F/B × D) | 20 3⁄8 in. × 15 in. × 12 9⁄16 in. |
| Working Height | 30 in. |
| Overall Height (to Top of Backsplash) | 41 in. |
| Material | 18 ga 304 stainless steel |
| Feet | (4) adjustable, high-impact, corrosion-resistant |
| Certifications | NSF |
Perfect For
- Cocktail & craft-beer bars needing quick access to cold mixers.
- Restaurants with confined bar stations looking to combine ice storage and beverage chilling.
- Catering and event venues that demand NSF-listed equipment.
Need plumbing rough-in or additional accessories? Contact our team—most items ship in 1–2 business days direct from BK Resources’ Illinois facility.
