BK Resources UBDW-18-IBCP24-7 Bar Equipment
Description

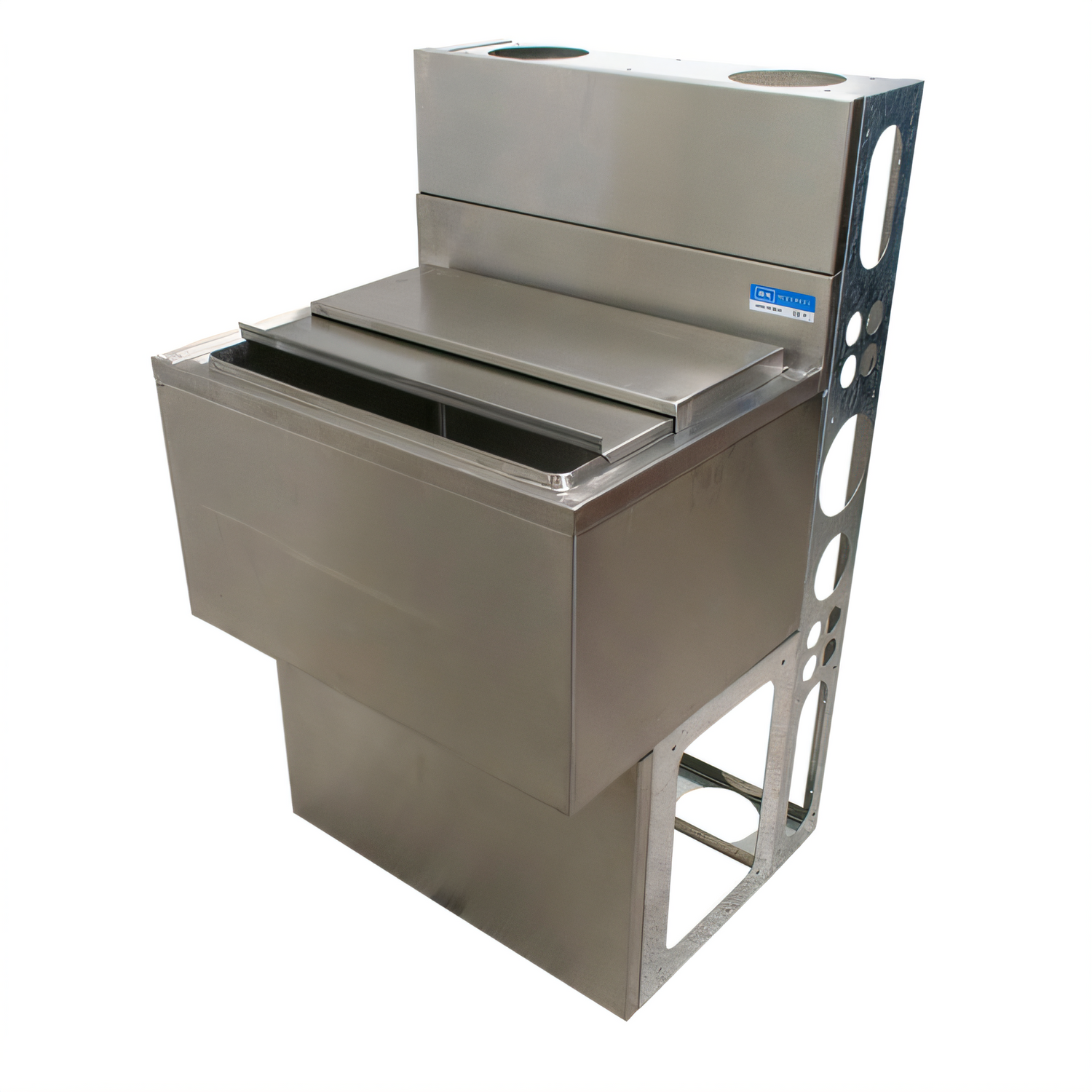

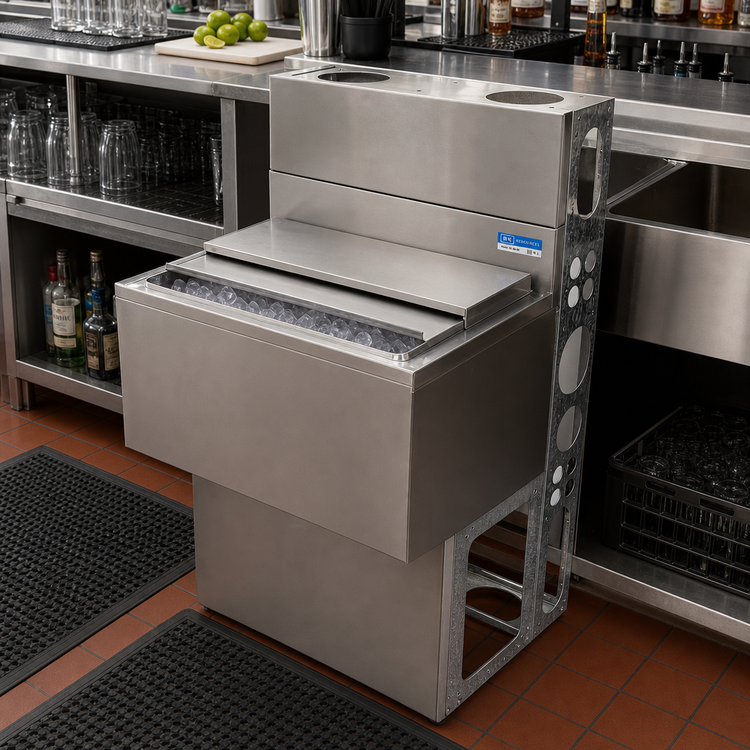

BK Resources Underbar Ice Bin w/ 7-Circuit Cold Plate – 24" Wide
Model: UBDW-18-IBCP24-7 | NSF ListedKeep cocktails cold and beverage lines crisp with this commercial-grade, insulated ice bin from BK Resources. Built from heavy-duty 18 ga 304 stainless steel and equipped with an integrated 7-circuit aluminum cold plate, it delivers rock-solid durability and reliable chilling performance in even the busiest bar environments.
Why You’ll Love It

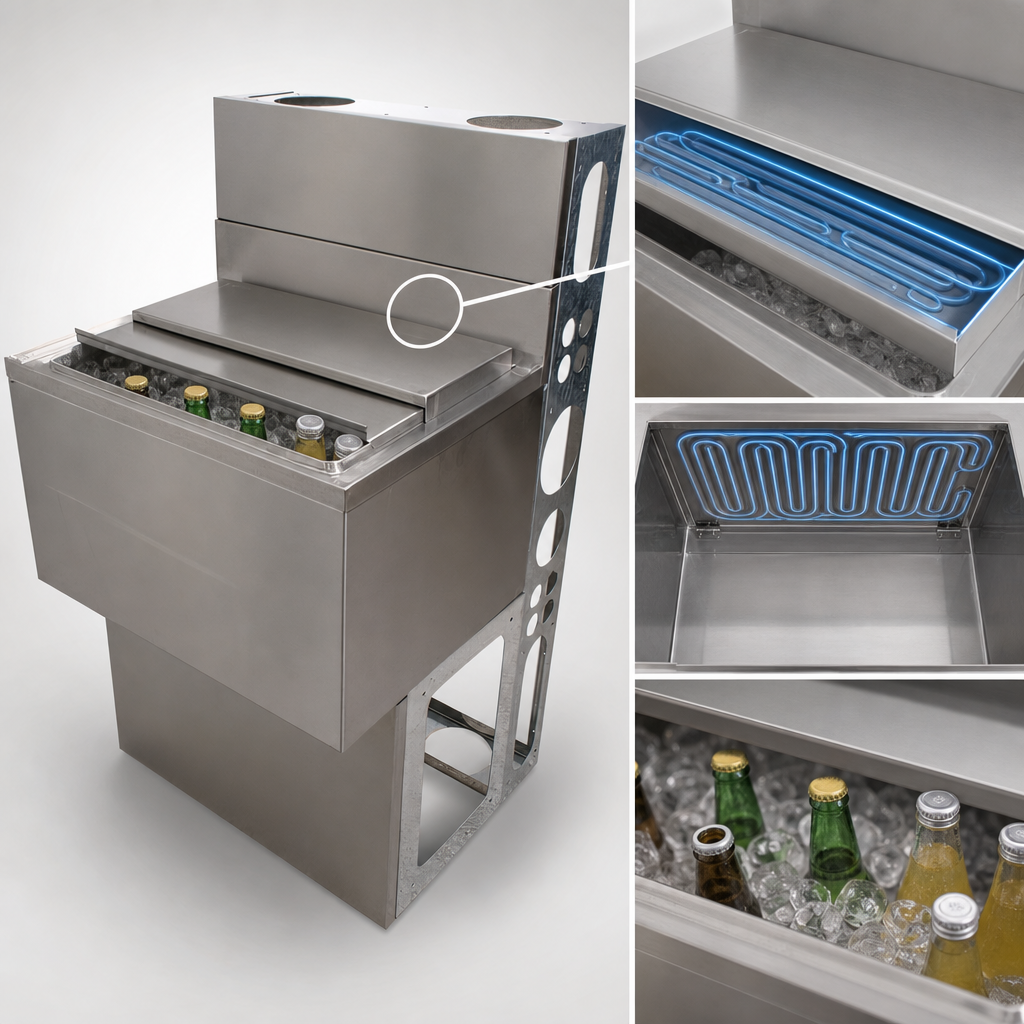

- 7-Circuit Aluminum Cold Plate – chills up to seven syrups or sodas right in the bin, ensuring every pour is icy cold.

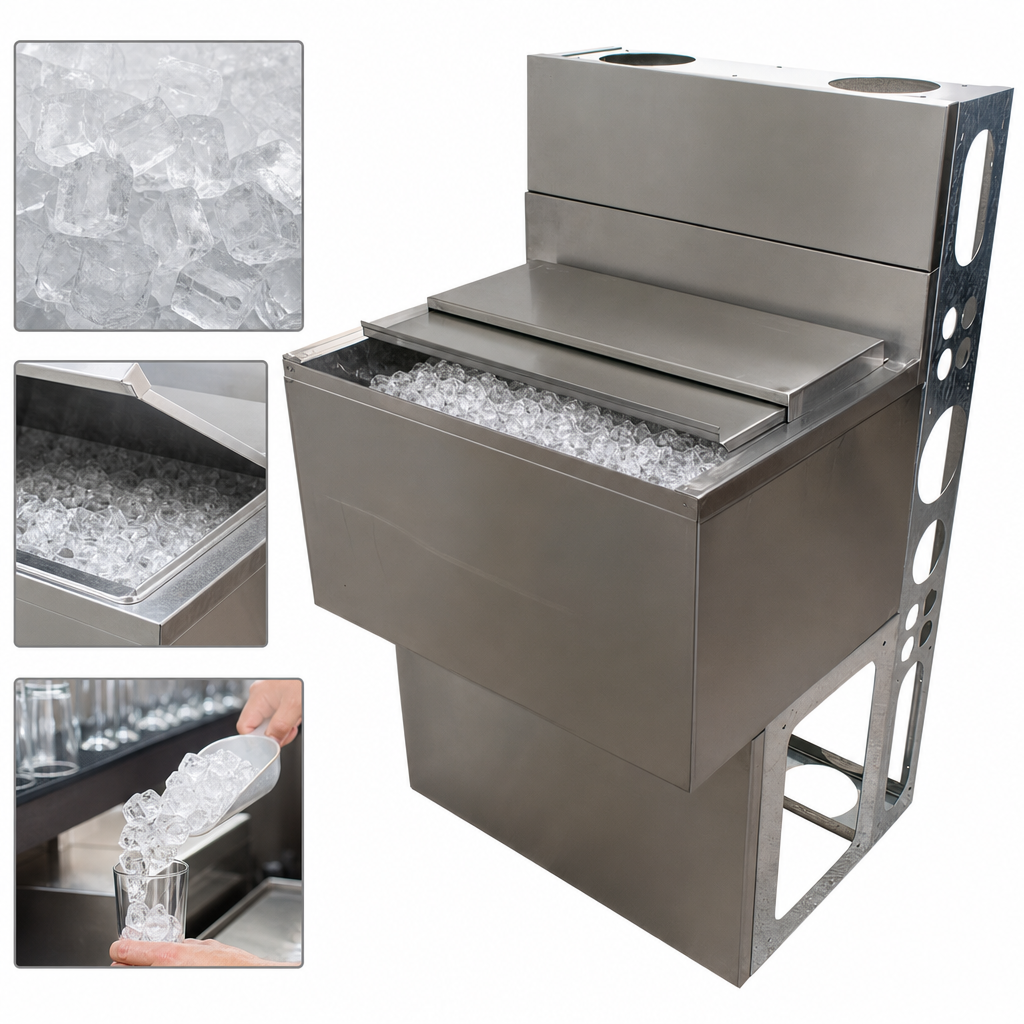

- 66 lb Ice Capacity – generous storage keeps service moving during peak hours.
- Deep, Fully Insulated Bowl – 12-9/16" depth maintains ice longer and reduces melt-water runoff.
- 18 ga 304 Stainless Steel – resists corrosion, wipes clean fast, and stands up to daily commercial use.
- 4" High Backsplash – helps contain splashes and protects surrounding surfaces.
- Adjustable, High-Impact Feet – level the unit on uneven floors; molded composite resists rust and chemicals.
- Stainless Steel Sliding Lids – smooth-glide covers keep ice sanitary when not in use.
- Die-Formed Wall & Base – adds structural strength without excess welds.
- NSF Certified – meets strict standards for food-safe design and hygiene.
Technical Specs
| Model | UBDW-18-IBCP24-7 |
|---|---|
| Ice Capacity | 66 lbs (30 kg) |
| Cold Plate | Aluminum, 7 beverage circuits |
| Ice Bin Interior (W × D × H) | 20 3⁄8" × 15" × 12 9⁄16" (518 mm × 381 mm × 319 mm) |
| Overall Dimensions (W × D × H) | 24" × 23 3⁄4" × 41" (610 mm × 603 mm × 1041 mm) |
| Work Height | 30" (762 mm) |
| Construction | 18 ga 304 stainless steel, die-formed wall & base |
| Backsplash | 4" (102 mm) integral, stainless steel |
| Lids | Pair of sliding stainless-steel covers |
| Feet | Adjustable, high-impact corrosion-resistant composite |
| Certifications | NSF |
Perfect For
- Full-service bars & nightclubs
- Hotel lounges & banquet facilities
- Sports venues & concession stands
- Restaurants adding a dedicated cocktail station
Need a different size or circuit count? BK Resources offers this ice bin in multiple configurations. Contact our team for help selecting the right model for your bar layout.
