Description

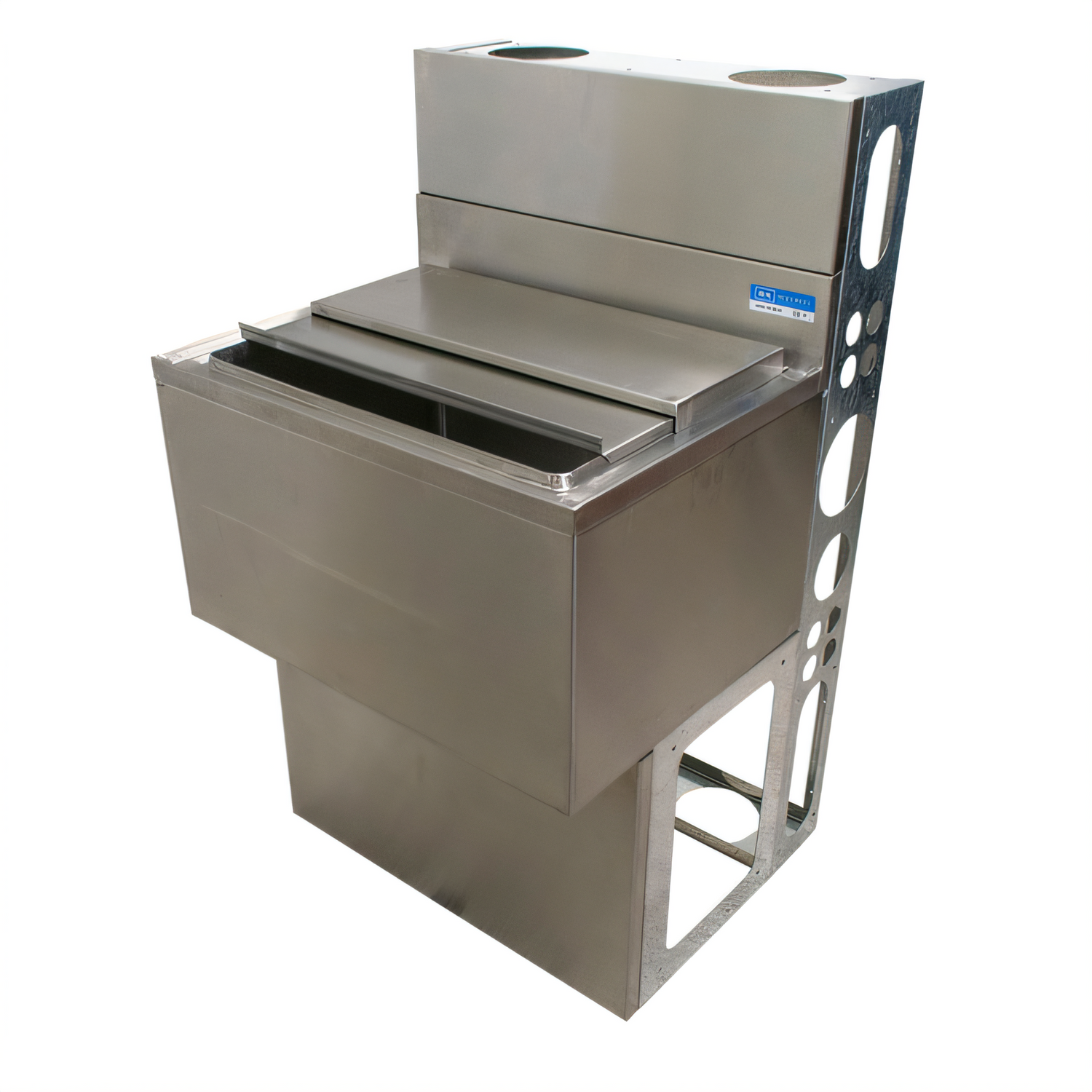

BK Resources 48" Underbar Insulated Ice Bin – 140 lb Capacity

Model: UBDW-18-IB48 | NSF Certified

Keep drinks flowing and guests happy with this high-volume, fully insulated ice bin from BK Resources. Built for demanding bar environments, it holds up to 140 lb of fresh ice and slips neatly beneath standard bar tops for space-saving convenience.

Key Features

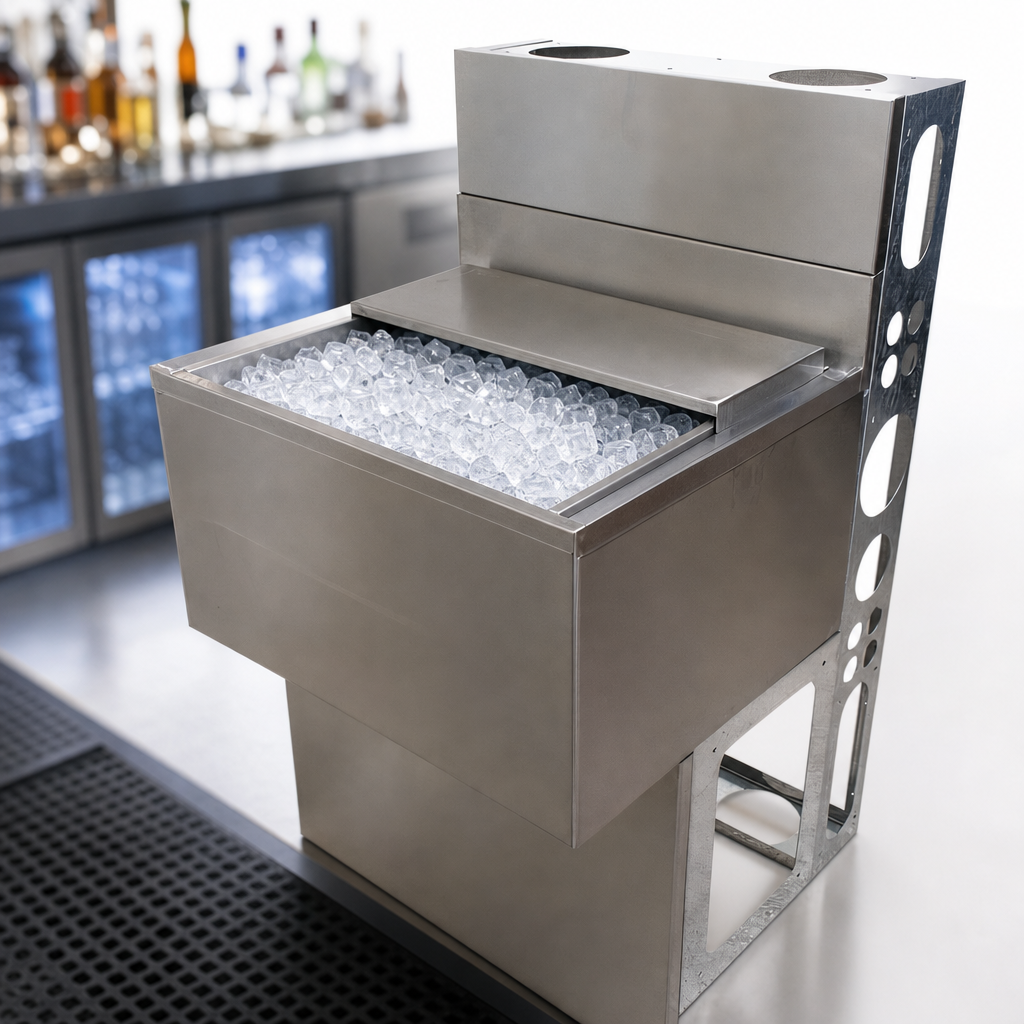

  • Generous 140 lb ice capacity supports peak-hour service.

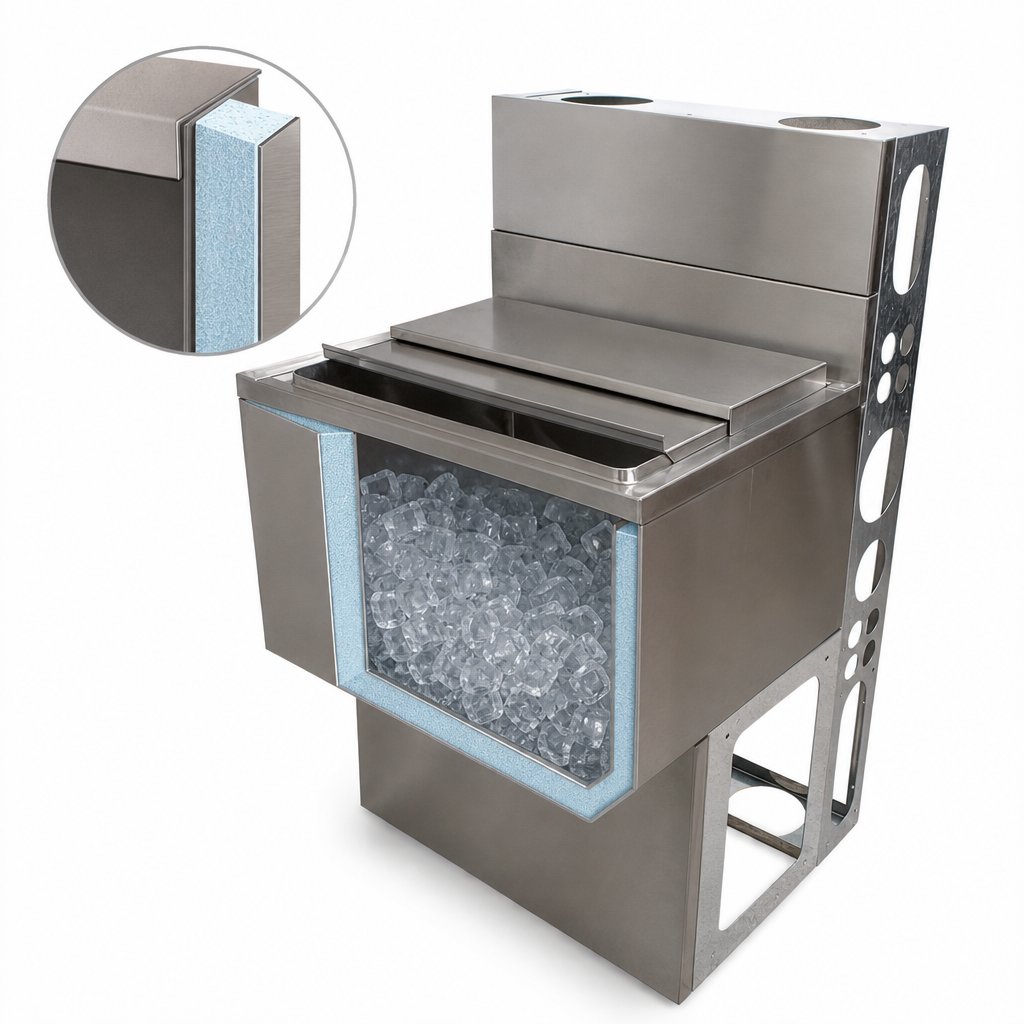

  • 12 9⁄16" deep, foam-insulated bin slows melt and reduces waste.
  • 18 ga T-304 stainless steel construction resists corrosion and simplifies cleaning.
  • 4" integrated backsplash protects walls and surrounding equipment.
  • 1" NPS drain with BKDR-325CP drain & plug for fast, sanitary emptying.
  • Stainless steel sliding lid included—required for human-consumption ice.
  • Galvanized die-wall & base add strength without extra weight.
  • Removable front panel allows quick access for cleaning and service.
  • NSF listed for safe, code-compliant operation.

Perfect For

  • Full-service bars & nightclubs
  • Cocktail & spirits stations
  • Hotel, resort, or poolside bars
  • Catering & banqueting prep areas

Specifications

Model UBDW-18-IB48
Overall dimensions (W × D × H) 48" × 18" × 41"
Work height 30"
Ice bin interior (W × D × H) 43" × 15" × 12 9⁄16"
Ice capacity 140 lb
Backsplash height 4"
Drain size 1" NPS (BKDR-325CP drain & plug included)
Material 18 ga T-304 stainless steel with galvanized die-wall & base
Finish #4 polished on all exposed surfaces
Certifications NSF
Included Insulated bin, sliding SS lid, 1" drain & plug
Special-Order Item: This product is non-cancellable and non-returnable once production has begun.

Need additional underbar equipment? Explore speed rails, blender shelves, and cocktail stations in the BK Resources collection to build a seamless beverage workflow.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Width

48.0in

Depth

18.0in

Ice Capacity

100 - 149 lbs.

Cold Plate

without

Bin Depth

12" deep ice bin

Splash

4"

Construction

stainless steel construction

Width (side - side) OA

43" - 48"

Depth (front - back) OA

18" - 19"

Specifications

Underbar Ice Bin, 48"W x 18"D, 140 lbs capacity, 12-9/16" deep bin, 4"H backsplash, 1" NPS drain with plug (BKDR-325CP), 18/304 stainless steel construction, die wall and base, NSF
