Description

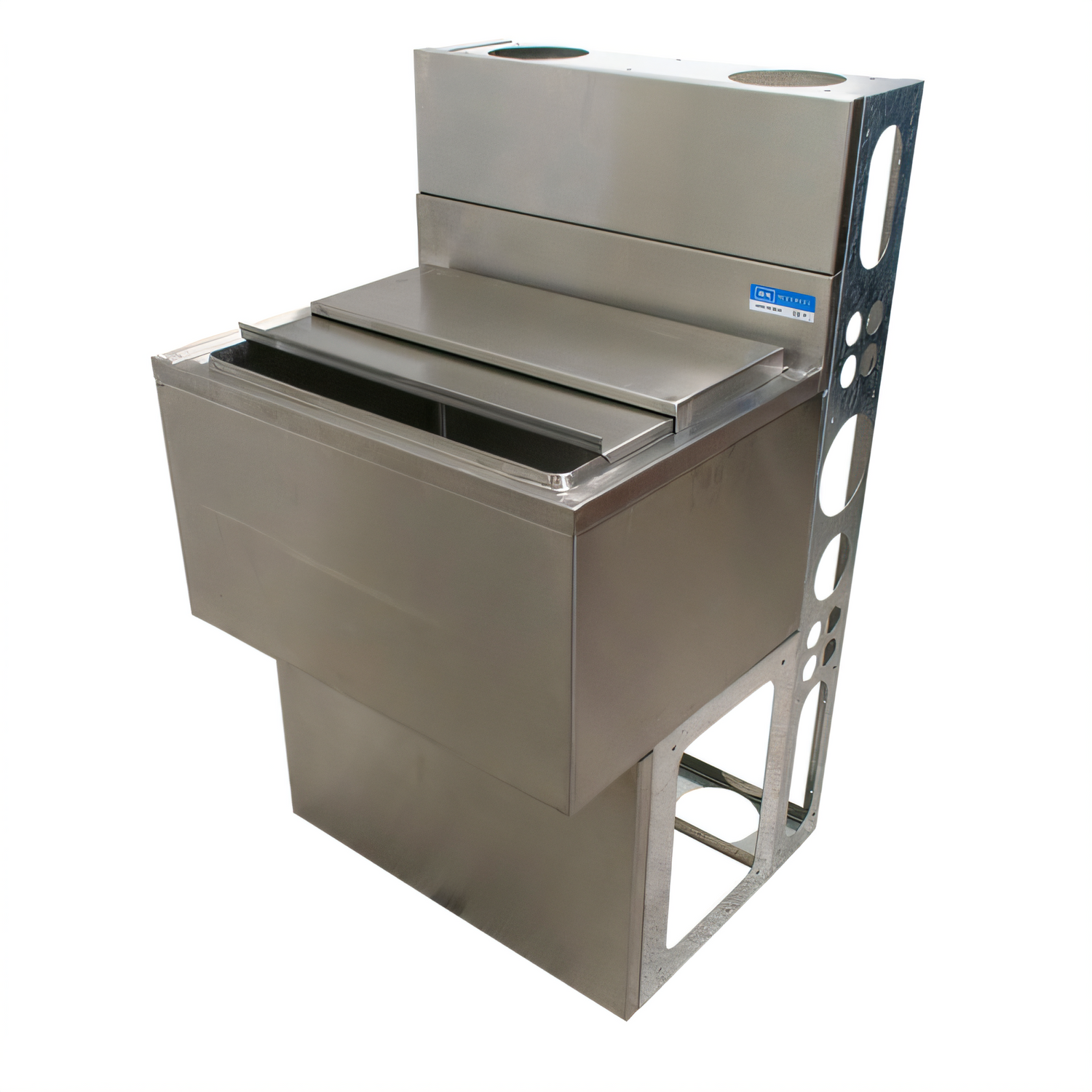

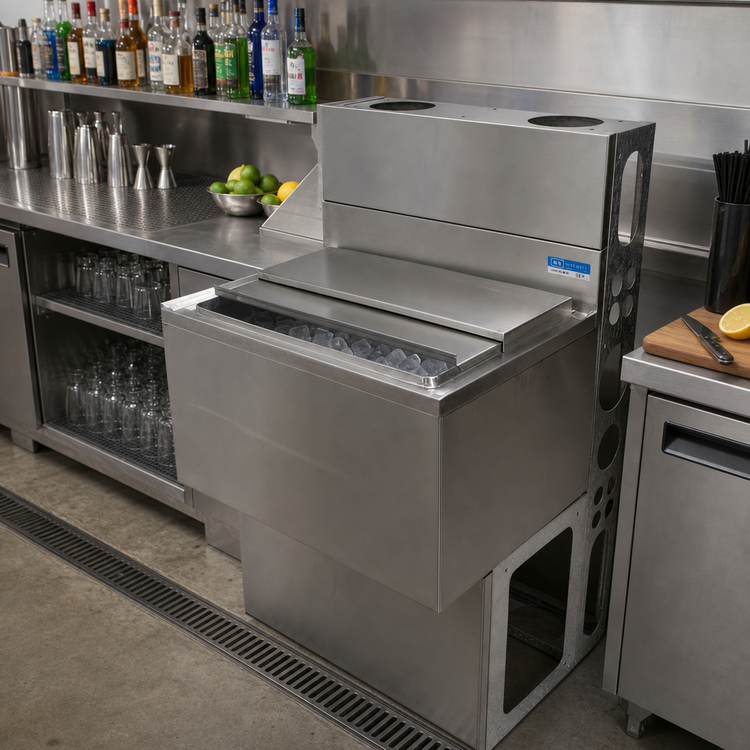

BK Resources 30" Underbar Insulated Ice Bin

80 lb Capacity • Includes BKDR-325CP Drain & BKIB-L-3018 Sliding Lid

Designed for high-volume beverage programs, this BK Resources underbar ice bin keeps up with the busiest shifts. The fully insulated 12 9⁄16" deep bin holds up to 80 lbs of ice, while the integrated 4" backsplash and sliding stainless steel cover maintain a sanitary, splash-free workspace. Built from heavy-duty 18 ga type 304 stainless steel and backed by NSF certification, it delivers the reliability bartenders demand night after night.

Key Features

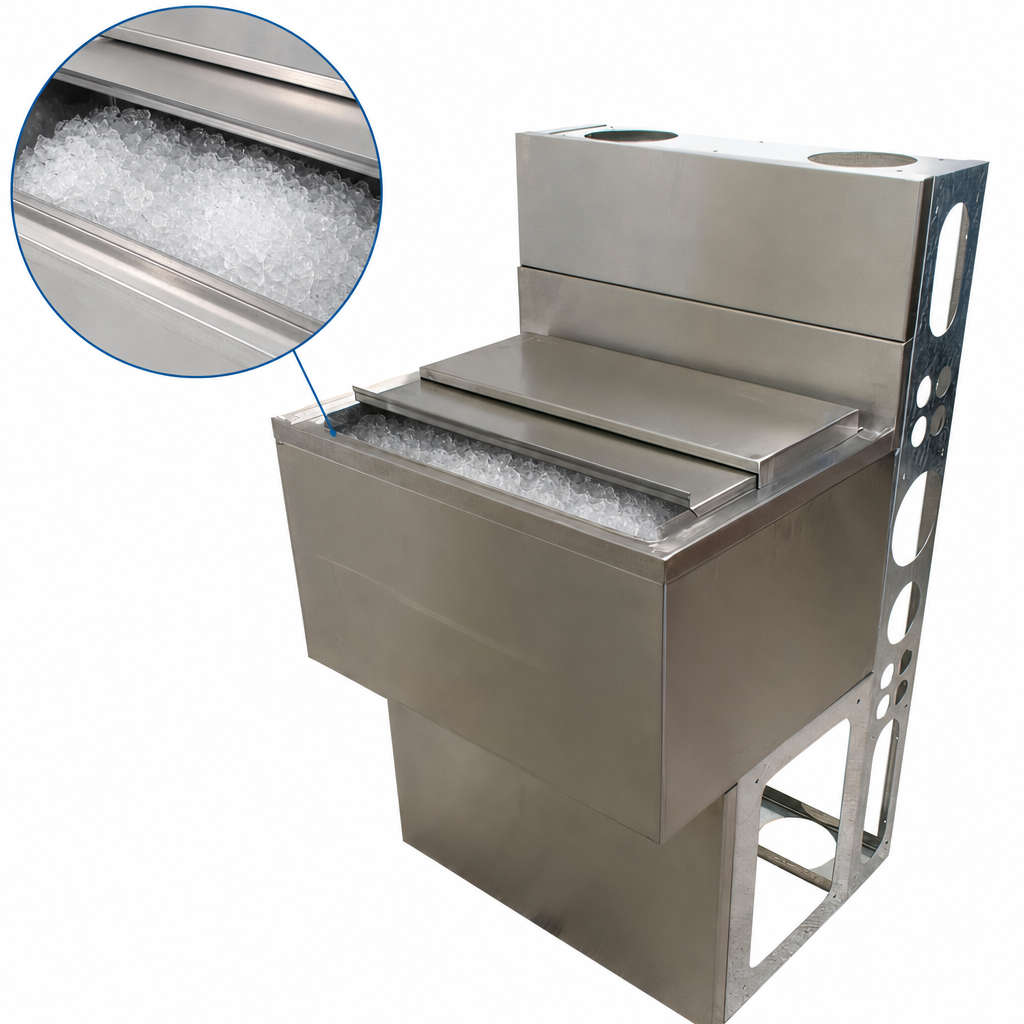

  • Generous 80 lb ice capacity keeps service flowing during peak hours.

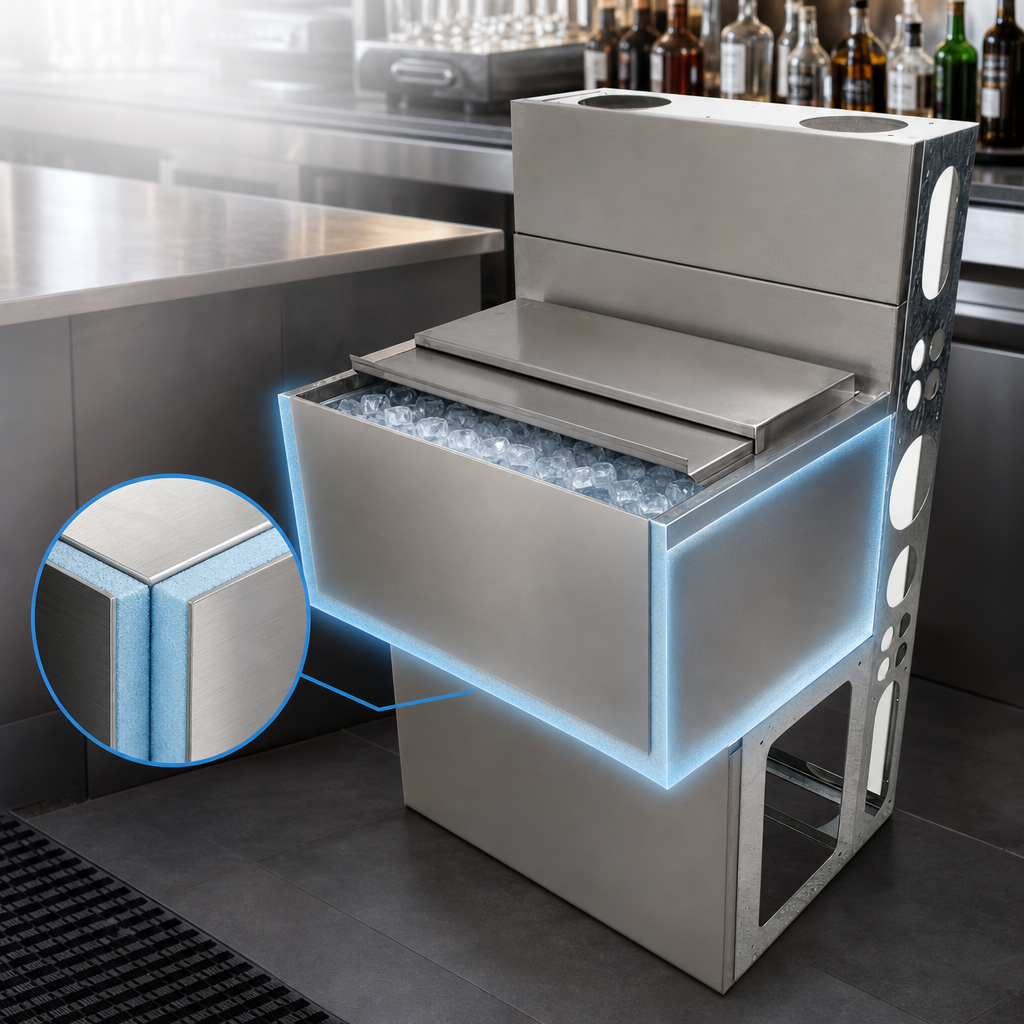

  • 12 9⁄16" deep, fully insulated bin prolongs ice life for reduced melt-off.
  • 4" rear backsplash protects surrounding walls and workstations.
  • 1" NPS threaded drain with plug (BKDR-325CP) for quick, sanitary melt-water removal.
  • Sliding stainless steel lid (BKIB-L-3018) included—required for human ice consumption and easy to operate with one hand.
  • 18 ga type 304 stainless steel front & interior; galvanized die wall and base add structural rigidity.
  • No. 4 satin polish on exposed surfaces for a professional, easy-to-clean finish.
  • Removable front access panel simplifies installation and plumbing maintenance.
  • NSF listed—meets strict health department standards for ice storage.

Perfect For

  • Back-bar cocktail stations
  • Hotel & resort lounges
  • Event and catering bars
  • Coffee, smoothie & juice bars

Technical Specifications

Overall Width 30" (762 mm)
Overall Depth 18" (457 mm)
Bin Interior (W × D × H) ≈ 25" × 15" × 12 9⁄16"
Ice Capacity 80 lbs (36 kg)
Backsplash Height 4" (102 mm)
Drain Size / Type 1" NPS with threaded plug (BKDR-325CP)
Construction 18 ga type 304 stainless steel; galvanized die wall & base
Finish No. 4 satin polish
Certification NSF
Included Accessories Sliding lid (BKIB-L-3018), drain & plug

*All dimensions are nominal; allow tolerance for field installation. Interior dimensions supplied by manufacturer.

Special-Order Item: This product is built to order and is non-cancellable and non-returnable once production has begun.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Width

30.0in

Depth

18.0in

Depth (front - back) OA

18" - 19"

Ice Capacity

70 - 99 lbs.

Bin Depth

12" deep ice bin

Splash

4"

Construction

stainless steel construction

Cold Plate

without

Width (side - side) OA

25" - 30"

Specifications

Underbar Ice Bin, 30"W x 18"D, 80 lbs capacity, 12-9/16" deep bin, 4"H backsplash, 1" NPS drain with plug (BKDR-325CP), includes sliding bin cover (BKIB-L-3018), 18/304 stainless steel construction, die wall and base, NSF
