BK Resources UBDW-18-BDMX18 Bar Equipment
$1,008.81
Unit price
/
Unavailable
Description

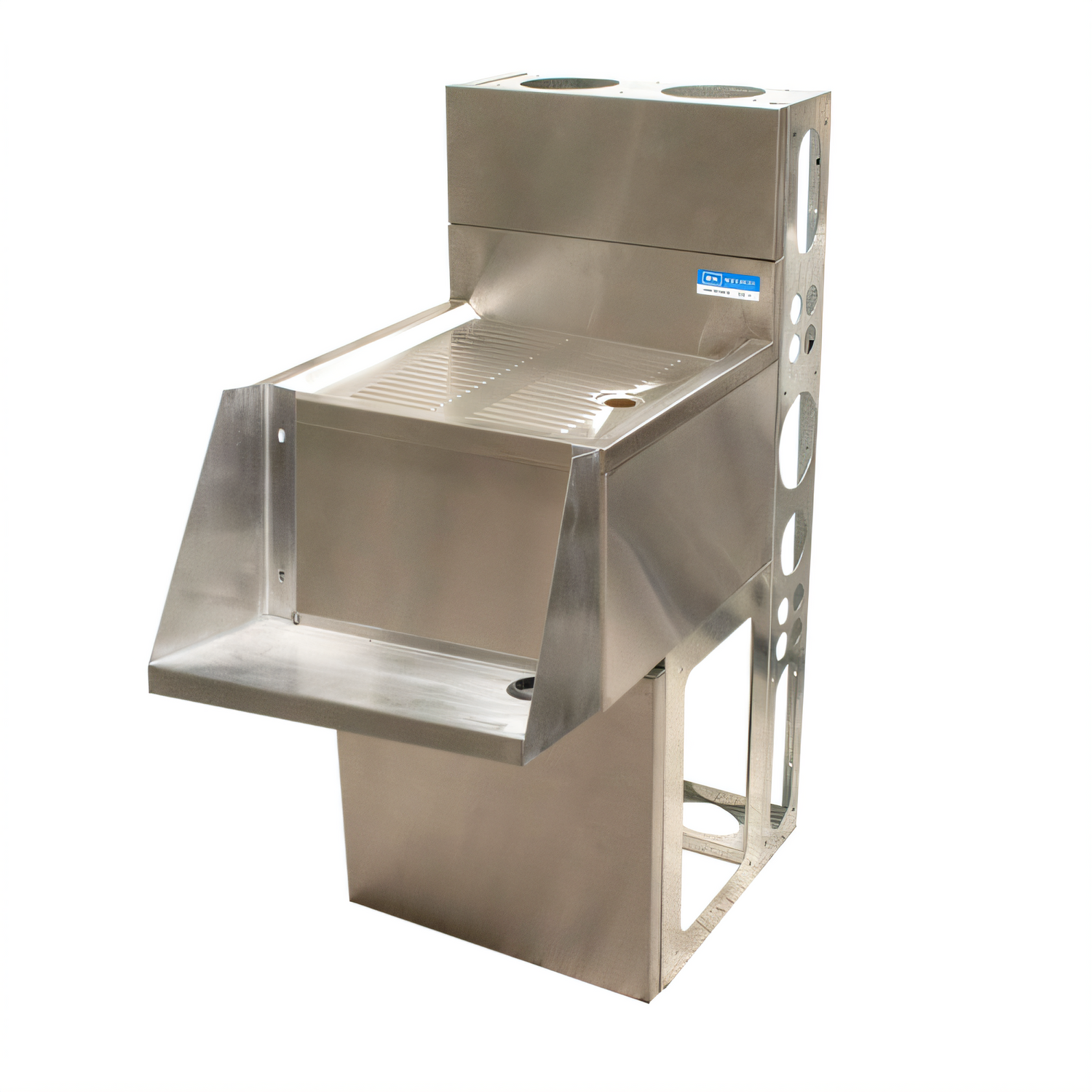

BK Resources Underbar Mixing Station – 18" W x 18" D
with Die Wall, Enclosed Base & Add-On Blender ShelfPurpose-built for busy bars, cafes and hotel service stations, this compact BK Resources mixing center keeps your most used prep tools – from shakers to blenders – right at hand while protecting back-of-house hygiene and workflow efficiency.
Why this station stands out

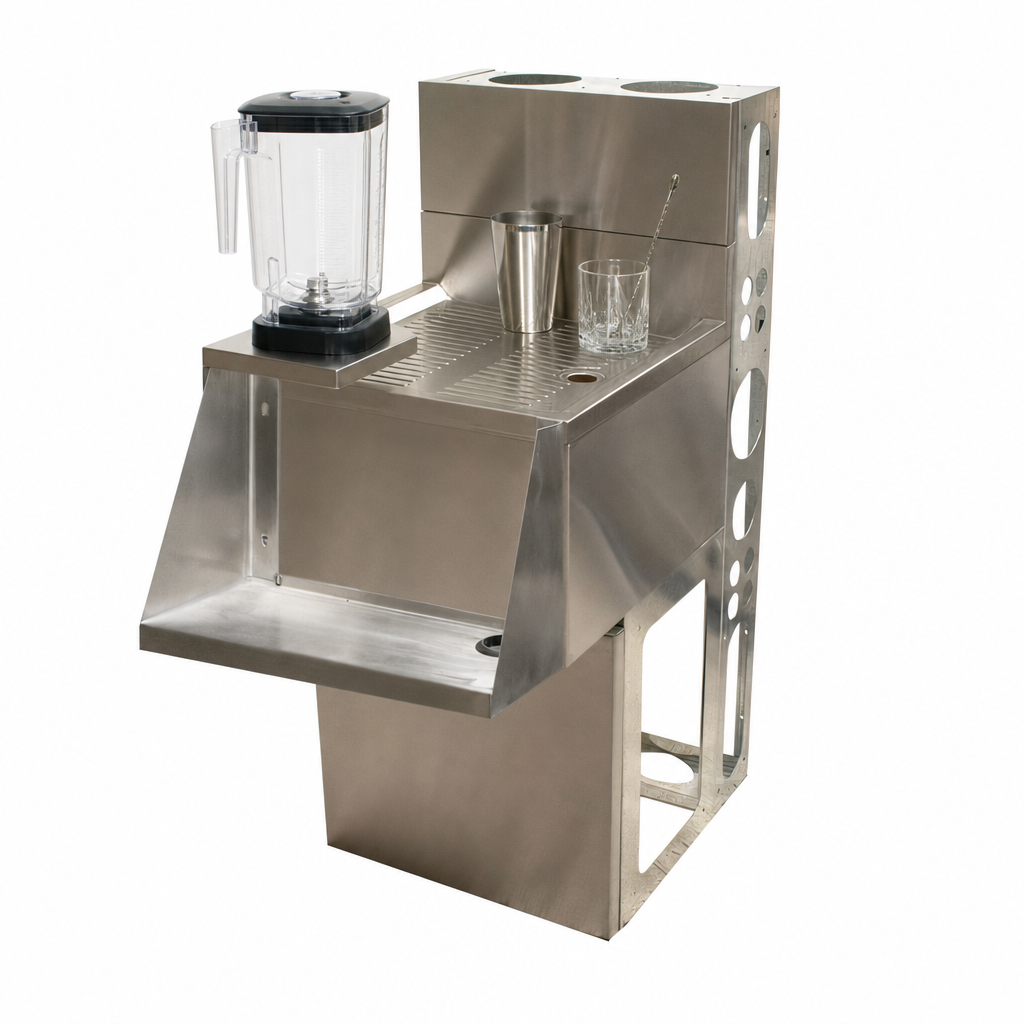

- Two-level workspace – 18 ga T-304 stainless stamped drainboard plus raised blender shelf for simultaneous drink prep.

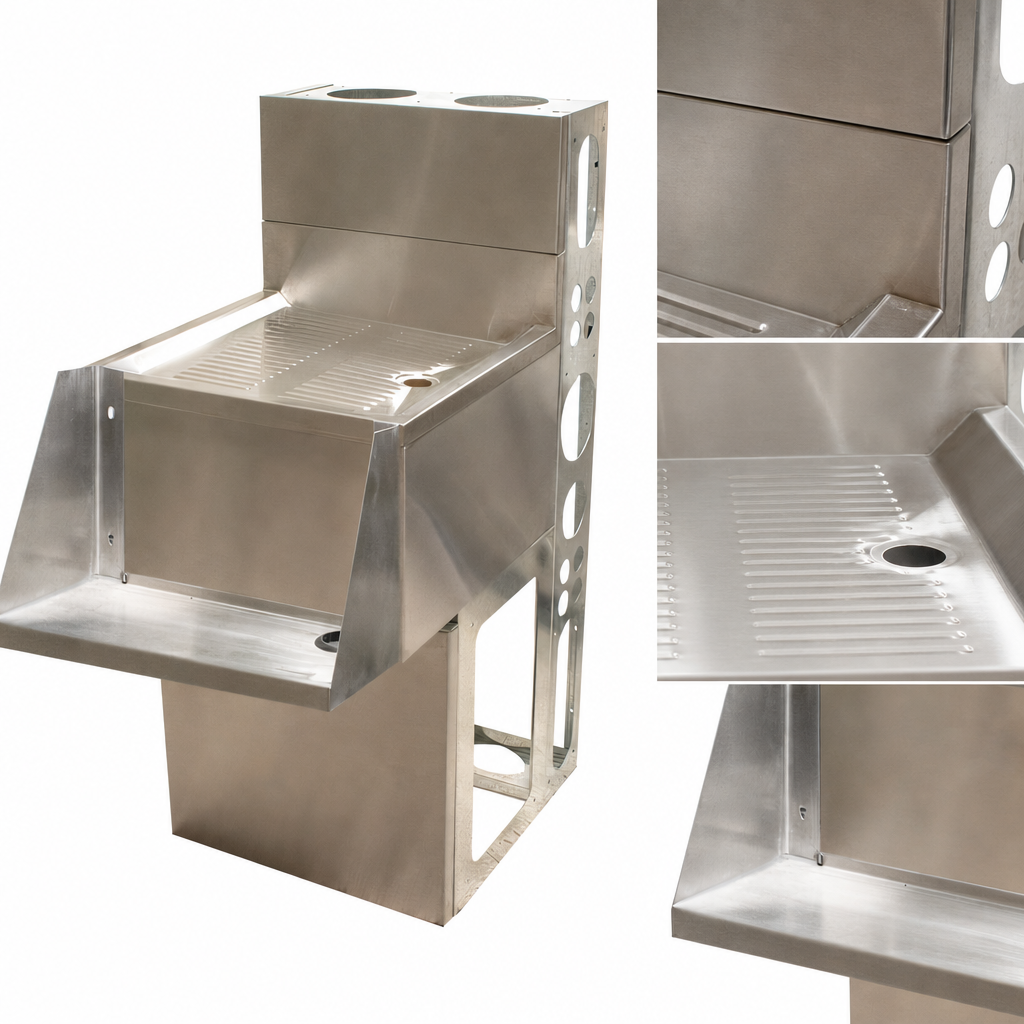

- Complete underbar solution – factory-installed die wall and fully enclosed base prevent splash-through and hide plumbing lines.
- Tool-free maintenance – front panel is removable for instant access to drains, electrical and storage area.
- Factory-installed drain – 1 ½" BKDR-15CP drain & basket strainer included; no extra kit required.
- Space-saving footprint – only 18" wide yet offers dedicated 8" × 7" blender deck.
- NSF-friendly design – continuous welds, polished #4 finish and ³∕₁₆" radius corners speed up end-of-shift cleanup.
Technical specifications
| Model / Part No. | UBDW-18-BDMX18 |
|---|---|
| Overall width | 18" (457 mm) |
| Overall depth | 18" (457 mm) |
| Overall height | 33 ½" (851 mm) to deck surface |
| Work height / Blender height | 30" work deck | 19 ½" blender deck |
| Blender shelf area | 8" W × 7" D |
| Material & gauge | T-304 stainless steel – 18 ga top & shelf, 14 ga structural |
| Drain | BKDR-15CP, 1 ½" NPS, basket strainer included |
| Finish | #4 polished on all exposed surfaces |
| Front panel | Removable, stainless steel |
| Compliance | NSF, made in USA |
Need an ice bin, speed rail or additional sink? Coordinate accessories ship fast from BK Resources’ Illinois warehouse.
Special-order item: Fabricated to your specifications and therefore
non-cancellable and non-returnable once production begins.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Construction
stainless steel
Depth (front - back) OA
18" - 19"
Style
drainboard top with blender recessed step
Type
free standing
Width (side - side) OA
13" - 18"
Specifications
Mixing Station, 18"W x 18"D x 33-1/2"H, 18/304 stainless steel stamped drainboard, with add-on blender station shelf, drain included (BKDR-15CP), die wall and base
