BK Resources | SKU:
UBDW-18-496TS
BK Resources UBDW-18-496TS Bar Equipment
$3,299.66
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
BK Resources UBDW-18-496TS Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UBDW-18-496TS Bar Equipment
$3,299.66
Unit price
/
Unavailable
Description
BK Resources Slim-Line Underbar Sink – 4 Compartments, 96" Wide
18-Gauge 304 Stainless Steel • NSF ListedBuilt for high-volume bar and beverage service, this 96-inch Slim-Line underbar sink delivers four full-size washing compartments, dual 25-inch drainboards, and all the accessories you need for a fast, code-compliant install.
Highlights

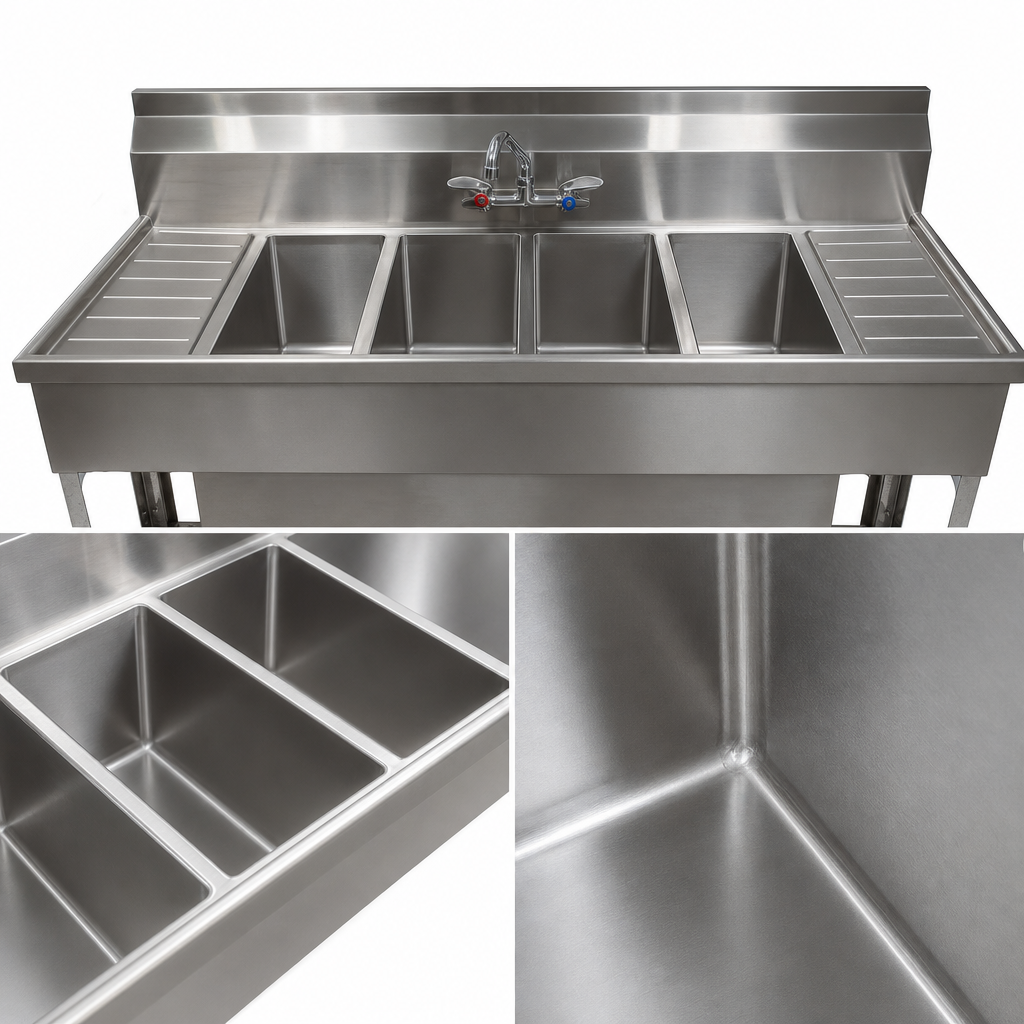

- Four integrally welded bowls – 10″ W × 14″ F/B × 10″ D each
- (2) 25″ stamped & pitched drainboards (left & right) speed drying and staging
- 4-½″ high backsplash with pre-punched, 4″ on-center faucet holes
- (2) BKF-W2-10-G splash-mount, lead-free faucets included
- Stainless steel apron on front & sides; die-wall base for added rigidity
- (4) BKDR-2 basket drains + (4) BK-OT-15075 removable overflow standpipes included
- Food-grade 18-gauge, type 304 stainless steel with #4 polished finish
- NSF certified for open foodservice applications
Perfect For
- Back-bar glasswashing stations
- Nightclubs, sports bars & breweries
- Cafés, coffee shops & concession stands
Technical Specifications
| Overall dimensions | 96″ W × 18-¼″ D × 33-½″ H |
|---|---|
| Compartment size (each) | 10″ W × 14″ F/B × 10″ D |
| Number of compartments | 4 |
| Drainboards | (2) 25″ L – stamped & pitched, left & right |
| Backsplash height | 4-½″ |
| Faucets included | (2) BKF-W2-10-G, 4″ O.C., splash-mount, lead-free |
| Drains | (4) BKDR-2 basket drains with removable strainers |
| Overflow standpipes | (4) BK-OT-15075, 7″ L, removable |
| Material & gauge | 18-ga. type 304 stainless steel |
| Finish | #4 polished |
| Construction | Die wall & base, removable SS front panel, integrally welded bowls |
| Certifications | NSF |
Freight notice: This commercial sink ships on a pallet. Lift-gate service and a dock-height
receiving area may be required. Please confirm delivery details before ordering.
Need coordinating underbar equipment? Our team can help design a seamless bar workflow.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Bowl Depth (rim - drain)
10"
Bowl Size
10" x 14" front-to-back
Top Stainless Series
300 series
Depth (front - back) OA
18" - 19"
Drainboards
drainboards on left & right
Sink Compartments
(4)
Splash
4"
Construction
stainless steel top, front, ends & legs
Width (side - side) OA
91" - 96"
Specifications
Slim-Line Underbar Sink, four compartment, 96”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 25" stamped drainboards, 4-1/2"H backsplash, (2) 4" OC splash mount lead-free faucets (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
