BK Resources | SKU:
UBDW-18-484TS
BK Resources UBDW-18-484TS Bar Equipment
$3,106.61
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
BK Resources UBDW-18-484TS Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UBDW-18-484TS Bar Equipment
$3,106.61
Unit price
/
Unavailable
Description

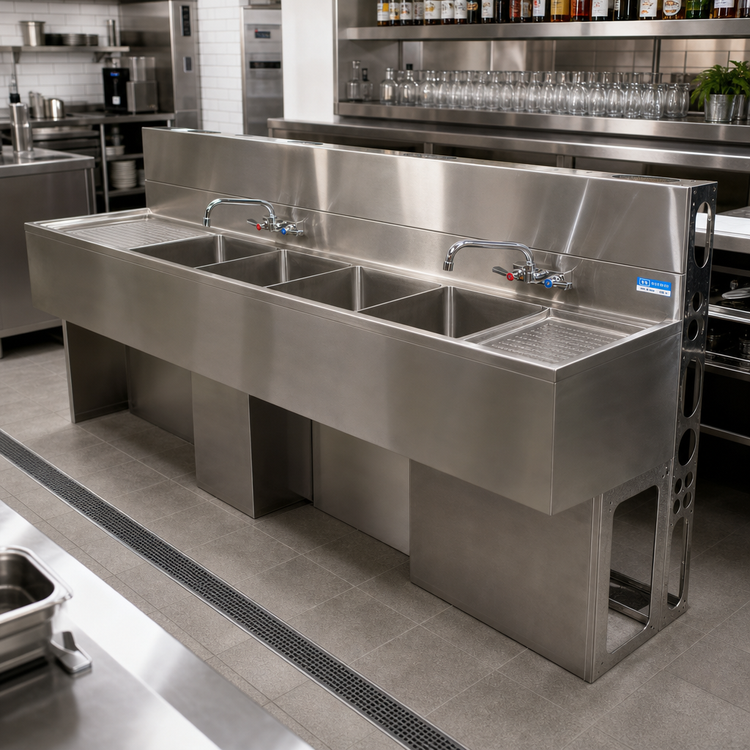

BK Resources 84" Slim-Line 4-Compartment Underbar Sink
Model: UBDW-18-484TS · NSF Certified · 18 ga T-304 Stainless SteelMaximize bar efficiency in a minimal footprint. This 84-inch Slim-Line sink from BK Resources delivers four full-size compartments, dual 19" drainboards, and all the plumbing hardware you need—perfect for high-volume bars, tasting rooms, food trucks, or any space where every inch counts.
Why You’ll Love It
- Space-saving 18-1/4" front-to-back depth keeps narrow aisles clear.

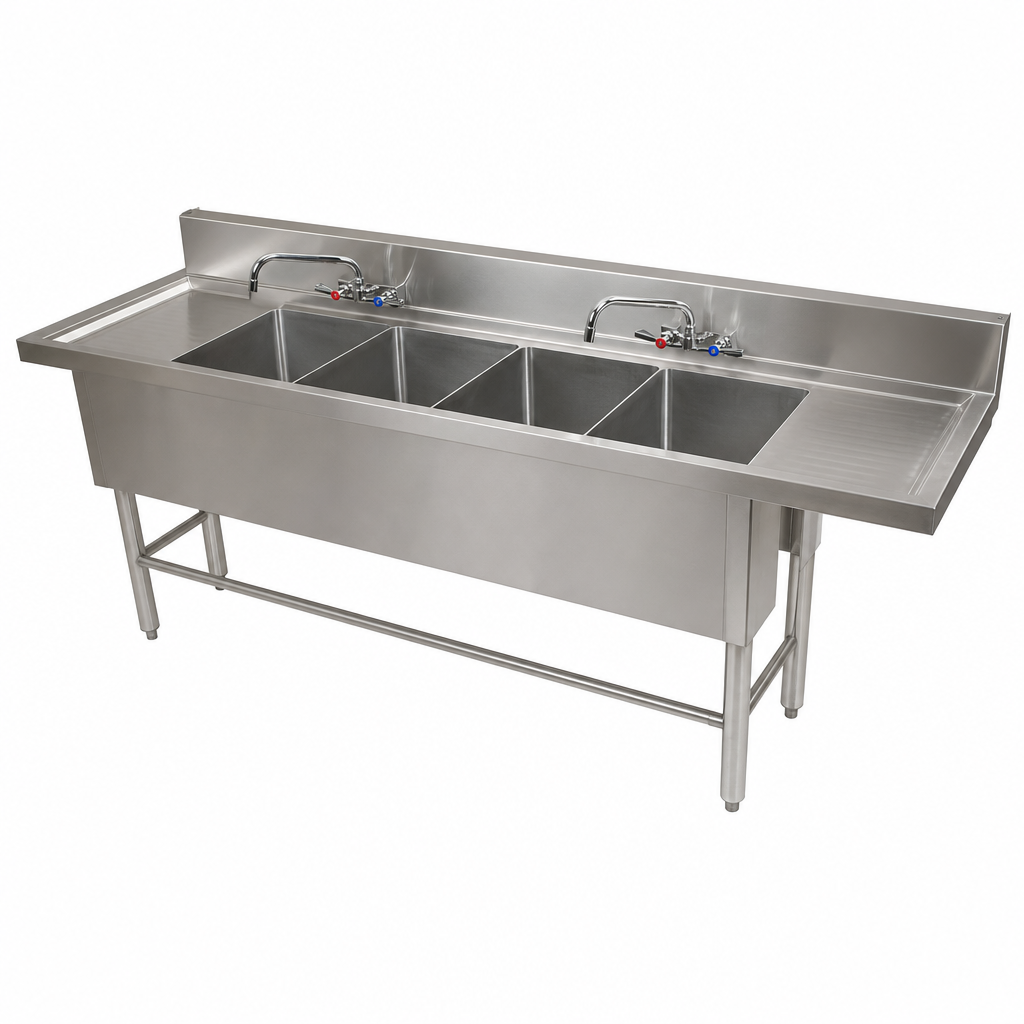

- Four integrally welded bowls (10" W × 14" F/B × 10" D) meet standard 3-sink + dump-sink requirements.
- Left & right 19" stamped drainboards are pitched for fast drainage and quick glass turnover.
- Includes two lead-free 4" O.C. splash-mount faucets (BKF-W2-10-G) for separate wash & rinse stations.
- 4-1/2" high backsplash protects walls and contains splashes.
- Removable stainless front apron provides easy access to plumbing and speed rails.
- Die-formed wall and base add rigidity for everyday commercial abuse.
- Comes ready to install with basket drains (BKDR-2) & 7" overflow standpipes (BK-OT-15075) for each bowl.
- 18 gauge Type 304 stainless steel with #4 polish resists corrosion and cleans up in seconds.
- NSF listed for food-service compliance right out of the box.
Technical Specs
| Overall width | 84" / 2134 mm |
|---|---|
| Overall depth | 18-1/4" / 464 mm |
| Overall height | 33-1/2" / 851 mm (29" working height + 4-1/2" backsplash) |
| Bowl count & size | 4 bowls – 10" W × 14" F/B × 10" D (254 × 356 × 254 mm) |
| Drainboards | (2) 19" stamped & pitched (left and right) |
| Faucets included | (2) BKF-W2-10-G 4" O.C. splash-mount, lead-free |
| Drain fittings | (4) BKDR-2 basket drains with removable 7" standpipes (BK-OT-15075) |
| Material & finish | 18 ga Type 304 stainless steel, #4 satin polish |
| Certifications | NSF |
Installation note: Supply lines, waste lines, and mounting hardware are not included.
All plumbing must be installed in accordance with local codes.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Sink Compartments
(4)
Bowl Depth (rim - drain)
10"
Bowl Size
10" x 14" front-to-back
Top Stainless Series
300 series
Depth (front - back) OA
18" - 19"
Drainboards
drainboards on left & right
Construction
stainless steel top, front, ends & legs
Width (side - side) OA
79" - 84"
Splash
4"
Specifications
Slim-Line Underbar Sink, four compartment, 84”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 19" stamped drainboards, 4-1/2"H backsplash, (2) 4" OC splash mount lead-free faucets (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
