BK Resources  |  SKU: UBDW-18-472TS

BK Resources UBDW-18-472TS Bar Equipment

$2,636.36
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

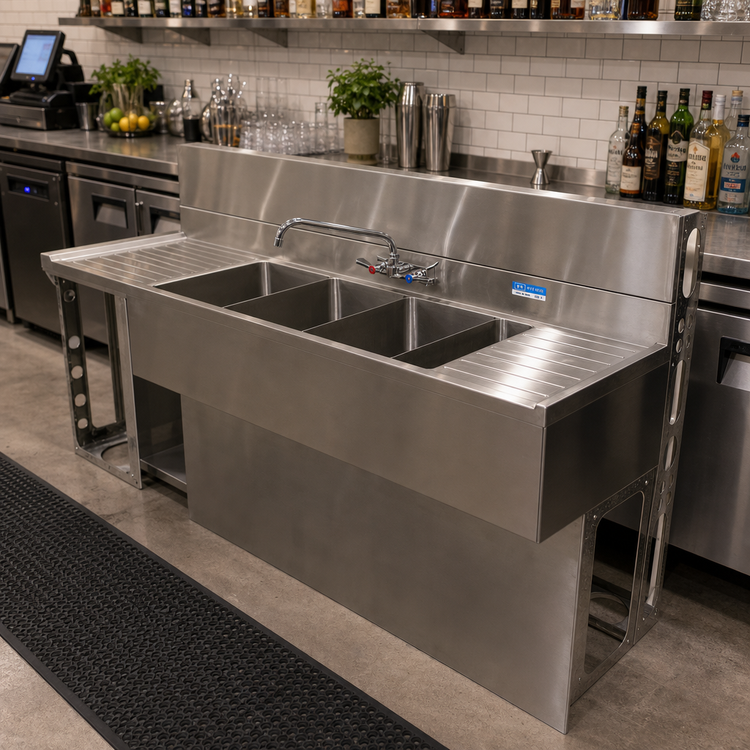

BK Resources Slim-Line 4-Compartment Underbar Sink – 72"

Model: 72" x 18-1/4" Slim-Line, dual drainboards, NSF

Designed for busy bar areas that need full-size functionality in a space-saving footprint, this BK Resources Slim-Line sink delivers four deep compartments, stamped drainboards on both sides and all required accessories – right out of the box.

Key Features

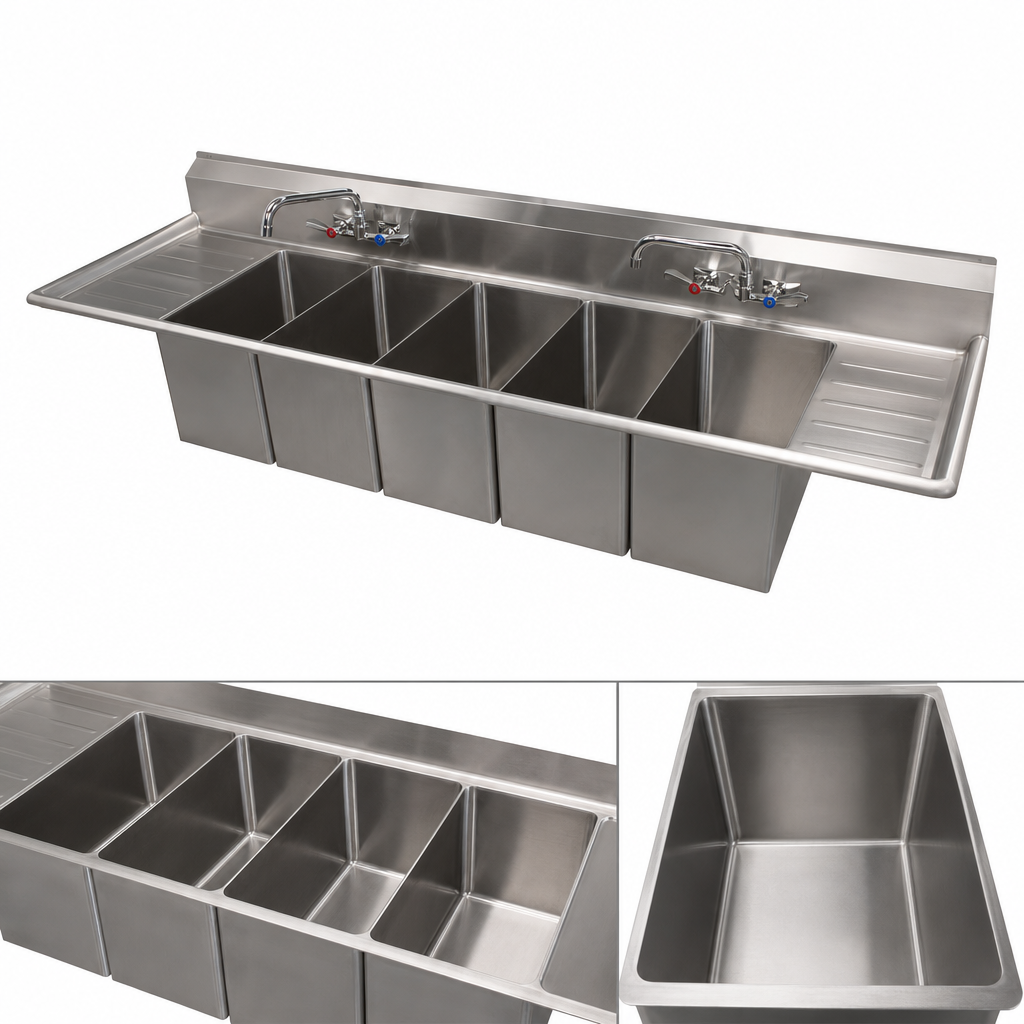

  • Four integrally welded bowls – each 10" W x 14" F/B x 10" D

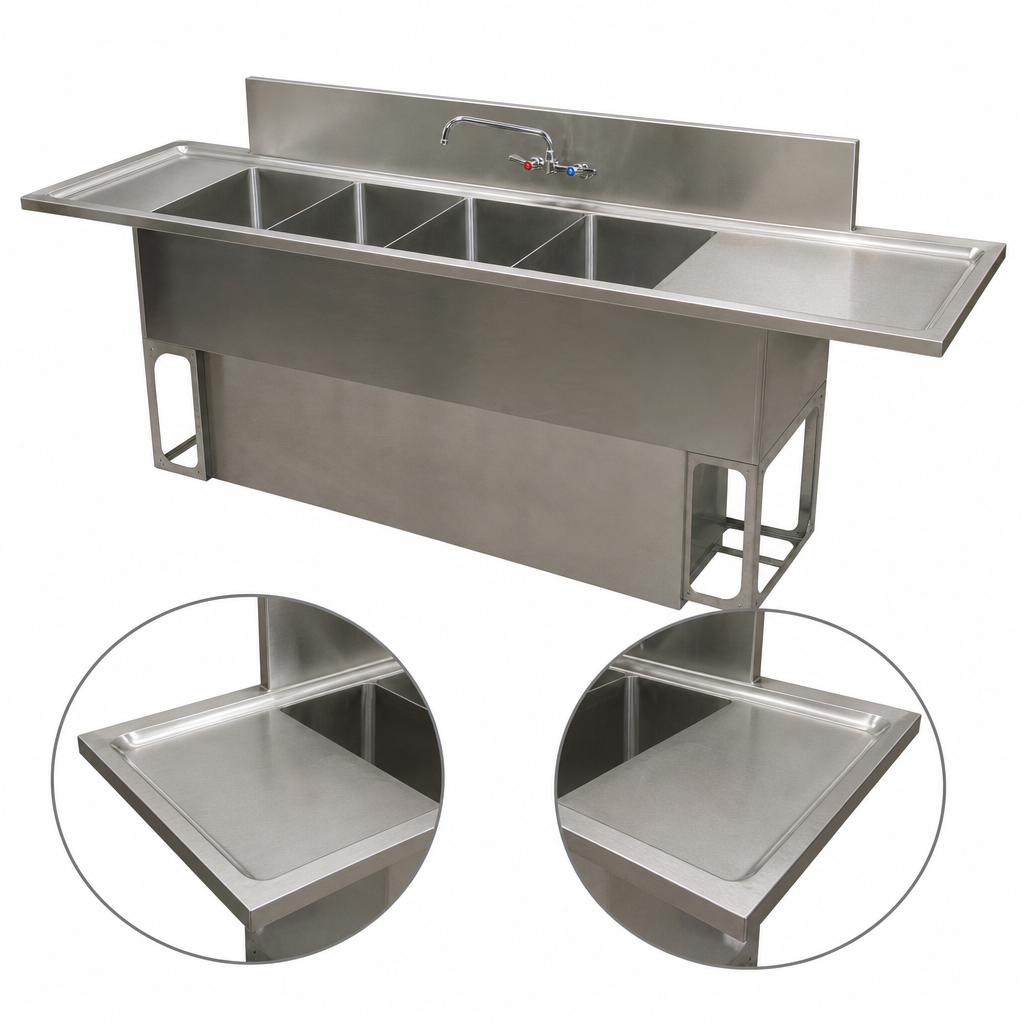

  • (2) 13-3/4" stamped & pitched drainboards (left and right)
  • Included lead-free splash-mount faucets, 4" on-center (BKF-W2-10-G)
  • Basket drains (BKDR-2) and 7" removable SS overflow standpipes (BK-OT-15075) included
  • Front & side stainless-steel apron panel – removable for easy servicing
  • Die-formed wall & base for extra rigidity
  • Constructed of 18 ga. 304 stainless steel throughout
  • NSF certified for food-service compliance

Specifications

Overall width 72" (1829 mm)
Overall depth 18-1/4" (464 mm)
Overall height 33-1/2" (851 mm) to deck
+ 4-1/2" backsplash
Work height 30" (762 mm)
Bowl size (each) 10" W x 14" F/B x 10" D
Drainboards (2) 13-3/4" L stamped & pitched
Faucets supplied (2) BKF-W2-10-G splash-mount, 4" OC, lead-free
Drain fittings (4) BKDR-2 basket drains with 1-1/2" connections
Overflow tubes (4) BK-OT-15075 removable SS standpipes, 7" H
Material & finish 18 ga. type 304 stainless steel, #4 polished
Certifications NSF

Why Slim-Line?

  • 18-1/4" front-to-back depth fits narrow bar aisles without sacrificing capacity.
  • Stamped bowls & drainboards speed drainage and cleanup.
  • Factory-installed faucets and drains reduce install time and cost.
  • Removable apron panel offers fast access to plumbing connections.

Need a matching ice bin or speed rail? Contact our team – we stock the full BK Resources underbar line.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Top Stainless Series

300 series

Sink Compartments

(4)

Drainboards

drainboards on left & right

Depth (front - back) OA

18" - 19"

Splash

4"

Construction

stainless steel top, front, ends & legs

Width (side - side) OA

67" - 72"

Specifications

Slim-Line Underbar Sink, four compartment, 72”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 13-3/4" stamped drainboards, 4-1/2"H backsplash, (2) 4" OC splash mount lead-free faucets (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
