BK Resources UBDW-18-384TS Bar Equipment
Description
BK Resources Slim-Line Underbar Sink – 84" Three-Compartment
Model: UBDW-18-384TS (NSF)Maximize your bar’s productivity without giving up valuable floor space. This 84 inch Slim-Line underbar sink from BK Resources delivers full three-compartment ware-washing in an ultra-narrow 18 ¼ inch footprint—complete with dual 25 inch drainboards, lead-free faucet, basket drains, and overflow standpipes, all in rugged 18-gauge type 304 stainless steel.
Why you’ll love it
- Space-saving 18 ¼" depth keeps aisles clear and bars flowing.

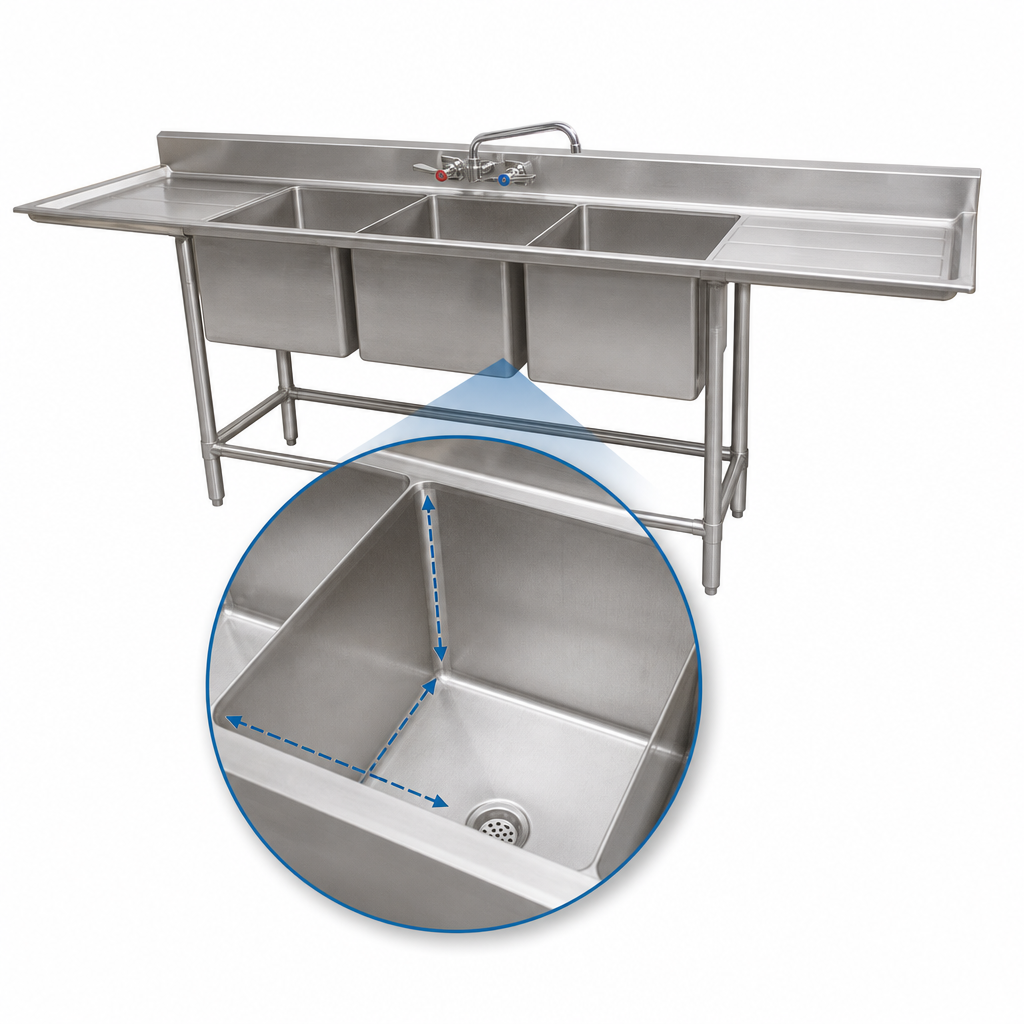

- Three integrally welded bowls (10" × 14" × 10" each) handle wash, rinse & sanitize with ease.
- Left & right 25" stamped drainboards speed up drying and glass turnover.
- 4 ½" backsplash with 4" on-center faucet holes contains splashes and meets code.
- Includes BKF-W2-10-G splash-mount faucet – lead-free & ready to install.
- (3) BKDR-2 basket drains & (3) BK-OT-15075 removable 7" overflow standpipes keep water levels perfect.
- 18-gauge, 304 stainless steel throughout – corrosion-proof and easy to clean.
- Die-formed wall & base with removable front panel for swift plumbing access.
- NSF listed for peace-of-mind health-department approval.
At-a-glance specs
| Overall length | 84" (2134 mm) |
|---|---|
| Front-to-back depth | 18 ¼" (464 mm) |
| Overall height | 33 ½" (851 mm) with backsplash |
| Compartment size | 10" W × 14" F-B × 10" D (254 × 356 × 254 mm) |
| Number of compartments | 3 |
| Drainboards | (2) 25" L/R stamped & pitched |
| Backsplash height | 4 ½" |
| Faucet | BKF-W2-10-G 4" OC, splash-mount, lead-free (included) |
| Drains | (3) BKDR-2 basket drains (included) |
| Overflow standpipes | (3) BK-OT-15075 removable 7" standpipes (included) |
| Material & gauge | 18-ga Type 304 stainless steel |
| Apron | Stainless steel front & sides |
| Certifications | NSF |
Fast installation, easy upkeep
- Ships fully welded—simply set, level, and connect plumbing.
- Die-formed base stands up to everyday knocks and bumps.
- Smooth #4 polished surfaces clean in seconds with standard bar cleaners.
Need a different length, depth, or bowl count? Explore the full BK Resources Slim-Line underbar series or chat with us for help finding the perfect fit.
