Description

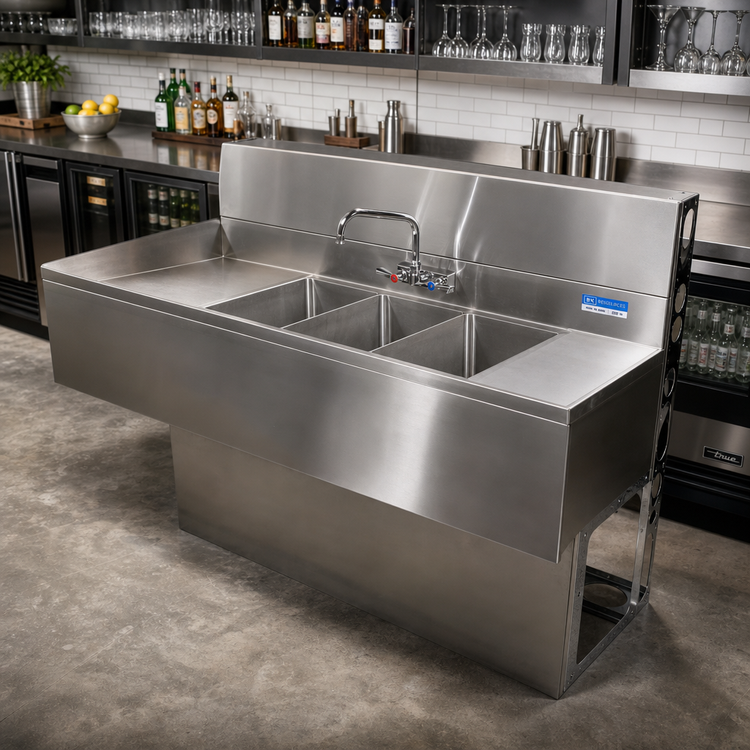

Slim-Line Underbar Sink – 72" Three-Compartment w/ Dual 19" Drainboards

BK Resources | NSF Listed | 18 ga 304 Stainless Steel

Designed for high-volume bars and restaurants that demand durability in a tight footprint, this BK Resources Slim-Line underbar sink delivers three efficient wash bays, generous drainboards on both sides, and all of the plumbing accessories you need to get pouring faster.

Why You’ll Love It
  • Space-saving 18-1/4" deep slim profile keeps service aisles clear.

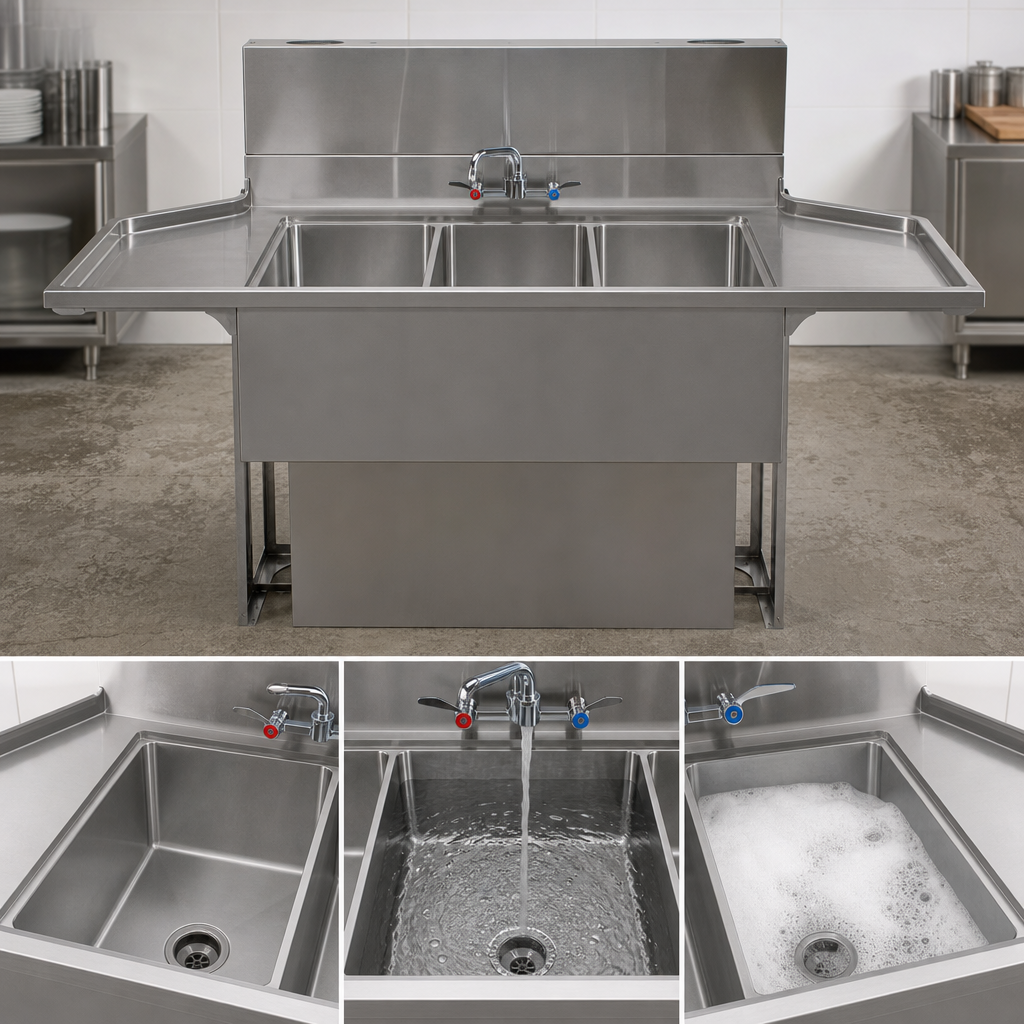

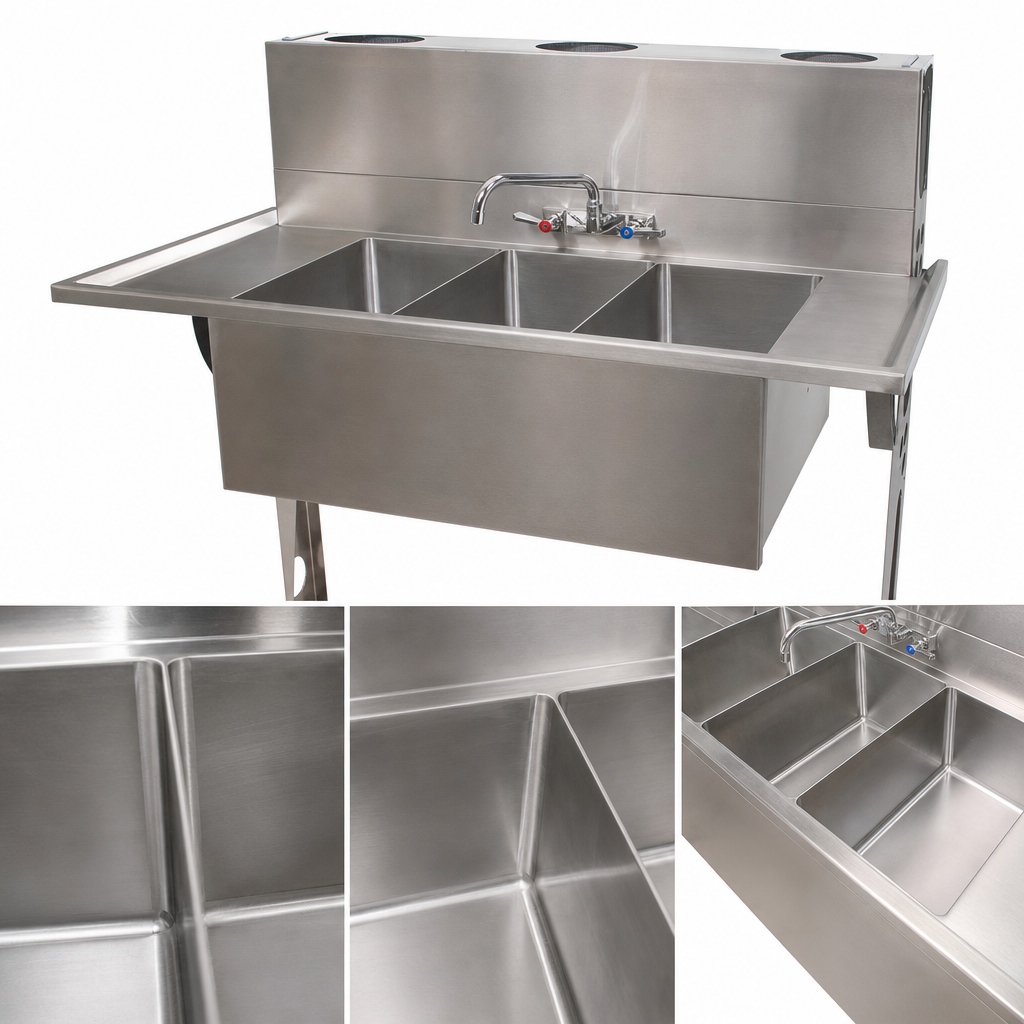

  • (3) Integrally welded bowls – each 10" W × 14" F-B × 10" D – withstand years of heavy use.
  • (2) 19" stamped & pitched drainboards (left & right) speed air-drying and glass turnover.
  • 4-1/2" high backsplash with 4" on-center faucet holes contains splashes and protects walls.
  • Included BKF-W2-10-G lead-free splash-mount faucet installs in minutes.
  • Rugged 18 ga, type 304 stainless steel with die-formed wall & base for extra rigidity.
  • Stainless steel apron on front & sides delivers a clean, professional look.
  • NSF certified for open foodservice use—meets health-department requirements right out of the box.
Everything Included
  • BKF-W2-10-G 4" O.C. splash-mount faucet (lead-free)
  • (3) BKDR-2 stainless steel basket drains
  • (3) BK-OT-15075 removable overflow standpipes
  • Pre-installed stainless mounting hardware & sound-deadening pads
Specifications
Model UBDW-18-372TS (Slim-Line Series)
Overall Dimensions 72" W × 18-1/4" D × 33-1/2" H
Working Height 30" (to bowl rim)
Backsplash Height 4-1/2"
Number of Compartments 3
Compartment Size (each) 10" W × 14" F-B × 10" D
Drainboards (2) 19" – left & right
Faucet BKF-W2-10-G, 4" on-center, splash-mount, lead-free
Drain Opening 1-1/2" NPSM w/ basket drains & overflow standpipes
Material / Gauge 18 ga, type 304 stainless steel
Front & Side Panels Stainless steel apron (removable front panel)
Certifications NSF, Lead-Free (faucet)

Need a different faucet, speed rail, or ice bin? Contact us—our underbar line is fully modular for a perfect fit behind your bar.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Depth (front - back) OA

18" - 19"

Splash

4"

Bowl Size

10" x 14" front-to-back

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Top Stainless Series

300 series

Width (side - side) OA

67" - 72"

Sink Compartments

(3)

Drainboards

drainboards on left & right

Specifications

Slim-Line Underbar Sink, three compartment, 72”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 19" stamped drainboards, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
