BK Resources  |  SKU: UBDW-18-360TS

BK Resources UBDW-18-360TS Bar Equipment

$2,205.24
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment Beverage Equipment Beverage Equipment BK Resources Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

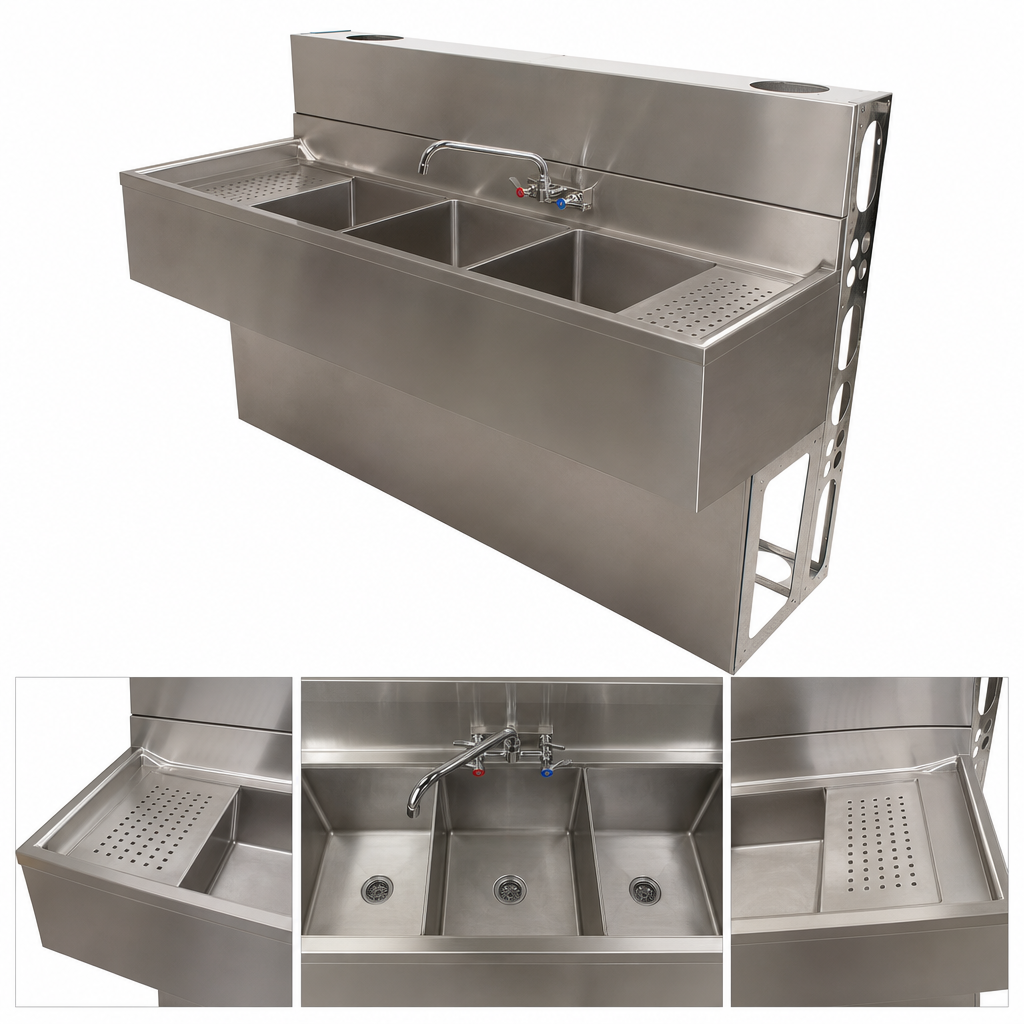

Slim-Line 60" Three-Compartment Underbar Sink w/ Dual Drainboards

BK Resources • Model: UBDW-18-360TS

Maximize behind-the-bar space while maintaining a full wash-rinse-sanitize workflow. This slim-line sink delivers three 10"-deep bowls, dual drainboards, and a lead-free faucet in a compact 18-1/4" footprint—perfect for high-traffic bars, cafés, and beverage stations.

Key Features
  • Overall size: 60" W × 18-1/4" D × 33-1/2" H (41" to top of backsplash)
  • (3) integrally welded bowls — 10" W × 14" F-B × 10" D each

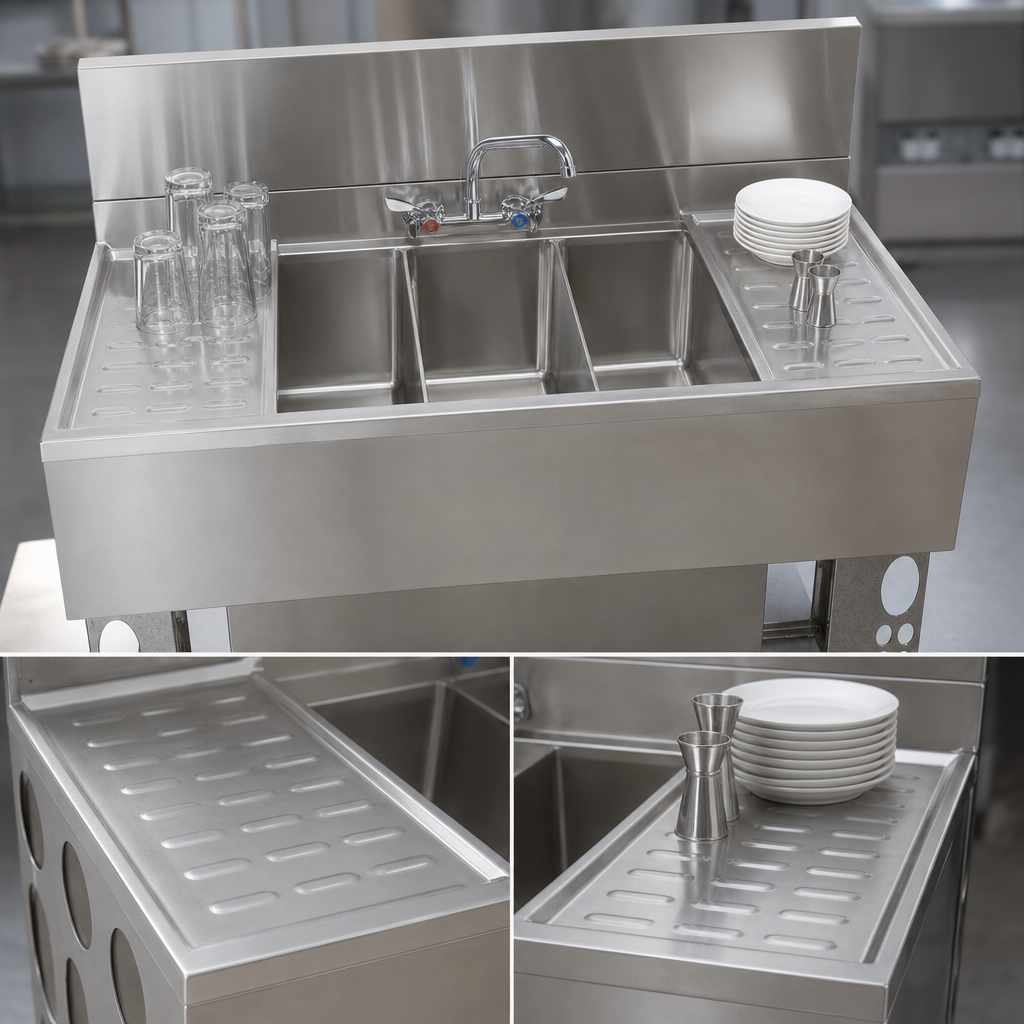

  • (2) stamped & pitched drainboards, 13-1/2" long (left & right)
  • 4-1/2" high backsplash pre-drilled 4" O.C. for splash-mount faucet
  • Includes lead-free 4" O.C. faucet with 10" spout (BKF-W2-10-G)
  • Includes (2) basket drains (BKDR-2) & removable 7" overflow standpipes (BK-OT-15075)
  • 18 ga, type 304 stainless steel bowls, drainboards, die wall & base
  • Stainless steel front & side apron removes for easy cleaning
  • NSF certified for food-service sanitation
Why It Stands Out
  • Slim 18-1/4" depth keeps aisles clear without reducing capacity
  • Welded bowls eliminate seams that can harbor bacteria or leak
  • Pitched drainboards speed drying and reduce standing water
  • All plumbing components included—no surprise add-on costs
  • Backed by BK Resources’ reputation for durable commercial fabrication
Technical Specifications
Overall width 60" (1524 mm)
Overall depth 18-1/4" (464 mm)
Working height 30" (762 mm)
Backsplash height 4-1/2" (114 mm)
Bowl interior (each) 10" W × 14" F-B × 10" D
Number of bowls 3
Drainboards (2) – 13-1/2" L, left & right
Faucet BKF-W2-10-G, lead-free, 4" O.C., 10" spout
Drains (2) BKDR-2 basket drains
Overflow standpipes (2) BK-OT-15075, 7" removable
Material 18 ga / Type 304 stainless steel
Certifications NSF

Looking for another length or configuration? Chat with us—BK Resources offers a full line of slim-line underbar sinks to fit any layout.

Important: Mounting hardware for securing the unit to wall or floor is not included. Always verify local plumbing codes before installation.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Sink Compartments

(3)

Construction

stainless steel top, front, ends & legs

Top Stainless Series

300 series

Bowl Size

10" x 14" front-to-back

Drainboards

drainboards on left & right

Depth (front - back) OA

18" - 19"

Width (side - side) OA

55" - 60"

Bowl Depth (rim - drain)

10"

Splash

4"

Specifications

Slim-Line Underbar Sink, three compartment, 60”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 13-1/2" stamped drainboards, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
