BK Resources  |  SKU: UBDW-18-348RS

BK Resources UBDW-18-348RS Bar Equipment

$2,183.93
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

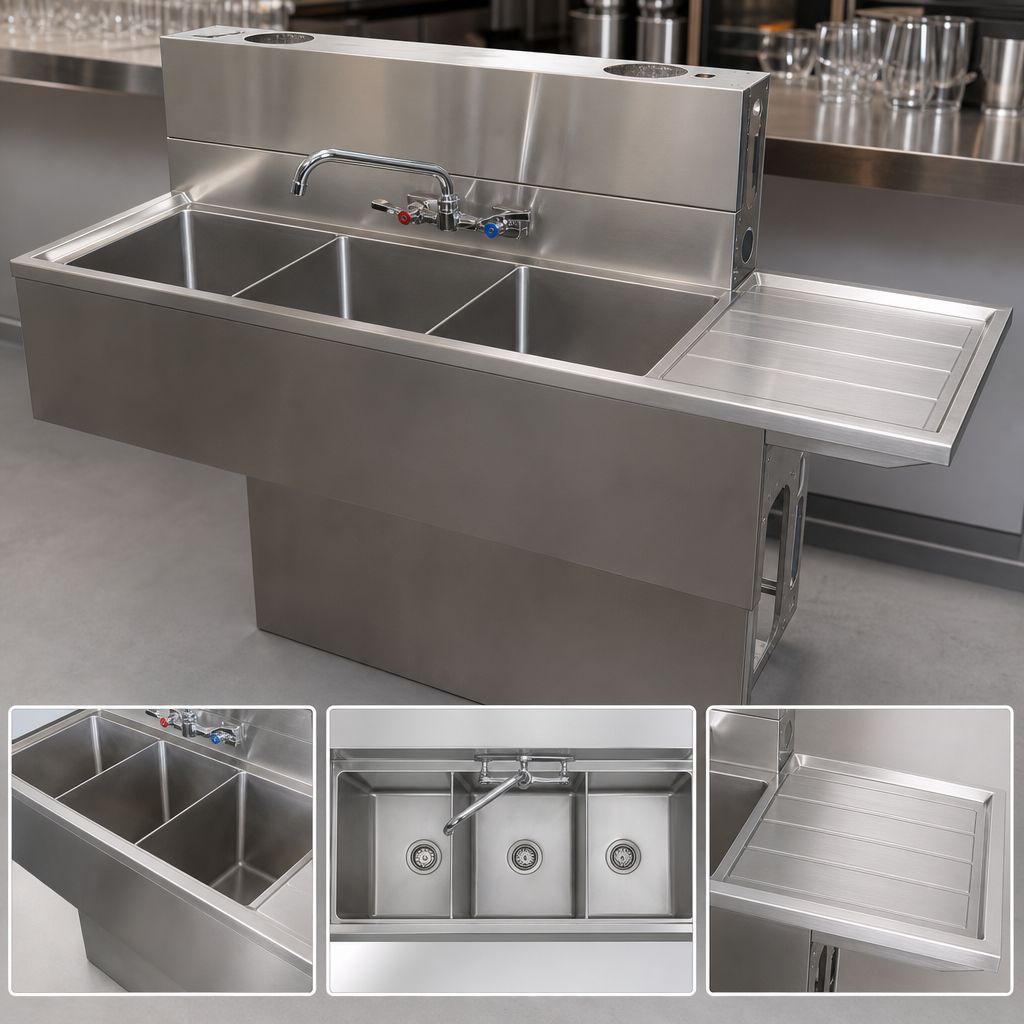

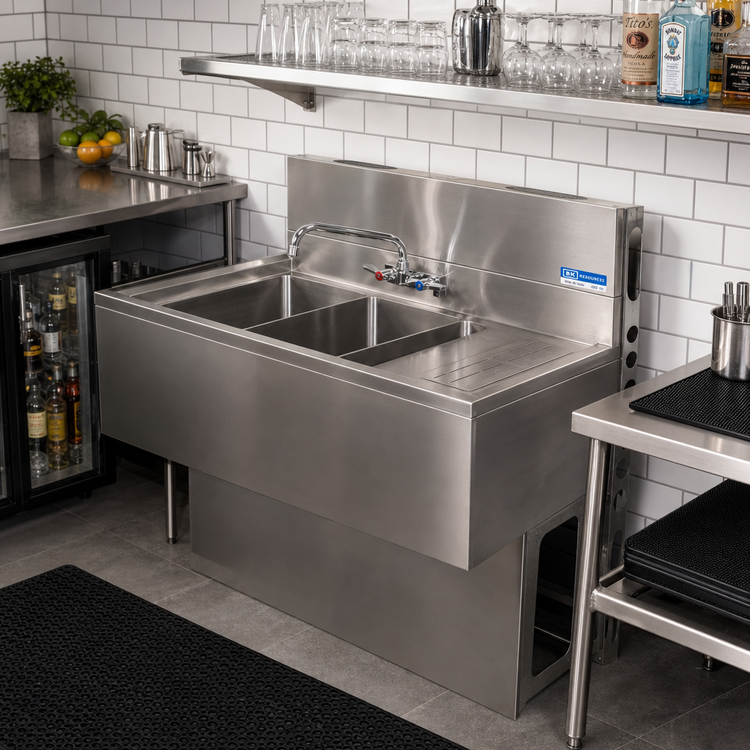

BK Resources Slim-Line 3-Compartment Underbar Sink – 48" w/ Right Drainboard

Model UBDW-18-348RS  |  Includes Faucet & Drains  |  NSF Certified

Maximize bar productivity in the smallest possible footprint. This 18-1/4" deep Slim-Line sink delivers three full-size washing bowls and a sloped right-hand drainboard without crowding your work aisle, making it ideal for high-volume bars, taprooms, and tasting rooms that can’t spare a single extra inch.

Key Features

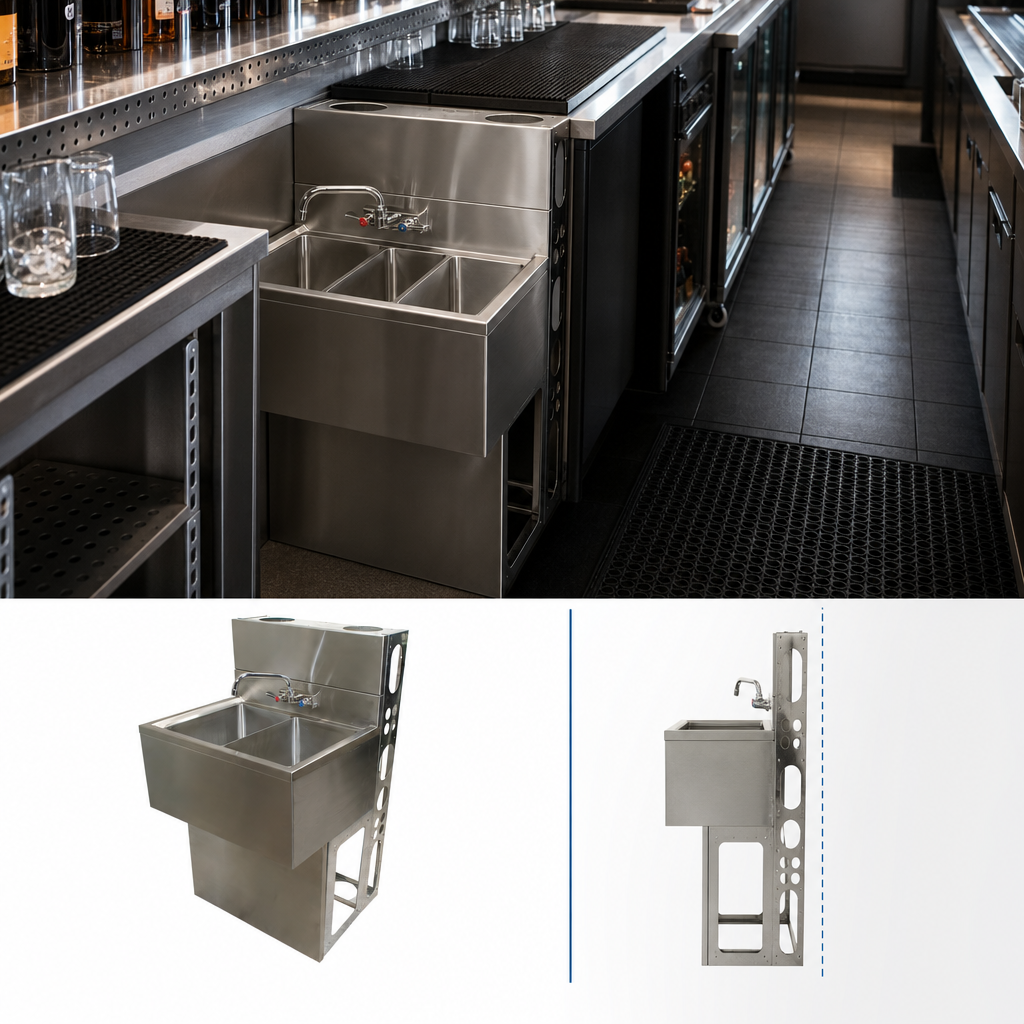

  • Space-saving 18-1/4" front-to-back depth preserves valuable bar aisle clearance.
  • Three integrally welded bowls (10" W × 14" F/B × 10" D) meet NSF ware-washing standards.
  • 13-5/8" right-side drainboard is stamped and pitched to speed drying and keep countertops clean.
  • 4-1/2" backsplash with 4" on-center faucet holes; lead-free splash-mount faucet (BKF-W2-10-G) included.
  • Comes complete with (3) BKDR-2 basket drains and (3) BK-OT-15075 7" removable overflow standpipes.
  • 18 ga, Type 304 stainless steel bowls, apron, die wall, and base resist corrosion and daily wear.
  • Removable stainless-steel front and side panels provide fast access for plumbing and cleaning.
  • NSF listed for safe use in commercial foodservice environments.

Specifications

Overall width 48" (1219 mm)
Overall depth 18-1/4" (464 mm)
Overall height 33-1/2" (851 mm) to top of backsplash
Backsplash height 4-1/2" (114 mm)
Compartments 3
Bowl size (each) 10" W × 14" F/B × 10" D
Drainboard 13-5/8", stamped & pitched, right side
Faucet BKF-W2-10-G, splash-mount, 4" centers, lead-free (included)
Drain fittings (3) BKDR-2 basket drains & (3) BK-OT-15075 overflow standpipes (included)
Material 18 ga / Type 304 stainless steel
Construction Integrally welded bowls; die wall & base; removable SS apron
Certifications NSF

Looking for a left-hand drainboard or different bowl configuration? Explore our full BK Resources Slim-Line collection or contact us for expert assistance.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Width (side - side) OA

43" - 48"

Top Stainless Series

300 series

Bowl Size

10" x 14" front-to-back

Bowl Depth (rim - drain)

10"

Drainboards

drainboard on right

Splash

4"

Depth (front - back) OA

18" - 19"

Sink Compartments

(3)

Construction

stainless steel top, front, ends & legs

Specifications

Slim-Line Underbar Sink, three compartment, 48”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 13-5/8” stamped drainboard on right, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
