BK Resources UBDW-18-348LS Bar Equipment
Description
BK Resources 48" Slim-Line 3-Compartment Underbar Sink – Left Drainboard
Model UBDW-18-348LS | NSF Certified 18 ga 304 Stainless SteelPurpose-built for tight bar runs, this Slim-Line sink packs full ware-washing performance into an ultra-compact 18-1/4" footprint. Three welded bowls, a generously sized stamped drainboard and all included plumbing accessories mean you can unbox, hook up and get to work the same day.
Key benefits
- Space-saving 18-1/4" front-to-back depth fits narrow underbar stations.

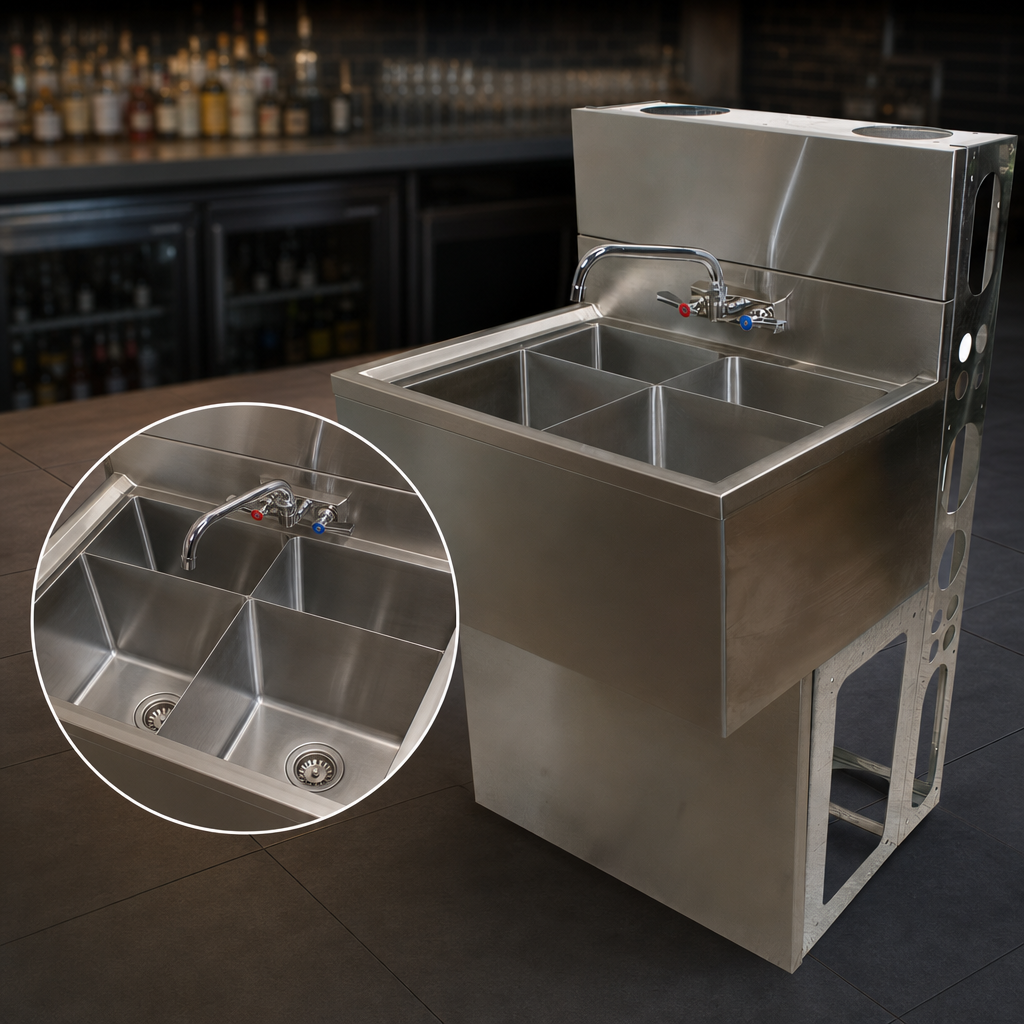

- (3) 10" W x 14" D x 10" H bowls let you wash, rinse & sanitize simultaneously.
- 13-5/8" left-side drainboard is stamped & pitched for rapid drainage and glass drying.
- 4-1/2" backsplash with pre-punched 4" OC holes keeps walls protected and simplifies faucet mounting.
- Includes lead-free BKF-W2-10-G splash-mount faucet with 10" swing spout.
- (3) BKDR-2 basket drains and (3) BK-OT-15075 removable 7" overflow standpipes come standard.
- 18 ga 304 stainless steel construction resists corrosion and nightly cleaning chemicals.

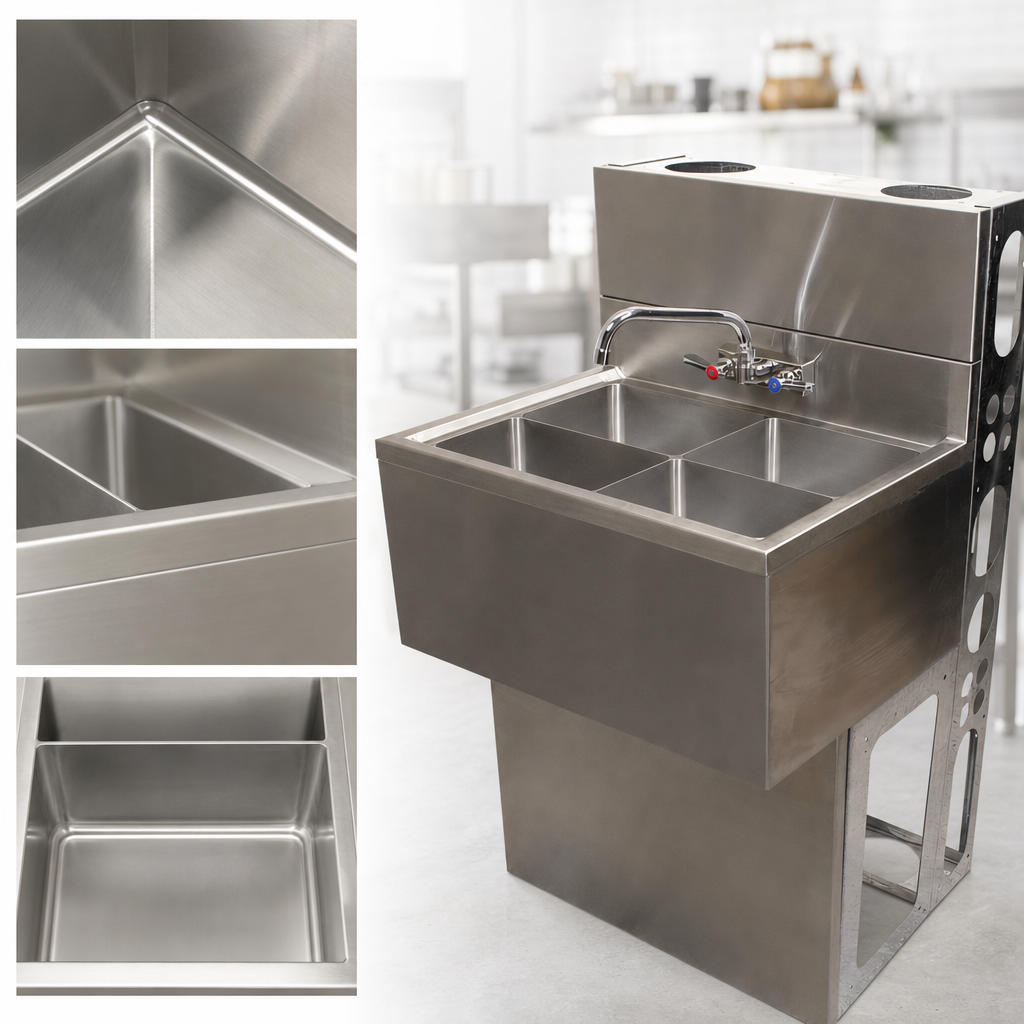

- Die-formed walls and welded base deliver long-lasting structural strength.
- Removable stainless steel front & side aprons provide quick access to plumbing.
- NSF listed for sanitation compliance in commercial foodservice environments.
Ideal applications
- Bars & nightclubs
- Coffee shops & juice bars
- Food trucks & concession trailers
- Compact back-of-house prep stations
What’s included
- BK Resources UBDW-18-348LS slim-line sink body
- BKF-W2-10-G 4" OC splash-mount faucet (lead-free, 10" spout)
- (3) BKDR-2 stainless steel basket drains
- (3) BK-OT-15075 7" stainless steel overflow tubes
- Installation & maintenance guide
Technical specifications
| Overall width | 48" |
|---|---|
| Overall depth | 18-1/4" |
| Overall height | 33-1/2" |
| Working height | 30" |
| Bowl count | 3 |
| Bowl dimensions (W × D × H) | 10" × 14" × 10" |
| Drainboard | Left side, 13-5/8" wide, stamped & pitched |
| Backsplash height | 4-1/2" |
| Faucet holes | 4" on-center, splash mount |
| Material | 18 ga 304 stainless steel |
| Certifications | NSF |
