BK Resources  |  SKU: UBDW-18-336S

BK Resources UBDW-18-336S Bar Equipment

$1,796.85
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources Slim-Line 3-Compartment Underbar Sink – 36" W

18-Gauge 304 Stainless Steel | NSF Listed

Designed specifically for tight bar stations and concession areas, this Slim-Line underbar sink packs full-size, three-compartment functionality into a compact 18 ¼" footprint. Heavy-duty stainless construction, an included lead-free faucet, and all required plumbing accessories arrive ready for fast, code-compliant installation.

Why You’ll Love It

  • Space-saving 18 ¼" deep slim-line design keeps aisles clear.

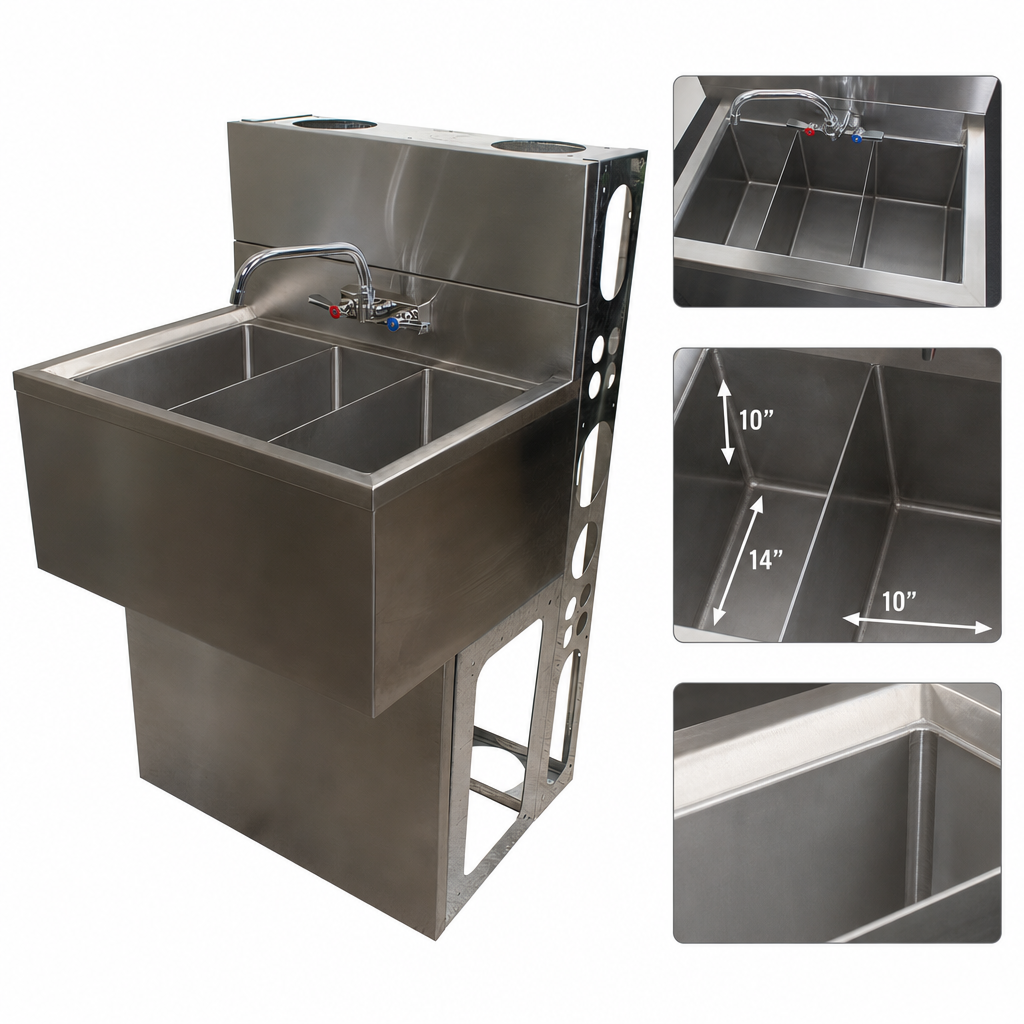

  • Three integrally-welded bowls (10" W × 14" F-B × 10" D) for wash, rinse & sanitize.
  • 4 ½" backsplash with 4" on-center holes and included BKF-W2-10-G lead-free splash-mount faucet.
  • Stainless apron on front & sides; removable for quick plumbing access.
  • Includes BKDR-2 basket drains and BK-OT-15075 7" overflow standpipes—no extra parts to buy.
  • Die-formed walls and base add strength for everyday commercial use.

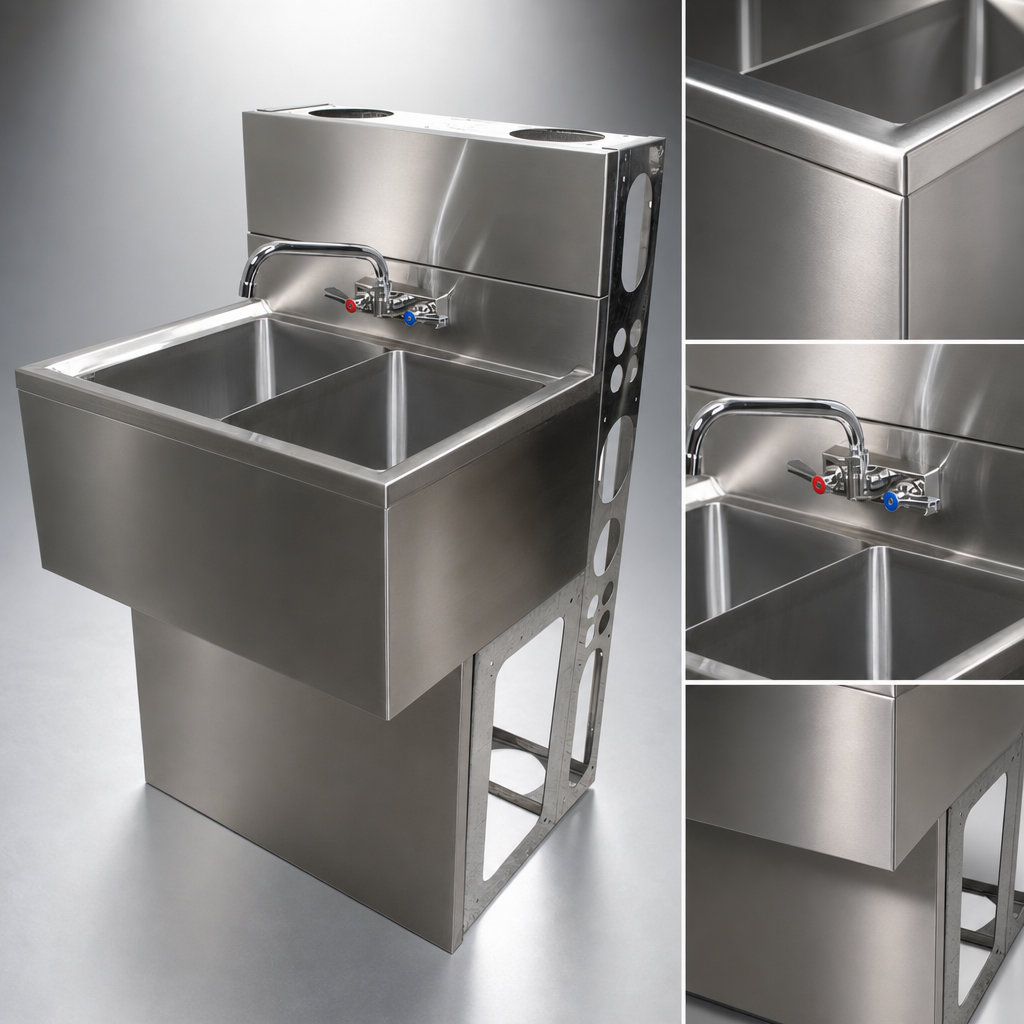

  • 18-gauge, Type 304 stainless steel resists corrosion, stands up to cleaners and sanitizer.
  • NSF certified for open foodservice and bar environments.

Product Specifications

Overall width 36"
Overall depth 18 ¼"
Overall height 33 ½"
Bowl count & size (3) 10" W × 14" F-B × 10" D welded bowls
Backsplash height 4 ½"
Faucet BKF-W2-10-G, 4" OC, lead-free, splash-mount (included)
Drains / overflow (3) BKDR-2 basket drains & (3) BK-OT-15075 removable standpipes (included)
Construction 18-gauge, Type 304 stainless steel; die-formed wall & base
Certifications NSF

Quick Installation Tips

  • Unit ships fully assembled—simply level, connect water supply, and secure drains.
  • Keep front apron removable for future service access.
  • Use only NSF-listed plumbing components to maintain certification.

Need additional bar equipment? Explore matching underbar ice bins, speed rails and drainboards from BK Resources for a seamless bar line-up.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Bowl Size

10" x 14" front-to-back

Top Stainless Series

300 series

Width (side - side) OA

31" - 36"

Bowl Depth (rim - drain)

10"

Depth (front - back) OA

18" - 19"

Splash

4"

Construction

stainless steel top, front, ends & legs

Sink Compartments

(3)

Drainboards

without drainboards

Specifications

Slim-Line Underbar Sink, three compartment, 36”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
